Introduction
The GRX1 receiver is a multi-frequency, GPS+ receiver built to be the most advanced and
compact receiver for the surveying market. The receiver is a multi-function, multi-purpose
receiver intended for precision markets.
Precision markets means markets for equipment, subsystems, components and software for
surveying, construction, commercial mapping, civil engineering, precision agriculture and
land-based
construction
hydrographic and any use reasonably related to the foregoing.
The GRX1 can receive and processes multiple signal types ( including the latest GPS L1, L2, C/A,
L2C GLONASS L1, L2, C/A signals ) improving the accuracy and reliability of the survey points
and positions, especially under difficult jobsite conditions.
features of the receiver combine to provide a positioning system accurate for any survey.
Several other features, including multipath mitigation, provide under-canopy and low signal
strength reception. The receiver provides the functionality, accuracy, availability, and integrity
needed for fast and easy data collection.
Principles of Operation
Surveying with the right GPS receiver can provide users accurate and precise positioning, a
requirement for any surveying project.
proposed Global Navigation Satellite Systems ( GNSS ) and receiver functions so that basic
operating principles can be applied.
and
agriculture
machine

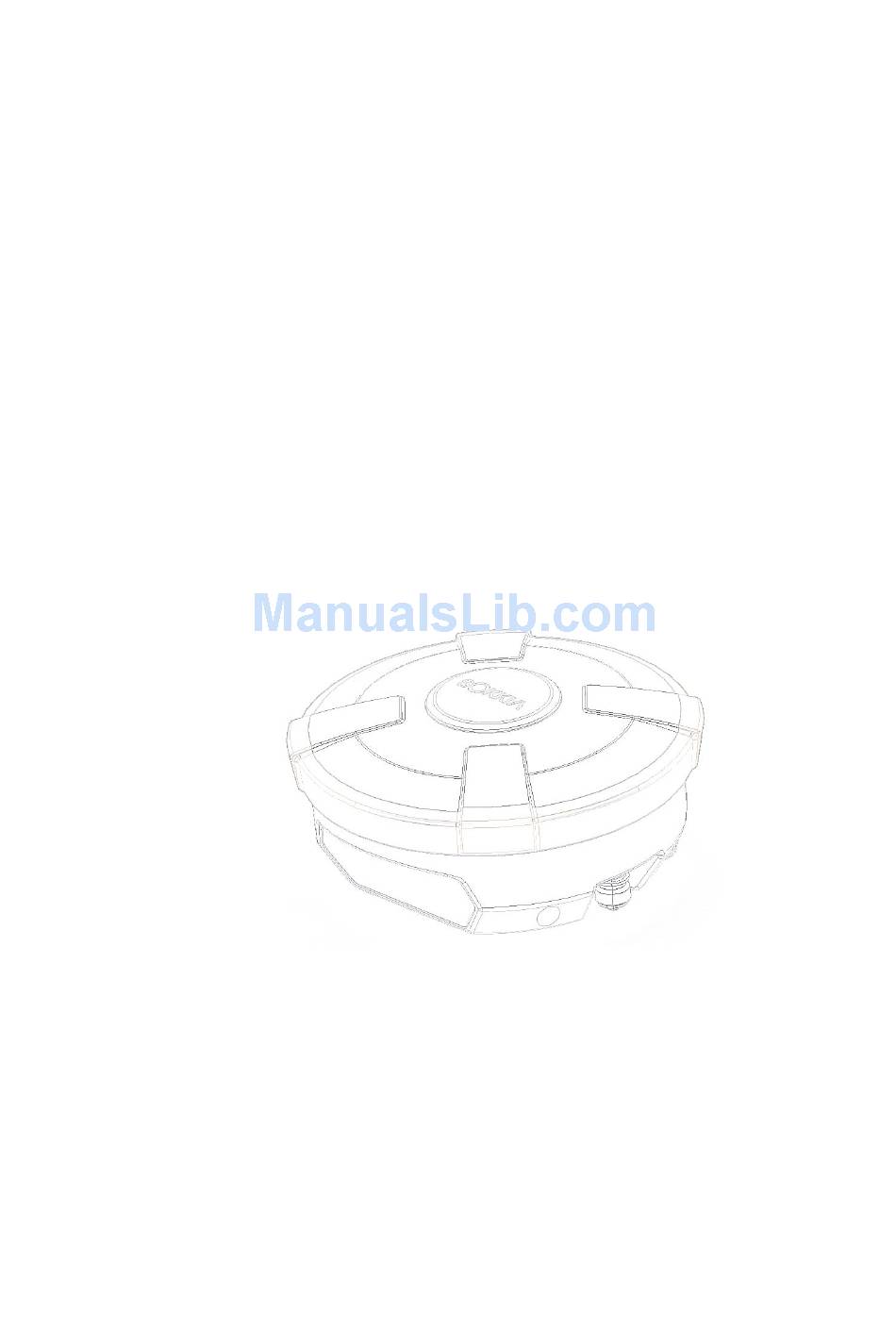

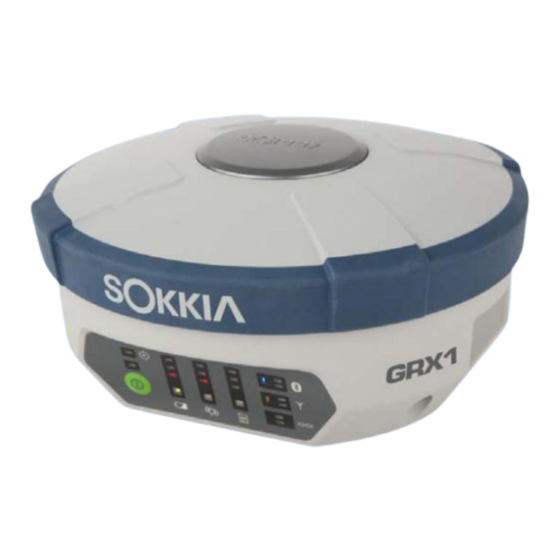

Figure 1-1. GRX1 Receiver
This section gives an overview of existing and
GRX1 Chapter 1
control,
photogrammetry
The multifrequency and GPS+
GRX1 Chapter 1
mapping,
Advertisement
Table of Contents
Related Manuals for Sokkia GRX1
Summary of Contents for Sokkia GRX1
-
Page 1: Principles Of Operation
The GRX1 can receive and processes multiple signal types ( including the latest GPS L1, L2, C/A, L2C GLONASS L1, L2, C/A signals ) improving the accuracy and reliability of the survey points and positions, especially under difficult jobsite conditions. -
Page 2: Gnss Overview
GRX1 Chapter 1 GNSS Overview Currently, the following two global navigation satellite systems ( GNSS ) offer line-of-site radio navigation and positioning, velocity, and time services on a global, all-weather scale to any user equipped with a GNSS tracking receiver on or near the Earth's surface: GPS - the Global Positioning System maintained and operated by the United States Department of Defense. -
Page 3: Calculating Differential Positions
GRX1 Chapter 1 Calculating Differential Positions DGPS, or Differential GPS, is a relative positioning technique where the measurements from two or more remote receivers are combined and processed using sophisticated algorithms to calculate the receivers' relative coordinates with high accuracy. DGPS accommodates various... -
Page 4: Essential Components For Quality Surveying
GRX1 Chapter 1 Essential Components for Quality Surveying Achieving quality position results requires the following elements: Accuracy - The accuracy of a position primarily depends upon the satellite geometry ( Geometric Dilution of Precision, or GDOP ) and the measurement (ranging) errors. -
Page 5: Getting Acquainted
Setting different mask angles Setting different survey parameters Static or dynamic modes Getting Acquainted The GRX1 is a 72-channel GPS receiver, which includes the following: External, detachable batteries One data ports Interface for controlling and viewing data logging External memory card slot... - Page 6 GRX1 Chapter 1 Batteries The GRX1 receiver comes equipped with one detachable, re-chargeable batteries ( Figure 1-2 ) for powering the receiver. Figure 1-2. GRX1 Batteries Please use CDC68 as battery charging cradle. It takes approximately four hours to completely charge one battery, and...
- Page 7 Radio Status Serial Port Status Battery Status Position Status File Statius Figure 1-5. GRX1 MINTER Available Power Bar indicates battery remaining or voltage. Green - indicate greater than 50%. Yellow - indicate greater than 25%. Red - indicate greater than 10%.
- Page 8 GRX1 Chapter 1 Wireless Status LEDs indicate status of the internal Blue-tooth module. Blue - internal Bluetooth connection has been established. Blue blink - internal Bluetooth connection has not been made, as long as the module has power. Blue dark - internal Bluetooth is not being powered.
-
Page 9: Data And Power Ports
Data and Power Ports The GRX1 has the following three ports (Figure 1-6): Serial - rimmed in blue; used for communication between the receiver and an external device. The body of the connector on the corresponding cable is blue. -
Page 10: External Radio Antenna Connector
GRX1 Chapter 1 External Radio Antenna Connector The UHF and SS antennas connect to the external antenna connector under the GRX1 housing ( Figure 1-7 ). Both modem antenna types include support for a GSM modem. The modem antenna depends on the type of modem in-stalled in the receiver:... - Page 11 ). The SIM card usually remains inside the receiver. The GSM module with the SIM card installed can be accessed via Modem-TPS for configuration purposes. A SIM card can be purchased from a local cellular provider. Card Slot SD and SIM Figure 1-9. GRX1 Card Slot Example GRX1 Chapter 1...
-
Page 12: Other Accessories
Measuring Tape ( 405-0-0013 ) 3.7m HI ( Calibrated ) SD Card FAT16、2GB industrial CD-ROM include Manual PDF and Config Tool Carrying Case For more details on the accessories and package options available for the GRX1, contact the local Sokkia Topcon dealer. GRX1 Chapter 1... -
Page 13: Optional Accessories
Optional Accessories Sokkia Topcon offers a wide variety of accessories especially designed to extend job reliability and efficiency. For more details on the optional accessories available for GRX1, contact the local Sokkia Topcon dealer. Interface Cable ( ***** ) For SHC250/SHC2500, Cross connection, D-sub 9pin... -
Page 14: Option Authorization File (Oaf)
GRX1 Chapter 1 Option Authorization File (OAF) Sokkia Topcon issues an Option Authorization File ( OAF ) to enable the specific options that customers purchase. An Option Authorization File allows customers to customize and configure the receiver according to particular needs, thus only purchasing those options needed.
