Southwestern Bell GH5810US Owner's Manual

Cordless telephone with call waiting caller id
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

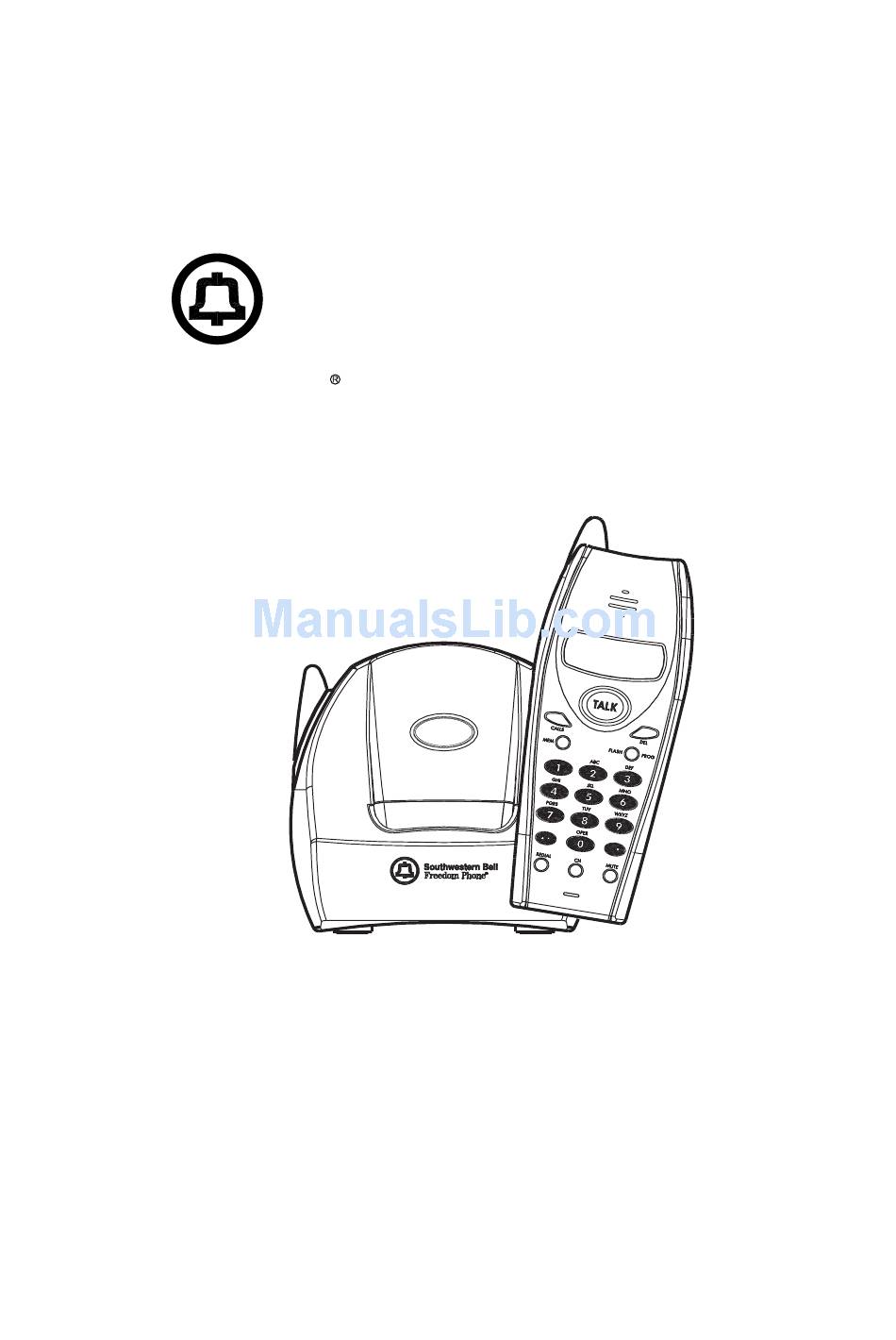

Southwestern Bell
Freedom Phone
5.8GHz
Cordless Telephone With Call Waiting Caller ID
PAGE
GH5810US Owner's Manual
Toll Free Helpline 1-800-366-0937
http://www.swbfreedomphone.com

Advertisement

Table of Contents
loading

Related Manuals for Southwestern Bell GH5810US

Summary of Contents for Southwestern Bell GH5810US

  • Page 1 Southwestern Bell Freedom Phone 5.8GHz Cordless Telephone With Call Waiting Caller ID PAGE GH5810US Owner’s Manual Toll Free Helpline 1-800-366-0937 http://www.swbfreedomphone.com...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS........3 SAFETY INSTRUCTIONS FOR BATTERIES.......4 NAME OF CONTROLS AND INDICATIONS.........5 FCC WANTS YOU TO KNOW.............8 INTRODUCTION ABOUT GH5810................10 FEATURES................10 BOX CONTENTS.................11 PREPARATION................11 OPERATING INSTRUCTIONS DESK/TABLE INSTALLATION............12 WALL MOUNTING..............13 HANDSET BATTERY CHARGING..........14 SETUP HANDSET..............15 TELEPHONE OPERATION............18 CALLER ID OPERATION............22 TROUBLE SHOOTING............26 PRODUCT CARE...............28 SERVICE................29...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall telephone jack and power outlet before cleaning.

  • Page 4: Safety Instructions For Batteries

    Handset Battery Pack CAUTION: Use only a Southwestern Bell Freedom Phone approved battery pack in the handset of your GH5810 Cordless Telephone. To reduce the risk of fire or injury, always do the following when replacing, discarding or charging batteries. When handling the batteries, be careful not to short the battery with conducting materials such as rings, bracelets, and keys.

  • Page 5: Name Of Controls And Indications

    NAME OF CONTROLS AND INDICATIONS Handset Controls, Indicators Receiver Volume New Call Indicator Switch Flashes to indicate there -To adjust the receiver are calls that have not been reviewed Earpiece Caller ID Calls LCD Display Button User to dial the displayed number Talk button Used to make or to...
  • Page 6 NAME OF CONTROLS AND INDICATIONS LCD Display Indicator Repeated Call RING OFF Clock Indicator Indicator New Call/ Call Counter Date VIP Indicator 12-digit Number Line 12-character Text Line NEW CALL/ Shows the amount of calls in standby mode. CALL COUNTER When there is a new call that has not been reviewed, the display will show “NEW CALL”...
  • Page 7 Base Unit Controls and Indicators Telephone Line DC In 9v DC 300mA Connect the telephone line cord here Connect AC adaptor cord here USE ONLY WITH CLASS2 POWER SOURCE 9V DC 300 m A TEL LINE In Use/Charge LED Lights when the handset is in TALK mode or the handset is Page Button on the cradle and the battery...

  • Page 8: Fcc Wants You To Know

    FCC WANTS YOU TO KNOW This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:47GW902BGH5810US.If requested, This number must be provided to the telephone company .
  • Page 9 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates,uses and can radiate radio frequency energy and,if not...

  • Page 10: Introduction

    INTRODUCTION About the GH5810 The GH5810 is a 5.8GHz Cordless Phone with Caller Identifier . It is designed and engineered to strict standards for reliability, long life, and outstanding performance. FEATURES Caller ID (60 call data memory locations) with call waiting 40 Channels (auto or manual selection) 10-Number One-touch Dial Memory Direct dialing from caller list...

  • Page 11: Box Contents

    INTRODUCTION (CONT.) Box Contents 1Base unit AC adaptor with cord 1 Handset with rechargeable batteries (9V 300mA) Quick installation guide Memory card Registration card Telephone line cord NOTE: a. Keep the shipping carton and packaging, in case you need to transport your phone. b.

  • Page 12: Desk/Table Installation

    INSTALLATION Desk or Table Installation 1. The GH5810 base unit has built-in wall mount hanger holes. There is no bracket to assemble. Simply take the base unit out of the box. 2. Plug the AC adaptor cord into the 9V DC-300mA input jack on the Base unit. 3.

  • Page 13: Wall Mounting

    INSTALLATION (CONT.) Wall Mounting 1. If using a standard wall plate, this step is not necessary. Place the Desk/ Wall bracket on the wall and mark the location of the screws. Install the screws leaving 3/16" extending out from the wall. Use anchors to secure screws. 2.

  • Page 14: Handset Battery Charging

    INSTALLATION (CONT.) Handset Battery Charging The battery pack in the handset must be fully charged for about 10 hours before using the telephone. After connecting to AC power, leave the handset unused in the cradle for ten to fourteen hours. Later, it will take less time for the battery to recharge. The IN USE/ CHARGE LED on the base will be lit when the handset is in the cradle.

  • Page 15: Setup Handset

    HANDSET SETUP Overview To go to set up mode, press and hold FLASH/PROG key for 2 seconds. The following modes will set by be pressing FLASH/PROG key. Set Language Area Code Contrast Time Setting Tone/Pulse Ring OFF/LO/HI Ring Type A,B Auto Talk on/off.
  • Page 16 HANDSET SETUP (CONT.) To Set TIME/DAY Use the number pad to change the date and time. Enter the date as month/day (mm/dd) as you enter each digit, the next digit will BLINK. 1 2 : 0 0 1 2 : 0 0 1 / 0 1 1 / 0 1 Enter the month first then enter tne day:...
  • Page 17 HANDSET SETUP (CONT.) To Set Ring Type A,B Press the( )or( )to change the setting. The ringer will ring to allow you to choose the ring tone that you desire. R I N G T Y P E : A R I N G T Y P E : A (FLASH/PROG) will end the program sequence.

  • Page 18: Telephone Operation

    TELEPHONE OPERATION search and select the clearest channel Digital Security System when you press the CHANNEL button.If Your GH5810 Cordless Telephone is you hear noise or other interference equipped with a digital security coding during your conversation, you can system to protect your base unit from be- manually select a clearer channel by ing accessed by other cordless telephone.
  • Page 19 TELEPHONE OPERATION (CONT.) Making a Call Temporary Tone ( In Pulse dialing mode, you can access bank facilities, telephone answering machines, etc., by simply pressing the TONE(‘ ’)key to get into the tone mode and input the required tone codes. It will reset automati- cally after you end your call.
  • Page 20 TELEPHONE OPERATION (CONT.) base for 4 seconds,the handset will beep Out of Range for 60 seconds . If you try to place a call when you are too Press any key on the handset to stop far away from the base, you will hear paging.
  • Page 21 TELEPHONE OPERATION (CONT.) available location. The LCD display will show “ EARSE ? ” 4. Dial phone number (up to 16 digits). Each 3. Press DEL button to confirm. TONE(*) entered uses one of the avail- 4. Reprogram the new number. able digits.

  • Page 22: Caller Id Operation

    CALLER ID OPERATION 2. When you access the Call Waiting call, Receiving a Call the Caller ID information will disappear and After the first ring, the caller’s name and the Time/Day screen will be displayed. telephone number will be displayed on the LCD.
  • Page 23 CALLER ID OPERATION NOTE: If you do not review all new calls, the Time/Date screen will display after 10 seconds and the new call counter will show the total number of new calls rec- eived(including those you just reviewed). (1) 10 digits without a 1 prefix, and Reviewing All Call Records (2) 10 digits with a 1 prefix 1.
  • Page 24 CALLER ID OPERATION (CONT.) To Store a Caller ID Number to 2. While the display is showing any CID number, press and hold the DEL button Memory for 2 seconds. The display will show “ 1. Press buttons to select number DELETE ALL ?”...
  • Page 25 CALLER ID OPERATION (CONT.) NOTE: 4beeps will also sound when the incoming VIP call is a Call Waiting call. To Remove a VIP Call: 1. Press the to select the call you have marked “ VIP”. 2. Press and hold the CALLS button for 2 seconds.

  • Page 26: Trouble Shooting

    TROUBLE SHOOTING If your GH5810 is not performing to your expectation, please try these simple steps. PROBLEM SUGGESTION Make sure the AC Adapter is plugged into the base unit and wall outlet. Charge light won’t come on Make sure the wall outlet is functioning. when handset is placed in Make sure the handset is properly seated in the base unit.
  • Page 27 TROUBLE SHOOTING (CONT.) PROBLEM SUGGESTION Conversation is interrupted Move closer to the base. frequently or Press the CH button to switch to a clearer Static noise is present channel. during conversation Check with your local telephone company to make sure Call Waiting Caller ID service is being provided on your telephone line.

  • Page 28: Product Care

    PRODUCT CARE A. Avoid putting cordless phones near Additional Information heating appliances and devices that gen- A. Connecting this telephone to a coin erate electrical noise (motors, fluorescent operated telephone or party line is prohib- lamps, etc.). ited by law. B.

  • Page 29: Service

    FCC, may only be repaired by authorized persons. If repairs or adjustments are made by an unauthorized person, the FCC certification may be voided. Should you encounter any problems, please call the Southwestern Bell Freedom Phone toll-free Customer Help Line for assistance: 1-800-366-0937, Monday - Friday between the hours of 8:30 am - 9:00 pm (EST) and Saturday between the hours of 8:30 am - 12:30 pm (EST).

  • Page 30: Limited Warranty

    LIMITED WARRANTY This Southwestern Bell Freedom Phone is warranted to the original purchaser to be free from defects in materials and workmanship under normal installation, use, and service for a period of one (1) year from the date of purchase as shown on the purchaser’s receipt.
  • Page 31 LOOK...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER. LISTEN...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM. For immediate answers to your questions regarding operation, missing parts or installation, call the SOUTHWESTERN BELL FREEDOM PHONE RETAIL SALES HELP LINE AT: 1-800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m.
