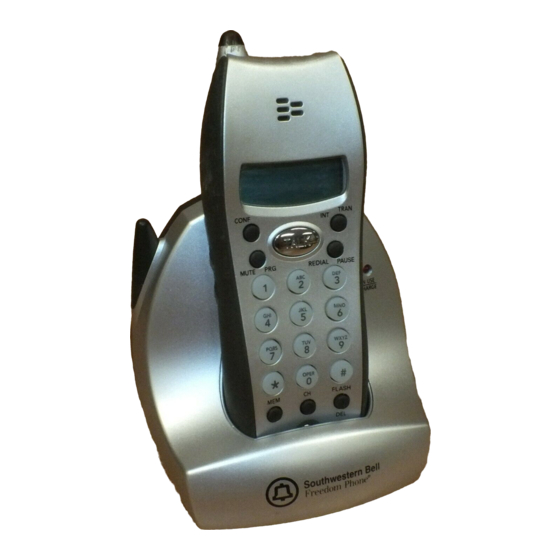

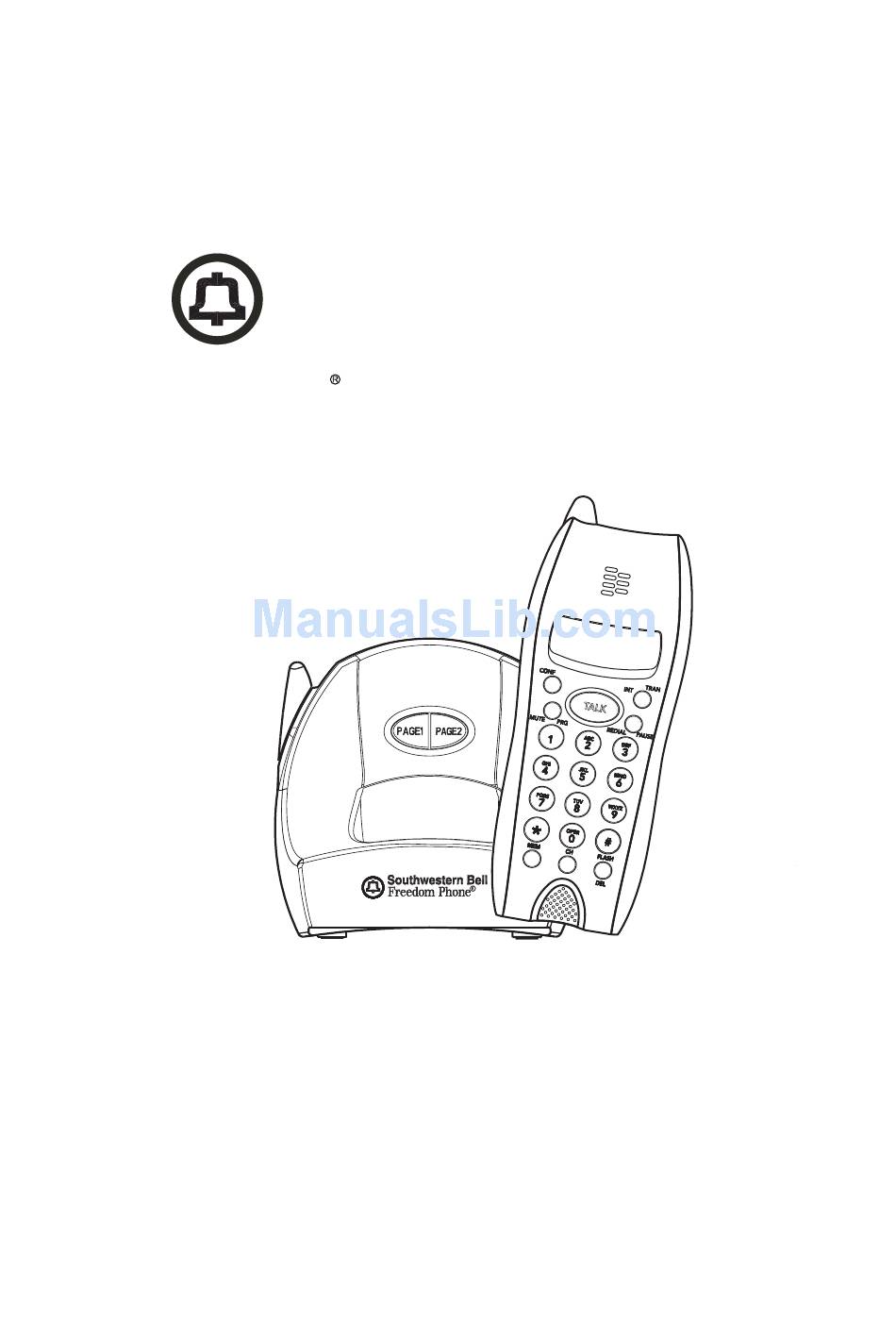

- Page 1 Southwestern Bell Freedom Phone 2.4GHz Cordless Dual Handset Telephone With Call Waiting Caller ID GH3210 Owner’s Manual Toll Free Helpline 1-800-366-0937 http://www.swbfreedomphone.com...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS...3 SAFETY INSTRUCTIONS FOR BATTERIES...4 NAME OF CONTROLS AND INDICATIONS...5 FCC WANTS YOU TO KNOW...9 INTRODUCTION ABOUT GH3210...10 FEATURES...10 BOX CONTENTS...11 PREPARATION...11 OPERATING INSTRUCTIONS DESK/TABLE INSTALLATION...12 EXTRA CHARGER INSTALLATION...13 WALL MOUNTING...14 HANDSET BATTERY CHARGING...15 HANDSETS ID REGISTRATION...16 SETUP HANDSET...17... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall telephone jack and power outlet before cleaning. -
Page 4: Safety Instructions For Batteries
Use only a Southwestern Bell Freedom Phone approved battery pack in the handset of your GH3210 Cordless Telephone. To reduce the risk of fire or injury, always do the following when replacing, discarding or charging batteries. When handling the batteries, be careful not to short the battery with conducting materials such as rings, bracelets, and keys. -
Page 5: Name Of Controls And Indications
NAME OF CONTROLS AND INDICATIONS Handset Controls, Indicators Receiver Volume Control -To adjust the receiver volume level -Caller ID Review buttons -Memory scroll buttons Conference conference allows three- way conversation Program program button to set function Mute button to temporarily mute the microphone. -
Page 6: Lcd Display Indicator
NAME OF CONTROLS AND INDICATIONS LCD Display Indicator Low Battery Clock Indicator Handset#1 Handset#2 Indicator 15-digit Number Line 15-character Text Line Low battery Indicator Lights up to indicate when the battery needs charging. Clock Shows the real time clock (AM/PM) format, or the time stamp of a Caller ID record. -
Page 7: Base Unit Controls And Indicators
Base Unit Controls and Indicators Telephone Line Connect the telephone line cord here Page Button Handset #2 Used to locate the handset Handset #1 DC In 9v DC 500mA Connect AC adaptor(A) cord here In Use/Charge LED Lights when the handset is in TALK mode or the handset is on the cradle and the battery is being charged.Flashes when... -
Page 8: Fcc Wants You To Know
Charger Unit Controls and Indicators DC In 9v DC 100mA Connect AC adaptor(B) cord here CHARGE FCC WANTS YOU TO KNOW This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:47GW902BGH3210US.If required, this number must be provided to the telephone company . - Page 9 Consult the dealer or an experienced radio TV technician for help. NOTICE: If your home has specially wired alarm equipment connected to the telephone line,ensure the installation of this GH3210 does not disable your alarm equipment. If you have questions about what will disable alarm equipment ,consult your telephone com-...
-
Page 10: Introduction
INTRODUCTION About the GH3210 The GH3210 is a 2.4GHz Cordless Phone with Caller Identifier . It is designed and engineered to exacting standards for reliability, long life, and outstanding performance. FEATURES Caller ID (50 call data memory locations) with call waiting... -
Page 11: Box Contents
4. Use caution when installing or modifying telephone lines. Modular Outlet The GH3210 cordless telephone operates from a standard 110/120 volt outlet. The handset is powered by a rechargeable battery pack. Batteries are charged automati- cally when the handset is placed in the cradle or the base unit. -
Page 12: Desk Or Table Installation
INSTALLATION Desk or Table Installation 1. The GH3210 base unit has built-in wall mount hanger holes. There is no bracket to assemble. Simply take the base unit out of the box. 2. Plug the AC adaptor(A) cord into the 9V DC-500mA input jack on the Base unit. -
Page 13: Extra Charger Installation
2. Plug the AC adaptor into a standard 120V AC wall outlet. NOTE: Use only the AC adaptor supplied with GH3210. Place the telephone and power cords where they will not create a trip hazard,or where they could become chafed and create a fire or other electrical hazards. -
Page 14: Wall Mounting
INSTALLATION (CONT.) Wall Mounting 1. If using a standard wall plate, this step is not necessary. Place the Desk/ Wall bracket on the wall and mark the location of the screws. Install the screws leaving 3/16" extending out from the wall. Use anchors to secure screws. 2. -
Page 15: Handset Battery Charging
INSTALLATION (CONT.) Handset Battery Charging The battery pack in the handset must be fully charged for about 10-14 hours before using the telephone. After connecting to AC power, leave the handset unused in the cradle for ten to fourteen hours. Later, it will take less time for the battery to recharge. The IN USE/ CHARGE LED on the base will be lit when the handset is in the cradle. -
Page 16: Handsets Id Registration
INSTALLATION (CONT.) Handsets ID Registration 1. After base unit installation has been finished, place the handsets on the base and charger and make sure each handset is charged for 10~14 hours. NOTE: The handset which has been charged at the external charger must be placed on the main base unit for about 5 seconds to make proper ID registeration. -
Page 17: Setup Handset
SETUP HANDSET Overview To go to set up mode, press and hold MUTE/PRG key for 2 seconds. The following modes will be cycled by pressing MUTE/PRG key. “CONTRAST **” “RING TONE A/B” “AREA CODE” exit setup, press MUTE/PRG key when finished. To Set Contrast 1. -
Page 18: Area Code
SETUP HANDSET (CONT.) To Set Area Code 1. Press MUTE/PRG button to select “AREA CODE”. 2. Simply enter your area code number using the number pad on the handset. 3. Press MUTE/PRG button to confirm. To Set Tone/Pulse Mode 1. Press MUTE/PRG button to select “TONE/PULSE MODE”. 2. -
Page 19: Telephone Operation
Receiver Volume Control Your GH3210 allows you to adjust the handset volume to a more comfortable lis- tening level by pressing up ( )and down... -
Page 20: Making A Call
TELEPHONE OPERATION (CONT.) Making a Call PAUSE 1. If one handset is in use, the other hand- set will display “LINE IN USE” for 3 sec- onds when TALK button is pressed. 2. Lift the handset and press the TALK button to be connected to the phone line. -
Page 21: Out Of Range
TELEPHONE OPERATION (CONT.) Out of Range If you try to place a call when you are too far away from the base, you will hear static. If this occurs, move closer to the base. Flash You can use your cordless telephone with special services such as Call Waiting or Three Way Calling (Special subscription from your local telephone company is... - Page 22 “RING BACK” with a beep sound. The transferring handset goes back to TALK mode. Memory Feature Your GH3210 is equipped with 10 memo- ries for programming your most frequently dialed telephone numbers. You can store up to 15 digits in each of the memory loca- tions 0 through 9 by following the steps outlined.
- Page 23 The LCD display will show “DELETE ITEM ?”. 3. Press DEL button to confirm. 4. Reprogram the new number. Redial Your GH3210 remembers the last num- ber dialed. 1. Press the TALK button on the handset. When you hear a dial tone, press the REDIAL button.
-
Page 24: Caller Id Operation
Receiving Call Waiting Caller ID When you are on an existing phone call, your GH3210 will display incoming call waiting Caller ID information. 1. You will hear a beep and the telepho- ne will be muted momentarily while the LCD display shows the Caller ID informa- tion of the second caller. - Page 25 Caller ID Redial THE AREA CODE MUST BE PROGRAM- MED IN ORDER TO FULLY UTILIZE THE REDIAL FEATURE(SEE PAGE.18). The GH3210 allows you to redial a phone number stored in the Caller ID memory. 1. Press the button to select the Caller ID number that you want to dial.
- Page 26 CALLER ID OPERATION (CONT.) 3. Press the FLASH/DEL button. All viewed calls will be erased. 1-555-896-1234 DELETE...
-
Page 27: Trouble Shooting
TROUBLE SHOOTING If your GH3210 is not performing to your expectation, please try these simple steps. PROBLEM Charge light won’t come on when handset is placed in the base unit. No dial tone Can’t make outgoing calls Handset doesn’t ring Caller’s voice is too low... - Page 28 TROUBLE SHOOTING (CONT.) PROBLEM Conversation is interrupted frequently or Static noise is present during conversation Handset does not d isplay any Caller ID information The display screen is dim or blank Caller ID calls Unit is not receiving Call Waiting Telephone numbers are not dialed correctly from the caller list...
-
Page 29: Product Care
PRODUCT CARE A. Avoid putting cordless phones near heating appliances and devices that gen- erate electrical noise (motors, fluorescent lamps, etc.). B. Avoid rough treatment of the phone by placing the handset gently into the base when hanging up. Avoid dropping the handset. -
Page 30: Service
FCC, may only be repaired by authorized persons. If repairs or adjustments are made by an unauthorized person, the FCC certification may be voided. Should you encounter any problems, please call the Southwestern Bell Freedom Phone toll-free Customer Help Line for assistance: 1-800-366-0937, Monday - Friday between the hours of 8:30 am - 9:00 pm (EST) and Saturday between the hours of 8:30 am - 12:30 pm (EST). -
Page 31: Limited Warranty
LIMITED WARRANTY This Southwestern Bell Freedom Phone is warranted to the original purchaser to be free from defects in materials and workmanship under normal installation, use, and service for a period of one (1) year from the date of purchase as shown on the purchaser’s receipt. - Page 32 LOOK...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER. LISTEN...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM. For immediate answers to your questions regarding operation, missing parts or installation, call the SOUTHWESTERN BELL FREEDOM PHONE RETAIL SALES HELP LINE AT: 1-800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m.
