Summary of Contents for Abus Eyseo TV7057

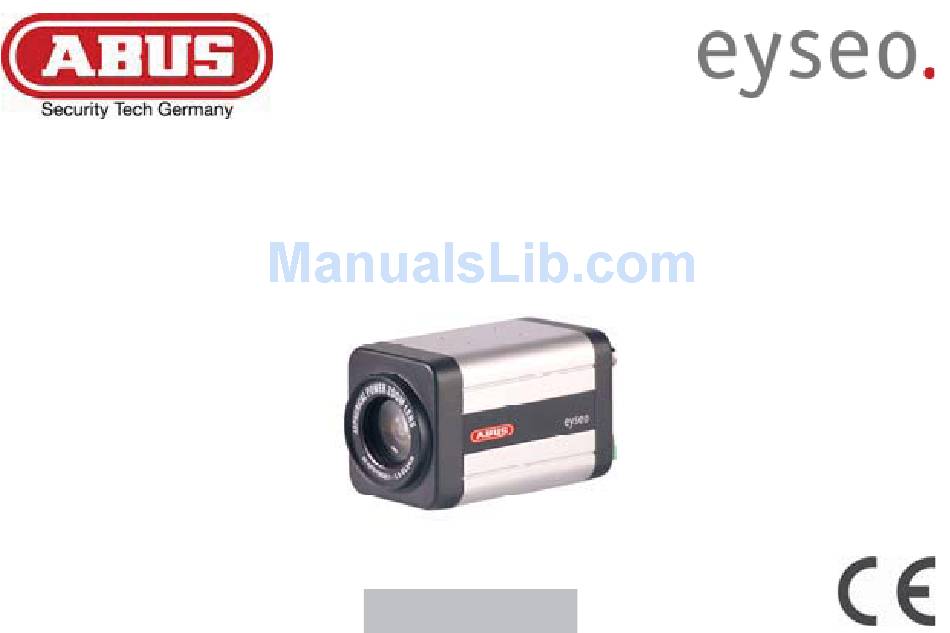

  • Page 1 Eyseo 35x Auto Focus Camera Day / Night TV7057...
  • Page 2: Table Of Contents

    Contents Preface ......................30 Scope of delivery ...................32 Features ......................32 Precautions ....................33 Installing instructions ..................35 Description of the rear side of the camera .............36 Display of the on-screen menu ..............39 Programming menu ..................42 Connecting a control unit ................52 Installation ......................53 Technical data ....................54...
  • Page 3: Preface

    European regulations. The CE has been proven and all related certifications are available from the manufacturer (www.abus-sc.com) upon request. To maintain this status and to guarantee safe operation, it is your obligation to...
  • Page 4 Every effort has been made to ensure that the contents of this manual are correct. However, neither the authors nor ABUS Security-Center accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this manual. The...
  • Page 5: Scope Of Delivery

    2. Scope of delivery Eyseo auto focus camera Fixing plate for camera holder incl. screws Installation instructions 3. Features The Eyseo 35x Autofocus day/night camera has following features: 35x optical zoom and 16x digital zoom (total 560x zoom) Automatic day/night switching due to electromechanical IR cut filter (ICR) Auto-Iris-Function (AI), Backlight compensation (BLC), automatic gain control (AGC), automatic white balance (AWB), flickerless function (FL) and autofocus- function...
  • Page 6: Precautions

    4. Precautions To reduce the risk of electric shock and to ensure that your guarantee remains valid, do not remove cover (or back). Avoid rain and humidity. Do not use the camera in damp places. This camera is designed for indoor use only. If the camera becomes wet, the power supply must be switched off immediately.
  • Page 7 Operate the camera only within the specified temperature, humidity and power ranges. Operating the camera outside the prescribed ranges can lead to reduced product life and early malfunction. Greatly exceeding the specified operating ranges can also result in immediate failure of the camera. All specifications can be found in the technical data.
  • Page 8: Installing Instructions

    5. Installation instructions This camera is designed for indoor use only. If the camera is used outdoors, damage may occur as a result of dampness and temperatures outside the prescribed range. Outdoors the camera should be installed in appropriate protective housing so that it is suitably protected against outside weather influences and remains in compliance with the ambient operating conditions.
  • Page 9: Description Of The Rear Side Of The Camera

    6. Description of the rear side of the camera (T) Zoom NEAR (TELE +/ ) Enlarges the detail view and reduces the image framing. In the menu this key causes the cursor to move upwards.
  • Page 10 (W) Zoom WIDE (WIDE -/ ) Enlarges the image framing to the maximum horizontal angle. In the menu this key causes the cursor to move downwards. (N) Focus Near / + Press to focus in / increase value (+). (F) Focus Far / - Press to focus out / decrease value (–).
  • Page 11: Control Device

    (P.LED) Status display LED Shows whether the camera is correctly supplied with power. (RS485) RS485 control port Camera control using an RS485 interface. Connect (D+) and (D-) correctly to the control device. (VIDEO OUT) BNC output. This connector is for connecting the camera video signal to the VIDEO IN connector of, for example, the monitor (composite signal: 1Vp-p).
  • Page 12: Display Of The On-Screen Menu

    7. Display of the on-screen menu OSD position...
  • Page 13 Function Display Meaning Focus No display Auto focus of the camera active. Focus adjustment is done manually by the user / Push Auto Mode Backlight No display Back-light compensation off compensati “BLC” Back-light compensation on / AUTO /Super on (BLC) BLC Mode No display Normal exposure time 1/50s...
  • Page 14 AUTO/NATIVE/ Protocol After camera start, the protocol and PELCO/LG communications settings are shown for a COMM “BBBB,P,D,S” specific time. Standby “STAND-BY” Shows STAND-BY mode during camera mode start. Zoom Dx176 Digital zoom mode display Dx35 Optical zoom mode Camera ID 000~255 Camera ID number (for control using the RS485 interface)
  • Page 15: Programming Menu

    8. Programming menu Main menu MENU FOCUS SET AWB SET AE SET SPECIAL SET F OSD DISP COMMUNICAT INITIAL SET EXIT Changing menu settings: To display the menu, press the Menu button. Select a menu item by using the ( ) and ( ) buttons.
  • Page 16 FOCUS SET Name Function FOCUS MODE AUTO: Automatic focus setting MANUAL: Manual focusing PUSH AUTO: Saves the selected value manually for the set environment. If the display is changed, the focus is not automatically changed. FOCUS DIST Minimal focus distance Values: 1CM, 10CM, 50CM, 1M, 1.5M, 3M, 5M or 10M ZOOM START Zoom start factor...
  • Page 17 INITIAL SET Changing the value to “ON” resets all focus settings. RETURN Return to main menu AWB SET Name Function WB MODE Setting white balance mode (WB mode) Possible values: AUTO, HUE CONTROL, INDOOR, OUTDOOR, MANUAL, PUSH AUTO AUTO: WB colour temperature range = 2500°K ~ 8000°K MANUAL WB: Setting the red and blue values for desired white balance...
  • Page 18 Hue control values: 0 ~ 72 CONTROL RED GAIN Red gain value: 0 ~ 255 BLUE GAIN Blue gain value: 0 ~ 255 PUSH AUTO ON: The white balance is adjusted the centre of the picture. OFF: Saves the set value. This value is always used following a restart.
  • Page 19 IRIS ADJUST Manual iris setting Possible values: 0 (MIN) ~ 255 (MAX) AGC MAX. / Settings for automatic gain control (AGC) AGC ADJUST AGC MAX: Maximum value for iris settings 0 (MIN) ~ 255 (MAX) AGC ADJUST: Manual setting of AGC value BRIGHTNESS Brightness adjustment.
  • Page 20 SUPER: BLC adjusts the brightness of the picture according to the light conditions. BLC LEVEL Manual settings of backlight intensity: BLC level 0 ~ 80; function active with BLC ON BLC AREA Defines the area under consideration, based on the average light conditions of the overall picture;...
  • Page 21 SPECIAL SET Name Function USER TITLE Enter camera name for display. Change position with the (F)/(N) buttons, change values with the (T)/(W) buttons. SHARPNESS For setting the sharpness of the video picture. Possible values: 0 ~ 15 MIRROR Horizontal mirroring of video picture. Values: ON / OFF NEGATIVE For inverting colour and brightness values.
  • Page 22 F OSD DISP Name Function FUNCTION DISP ON/OFF Display of symbols for Focus Mode, Back Light, Shutter Speed and WB Mode CAMERA ID DISP ON/OFF Camera ID number display ZOOM MAG DISP ON/OFF Zoom factor in display USER TITLE ON/OFF Shows camera number in display.
  • Page 23 Day / Night Name Funktion DAY/NIGHT MODE SET Settings for the Day & Night control mode AE: automatic day/night switching DAY: Only colour mode NIGHT: Only B/W mode FILTER DLY SET Delay time for switching the ICR-Filter (Only AE mode). Possible Value. 0 ~ 15 INITIAL SET ON/OFF Resets all values of this menu.
  • Page 24 COMMUNICATION Name Function CAMERA ID Identification number (ID) of RS-485 interface: NATIVE 1~255, PELCO D 1~255, PELCO D 0~255 PROTOCOL AUTO, NATIVE, PELCO or LG SPEED RS-485 baud rate: 2400, 4800, 9600 or 19200 PARITY Parity: NONE, ODD, EVEN RETURN Return to main menu INITIAL SET If you set this value to “ON”, all settings except the communication settings are reset...
  • Page 25: Connecting A Control Unit

    9. Connecting a control unit Use the built-in RS485 interface for controlling the auto focus camera with a control unit. Connect D+ and D- control signal line from the keyboard (like TV7605) to the D+ and D- screw terminal of the camera. The terminal connectors are as follows: Input Data+ Input Data–...
  • Page 26: Installation

    10. Installation Proceed as follows when installing the camera. Select a suitable place to mount the camera. Connect the video cable (recommended cable type: RG59) with the BNC video output of the camera and the device directly connected to the camera. The maximum cable length must not exceed 150m.
  • Page 27: Technical Data

    11. Technical data Model number TV7057 CCD element 1/4” SONY Super HAD CCD TV lines / pixels 470 TV lines / 438,000 pixels Minimum illumination 0.05 lux at F1.6 Signal-to-noise ratio > 48 dB Electronic AES 1/50s – 1 / 30,000s Lens 35x zoom / 3.4~120 mm / F1.6~4.5 Digital zoom...
