Setting The Sensor Alarms - TWO DIMENSIONAL INSTRUMENTS TV2 Quick Start Manual

Setting the sensor alarms

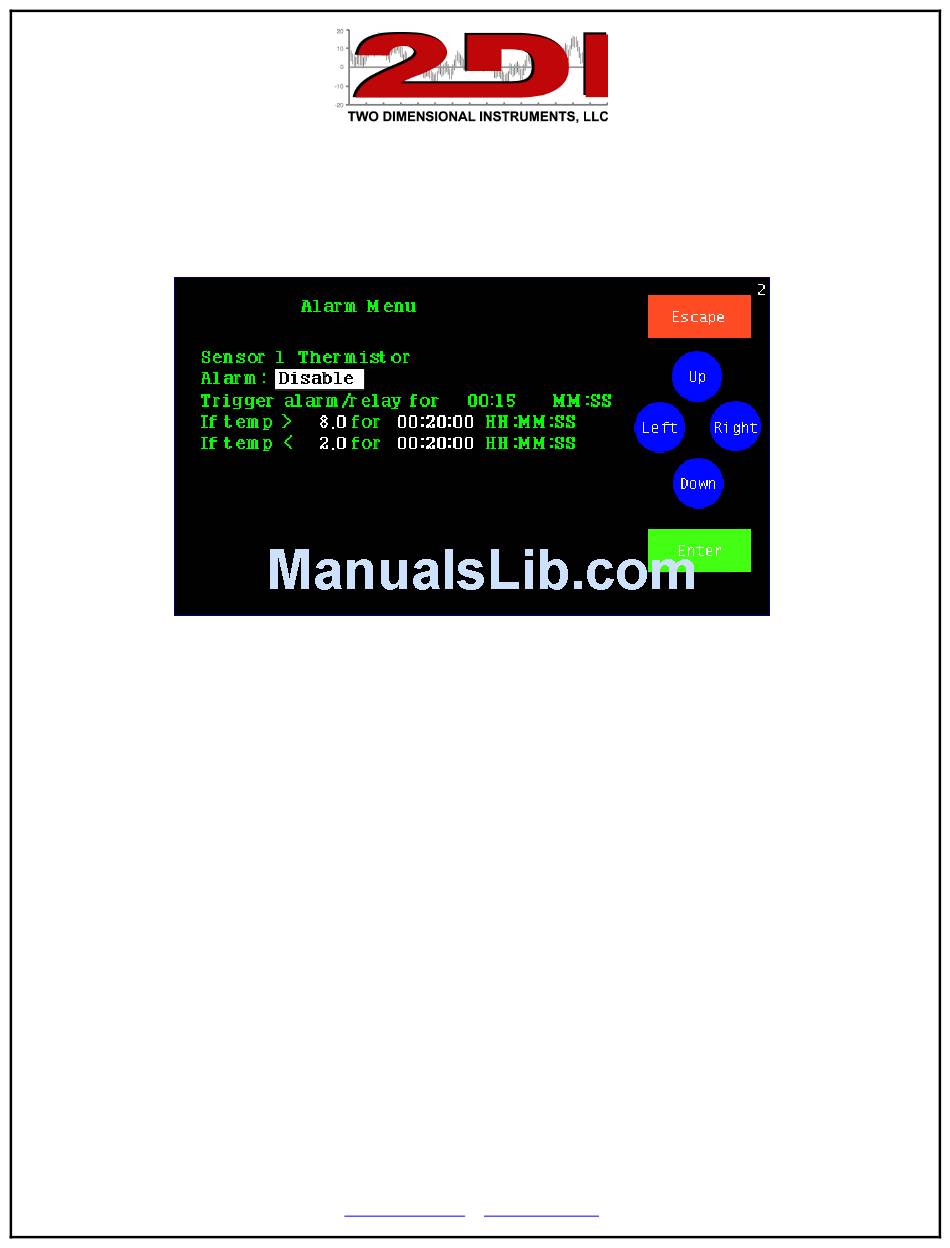

5. Set Alarms, if needed, by highlighting the 'Set Alarm' button on the Sensor Setup screen
with 'Left' or 'Right' and touching 'Enter'.
6. Enable the alarm by touching 'Up' and then 'Enter'.
7. Set the trigger-alarm-time to any value between 0:00 and 99:00. This controls how long
the audible alarm and the relay will be activated.
Note: If you are using a dialer set it for at least 00:30 (30 seconds) but not longer
than 06:00 (Six minutes).
8. Scroll in the upper alarm data limit and delay time and then the lower alarm limit and
delay with 'Up' and 'Down' touching 'Enter' to move to each field in turn.
Note: The delay time is how long the condition must continue before the alarm occurs.
9. Touch 'Escape' until you return to the QuickCheck display.
10. Repeat these steps for each sensor.
