Setting up sensors

1. Plug the pressure sensor into the socket next to the small green relay on the end of the TV2
display and the temp/RH sensor next to it. Position the pressure sensor so that the positive
and negative clear plastic tube openings are in different rooms to see the pressure
differential.

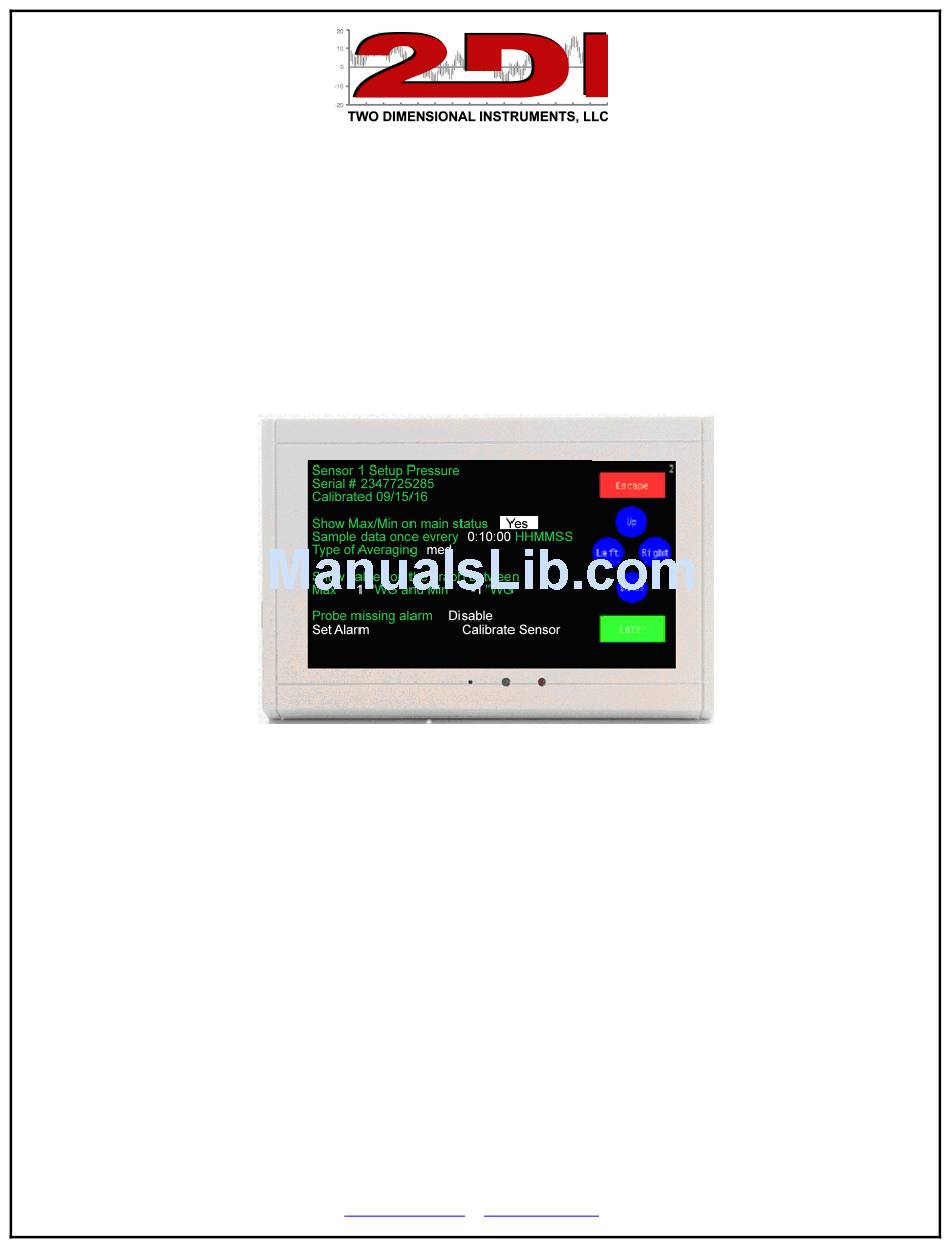

2. After a few seconds, the QuickCheck Monitor will recognize the pressure sensor and change
the display to the Sensor Setup menu. Move the cursor to the Sample Data field by touching
'Right'.
3. This is how often you want the sensor to log a pressure reading. Scroll to any value
between 1 min and 24 hrs with 'Up' or 'Down', touching 'Enter' to move to the minute and
second field, or accept the default by touching 'Enter'. The default value is ten minutes
(00:10:00). For pressure sensors we recommend you set it for 15 seconds (00:00:15).
4. The averaging is set to Medium which is fine for almost all applications.
5. Set the chart display (Y axis) with 'Up' and 'Down'.
setting have no effect on the alarm, what data is collected, or what is stored. It simply sets
the upper and lower point of the Y-axis of the data chart shown on the TV2.
6. Enter the Calibrate Sensor menu and press enter to auto calibrate the pressure sensor. This
'zeros' out the sensor to remove any position error. This may have to be repeated once the
pressure sensor is placed in its location.
P O Box 159 • Crestwood, KY 40014 • (502) 243-0042 • (502) 243-0039 fax
www.e2di.com info@2di.com
•
This does not set the alarm. These
