Summary of Contents for Apewell SCS-8

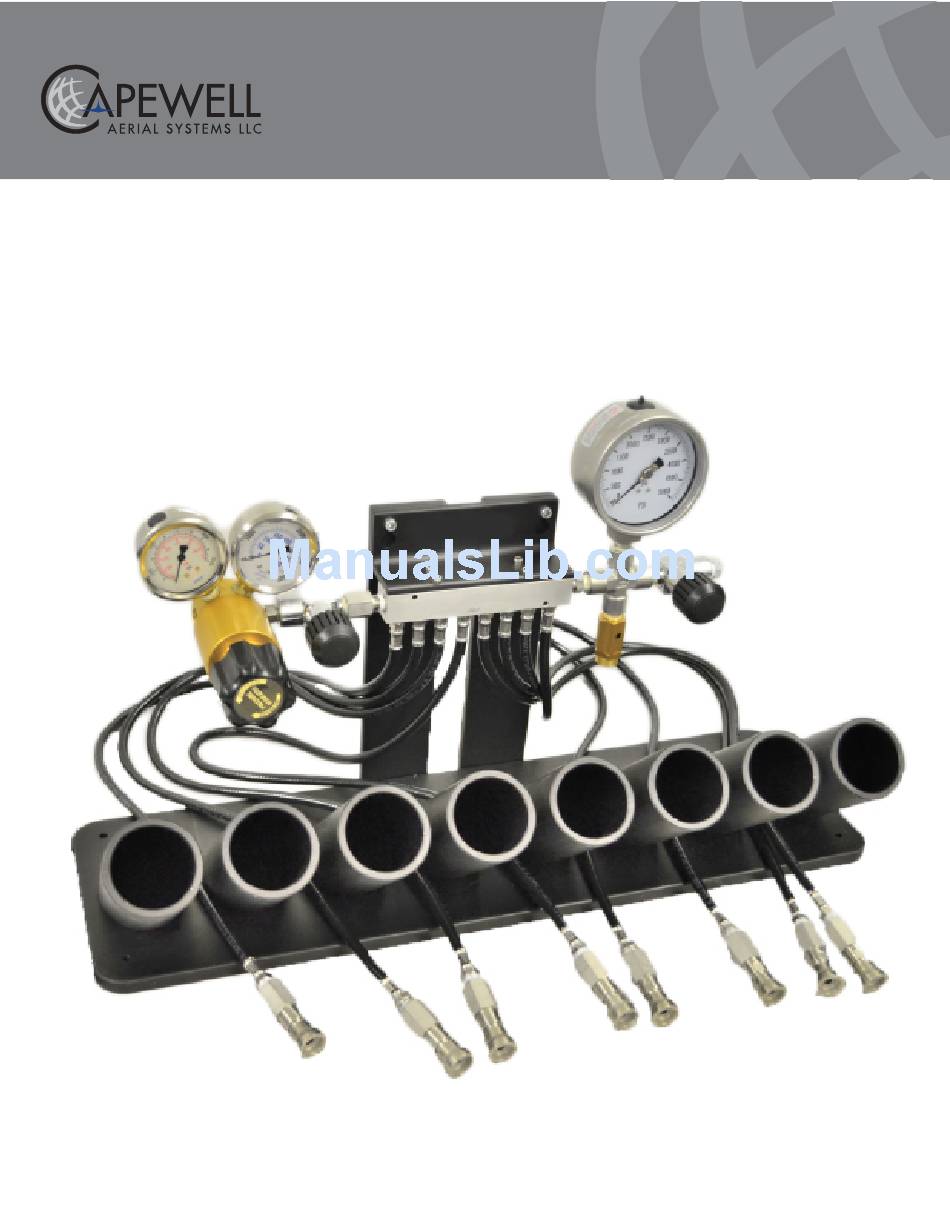

- Page 1 Capewell Aerial Systems LLC 105 Nutmeg Road South South Windsor, CT 06074 sales@capewell.com P: 860.610.0700 www.capewell.com SEA Charging Station (SCS-8) Operations Manual...
- Page 2 Survival Egress Air Introduction The SCS-8 provides eight HP quick disconnects, built in 6,000 PSI regulator, over pressure relief valve and integrated flow restrictor to comply with US Navy fill rate standards of 250-500 PSI/Min to prevent over heating of the cylinders and stress to the SEA due to rapid filling.
- Page 3 SCS-8 - Operations Manual 1. Connect to a source of Grade D or better breathing air (3000 psi minimum pressure/6000 PSI maximum pressure) via the 1/4” FNPT port on the left hand side. 2. Test for leaks and verify pressure on the left hand (red face) pressure gauge.
- Page 4 SCS-8 - Operations Manual 4. Connect the SEA cylinders to the fill adapter hoses. a. Remove the dust cap from the fill port of the SEA. b. Install the male quick coupler fitting into the fill port until the o-ring is fully seated---...
- Page 5 SCS-8 - Operations Manual e. Repeat step 3 until you have between 1 and 8 SEA cylinders ready to fill. VALVES CAN BE DAMAGED BY EXCESS FORCE. USE GENTLE FINGER PRESSURE ONLY 5. Open the supply valve closest to the...
- Page 6 SCS-8 - Operations Manual 8. Disconnect the quick release couplers by pulling back on the collar and separating the male and female adapters. 9. Unscrew the male part from the SEA fill port. 10. Reinstall the dust cap onto the fill port of the SEA.
