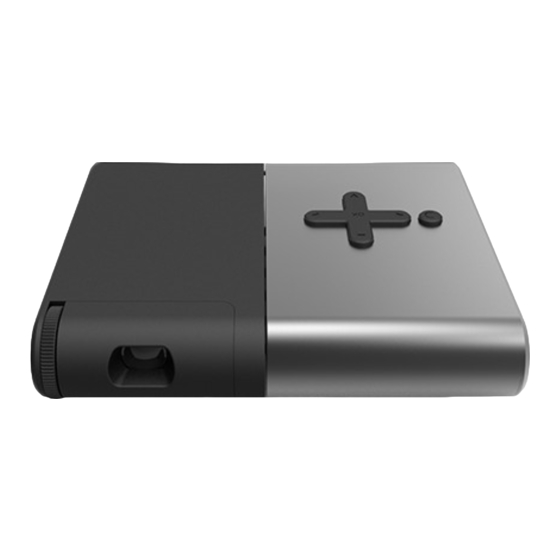

Lenovo Pocket Projector P0510
User's Guide

Advertisement

   Also See for Lenovo P0510

   Related Manuals for Lenovo P0510

   Summary of Contents for Lenovo P0510

  • Page 1

    Lenovo Pocket Projector P0510 User's Guide...

  • Page 2: Product Overview

    Product Overview Lenovo’s first movable standalone projector, the Lenovo pico Projector, offers multimedia enthusiasts a fresh way to view and stream content for work and play. With a vivid 50-lumen, high-contrast display that can be projected at up to 110 inches, users with any Miracast or DLNA-enabled Android, Windows 8.1 or iOS/MacOS device can project a full-length feature film or business presentation on any wall,or, with its 90°...

  • Page 3

    First Glance 1. Power On/Off 8. Lens 2. AV Jack 9. Return key 3. Power Input 10. Left (Back)/Right (Forward) Key 4. Reset 11. Up/Down (direction/volume) Key 5. MicroSD card slot (up to 32GB) 12. Vent Hole 6. focusing knob 13.

  • Page 4

    The surface temperature of the product is very hot and dangerous, please turn off the power of the product and do not operate the  product in the pocket and your hand. Product Connection • P0510’s nickname is Pico. • Please based on the standby UI to do the Pico connection • The Up-right corner indicated Pico’s SSID, IP address, and the connected WiFi hotspot’s name. Connect Pico to WiFi On the home screen, click ->open your...

  • Page 5

    open a web browser->input 192.168.49.1->click Connect Pico to WiFi-> ensure Pico and your smart device are under the same WiFi hotspot. For DLNA Cast On the home screen, click ->follow the UI instruction to make Pico casting 3 party video app’s resources which support DLNA protocol. For iOS/MacOS On the home screen, click ->follow the...

  • Page 6

    For Windows 8* On the home screen, click ->follow the UI instruction to make Pico casting your Windows 8 device’s screen, local video, picture, and 3 party video app’s resources. *The device need to support Miracast Protocol Pico’s Web Page information 1.

  • Page 7

    Lenovo encourages owners of information technology (IT) equipment toresponsibly recycle their equipment when it is no longer needed. Lenovo offers avariety of programs and services to assist equipment owners in recycling their ITproducts. For information on recycling Lenovo products, go to:http://www.lenovo.com/recycling.

  • Page 8

    Important WEEE information Recycling information for India Recycling and disposal information for India is available at: http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html Battery recycling information for the European Union Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union.

  • Page 9

    Restriction of Hazardous Substances Directive (RoHS) European Union Lenovo products sold in the European Union, on or after 3 January2013 meet the requirements of Directive 2011/65/EU on the restrictionof the use of certain hazardous substances in electrical and electronicequipment (“RoHS recast” or “RoHS 2”).

  • Page 10

    Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. RF Radiation Exposure Statement: 1. This Transmitter must not be co­located or operating in conjunction with any other antenna or transmitter. 2.

  • Page 12

    This device complies with Industry Canada licence-exempt RSS ● standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-0003.

  • Page 13

    RF Radiation Exposure Statement: ● 1. This Transmitter must not be co­located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

  • Page 14

    10. In order to avoid high temperature hurting human body. This product is not applicable  for portable using or not be used nearly by human body.    The most applicable distance to use this device is more than 20 cm.  ...

  • Page 15

    RoHS compliant as per E-Waste (Management & Handling) Rules,2011. Turkish The Lenovo product meets the requirements of the Republic of TurkeyDirective on the Restriction of the Use of Certain HazardousSubstances in Waste Electrical and Electronic Equipment (WEEE). Trademarks “聯想”, “Lenovo”, “Lenovo聯想” and other Lenovo logos are registered trademarks or trademarks of Lenovo.
