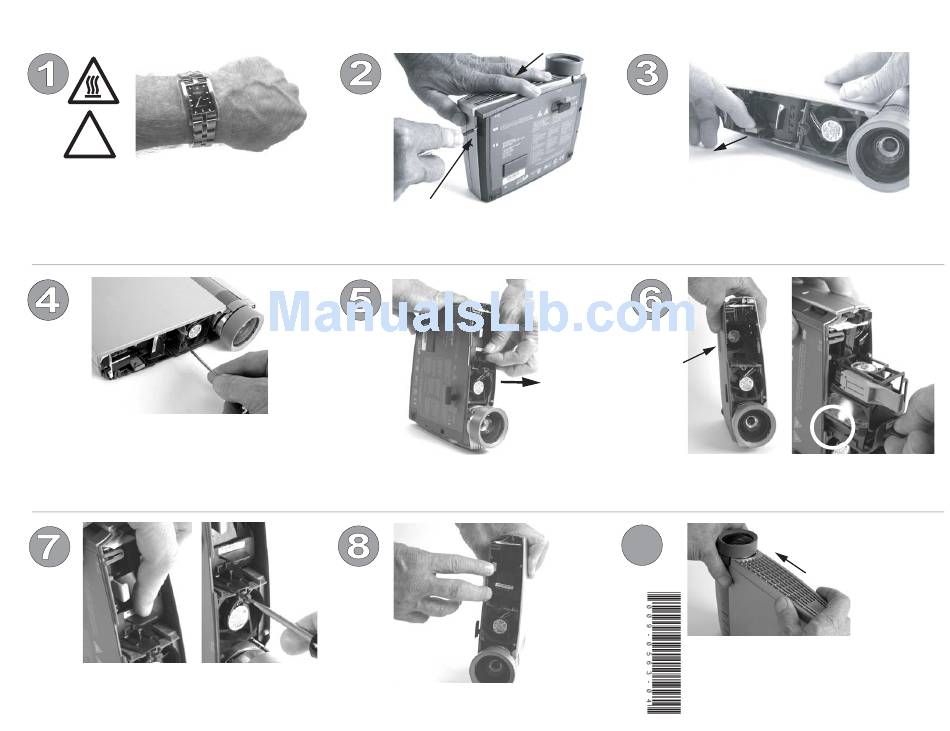

Replacing the Lamp
!
Turn off the projector and unplug the power cord.
Allow the projector to cool for at least 60 minutes.
Loosen the captive screw on the lamp.
Gently press the lamp into place. Then tighten
the screw.
Slide lamp grill off
Slide and hold latch
Place the projector on its rear. Insert a small screw-driver
into the slot near the front. Slide the latch downward. Hold
the latch open while you slide the lamp grill off.
Place the projector on its side. Grasp the pull tab to
pull the lamp out. Dispose of the lamp module in
an environmentally proper manner.
Gently press the yellow tab inward until it stops.
You can feel the lamp connector engage.
Pull tab out
Place the projector rightside up on a flat
surface. Pull the yellow tab on the lamp outward.
This disengages the lamp connector.
The projector
must be
as shown.
Place the projector on its side. Slide the lamp into
the projector. Make sure that the bottom of the lamp
fits into the rails inside the projector (circled above).
9
Slide lamp grill on
Slide the front grill toward the lens until it snaps into
place. To reset the lamp timer, press and hold the
reset button, then press the menu/select button
(while still pressing the reset button) for 10 seconds.
