Channel Vision DS3-0212 Instructions Manual

1
Channel Vision Technology will repair or replace any defect in material or workmanship which occurs
during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the
date of original purchase. This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not supplied by Channel Vision
Technology, or failures due to accident, misuse, abuse, or alteration of the equipment. This warranty is
extended only to the original purchaser, and a purchase receipt, invoice, or other proof of original purchase
date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-0288 toll free. A Return
Authorization number must be obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to state).
If a problem with this product develops during or after the warranty period, please contact Channel Vision
Technology, your dealer or any factory-authorized service center.
Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical
environment applications. Channel Vision customers using or selling Channel Vision products for use in
such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages
resulting from such improper use or sale.
Specifications:
Speaker Size (mm): 50
Speaker Impedance: 8 Ohms
Speaker Power Peak (W): 0.2
Speaker Frequency Range: 500 Hz - 3.5 kHz
Power Supply: 12VDC, 500mA
Power Consumption: 80mA (idle), 110mA (active)
Cable Requirements: 8-conductor wire, 24AWG or larger
Note: wire carrying current to electric locks will
need to be much thicker. Consult the electric
lock documentation for its specific wiring
requirements.
Internal Relay Type:
Relay Specifications: 1Amp@12V
Color Camera: (DS3-6xxx, DS3-6xxxC, & DS3-6xxxP only)
Camera Lens: 5.5mm
Resolution: 550 lines
S/N Ratio: More than 48 dB
Min Illumination: 0.2 LUX @ F2.0
Power Consumption: 12VDC, 65mA
Electronic Shutter: 1/60s - 1/100,000s
Iris Control: Automatic
White Balance: Automatic
Video Output: 1 Vp-p @ 75 ohms
Operating Temp: -10°C to 50°C (14°F to 122°F)
w w w . c h a n n e l v i s i o n . c o m
234 Fischer Avenue, Costa Mesa, California 92626 USA
(714)424-6500 (800)840-0288
email: techsupport@channelvision.com
Normally Open or Normally Closed
Specifications subject to change without notice.
(714)424-6510 fax
500-275 rev A
DS3 -XXXX
DS3 -XXXXC
DS3 -XXXXP

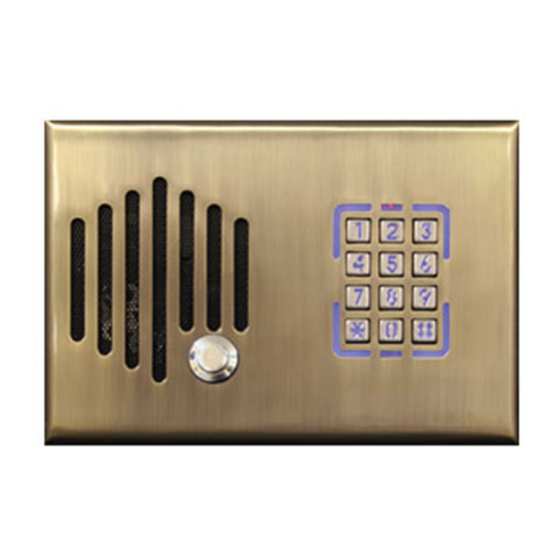

Telephone Entry Door Intercom
1 2 3
4 5 6
7 8 9
* 0 #
