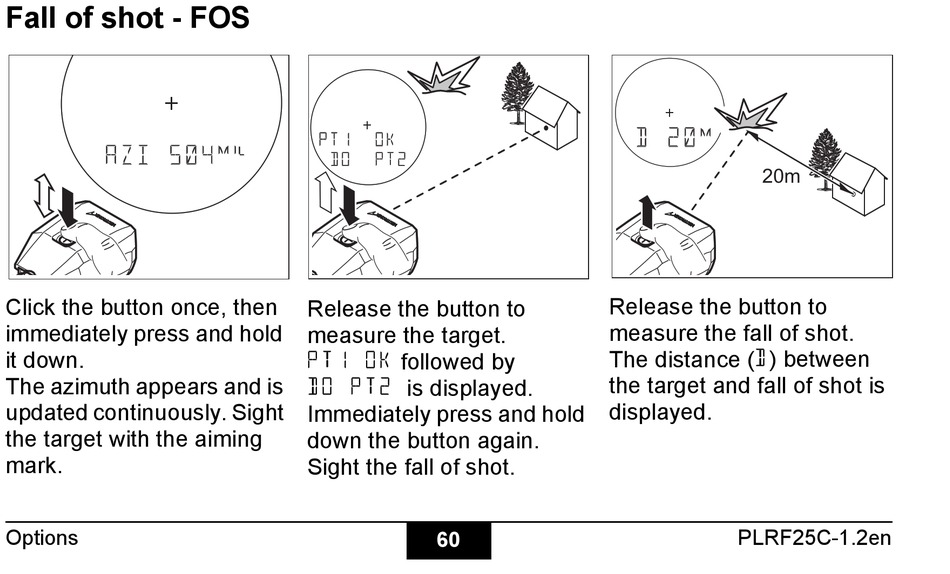

Fall of shot - FOS

AZI 504& AZI 504&
Click the button once, then
immediately press and hold
it down.
The azimuth appears and is
updated continuously. Sight
the target with the aiming
mark.
Options
PT1 OK PT1 OK
DO PT2 DO PT2
Release the button to
measure the target.
followed by
PT1 OK
is displayed.
DO PT2
Immediately press and hold
down the button again.
Sight the fall of shot.
60
D 20ç D 20ç
20m
Release the button to
measure the fall of shot.
The distance ( ) between
D
the target and fall of shot is
displayed.
