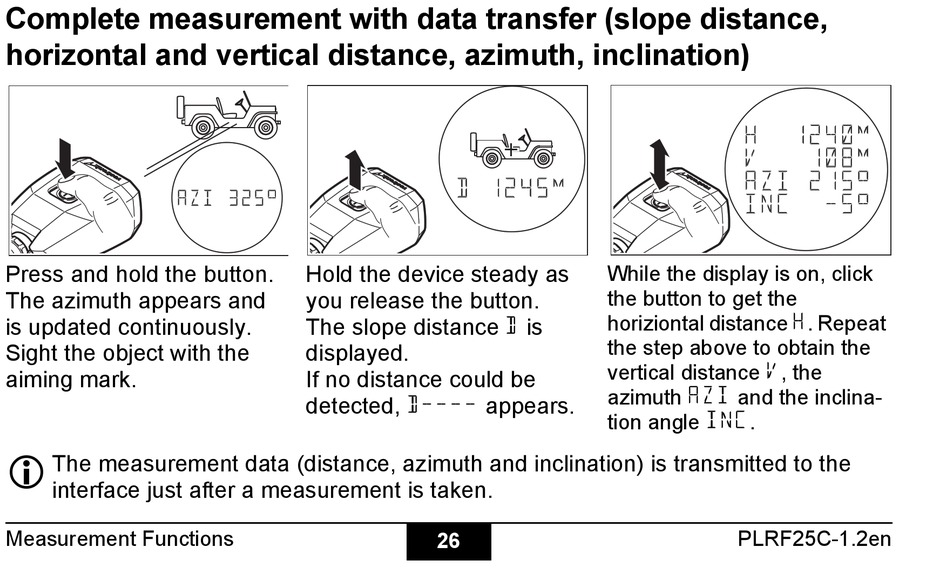

Complete measurement with data transfer (slope distance,
horizontal and vertical distance, azimuth, inclination)
AZI 325° AZI 325°
Press and hold the button.
The azimuth appears and
is updated continuously.
Sight the object with the
aiming mark.
 The measurement data (distance, azimuth and inclination) is transmitted to the
interface just after a measurement is taken.
Measurement Functions
D 1245ç D 1245ç
Hold the device steady as
you release the button.
The slope distance
displayed.
If no distance could be
detected,
D----
26
While the display is on, click
the button to get the
horiziontal distance
is
D
the step above to obtain the
vertical distance
azimuth
appears.
tion angle
H 1240ç H 1240ç
V V 108ç 108ç
AZI 215° AZI 215°
INC -5° INC -5°
H
. Repeat
V , the
AZI and the inclina-
INC .
PLRF25C-1.2en
