Setup-
Streaming Setting

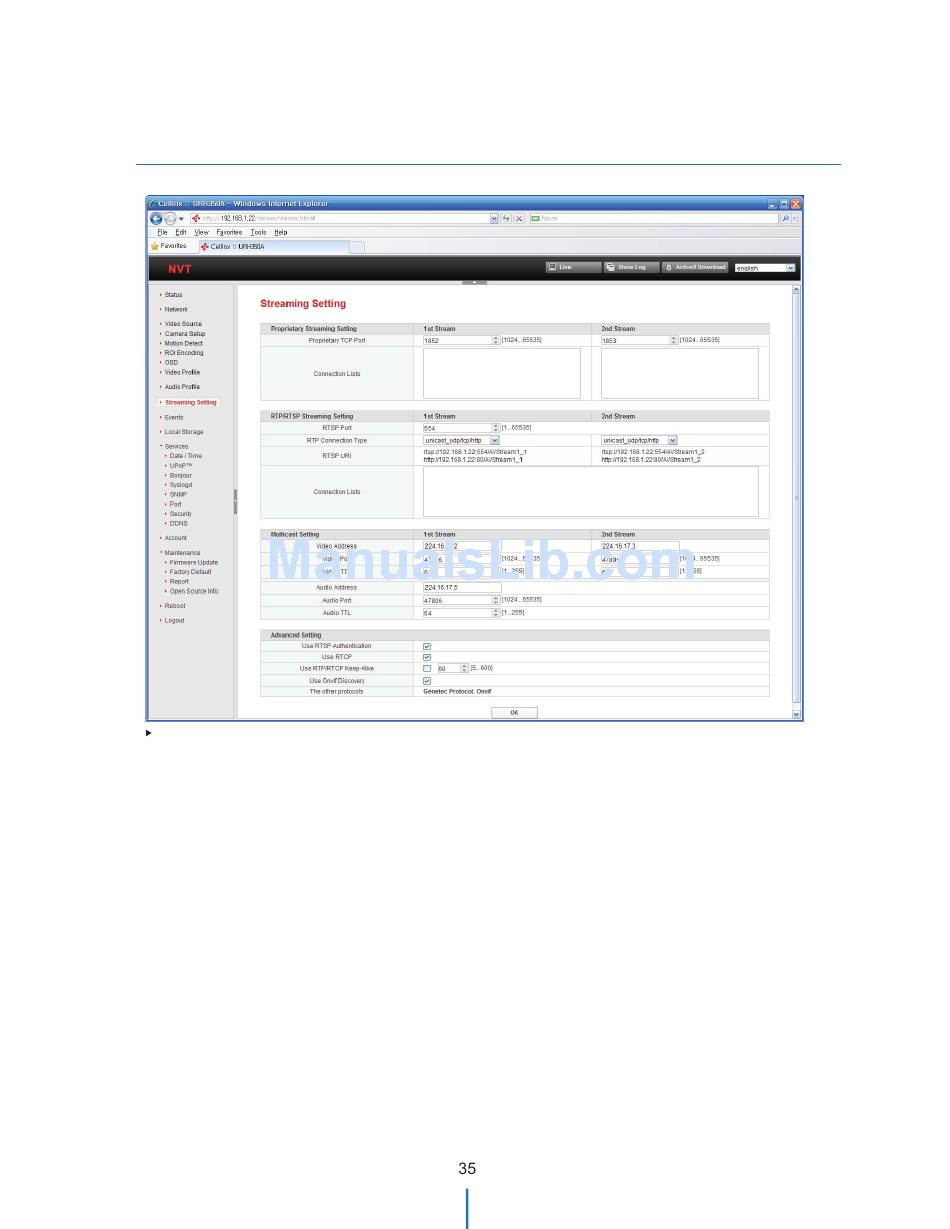

Web setting page (Streaming Setting)
Proprietary Streaming Setting
[Proprietary TCP Port] the port for the transmission by the proprietary protocol (This is dependent on the
value of the item "Video Profile / Video Setting / Proprietary Stream Port")
[Connection Lists] the IP address and port information of the monitoring devices that are connected.
RTP/RTSP Streaming Setting
[RTSP Port] the port number that is used for the transmission by the RSTP protocol
[RTP/RTSP Connection Type] in case that there is a network device supports the multicast function, the item
"multicast_udp" can be selected for the effective network bandwidth. (The additional setup is required on
below.)
[RTSP URI (Uniform Resource Identifier)] the path that is used on the PC monitoring program for playing
RTSP
The default paths are as below.
1) 1st Stream > rtsp://192.168.1.2:554/AVStream1_1
2) 2nd Stream > rtsp://192.168.1.2:554/AVStream1_2
