Summary of Contents for PCE Instruments RH5

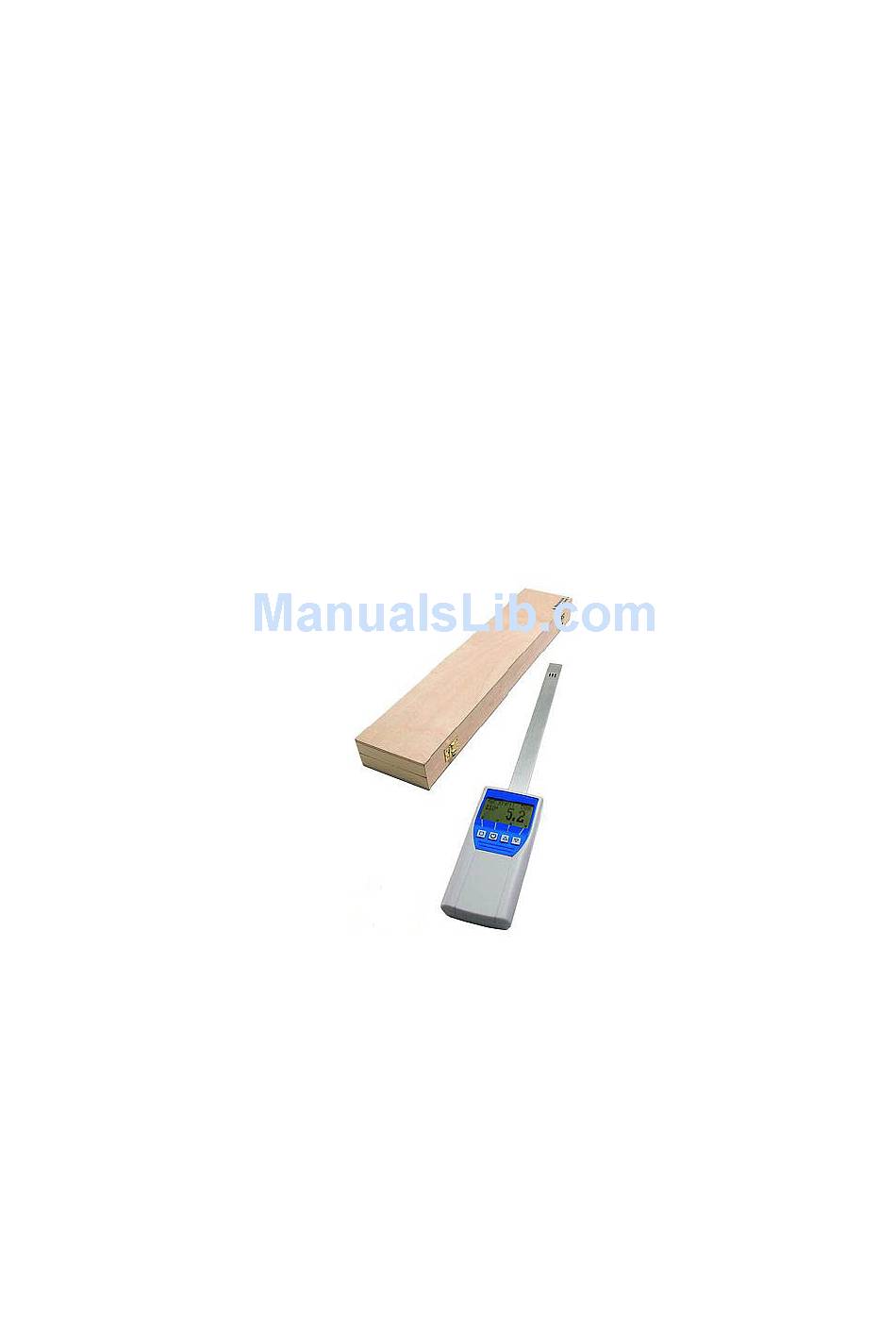

- Page 1 User Manual RH5 Humidity Measuring Device with Sword Sensor Version 1.0_en © PCE Instruments 2016...
-
Page 2: Positioning The Instrument
Insert the sword-sensor into the stack for only approx. 10 cm, and push it a few more centimetres into the stack every 10 seconds. Let your RH5 adequately adjust to the material (at least 5 minutes) before you start to measure, particularly when the material pile was stored at a different temperature than the device. -
Page 3: Application Range
Description of definitions Relative air humidity: indicates the relation between the current water vapour pressure and the maximal possible water vapour pressure (called saturation vapour pressure) The relative humidity shows the degree the air is saturated with water vapour. For example: 50% relative humidity indicates that at the current temperature and the current pressure the air is saturated with water vapour for half of its value, 100% relative humidity means that the air is totally saturated. -
Page 4: Design Of The Device
Design of the device air humidity and temperature sensor Option: interface calibration curve temperature measuring value ON/OFF button selection of calibration curves batteries slot (flipside) page 4... -
Page 5: Menu Level Overview
Keypad symbols Menu level overview Measuring window: Rolling Menu Type selection menu Power ON / OFF Switch upper Next calibration curve Previous calibration curve Switch lower Power off Save Hold Store menu Autolog Show last log Watch saved data Store new log Enter suppliers Power off data... -
Page 6: Operating The Instrument
Operating the instrument Switching on: Press for three seconds. Changing the calibration curve: Setting date and time: 2 times - Options – date / time Set date and time using the button , according to the format indicated (JJ.MM.TT). After entering the year, press the button for entering the month and again for entering the day. -
Page 7: Transfer Saved Data To The Pc
USB slot on your PC. Start the software on your PC and switch on your RH5. The data transfer can be started on your device or on the software: Starting data transfer on the device:... -
Page 8: Print Saved Data
Carefully loosen the protection cap on the RH5. At first plug in the side of the connector with the close plastic casing at the RH5. Then switch on the device. Not till then the other side of the cable has to be plugged in at the printer. -
Page 9: Single-Point Adjustment With 50% Humidity Standard
Single-point adjustment with 50% humidity standard For the adjustment the appropriate calibration equipment as well as calibration ampoules resp. humidity standards of 50 % r.h. are required. Proceedings Preparation To ensure as good as possible inspection results it is essential that the measuring device, the calibration equipment and the calibration ampoules have approximately the same temperature. -
Page 10: Offset Adjustment
5. Now put the third gasket ring into the bottom part. 6. Fit the metal ring on the third gasket. 7. Take the upper part with the RH5 and attach these carefully at the bottom part of the calibration device. -
Page 11: Reset To Factory Calibration
5. Enter the superuser password using the buttons resp. and confirm by pressing . The superuser password after consignment is the serial number of the • device, shown on the display after switching on the device or in menu item Status. 6. -
Page 12: Care Instructions
In order to fasten the conditioning, the following proceedings are possible: Spaced insertion of the sword sensor o Insert the sword-sensor into the stack for only approx. 10 cm, and push it a few more centimetres into the stack every 10 seconds. In case of a high temperature difference repeat this action –... -
Page 13: Optional Accessories
Therefore we recommend a plausibility check of the measuring results. Each device includes a serial number and the guarantee stamp. If those are broken, no claims for guarantee can be made. If the battery symbol appears in the measuring window resp. - Page 14 Notes ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- page 14...
-
Page 15: Technical Data
Technical data Measurement: Measuring range / resolution / accuracy rel. humidity: 0 to 100% rh / 0.1% calibration 10 to 90% / ±1.5% rh (at 25° C) temperature ° C: -10 to +60° C / 0.1° C / ±0.3° C (at 25° C) temperature °... -
Page 16: Important! Please Read
!IMPORTANT! Please read! Common reasons for incorrect measurements • Sunlight or other sources of heat or cold that doesn´t correspond to the surrounding temperature • Dripping or sprayed water • Irreversible damage of the sensor due to aggressive gases • Danger of condensation because of changing temperature •...
