Sony DCR-DVD110E Service Manual page 46

• Refer to page 4-2 (English), 4-3 (Japanese) for mark 0.
1 2
A
B
CN5801 10P
REG_GND
1
SP+ 2
SP-
3
REG_GND 4
KEY_AD3 5
XBATT_VIEW 6
C BATT_LI_3V 7
HI_XRESET 8
ACCCESS_LED 9
D_2.8V 10
VC-520
(20/20)
CN1002
Through the
Flexible Flat Cable
(FFC-089)
Page 4-25
of Level 3
D
E
F
05
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3 4
Note: BT901 (lithium battery) and SP901 are
not included in CK-192 complete board.
BH5801
VD5804
VD5802 (BATTERY HOLDER)
XX XX
BT901
(LITHIUM BATTERY)
1
VD5806
XX
VD5805
XX
3 1
S5802
DISP/
BATT INFO
4 2
1 2
3 4
S5801
RESET
D5801
R5802
220
CL-196HR-CD-T
(MS ACCESS)
5
LN5801
Harness(HN-024)(Gray)
SP+
SP901
LN5802
SPEAKER
Harness(HN-024)(Gray)
SP-
2
3
DVD410E/DVD810/DVD810E
R5801
1200
3 1
3 1
S5806 S5803
DUBBING
N
4 2 4 2
CHASSIS_GND
LN5803
4-31
6 7
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E

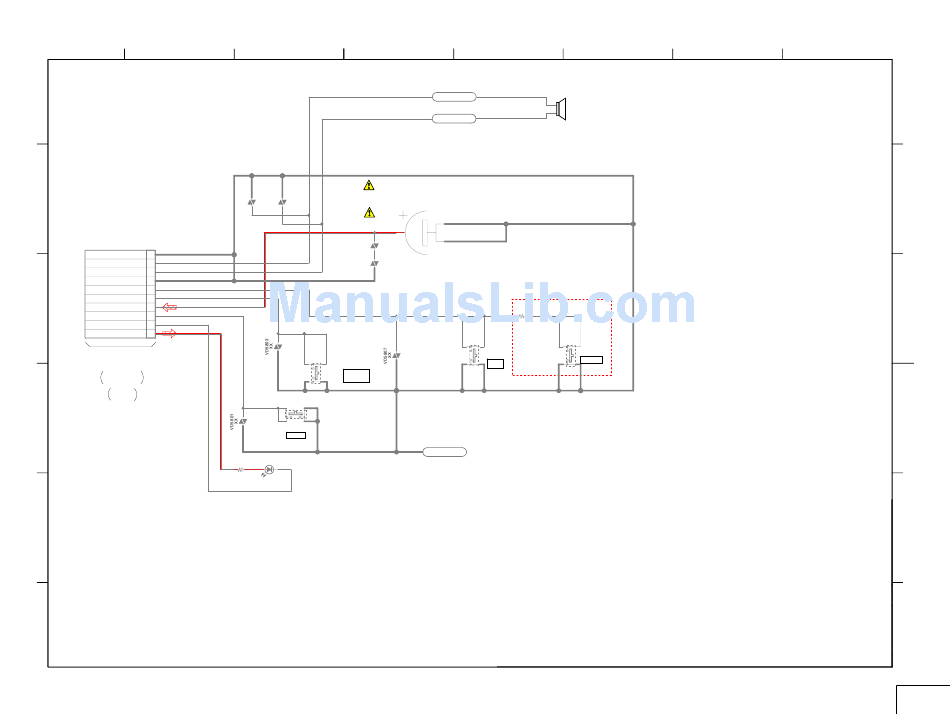

CK-192 BOARD
CONTROL SWITCH
XX MARK:NO MOUNT
8
A
B
C
D
E
: MEGA model
F
CK-192
