Summary of Contents for Spectra Precision SP60 GNSS

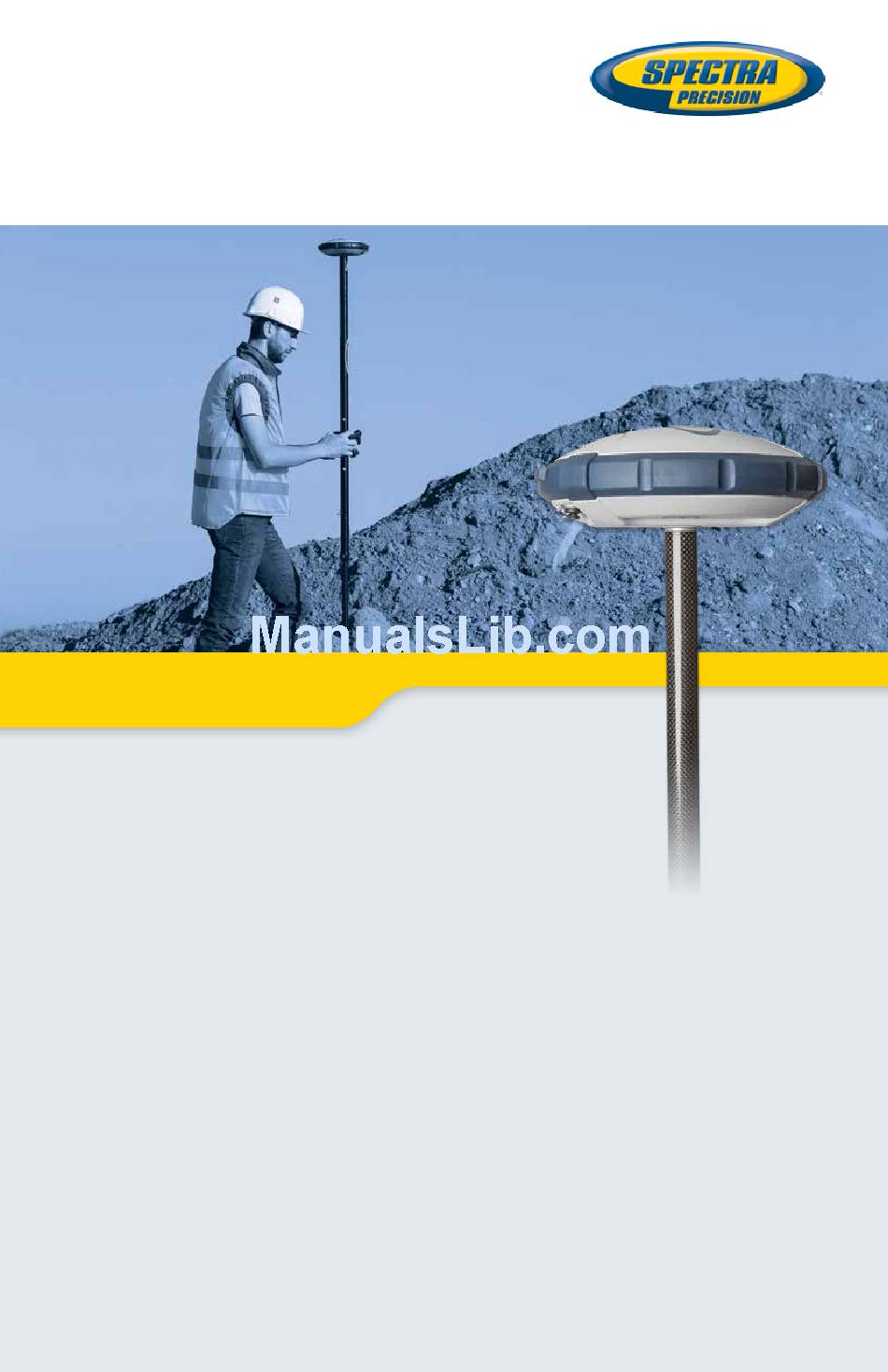

- Page 1 SP60 GNSS Receiver User Guide August 2016 Release...
- Page 2 (“Trimble”) warrants that for a period of (1) radioélectrique édicté par le Ministère des year from date of purchase this Spectra Precision Communications du Canada. product (the “Product”) will substantially conform to our publicly available specifications for the Prod-...
- Page 3 Nevertheless, the wireless radio shall be used in fluid is corrosive, and contact with it can result in such a manner that the Spectra Precision receiver personal injury and/or property damage. To prevent is 20 cm or further from the human body.
- Page 4 Other coun- tries require end-user licensing. For licensing infor- mation, consult your local Spectra Precision dealer. Before operating the receiver with the UHF kit, deter- mine if authorization or a license to operate the UHF kit is required in your country.
-
Page 5: Table Of Contents
Table of Contents About Spectra Precision SP60 .............1 SP60 Packout..................2 Basic Supply.................2 UHF Kit PN92673-00 ............2 Office Power Kit P/N 94336 ..........3 Field Power Kit P/N 94335 ............3 Standard Items..............4 Other Optional Accessories .............5 Firmware Options ..............5 Trimble RTX Corrections Services ..........5 External Radio Kits &... - Page 6 How the Receiver Operates With the Anti-Theft On ....29 What the Anti-Theft Protection Does Initially.......29 What Events Will Trigger a Theft Alarm? ......29 What Will Happen When a Theft is Detected?......30 What if the Thief Removes the Battery? ......30 Disabling Anti-Theft Before Turning Off the Receiver ...30 Lost your Anti-Theft Password? ..........30 Startup Protection ...............31 Purpose................31...
- Page 7 Physical Characteristics ............49 Standard & Optional System Components......50 Data Collectors and Software..........51...
-
Page 9: About Spectra Precision Sp60

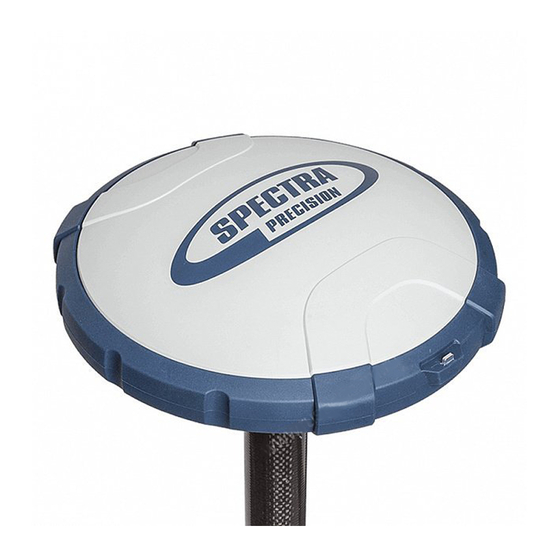

About Spectra Precision SP60 Challenging environments will no longer be a nightmare for you or your crew: The Spectra Precision SP60 is a new generation GNSS receiver offering a high level of flexibility. It is designed to cover any survey demand from simple post-... -
Page 10: Sp60 Packout
SP60 Packout Basic Supply NOTE: Spectra Precision reserves the right to make changes to the lists of items provided below without prior notice. Depending on the ordered SP60 single receiver kit, the basic supply will be as follows. Office Field... -
Page 11: Office Power Kit P/N 94336
Office Power Kit P/N 94336 Item Picture Spare Part (1) Power/Data cable, 1.5 m, DB9-f to OS/7P/M 59044-10-SPN to SAE Adapter cable, 0.15 m, SAE to DC socket 88769-SPN (2.1 mm) RS232-to-USB adapter cable 90938-SPN (1) When applicable, the items part of this kit may be ordered separately as spare parts, using the P/Ns specified in this column. -
Page 12: Standard Items
Standard Items Item Picture Spare Part (1) SP60 GNSS receiver (Not applicable) Li-Ion Battery, 2.6 Ah, 7.4 V, 19.2 Wh 92600-10 Dual Li-Ion Battery Charger (does not include AC/DC power supply and (Not applicable) cable) AC/DC Power Block, 65 W, 19 V, 78650-SPN 3.42 A, 100-240 VAC... -
Page 13: Other Optional Accessories
Other Optional Item Ordering P/N: Picture Accessories Large soft bag, field transport 95858 Universal Hard Shell, gray, Spectra Precision: • Bare 104342-02 • With two soft bags 104342-03 • With one large soft bag 104342-04 UHF whip antenna, ¼ wave, with TNC adapter: •... -
Page 14: External Radio Kits & Antennas
• Once you get your subscription, refer to Validating RTX Subscription on page 41 to make it active in your SP60. IMPORTANT: The best accuracy the SP60 can deliver depends on the RTK option installed, regardless of the subscribed RTX service. For example, it wouldn’t make sense to purchase a subscription to CenterPoint RTX if the receiver can only operate in 30/30 RTK. -
Page 15: Discover Your New Equipment
Discover Your New Equipment Take a few minutes to discover your new SP60. Front Panel [10] [11] [12] [13] • [1]: Control panel, consists of the following items, from left to right (see picture): – [2]: Bluetooth LED – [3]: Data recording LED –... -
Page 16: Phase Center Location
Conversely, when it’s time to disconnect the Lemo plug, please use the attached metal strap to pull the plug out. • [10]: Battery compartment. CAUTION - THE TRAPDOOR SHOULD BE REMOVED ONLY FOR INSERTING OR REPLACING A BATTERY. THE REST OF THE TIME, PLEASE ALWAYS KEEP FULLY CLOSE. -
Page 17: Height Mark
Height Mark The height mark ([8]) is nested in the shock absorber, near the serial connector. When the receiver is mounted on a tripod – for use as a base for example – making a slant measurement to determine the instrument height is often more convenient than making a vertical measurement from the ground mark to the antenna base. -
Page 18: Buzzer
Buzzer The buzzer can be heard in the following cases: • Bluetooth: – When the data collector establishes a Bluetooth connection with the receiver, – When this connection gets lost. • Internal battery: When the internal battery gets low (less than 20% of nominal charge), the buzzer sounds briefly. -
Page 19: Using Sp60 For The First Time
Using SP60 for the First Time WARNING - This receiver uses a rechargeable Lithium-ion battery. To avoid personal injury or equipment damage, make sure that you read and understand the safety information at the front of this guide. The battery is shipped partially charged. Depending on the time elapsed since then, the remaining charge may be even less. -
Page 20: Inserting The Battery
Inserting the As opposed to previous receiver models, the battery trapdoor of the SP60 can entirely be detached from the receiver case. Battery As explained below, the battery is first inserted into the inner side of the trapdoor and then inserted into the receiver case, together with the trapdoor. -
Page 21: Setting Up The Sp60
Setting up the 1. Mount the receiver and data collector on a range pole (rover), or a tripod (base). SP60 2. Measure and write down the vertical (Hv) or slant (Hs) distance from the ground mark to respectively the lower [16] part of the receiver (ARP) (rover) or to the height mark (base) (see [16]). -
Page 22: Sp60 Control Panel Description
SP60 Control Panel Description No. Blinking Rate* Color Meaning • On • Internal battery is used. Remaining charge > 20%. • Slow • Internal battery is used. 10% < remaining charge < 20%. Short beep heard at 20% • Fast •... - Page 23 Blinking Rate Description General Meaning LED is off Receiver or function turned off LED permanently lit (solid color) Normal operation Slow 0.5 s (equal On/Off times) Normal operation Very slow 1.5 s (equal On/Off times) Radio configuration mode (see flowchart below) Fast 0.1 s (equal On/Off times) Alert...
- Page 24 Press for 2 sec. Power Up Normal Press briefly Press briefly Operating Mode Set Radio Configuration Mode Set Data Press briefly Logging Press briefly Press for 2 sec. (buzzer then beeps) Conventions used for LED states: Radio Mode Press for 2 sec. On (solid color) (buzzer then beeps) Very slow blinking...
-
Page 25: Introducing Sp60 As Rover
• Radio (internal at the rover, internal or external at the base). See Using the UHF Kit Option on page 23. • Central (Spectra Precision cloud application). Available only if Survey Pro is used as field software. NOTE: Using Central relies on the use of a network connection of the NTRIP type, entirely managed by Survey Pro. -
Page 26: L-Band Rover (Trimble Rtx)
L-Band Rover The SP60 is L-band ready (no firmware option needed), which means it can receive corrections from a Trimble RTX (Trimble RTX) corrections service, via an L-band geostationary satellite, provided you have subscribed to this service. With a currently valid subscription, the SP60 will be able to compute and deliver positions with the announced accuracy for the chosen service, provided it is in line with the RTK option installed. -
Page 27: Introducing Sp60 As Local Base
Introducing SP60 as Local Base Possible Local Base The SP60 can be used as a local base, delivering its corrections through one of the following devices: Configurations • Long-Range Bluetooth: For baselines less than 800 meters (0.5 mile), the local base will be able to deliver its corrections to a rover over a long-range Bluetooth connection. -
Page 28: Configuring Sp60
Configuring SP60 NOTICE: It is assumed you have a good knowledge of the field software you are using. This section will only focus on the key settings for implementing each of the available SP60 operating modes as rover or base. Remember other settings may be required as you go along. -
Page 29: With Fast Survey
• In the Equip menu, tap GPS Rover or GPS Base (depending on the function you want to assign to the receiver). Do the following: – Current tab: Manufacturer= “Spectra Precision” and Model= “SP60”. – Comms tab: Type= “Bluetooth”, find the SP60 Bluetooth device, select it, tap to establish the connection. - Page 30 – RTK tab: See the two tables below for the required settings. – For a base, as recalled in these two tables, choose the format of corrections (ATOM, RTCM, CMR) – Tap to complete the receiver configuration. 1) SP60 Standalone Rover SP60 Used As:: Set “Device”...
-
Page 31: Using The Uhf Kit Option
Using the UHF Kit Option The UHF kit is an option that you can use to implement a radio-based, standalone RTK base/rover system (see UHF Kit PN92673-00 on page 2 for more details on all the items provided in this kit). With this configuration, you have full control of your base as you can choose where and when to install and operate it. -
Page 32: Installing The Uhf Module Into The Receiver
Installing the UHF • Power off the SP60 and turn it upside down. Module into the • Use the L-shaped Torx screwdriver provided in the SP60 UHF kit to loosen and remove the four screws ([1]) Receiver securing the 5/8” threaded insert plate. •... -
Page 33: Configuring The Uhf Module
Configuring the The standard settings of the UHF module can easily be changed from the field software. UHF Module For more advanced radio settings, use the procedure below: • Use cable P/N59044-10-SPN from the Office Power Kit to connect the receiver to the computer (see diagram below). -
Page 34: Completing Rover Radio Setup
Completing Rover Once the UHF module has been secured to the receiver (see Installing the UHF Module into the Receiver on page 24) and Radio Setup properly configured, do the following: • Screw the UHF whip antenna onto the coaxial connector of the UHF module ([6]). -
Page 35: Completing Base Radio Setup With External Uhf Antenna
Completing Base Two types of base setups are possible with an external UHF antenna: Radio Setup With • The UHF antenna may be installed in vertical position on External UHF the same tripod as the base receiver. Antenna For this setup, you may use one of the available two PacCrest radio accessory kit options.(see Other Optional Accessories on page 5;... -
Page 36: Completing Base Radio Setup With Internal Uhf Antenna
On receiver side, after the UHF module has been secured to the receiver and properly configured, do the following whatever your choice of antenna setup: • Pass the male connector of the coaxial adapter cable [12] (PN 96845) through the oblong hole of the pole extension (PN 95672) and make it go out of it at its upper end (see [12]). -
Page 37: Anti-Theft And Startup Protections
Anti-Theft and Startup Protections Anti-Theft Purpose Protection The SP60 integrates an anti-theft function to protect your equipment while it is left operating unattended. This protection is intended for a SP60 operated as a base. The anti-theft protection will discourage the theft of an SP60 receiver by rendering it useless without the anti-theft password. -
Page 38: What Will Happen When A Theft Is Detected
What Will Happen When a Theft is Detected? The protected receiver will switch to “theft mode”, that is: • The buzzer will regularly emit a sound alarm in quick succession, and for an indefinite period of time. • All output messages will be stopped (the protected base receiver will no longer generate and transmit corrections, or any other NMEA or raw data messages). -
Page 39: Startup Protection
Startup Protection Purpose The SP60 integrates a protection from illegal use. With this protection active, only authorized operators will be allowed to use the receiver, after they have entered their password. Enabling/Disabling Startup Protection This protection may be enabled or disabled from the data collector controlling the receiver. -
Page 40: Using Anti-Theft And Startup Protections In Survey Pro
alarm, and the second one will make you a legal user of the receiver. Using Anti-Theft • Power on the SP60. Wait until the boot sequence is over. and Startup • On the data collector, launch Survey Pro and open a job. •... -
Page 41: Enabling/Disabling The Anti-Theft Protection
set a base or start a standalone, static, post-processing session. Keeping this box disabled means users will not be prompted. Users may enable or disable anti-theft protection at any time through Survey > Anti-Theft. – Enable (startup protection): This button allows you to enable the startup protection. -
Page 42: Using Anti-Theft And Startup Protections In Fast Survey
Using Anti-Theft • Power on the SP60. Wait until the boot sequence is over. and Startup • On the data collector, launch FAST Survey and open a job. • Tap Equip to access the equipment menu. Protections in • Tap on GPS Base or GPS Rover. Through the four tabs FAST Survey presented, configure your SP60 as desired. -
Page 43: Collecting Raw Data Files
Collecting Raw Data Files Raw Data Logging You can control raw data logging sessions directly from the SP60, without the need for a data collector. After turning on in Standalone the receiver, do the following to enable raw data logging: Mode •... -
Page 44: Downloading Raw Data Files To A Usb Key
Files can also be downloaded to the data collector using to a Computer Survey Pro (Survey menu > File Management) or FAST Survey (Survey menu, Log Raw GPS > File Manager button) field software. Post-Processing This can be done using Spectra Precision Survey Office (SPSO) software. Raw Data Files... -
Page 45: Using The Sp60 From An Android Platform
Beforehand, you also need to install and run a specific to the SP60 software interface on the Android platform. This application is called “SPace” and is available from Spectra Precision via Google Play. SPace will smoothly let your Android application use position data delivered by the SP60. -
Page 46: Appendix
Appendix SP Loader Use Spectra Precision SP Loader software to: Software Utility 1. Upgrade the receiver firmware 2. Install new firmware options 3. Validate RTX subscription. 4. Read the warranty expiration date of a GNSS receiver. Installing SP Loader SP Loader can be downloaded from: http://www.spectraprecision.com/eng/sp60.html#.VdWdb5dWIQo... -
Page 47: Upgrading Receiver Firmware
Upgrading Receiver Firmware Firmware upgrades will be downloadable from the Spectra Precision website in the form of compressed “.tar” files. The name of the “.tar” file, as well as the step-by step upgrade procedure will be given in the accompanying Release Note. Completing a firmware upgrade procedure will take up to You are not allowed to upgrade a receiver if anti-... -
Page 48: Installing A Firmware Option
Installing a Firmware Option Before you start this procedure, make sure you have received an email from Spectra Precision containing the POPN corresponding to the firmware option you have purchased. NOTE : Your computer needs an Internet connection to install a firmware option using a POPN. -
Page 49: Validating Rtx Subscription
Positioning Services and specify the type of subscription you purchased before you click Update. Reading Receiver Warranty Expiration Date SP Loader can be used to query the Spectra Precision database for the warranty expiration date of your GNSS receiver. (After a receiver warranty has expired, remember receiver firmware upgrades are no longer free of charge.) -
Page 50: Sp File Manager Software Utility
(Click on the Support button to access the download link.) Installing SP File Manager SP File Manager is very easy to install: • Download the exe file from the Spectra Precision website (use above link). • Double-click on the exe file to complete the installation. - Page 51 The Office Power Kit required for this serial connection is designed to let you power the receiver from an AC outlet rather than from the receiver battery (see illustration above). When applied to the receiver’s DC input, the external power source has priority over the internal battery, which means the battery can be left safely inside the receiver (it won’t be drained).
- Page 52 In this setup, you can alternately replace the Power/Data cable (P/N 59044-10) from the Office Power Kit with cable P/N 95715 from the Field Power Kit (option). See diagram below. To Office Computer USB-to-Mini Universal Power Cable ** Cable AC/DC Power Block Power Cord...
-
Page 53: Getting Started With Sp File Manager
Getting Started Double-click on . The SP File Manager window which then appears is detailed below. With SP File Manager [1]: SP File Manager toolbar. This toolbar consists of the following items: • Port and baud rate scroll-down lists: Let you choose which serial port is used on computer side for the connection with the receiver (baud rate only makes sense when an RS232 serial line is used). -
Page 54: Establishing A Connection With The Receiver
• Delete button: Deletes the files currently selected in pane [2] or [3]. [2]: Pane showing the content of the currently open folder on computer side. [3]: Pane showing the content of the currently open folder on receiver side. The receiver’s root folder contains two or three sub-folders: •... -
Page 55: Deleting Files From The Receiver
• In the left-hand side of the window, browse your computer to the folder where to copy the files (recipient folder). • In the right-hand side of the window, highlight the file(s) you want to copy. • Click on the Copy button. Files are then copied, as requested. -
Page 56: Technical Specifications
Technical GNSS Characteristics Specifications • 240 GNSS channels – GPS L1 C/A, L1P (Y), L2P (Y), L2C – GLONASS L1 C/A, L2 C/A, L3 – BeiDou B1 (phase 2), B2 – Galileo E1, E5b – QZSS L1 C/A, L2C, L1 SAIF –... -
Page 57: Subscriptions To Trimble Rtx Corrections Services Supported By Sp60
• Vertical: 15 mm (0.049 ft) + 1 ppm Subscriptions to Trimble RTX Corrections Services Supported by SP60 (1) (2) Horizontal GNSS Service Initialization Time Accuracy (RMS) Frequencies CenterPoint RTX < 4 cm < 30 min, or <5 min (*) L1+L2 FieldPoint RTX <... - Page 58 – Bluetooth 2.1 + EDR, long range: class 1 (19 dBm) • Memory: – 256 MB internal memory NAND Flash – Over a month of 15 sec. raw GNSS data from 14 satellites • Operation: – RTK rover & base –...
- Page 59 Data Collectors and Software The following options are available for use with SP60. Data collectors: • Ranger 3 • T41 • MobileMapper 20 • ProMark 120 Field software: • Survey Pro • FAST Survey (1) Accuracy and TTFF specifications may be affected by atmospheric conditions, signal multipath, satellite geometry and corrections availability and quality.
- Page 60 Numerics Long-range Bluetooth NTRIP AC/DC power block Adapters PacCrest Y cable ADL Vantage accessory kits Password ADLCONF Password for anti-theft and startup Allow mock locations protections Android Phase center location Anti-theft Pole extension, 15 cm Pole extension, 7 cm Power button Power cables Battery charger Power cord kit...
- Page 61 UHF module (installing) UHF option (base setup) UHF option (rover setup) UHF whip antenna Upgrade procedure (firmware) Upgrade receiver fimware USB key USB-to-mini universal cable Vertical measurement (instrument height) ViewPoint RTX Warranty (end of) Z-Blade...
-
Page 62: User Guide
44474 Carquefou (Nantes), France Singapore 449269, Singapore ©2015 Trimble Navigation Limited. All rights reserved. Spectra Precision is a Division of Trimble Navigation Limited. Spectra Precision and the Spectra Precision logo are trademarks of Trimble Navigation Limited or its subsidiaries. August 2016 (English)
