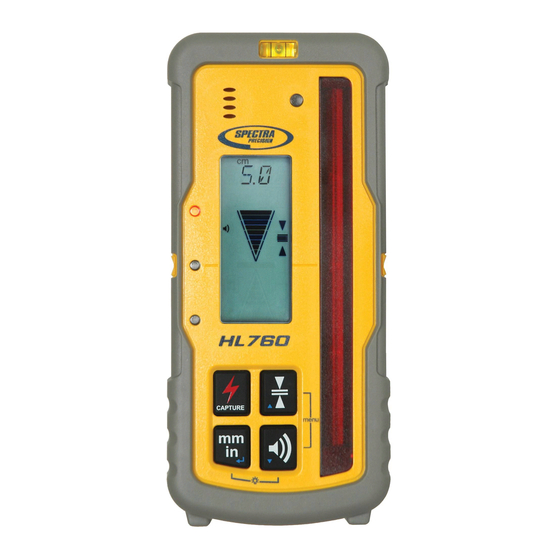

Spectra Precision HL760 Pairing Manual

Dro receivers
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

January 2015
Pairing two HL760
DRO Receivers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HL760 and is the answer not in the manual?

Questions and answers

Related Manuals for Spectra Precision HL760

Summary of Contents for Spectra Precision HL760

  • Page 1 January 2015 Pairing two HL760 DRO Receivers...
  • Page 2 Pairing HL760 + HL760  Before using one HL760 as a receiver and the second one as a remote display, both receivers have to be paired. (required only once for each device)  Identification code of the paired device is stored in memory.
  • Page 3 Pairing HL760 + HL760  Turn on the receivers, then press and hold the Scroll up and Scroll down buttons for two seconds.  After two seconds, the display on both receivers shows MENU first, then RDIO  Press and release the Enter button –...
  • Page 4 Pairing HL760 + HL760  If not already set to HL, press Enter button, then press Scroll up or scroll down button until HL is displayed.  Press Enter (unit) button again to enter selection then press the Scroll down button until PAIR is displayed.
  • Page 5  The second HL760 turned on becomes the REMOTE DISPLAY / CONTROL PANEL  Turn on the HL760 that is desired to be the SENSOR first.  Turn on the HL760 that is desired to be the REMOTE DISPLAY / CONTROL PANEL second.
  • Page 6 HL760: General Operation  When working as a remote display, an antenna symbol is permanently turned on.  During REMOTE DISPLAY / CONTROL PANEL operation, RMT.D is displayed.  The Unit will remotely display the elevation readings of the SENSOR, as long as the Antenna symbol shows the two are within radio range of each other up to 100 meters (330 ft).
