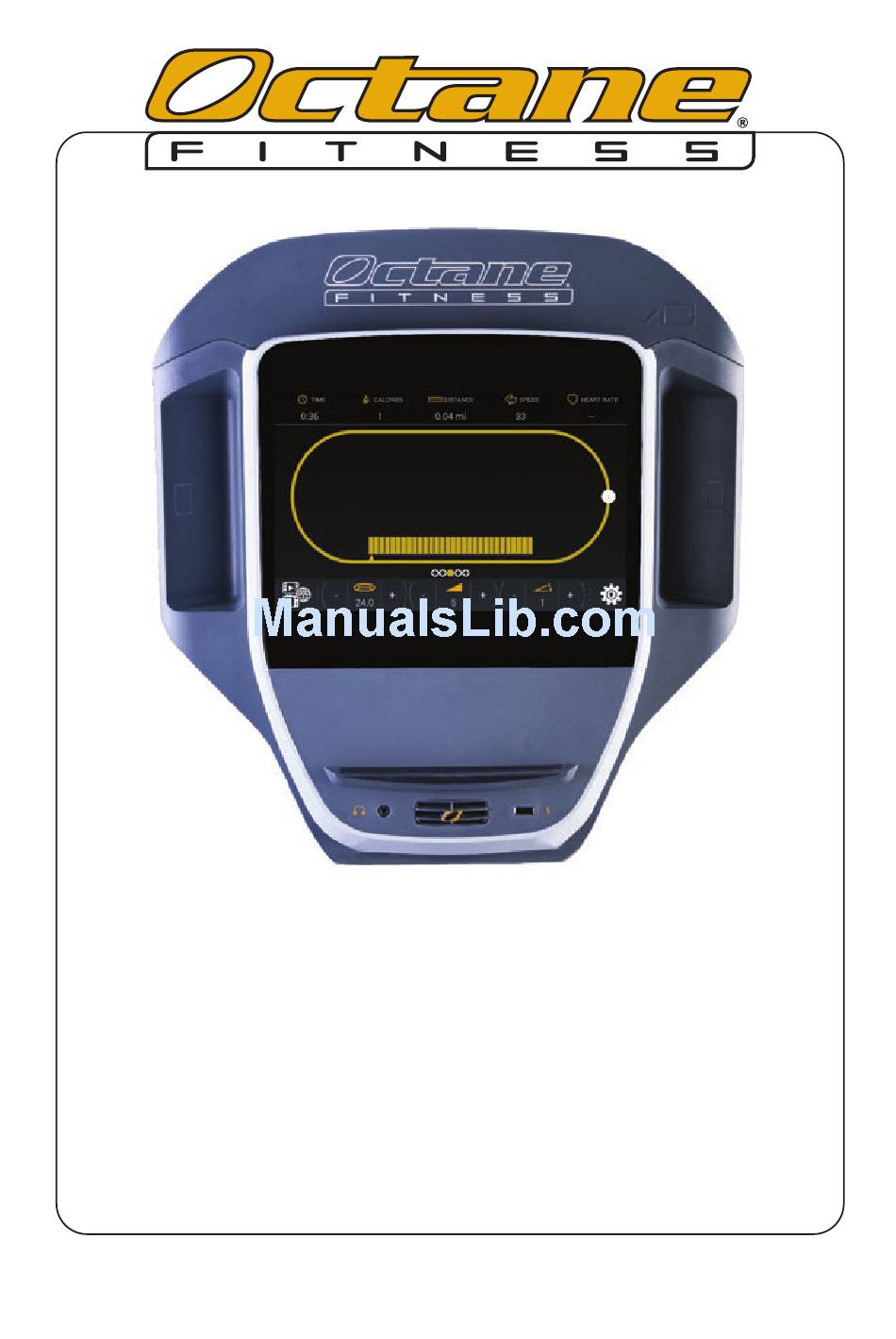

  • Page 1 CONSOLE GUIDE & SETUP INSTRUCTIONS– SMART CONSOLE...

  • Page 3: Table Of Contents

    SMART CONSOLE GUIDE ......................1 Smart Console Features ......................1 Touch Screen Navigation ...................... 2 Home Screen ..........................2 ZR8000 Home Screen ......................3 Select a Workout ........................4 Workout Mode ......................... 5 ZR8000 Stride Trace ......................7 Settings Mode .......................... 8 Entertainment Mode .......................

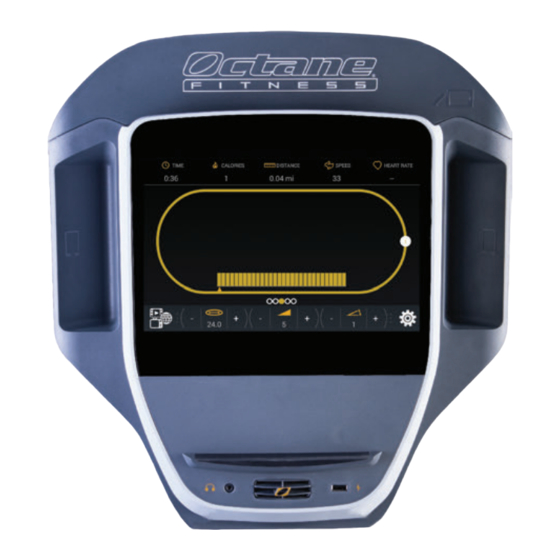

  • Page 4: Smart Console Guide

    SMART CONSOLE GUIDE Get ready to Fuel Your Workout with the Octane Fitness elliptical cross trainer! The smart console offers a variety of pre-programmed workouts managed by sophisticated electronics that will keep you interested and motivated. Use this guide to become familiar with its features, data display and keypad buttons; then hop on, start pedaling, choose your workout and adjust the settings.

  • Page 5: Touch Screen Navigation

    Note: Screen image may vary from illustration, depending upon product, available features and software version. From the Home screen for all products except the ZR8000, choose one of these options: • Touch “How to Use” to see a tutorial video.

  • Page 6: Zr8000 Home Screen

    ZR8000 Home Screen Note: Screen image may vary from illustration, depending upon available features and software version. The ZR8000 home screen includes a looping video showing you how to use the ZR8000. From the ZR8000 home screen, choose one of these options: •...

  • Page 7: Select A Workout

    Octane Favorite. (Booster options and availability vary by product. ) Descriptions of each program and the HIIT boosters are found in the Octane Fitness Program and Features Guide (Part Number 110751-001), available online at www.octanefitness.com. Just navigate to the page for your product and select the guide for online review or download.

  • Page 8: Workout Mode

    Workout Mode Note: Screen image may vary from illustration, depending upon product, available features and software version. Workout Mode features three display zones to maximize the workout experience: The top of the smart console display highlights workout data: Icon Description Displays workout time, counting up from 0:00.

  • Page 9: Icon Description

    Touch + or - to increase or decrease the resistance level (1-30), where 1 is the lowest resistance level and 30 is the highest. (On the ZR8000, use the resistance lever on the top hoop to change resistance; current level is displayed here.)

  • Page 10: Zr8000 Stride Trace

    ZR8000: Stride Trace View The unique Stride Trace is the primary view on the ZR8000: This view displays an approximation of the horizontal and vertical motion of each of your legs. The left leg motion is shown in white, the right leg motion is shown in yellow. Everyone’s stride is different; the goal is to have the shape of your stride consistent throughout your workout.

  • Page 11: Settings Mode

    Settings Mode Note: Screen image may vary from illustration, depending upon product, available features and software version. The following options are available in Settings mode: • End workout—stop your program and move to a cool-down phase. • Change workout—return to the Select Workout screen to select and start a different program. Your workout data (total time, calories, distance, etc) will be reset when you begin the new program.

  • Page 12: Entertainment Mode

    Entertainment Mode (May not be available in all installations.) Note: Screen image may vary from illustration, depending upon product, available features and software version. These options may be available if your installation includes a personal viewing system with internet and/or network access: Icon Description...

  • Page 13: Smart Console Setup And Administration

    When you first power on the smart console, you will see a series of screens indicating that the various components of the software are initializing. One screen will ask if your machine is a ZR8000; touch “Yes” or “No”, as appropriate, to continue initializing the console.

  • Page 14: Club Settings

    This feature may be set to “On” (to include a 3-minute warm-up in each workout) or “Off”. Move the slider to your choice. The factory default setting for all models excluding the ZR8000 is “ON”; the factory default setting for the ZR8000 is “OFF”. Units You may choose to have the weight and distance units displayed in “English”...
  • Page 15 When CROSS CiRCUIT is enabled, this setting allows you to change the Home screen Attract Screen to a video highlighting the availability of CROSS CiRCUIT workouts. Set to “ON” if you (excluding ZR8000, want to display this optional Home scree; factory default is “OFF”. xR6000) Default Stride Set the default stride length of the unit to any value between 20”...

  • Page 16: Network Settings

    Network Settings Note: Screen image may vary from illustration, depending upon product, available features and software version. Use the Network Settings screen to enable Internet (network), club network (Ethernet) or WiFi for your users. Move the slider to ON or OFF as desired for each setting. Factory default settings for all are “OFF”. If “Network”...

  • Page 17: Internet Favorites

    Touch Reset Network Settings to restore original settings. Use Import All Settings and Export All Settings to copy all the Club Settings to multiple units. Use Import from USB and Export to USB for copying the settings on this screen only to multiple units. See “Setting Up Multiple Units”...
  • Page 18 You may add, change or delete sites as you choose: • To remove site access, touch the check box in the “Disable” column. • To delete a site entirely, or to change the site name or icon, touch the site name in the list, then touch “Delete”...

  • Page 19: Entertainment Setup

    When a Personal Viewing System (PVS) is attached and enabled on the Machine Settings screen, additional settings are available on this screen to define how the TV works with the Octane Fitness unit. To begin, access the pop-up password keypad, then enter the password SETT (7388) and verify that the “TV” setting is “ON”. Then, to begin TV Setup, access the pop-up password keypad, then enter the password SCAN (7226).
  • Page 20 Note: Screen image may vary from illustration, depending upon product, available features and software version. To remove a channel, touch the checkbox in the “Remove” column for that channel. Use the bottom and the right side of the screen to set up or edit the following information. (Channel Number and Channel Scan Name cannot be changed.) Default Power Four options are available for managing the on/off state of the PVS (drop down menu at the...

  • Page 21: Remote Update Setup

    USB device. For reference, the identification of the current software version and the most up-to-date version of software available from Octane Fitness are displayed at the top of the screen. If the two version numbers differ, use the fields below to manage your update preferences.

  • Page 22: Server

    Manual Update Touch Update to initiate the manual process. USB Update If you have received a USB storage device with an update from Octane Fitness: 1. Remove the back cover of the console, remove and retain the USB dongle and insert the USB device into the USB port on the back of the smart console.

  • Page 23: Machine Information And Diagnostics

    Machine Information and Diagnostics The smart console offers information screens regarding system identification and status. Under the direction of an Octane Fitness Customer Service representative, you may perform simple tests to help you verify important electrical functions. Important machine identification data such as model number, serial numbers, software versions and network status are found on the Machine Information screen.

  • Page 24: Setting Up Multiple Units

    Setting Up Multiple Units Once you have set up one Smart Console, you may use its built-in Import/Export functions to easily transfer setup information to additional units. You may transfer all setup information using the Import/Export All Settings on the Club Settings screen, or you may copy just the Machine Settings, Network Settings, Internet Favorites, or Entertainment Setting using the Import From USB / Export to USB button on that screen.

  • Page 25: Transferring Settings From One Screen Only

    Press the Power button ( ) to turn on the PVS. c. Follow the instructions on pages 5-6 of Octane Fitness Personal Viewing System Product Manual, provided with your PVS, to navigate to the PVS Channel Scan Menu and select “Save Channels to...

  • Page 26: Advanced Diagnostics

    Press the Power button ( ) to turn on the PVS. c. Follow the instructions on pages 6-7 of Octane Fitness Personal Viewing System Product Manual, provided with your PVS, to navigate to the PVS Channel Scan Menu and select “Load Channels from USB”.

  • Page 27: Additional Support Information

    WARNING! This machine contains moving parts. Take caution when trying to locate and fix any problem with the machine. Your Octane Fitness product has been manufactured to withstand many hours of hard use with minimal required maintenance. Use only a soft, slightly damp lint-free cloth to clean the console lens of your elliptical. Abrasive cloths, towels, paper towels, and similar items may cause damage to surface.
  • Page 28 763.323.2064 © 2016 Octane Fitness, LLC. All rights reserved. Octane Fitness, Fuel Your Life, XT-One, XT4700, Zero Runner, ZR8000, LX8000, xR6000, XT3700, Stride Trace, CROSS CiRCUIT are registered trademarks of Octane Fitness. Any use of these trademarks, without the express written consent of Octane Fitness, is forbidden.
