NC-link NC-AP212 User Manual page 8

Set the SSID user required, then set it in right Authentication and input Key for outdoor CPE, then Apply Changes.

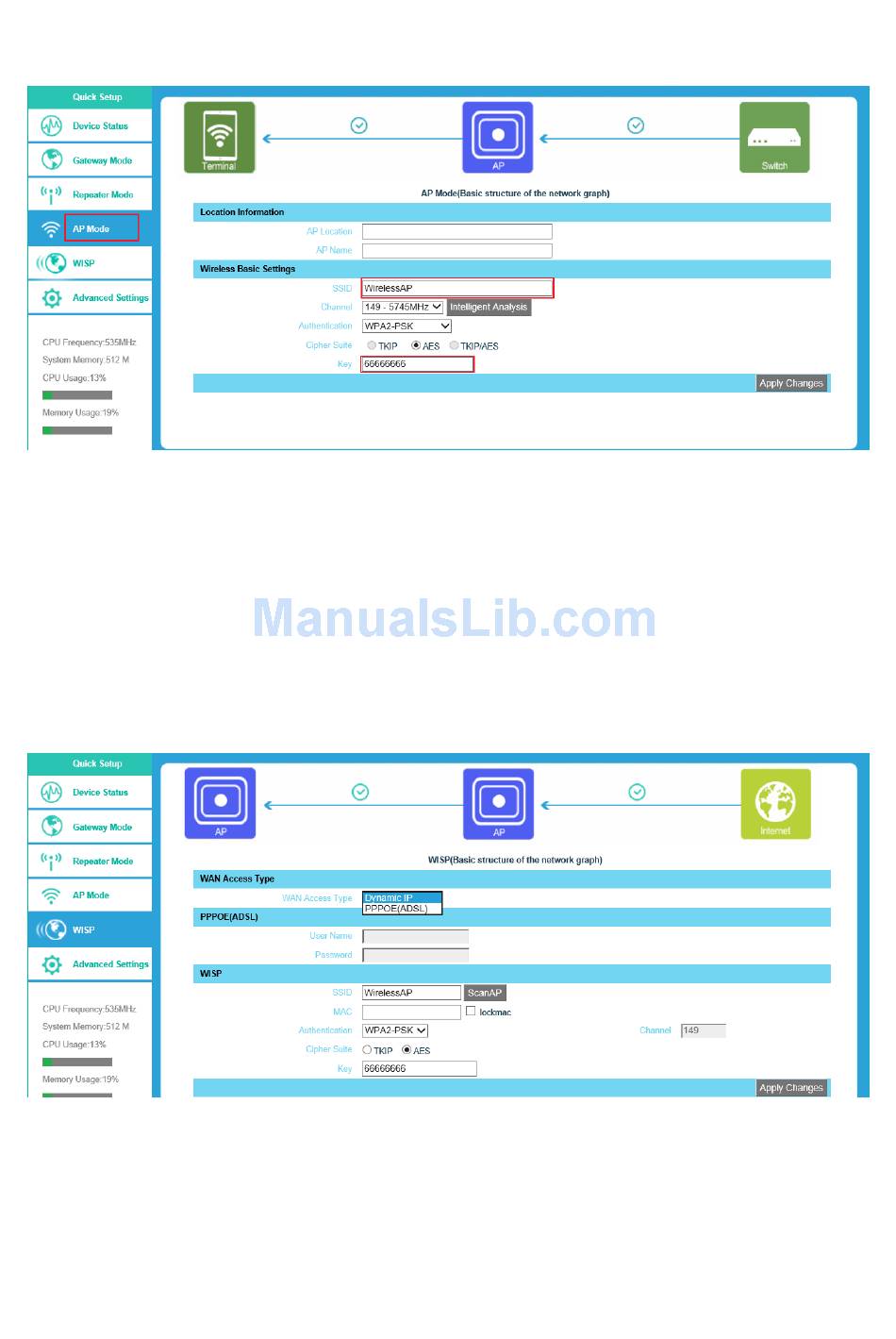

P11AP Operation Mode
SSID:Wireless LAN status authentication name ,User can access the wireless networking through status
authentication name only.
Channel:Choose a channel which few users use, it is clear and better. Can use Intelligent Analysis to choose the best
channel.
Key: Wi-Fi password, default password is :66666666
4) WISP Mode
Click "WISP" mode, outdoor CPE will work with WISP mode
P12 WISP Mode
WAN Access Type:
Dynamic IP or PPPOE(ADSL),choose the right way.
a).Dynamic IP:
①. If your access type is Dynamic IP, then you can get the IP address from the ISP. It means you only need connect
the ISP line with internet to the router's WAN port, needn't configure.
②. WISP
