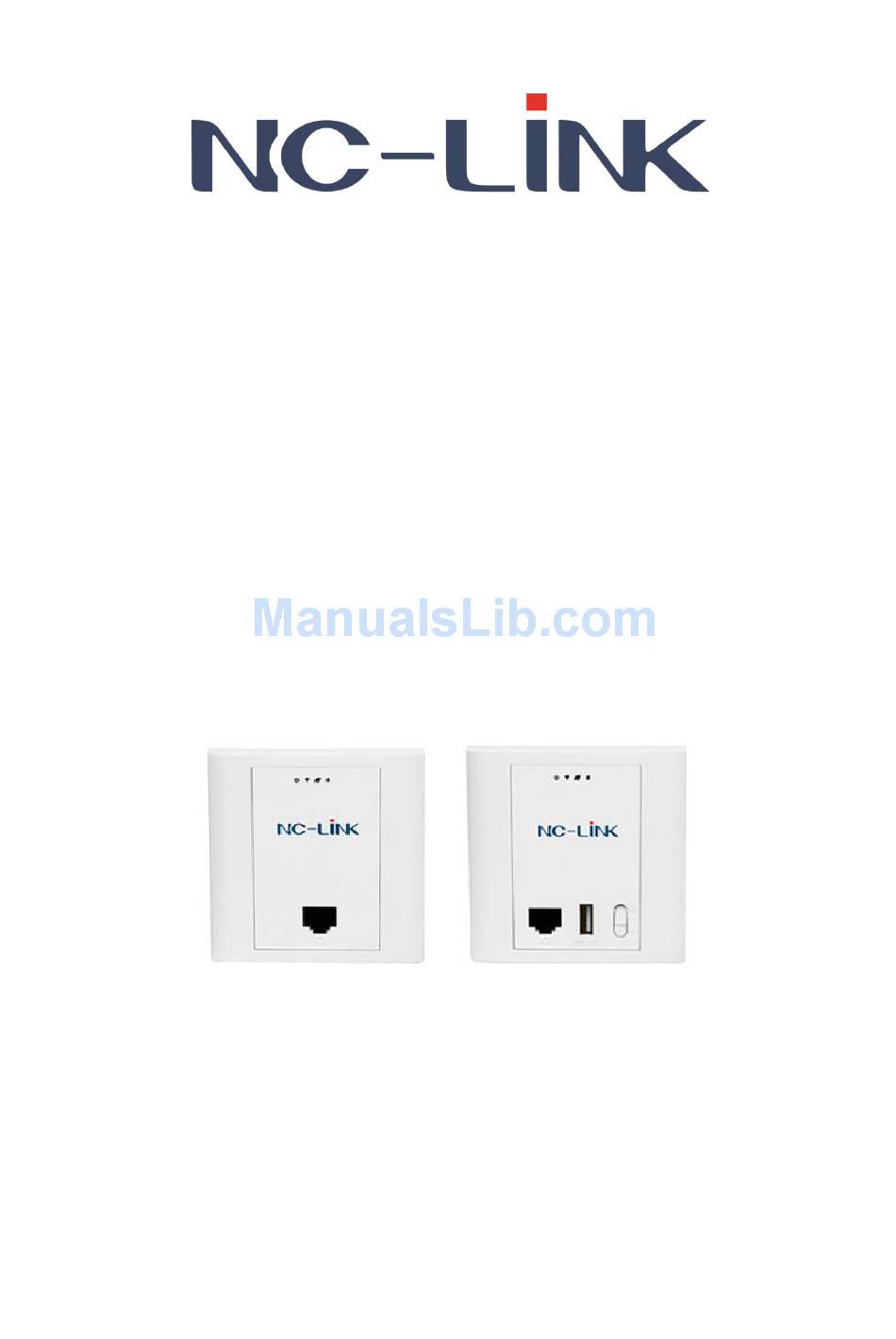

- Page 1 User Manual of NC-AP233(P)/NC-AP231 Version V1.0...
-
Page 2: Manual Instruction
Thank you for purchasing NC-Link In-Wall Access Point. This manual will instruct you how to configure and the AP, enable you to use it in a perfect status. Please check the Package before use it. Package Contents Item Description Unit... - Page 3 192.168.188.X (X between 2 to 252) since default mode is AP Mode. Login Steps: pen Chrome browser, input http://192.168.188.253 in the address bar to login Access Point Input the default user name & password: admin, then click “Log In” www.nc-link.cn...
- Page 4 After login, you can see below Web page. Default operating mode is AP Mode. www.nc-link.cn...
- Page 5 4. Repeater Mode Configuration a) I n Wireless Repeater, click “Scan AP” b) Select the AP signal you want to repeat www.nc-link.cn...
- Page 6 F ill in the Password of the repeated signal and set AP’s wireless parameters. d) C lick “Apply” to complete the configuration www.nc-link.cn...
- Page 7 C onfiguration completed, device will reboot 5. AP Mode Configuration a) S elect “Wireless Coverage” www.nc-link.cn...
- Page 8 Se t the parameter SSID, Authentication and Password c) Click “ Apply” then click “OK” to complete setting www.nc-link.cn...
- Page 9 C onfiguration completed, device will reboot 6. Gateway Mode Configuration Dynamic IP a) C lick “Internet Setting” b) If Internet to LAN Port is Dynamic IP, only need to fill in the wireless parameters. Like SSID, Authentication, Password www.nc-link.cn...
- Page 10 Then “Apply” and click “OK” to complete the configuration. www.nc-link.cn...
- Page 11 C onfiguration completed, the device will reboot 7. Advanced Status 7.1.1 Basic info www.nc-link.cn...
- Page 12 7.1.2 Wi-Fi Status 7.1.3 LAN Status www.nc-link.cn...
- Page 13 Broadcast: Enable or Disable broadcast SSID WMM: Enable or Disable WMM function Authentication: Set the authentication method Encryption: Choose the encryption type or open Key: Set the key/password of your Wi-Fi www.nc-link.cn...
- Page 14 Authentication: Set the authentication method Encryption: Choose the encryption type or open Key: Set the key/password of your Wi-Fi Note: First need to select the Virtual AP in bottom list, so that can do the rest of setting. www.nc-link.cn...
- Page 15 7.2.3 VLAN Setting 7.2.4 Access Control Allow or deny the Access Control based on MAC address www.nc-link.cn...
- Page 16 Client Isolation: enable or disable client isolation Max Station: limit the number of connect client Other advanced Setting: Professional installation or maintenance person can set it accordingly. General, keep it default. Click Apply after setting www.nc-link.cn...
- Page 17 Network 7.3.1 LAN Settings Setting the Access Type of Internet Management 7.4.1 System System: from here you can reload the backup file to restore the system, or restore to factory default, reboot the CPE through firmware www.nc-link.cn...
- Page 18 7.4.2 User User: Set the User Name and Password of the device 7.4.3 Logs Logs: The system logs can be enable or disable, user can view the system log www.nc-link.cn...
- Page 19 7.4.4 Upgrade Firmware Upgrade Firmware: Upgrade new firmware to access stable function of device 7.4.5 System time System Time: Set the Access Point’s time www.nc-link.cn...
-
Page 20: Troubleshooting
Q: Client network speed is low A: Check the link rate of your connection. If it is low, change other place to get better signal. If it is high, need to check whether has QoS in the gateway router then do some adjustment www.nc-link.cn...
