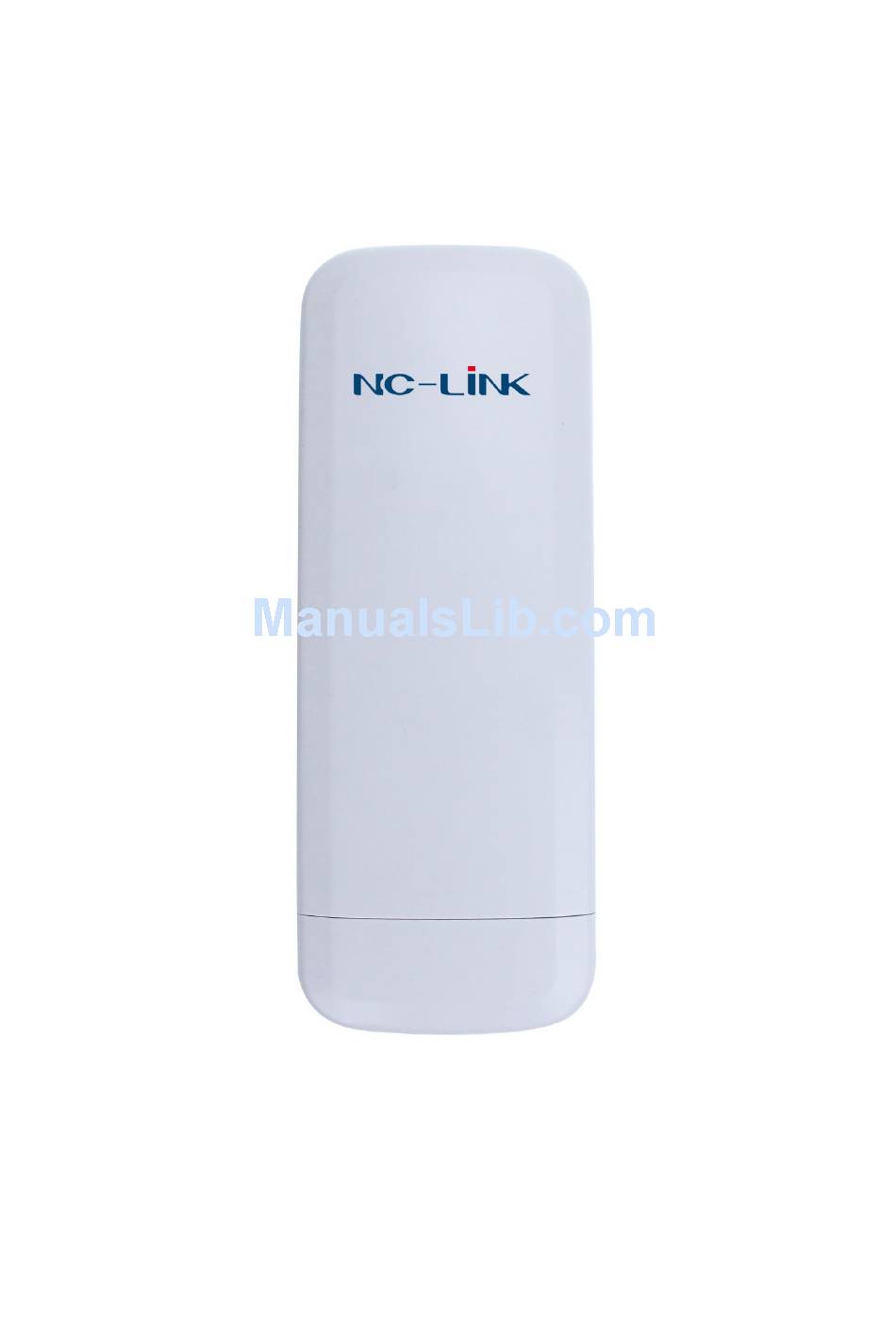

- Page 1 User Manual of 5.8G Outdoor CPE Version V1.2...
- Page 2 POE: This equipment can be powered over Ethernet, Connect CPE’s WAN/LAN Port with PoE adapter’s POE port by LAN Cable (CPE’s LAN port and WAN port support the 24V PoE.) Refer to P2 for PoE Power and CPE configure www.nc-link.cn...
- Page 3 Make sure our CPE working with included Power adapter or PoE adapter, and under right connection Attention way, or the device will be damaged. Hardware Installation Below shows the install steps: a) Turn the screw on the Metal Strap counter clockwise to open the Strap. www.nc-link.cn...
- Page 4 Slide it through the back of the device. c) Wrap the Strap around the pole with a cross screwdriver to turn the screw clockwise and fasten to the pole. www.nc-link.cn...
-
Page 5: Cpe Start And Login
192.168.188.X (X is number between 2-252), make it same as CPE’s network segment, then set Subnet mask is 255.255.255.0, Default gateway leave it blank, then click OK. Follow P3 and P4 for wired configuration.（Window 8.1 is an example） P3 Configure the computer’s IP address by wired www.nc-link.cn... - Page 6 P4 Network and Internet P5 Change Adapter Setting www.nc-link.cn...
- Page 7 Right click Ethernet and select Properties Select IPv4 and click Properties www.nc-link.cn...
- Page 8 Wireless networking Connection, then View Available Wireless Networks, our CPE’s default SSID is NC-Link_Wireless_5G, passwords: 66666666, Click Refresh network list , double click the correct SSID and input the passwords, if have, then connect, please refer to P7. P7 CPE Wireless Connection www.nc-link.cn...
- Page 9 Properties, but no Wireless Network Configuration in Window Login the CPE: Open your web browser, type in 192.168.188.253 in the address bar, enter the Password: admin, which you can found on the label attached to the device, click LOGIN P8 Login www.nc-link.cn...
-
Page 10: Setup Wizard
3. Setup Wizard After successful l ogin, you can see w eb ma nagement page of the CPE. P9 Page after Login P10 Operation Mode www.nc-link.cn... - Page 11 NC-AP212 default is AP mode, you just need to plug in an Ethernet Cable which connect to Internet, clients can surfing through wireless once connect to NC-AP212. (Access type support DHCP) Wireless Setting: Default wireless SSID is NC-LINK_Wireless_5G Default Wi-Fi Password is 66666666...
- Page 12 SSID outward simultaneously. Users access into CPE through LAN port or Wi-Fi, then get the IP address from AP or WLAN station. The CPE’s default operation mode is AP Mode, the two RJ45 ports are LAN ports and PoE port under this Instruction mode. www.nc-link.cn...
- Page 13 Click Scan AP, then will pop up a window as P12, take NC-Link_Office_5G for example, click Select AP and enter into a new web page P13: If your PC can’t popup the page of P11, check your Browser and see whether block it or not. Or change a Instruction browser. www.nc-link.cn...
- Page 14 P12 Scan Wireless AP www.nc-link.cn...
- Page 15 Save & Apply to complete configuration Click Next after fill in the Password, the Repeater Mode configuration is complete, device will reboot. In this Repeater Mode only the LAN is Bridge with wireless signal, the Wi-Fi is still OFF. www.nc-link.cn...
- Page 16 IP address: it is CPE’s management address. In Bridge Mode, the LAN port address has nothing to do with PC’s IP Address. Modify it according your require. (It is not in the same network segment with Internet IP address from WAN) Choose Disable in DHCP Server, click Apply www.nc-link.cn...
- Page 17 AP”，enter into the basic setting page as follow: P15 Configure the Basic Setting Select one of the Virtual AP and click Edit. Choose Enable the Virtual AP, and set the SSID, Authentication and Key. Then click Save & Apply. www.nc-link.cn...
- Page 18 MAX user: limit the number of connect client Sensitivity threshold: limit the weak signal client to connect Other advanced Setting: Professional installation or maintenance person can set it accordingly. General, keep it default. Click Apply after setting www.nc-link.cn...
- Page 19 Instruction g) Check CPE’s Status After login, it will shows CPE’s status P17 CPE Status When the CPE connect with WLAN station or Wireless AP, the connect status will show Connect, then show SSID, MAC address, AP Signal strength www.nc-link.cn...
- Page 20 Set PC’s Internet TPC/IP as Obtain an IP address automatically, then the PC can obtain the IP address assigned by Wireless AP or WLAN station Set PC’s IP Address After setting finished, input Ping command to test internet connectivity. 5. Gateway Operation Mode www.nc-link.cn...
- Page 21 Access type is Dynamic, setting the wireless parameter, like SSID, Password. Then Save & Apply. Access type is PPPOE, fill in the username and password provided by ISP, then set the parameter of wireless, click Save & Apply. www.nc-link.cn...
-
Page 22: Wisp Operation Mode
6. WISP Operation Mode Access type is Dynamic. Scan AP and select the signal, fill in Password then Save & Apply. Access type is PPPOE. Scan AP and select the signal, fill in Password then Save & Apply. www.nc-link.cn... -
Page 23: Management Page
Click “Management” and enter into the management page: Time Zone Setting: set the time of device, can select the time or synchronize with host. Also you can define the device to optimize in detail available time. Log: device log, and can save in remote server. www.nc-link.cn... - Page 24 Upgrade Firmware: select the upgrade file and click Upgrade. Backup/Restore Setting: in this page, you can backup your current setting to a file, restore setting from a file, restore factory default and device reboot. www.nc-link.cn...
-
Page 25: Troubleshooting
Password: insert the old password and set the new one to ensure more safe of the setting How to restore factory fault by Reset Button from CPE: Press the Reset button 15 seconds, the CPE system will reboot and restore to factory settings. Indicator 8. Troubleshooting Form 1 Symptoms and Treatment www.nc-link.cn... - Page 26 Internet If CPE’s WAN Setting is Static IP, consult with ISP for right IP address and DNS address Power CPE, press RESET button 15 seconds, Restore CPE the CPE will reboot and restore to factory default. www.nc-link.cn...
