Thank you for purchasing
Auralex
Acoustics. Varying thickness built into each patent-pending
®
absorption, while the tessellated forms allow a unique means of blending absorption, diffusion, and reflection for
optimum acoustical performance.
AudioTile Features Include:
H Maximum Broadband Absorption:
depending on installation
H Varying Thickness:
Foam thickness varies from 1" to 4" to provide effective absorption at a wide range of
frequencies
H Unlimited Tessellation Design Patterns:
diffusion and reflection
H Easy Installation:
Mount using Foamtak™ spray adhesive, Tubetak Pro™ liquid adhesive
and/or Temp•Tabs™ Studiofoam
This installation guide includes general recommendations and installation procedures for seven possible designs you can create
from this 24 piece box of AudioTile. To see additional design ideas, visit the AudioTile design gallery at Auralex.com. Should you
have any questions about the installation of your pArtScience AudioTile System, feel free to contact an Auralex Application
Specialist via email at appsupport@auralex.com or call 1-800-95-WEDGE. For best results, fill out a Personalized Room
Analysis Form (http://www.auralex.com/pcf/) before calling so the application specialist can properly assist you.
Thank you for purchasing
Installation Guidelines
pArtScience™ AudioTile™
Absorption coefficient of 0.81 @ 125 Hz. Maximum NRC = 1.00 to 1.05
Allows a unique means of blending absorption,
mounting kits
®
Auralex
24 piece set—the next generation of acoustical treatments from
AudioTile
Total Sound Control
®
delivers excellent broadband
®
products!
Installation pictured here
requires multiple sets.
834-406 | Rev. 1 | 060606 EDL
Advertisement
Table of Contents
Related Manuals for Auralex Acoustics AudioTile ShockWave
Summary of Contents for Auralex Acoustics AudioTile ShockWave
- Page 1 Installation Guidelines Thank you for purchasing pArtScience™ AudioTile™ Auralex Acoustics. Varying thickness built into each patent-pending ® absorption, while the tessellated forms allow a unique means of blending absorption, diffusion, and reflection for optimum acoustical performance. AudioTile Features Include: H Maximum Broadband Absorption: depending on installation H Varying Thickness: Foam thickness varies from 1”...

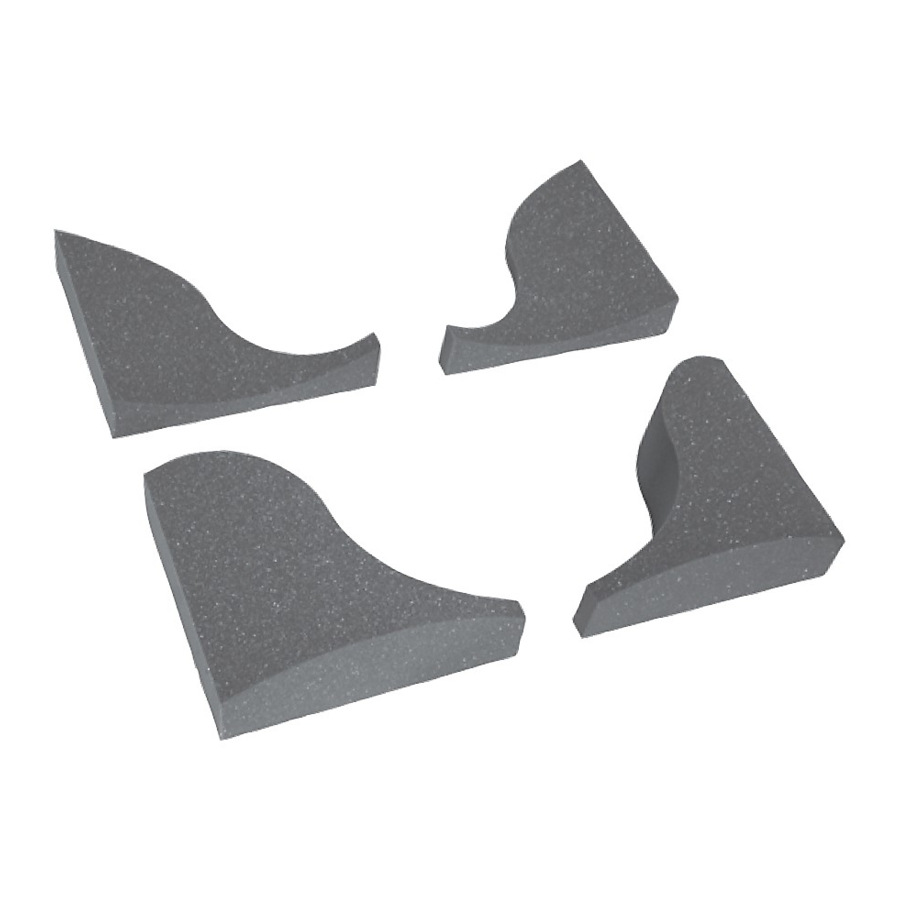

- Page 2 INSTALLATION GUIDE* ➊ This box contains 24 AudioTiles. Carefully remove each tile from the box and sort into four separate piles according to their unique shapes, as shown: 6 each CAUTION Before applying adhesive, build the design on the floor first to get an idea of placement.
- Page 4 AudioTile™ ShockWave™ | Design Ideas Here are just some of the cool designs you can build with this 24 piece set of AudioTile Shockwave ™ ™ One 24 piece set effectively treats up to one 8’ x 10’ wall or ceiling. Visit Auralex.com for more...
