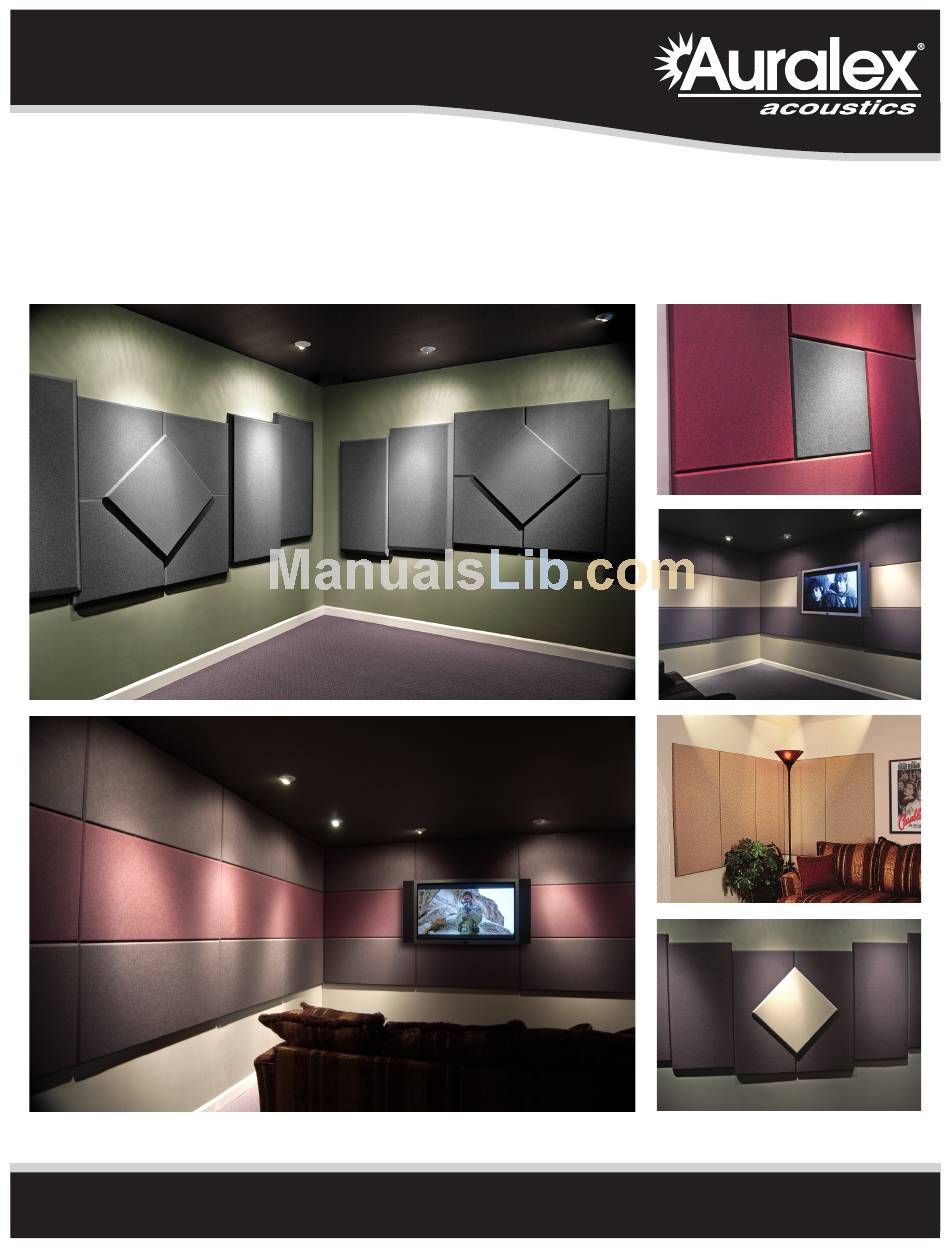

- Page 1 ELiTE ProPanel ™ ™ Installation Guide Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760...
- Page 2 ELiTE ProPanel ™ ™ Installation Guide Impaling Clips Figure 1.1 Impaling Clip installation side view Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760 Figure 1.2 Impaling Clip placement on 4’x8’ panel Figure 1.3 Impaling Clip detail...
- Page 3 Apply the adhesive liberally to the fiberglass and to the teeth of the impaling clip, but do not apply any adhesive within 3” from the edge of the panel. Number of Clips NOTE: Panels over 2” thick must also use Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760 adhesives for installation.
- Page 4 ELiTE ProPanel ™ ™ Installation Guide Adhesives Figure 2.1 Adhesive installation side view Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760 Figure 2.2 Adhesive placement on 4’x8’ panel...
- Page 5 Use ONLY water-based, heavy bodied adhesives, such as Auralex’s Tubetak Pro. • Use one tube of Tubetak Pro liquid adhesive for every 32 sq. ft. of 1” panels and every 16 sq. ft. of 2” panels. Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760...
- Page 6 ELiTE ProPanel ™ ™ Installation Guide Z-Clips Figure 3.1 Z-Clip installation side view Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760 Figure 3.2 Z-Clip placement on 4’x8’ panel Figure 3.3 Wall Z-Clip detail Figure 3.4 Impaling Z-Clip detail...
- Page 7 Use ONLY water-based, heavy bodied adhesives, such as Auralex’s Tubetak Pro. • Apply the adhesive liberally to the teeth and base of the impaling clip only. Number of Clips NOTE: Panels over 2” thick must also use Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760 adhesives for installation.
- Page 8 Turn the panel face down on a clean surface and apply Foamtak spray adhesive in a 2” band where the fabric overhangs. Trim the back and corners of excess fabric, but leave just enough to cover all fiberglass. NOTE: Auralex is not responsible for damage done to any panel during general modifications. Auralex Acoustics, Inc. ◆ 800-959-3343 ◆ Fax: 317-842-2760...
