Page 1: User Guide
ALLEN&HEATH iDR0 iLive Mix System DSP MiniRack USER GUIDE Publication AP7129... - Page 2 Allen & Heath could void the compliance of the product and therefore the users authority to operate it. iDR0 User Guide AP7129 Issue 1. Copyright © 2008 Allen & Heath. All rights reserved Manufactured in the United Kingdom by Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com...
- Page 3 Refer servicing to qualified technical personnel only. Installation Install the equipment in accordance with the instructions printed in this User Guide. Use the equipment connections for their intended purpose only. iDR0 User Guide...
-
Page 4: Important Mains Plug Wiring Instructions
Ensure that the cables are located such that they cannot be stood on or tripped over. Modules: Do not remove the modules from the unit while power is applied. iDR0 User Guide... - Page 5 Introduction This is the user guide for the Allen & Heath iDR0 ‘MiniRack’ mix engine. We recommend that you read this fully before starting. Included is information on installing, connecting and operating the unit along with panel drawings, application drawings and technical specification.
-
Page 6: Getting Started

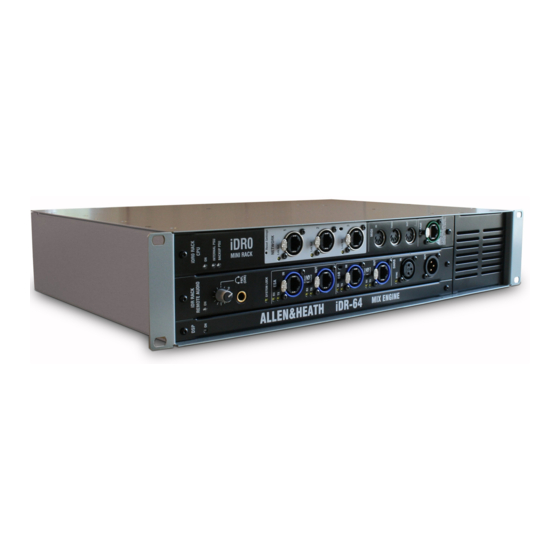

Welcome to the iDR0 MiniRack The iDR0 is a compact, rack mountable unit housing the ‘brains’ of the iLive digital mixing system. It features a 64 input x 32 bus architecture with full channel and mix processing together with 8 internal effects processors. - Page 7 AP7284 iss.1 V1.2 The iDR0 is similar to the iDR10 but without the slots for audio I/O cards. It is the iLive 'brain' with DSP mix engine, control and audio network interfaces. iDR0 provides a compact solution for systems using EtherSound as a digital mic splitter, or as a stand alone mixer using audio at the rear of the surface.
-
Page 8: Installation
Rack mounting The iDR0 is designed as a 19 inch rack mount unit and will occupy 2U (3.5 inches) of rack space. The plastic feet may need to be removed before rack mounting. Retain the feet for future use. -
Page 9: Cpu Module
Power indicators - Blue LEDs light to indicate power present. NETWORK - A 3 port Ethernet switcher is built in. This lets you connect several network devices to the iDR0, for example an iLive Surface and a laptop running the iLive System Manager software. - Page 10 Audio Clock Source (Surface TouchScreen MIXRACK / Mixer Pref / Audio Sync) - If the iDR0 is the slave getting its channel preamp sources via EtherSound network ESB in a linked FOH/Monitor system then the Clock Source should be set to ‘ESB’. If it is being used as a stand alone system getting its audio from the Surface via ESA only then it should be set to ‘Internal’.
-
Page 11: Rear Panel Connections And Operation
Made in the UK by ALLEN&HEATH LIMITED MAINS INPUT - An IEC mains power cord with moulded plug suitable for your territory is shipped with the iDR0. Refer to your Allen & Heath agent if the incorrect type has been provided. The iDR0 has an internal universal voltage power unit that accepts world wide mains sources from 100 to 240V.AC 47 to 63Hz. - Page 12 You can also download additional application drawings which illustrate the versatility of iLive in satisfying many basic and advanced applications. Refer also to the iDR0 Getting Started Guide AP7284 printed earlier in this guide and also to the iLive System Reference Guide AP6526.
- Page 13 APPLICATION EXAMPLE - FOH / MONITOR (iDR0 at Monitors) 64 inputs FOH, 56 way split. FOH engineer has gain control. FOH_8fx_LR Load Show iLive FOH engineer has control of preamp gain and phantom power NETWORK ESA IN HEADPHONES and TALKBACK...
- Page 14 APPLICATION EXAMPLE - FOH / MONITOR (iDR0 at FOH) 64 inputs FOH, 56 way split. Monitor engineer has gain control. SLAVE_FOH_LR Load Show iLive Monitor gain affects FOH but engineer has channel digital trims NETWORK ESA IN HEADPHONES and TALKBACK...
- Page 15 APPLICATION EXAMPLE - FOH / MONITOR (iDR0 at FOH, No ESA on Monitor) 56 inputs FOH, 48 way split. No ESA on monitor system. Monitor engineer has gain control. SLAVE_FOH_LR Load Show iLive Monitor gain affects FOH but engineer has channel digital trims...
- Page 16 User Guide...
