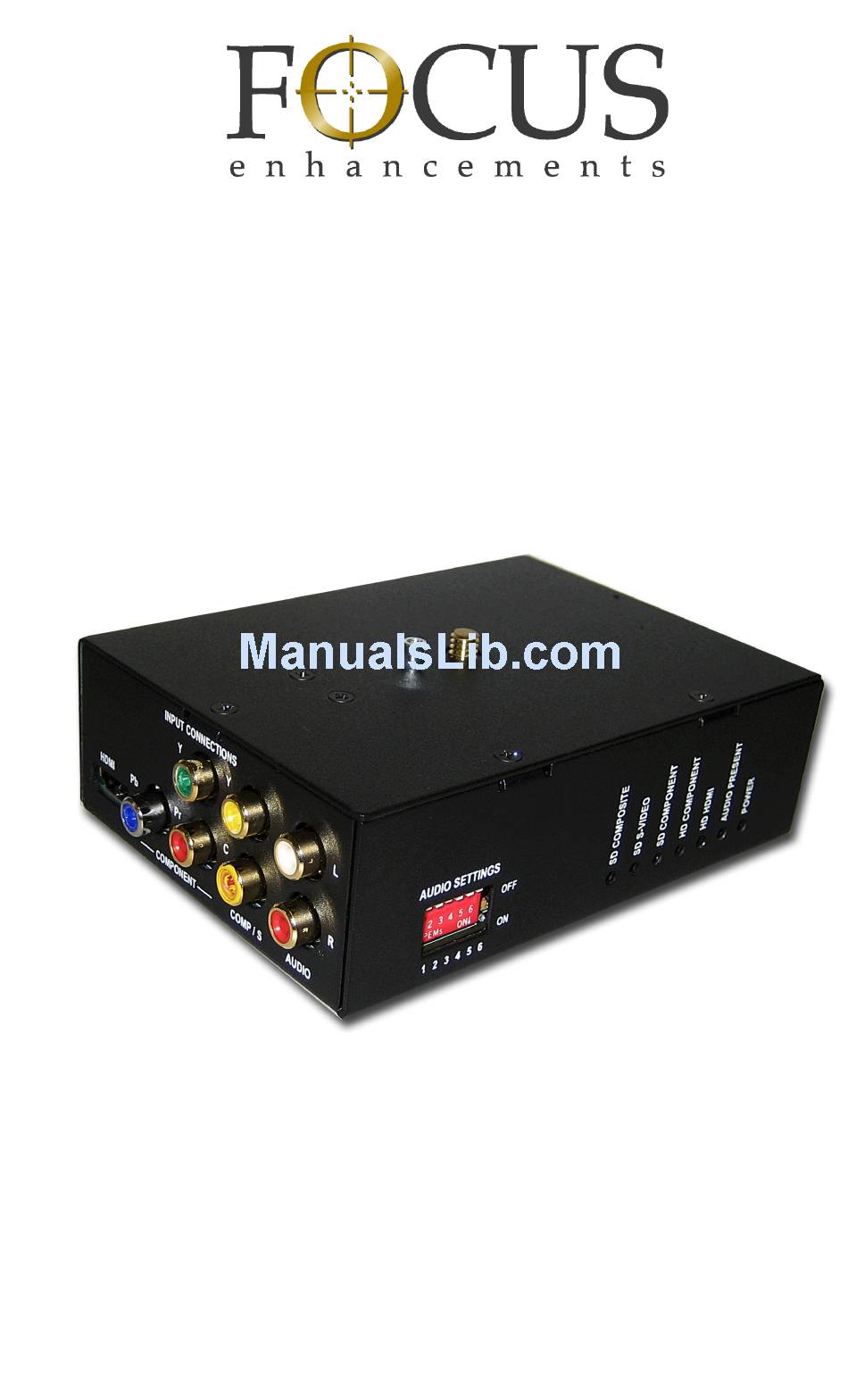

Page 1: Media Converter
MCSDI-1 Portable SD/HD-SDI Media Converter User Guide MANL-1101-04... - Page 3 It may not be reproduced or distributed in any form by any means, altered in any fashion, or stored in a data base or retrieval system, without express written permission of FOCUS ENHANCEMENTS. FOCUS ENHANCEMENTS cannot be responsible for unauthorized use of equipment and will not make allowance or credit for unauthorized use or access.
-
Page 4: Serial Number
+49 4307 - 83 58 99 Address: COMO Computer & Motion GmbH A Focus Enhancements Company Lise-Meitner-Str. 15 24223 Raisdorf / Germany www.focusinfo.com Serial Number The serial number for this equipment is located on the bottom of the unit. MCSDI-1 Portable SD/HD-SDI Media Converter... - Page 5 Regulations and Safety Focus Enhancements, Inc. 1370 Dell Avenue Campbell, CA. 95008 Model Number: MCSDI-1 Portable SD/HD-SDI Media Converter Date of Manufacture: Reference the Serial Number label attached to the unit. FCC Class A This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment.
- Page 6 Compliance MCSDI-1 is a device marketed for use in industrial or business environments. The MCSDI-1 complies with the regulations the following testing agencies: Australia and New Zealand European Union MCSDI-1 Portable SD/HD-SDI Media Converter...
- Page 7 Place documentation in a secure place for future reference on operating and safety instructions. • Follow All Operating and Safety Instructions • Pay Attention to All Warnings Warnings are provided to protect the operator, the equipment, and content. MCSDI-1 Portable SD/HD-SDI Media Converter...
- Page 8 Verify Power Plugs are Fully Inserted To prevent potential electrical shock to personnel, verify that the MCSDI-1 power cord plug is fully inserted in to a grounded receptor and that the plug blades are not exposed. ATTENTION POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS...
- Page 9 This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug. MCSDI-1 Portable SD/HD-SDI Media Converter...
- Page 10 Lightning and Power Surges During electrical storms or when left unattended and unused for long periods of time, unplug the MCSDI-1 from the power source and disconnect the antenna or cable system. Power Lines...
- Page 11 If the product has been dropped or damaged in any way. • When the product exhibits a distinct change in performance. Accessories and Replacement Parts Use only attachments and accessories recommended by Focus Enhancements. Use only replacement parts specified by the Focus Enhancements or of comparable quality and characteristics as the original parts.
-
Page 12: Operating Environment
(including amplifiers) that generate heat. Ventilation Do not block the ventilation openings in the MCSDI-1 cabinet. Overheating can occur and damage the device. Do not place this device in a built-in installation, such as a bookcase or rack, unless proper ventilation is provided. -
Page 13: Table Of Contents
Tripod Mount (Bottom) ......9 Using the MCSDI-1 ......11 Studio . -
Page 15: Unpacking The Mcsd-1
MANL-1101-xx Optional Accessories or Companion Devices HX-1 Portable Video Switcher HX-1 HDMI cable, short CBLA-0162-xx These optional components are available for purchase from your local dealer or online at the Focus Enhancements web store, www.focusinfo.com/webstore MCSDI-1 Portable SD/HD-SDI Media Converter... - Page 16 Missing or Damaged Components If there are missing or damaged items, contact Focus Enhancements Support for assistance. USA Email: support@focusinfo.com USA Telephone: +1 763-398-1658 EMEA Email: techsupport@como.com EMEA Telephone: +49 4307 - 83 58 58 MCSDI-1 Portable SD/HD-SDI Media Converter...
-
Page 17: Introduction
Audio Settings Switches Tripod Mount Hardware (not shown) Thank you for purchasing a Focus Enhancements MCSDI-1 Portable SD/HD-SDI Media Converter. The MCSDI-1 is a compact, stand- alone media converter that automatically determines the type of HDMI, component, and Y/C (composite) input and outputs either an HD-SDI or SD-SDI stream, depending on the type of input. -
Page 18: Input Connectors (Back)
Analog audio inputs are inactive when HDMI input is used. Video Autosense The MCSDI-1 is able to automatically sense the type of input and its resolution and then output the appropriate SDI video signal. Autosense determines input type in the following order: HDMI, Component, Y/C, and Composite. - Page 19 HDMI Connector Type A, 19-pin HDMI Resolution 1080/59.94i 1080/50i Audio Input 48 KHz, 96 KHz or 192 KHz. Output converted to 48 KHz. MCSDI-1 Portable SD/HD-SDI Media Converter...
-
Page 20: Output And Power Connectors (Front)
24-bit 48KHz per SMPTE-299M (HD) Power Connector Power input range: 7.2 to 30 Volts DC AC Adapter AC Adapter (15V, 1.2A) and IEC Power Cable provided with MCSDI-1, see Unpacking the MCSD-1 on page 1. MCSDI-1 Portable SD/HD-SDI Media Converter... -
Page 21: Audio And Status Leds (Side)
OFF. When the audio is present and in range the LED is ON. Audio clipping can be compensated using the Audio switch settings (below). Audio Switch Settings Switch Numbers High Impedance Low Impedance (600 Ω) Input Level -8dbu Input Level +4dbu Input level 0dbu MCSDI-1 Portable SD/HD-SDI Media Converter... -
Page 22: Status Leds
A few cameras require the 600 ohm load and will need the input setting. All other cameras use the typical Impedance High line input. Impedance Status LEDs Status LEDs light to indicate when power is ON and which input stream is active. MCSDI-1 Portable SD/HD-SDI Media Converter... -
Page 23: Camera Mounting (Top)
Introduction Camera Mounting (Top) Alignment Pin Mounting Screw For more information see, Mounting Video Camera to the MCSDI-1 page 14. Tripod Mount (Bottom) Serial Cable Retainer Camera Mounting Screw Number Screw Holes and Tripod Socket Model For more information, see Securing Assembly to Tripod on page 15. - Page 24 MCSDI-1 Portable SD/HD-SDI Media Converter...
-
Page 25: Using The Mcsdi-1
Using the MCSDI-1 The MCSDI-1 Portable SD/HD-SDI Media Converter provides small video production organizations with a flexible, low cost method to upgrade HD camcorders to digital SDI capabilities. The MCSDI-1 is designed for: Live Video Production Broadcasting Corporate and Industrial Production... -
Page 26: Studio
It also prepares the studio for the use of the latest digital video switchers and mixers. The MCSDI-1 automatically senses the output from the analog or digital SD/HD camera and converts it to a corresponding SD/HD- SDI digital signal, for more information see on page 4. -
Page 27: Setup With Camera
Setup with Camera Follow the steps below to: • Mount a video camera to the MCSDI-1, • Secure the assembly to a tripod, • Make necessary connections between the camera and the MCSDI-1, • Connect the MCSDI-1 to the studio network. -
Page 28: Mounting Video Camera To The Mcsdi-1
To turn the mounting screw, locate the brass head of the mounting screw on the bottom of the MCSDI-1. Use a coin or screwdriver to turn the screw. This screw also functions as the MCSDI-1’s tripod socket. -
Page 29: Securing Assembly To Tripod
This is the brass head of the camera mounting screw. 2. Thread the tripod’s mounting screw into the MCSDI-1’s tripod socket. 3. Tighten the tripod mounting screw until the MCSDI-1 is secure. Do Not Over Tighten MCSDI-1 Portable SD/HD-SDI Media Converter... -
Page 30: Connecting Camera To Mcsdi-1
Connections will depend on the camera being used. Refer to camera documentation for information about type of video output and location of connectors. 1. Determine the camera’s type of video output: SD/HD, If the MCSDI-1 does not component, composite, or automatically detect a new input HDMI. type, power-cycle the MCSDI-1 unit. -
Page 31: Using The Cable Tie Kits
Use Screws Provided in Cable Tie Kits Use the provided screws or screws of equal length to attach the Cable Ties. Using longer screws can damage the MCSDI-1’s internal circuitry. MCSDI-1 Portable SD/HD-SDI Media Converter... -
Page 32: Connecting Mcsdi-1 To Studio And Power
MCSDI-1’s DC input. Test Signal Test patterns are output when the MCSDI-1 has no valid input. The output resolution is the same as the last valid input. The last resolution is retained across power cycles. For example, if a 720/60p component input is connected to the MCSDI-1, when it is disconnected a 720/60p test pattern is displayed. -
Page 33: Operating Conditions And Warranty
• Operating: 0-40º C (32 - 104º F) • Operating humidity: 30% to 90% RH • Storage temperatures: -20 to 60° C (-4° to 140°F) • Storage humidity: 85% RH or less Warranty Two years. MCSDI-1 Portable SD/HD-SDI Media Converter... - Page 34 MCSDI-1 Portable SD/HD-SDI Media Converter...
- Page 36 MANL-1101-04...
