Forum™
523/524
Mounting and Commissioning
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the forum 523 and is the answer not in the manual?

Questions and answers

Related Manuals for Proximus forum 523

Summary of Contents for Proximus forum 523

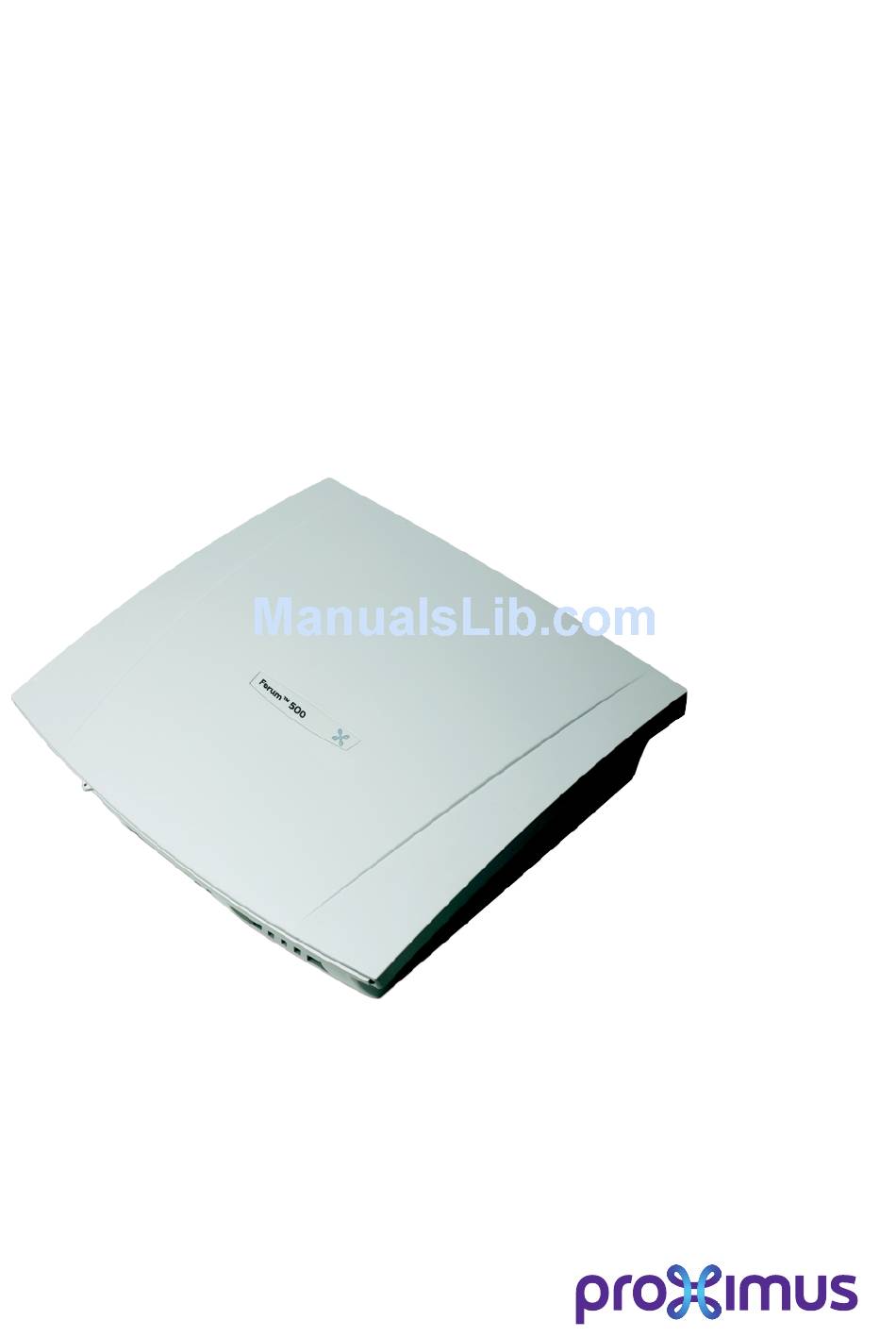

  • Page 1 Forum™ 523/524 Mounting and Commissioning Manual...
  • Page 2 Welcome to Proximus Thank you for buying this Proximus product. Our products meet the highest quality demands and are outstandingly designed. The following instructions will guide you in the operation of your Forum™ 523/524 and answer all important questions. Should you require further assistance or information, please contact the person responsible for your system or your retailer first.

  • Page 3: Table Of Contents

    Mounting Location ......... . .33 Opening and Closing Forum 523/524 ......33 Interface Cards.
  • Page 4 Brief Guide to Initial Configuration ......63 Configuring the Forum 523/524 ......64 Preparing the Configuration .
  • Page 5 Internet Access ........... 81 RAS Access.
  • Page 6 Forum IPhone PC ......... . . 118 Installation.
  • Page 7 Telephony......... 145 E.164 conversion.
  • Page 8 Examples of Use..........171 Enquiry Station for an Operator with Two System Telephones .
  • Page 9 Frequently Asked Questions ......204 General/Hardware ......... 204 Telephony .

  • Page 11: About This Manual

    About this Manual This user guide is intended for the technician installing the Forum 523/524 and putting it into operation. This will usually be the responsibility of your Proximus agent, who will prepare the Forum 523/524 and hand over the configured, operational system.

  • Page 12: Features

    Internet Protocol”) enables you to make telephone connections using Intranet and Internet data links, making it possible to use new applications, and providing cost advantages in many cases. The Forum 523/524 can also be used to make conventional telephone calls.
  • Page 13 All types of access can be configured in parallel. Forum 523/524 complies with legal regulations governing telecommunications equipment and fulfils the DSS1protocol. From its smallest version, Forum 523/524 provides the following connection options on its basic module: ● 1 external S port, provided as an RJ45 socket ●...
  • Page 14 Forum 523/524 can be integrated into an existing network (LAN) and be used from all workstations as Internet access router. VoIP integration and the connection to an existing EMail system is possible. The Forum 523/524 is configured and programmed using a special web browser (the Web console), which can be run on a connected PC.
  • Page 15 Internet connections (“Q.SIG-IP” or “SIP-Tie-Line”), connecting distant loca- tions and branch offices in a single, comprehensive telephone network. Forum 523/524 can for example, operate as a sub-system or a DECT server via the Q.SIG / SIP-Tie-Line network. This type of networking is described in the chapter on PBX Networking starting on page 133.
  • Page 16 Packet data transfer through the ISDN D channel (according to X.31 via SAPI 16) can also be established between several S interfaces of the Forum 523/524. Simultaneous connections are distin- guished by means of a TEI (Terminal Endpoint Identifier).
  • Page 17 It is possible to connect a complete company network (LAN, Local Area Network) with the Forum 523/524. All work station computers within the LAN can then access the Internet via the Forum 523/524. If Internet access is already available from an Internet Service Provider, this can also be configured in the Forum 523/524.
  • Page 18 Internet data connection (VPN, Virtual Private Network). Branch offices can also be linked via ISDN or VPN. This means that two Forum 523/524 can connect their LANs either by dialling in on demand or using an encrypted Internet data connection.

  • Page 19: Factory Settings On Delivery

    Three user groups are preset: “Administrators”, “Standard” and “Guests”. “Administrators” can access all functions in Forum 523/524 and have unlimited configuration rights. Users in the “Guests” group can not configure Forum 523/524, may not make any external calls and can only use a limited Factory Settings on Delivery...
  • Page 20 Authorisations range of Forum 523/524 terminal functions. The “Standard” user group is well suited as a starting point for creating user groups for normal users of the system (e. g. the staff members of a company) because of its default settings.
  • Page 21 Authorisations User group settings Function / Authorisation Standard Admini- Guests strators Edit other companies Entries (personal) Dial in (outgoing) External Inter- Inter- Incoming national national only Immediate external line seizure External line seizure over operator Deactivate LCR LCR at call forwarding to extern VIP call PIN dial Announcement...
  • Page 22 Authorisations User group settings Function / Authorisation Standard Admini- Guests strators Pickup selective Take Call removal Calling suppression at the parallel terminal Reaction: connection will be discon- nected display phone number off (intern Call queue Call forwarding Call forwarding Call forwarding to extern Call forwarding of MSN groups Call forwarding door call Indicate call forwarding after time...
  • Page 23 Authorisations User group settings Function / Authorisation Standard Admini- Guests strators MOH at internal connections Protection Call protection ring-back ring-back tone tone Call waiting protection Int. + ext. Int. + ext. calls calls Announcement protection Intercom protection Pickup protection Phone lock Intercept Lists Black lists...
  • Page 24 Authorisations User group settings Function / Authorisation Standard Admini- Guests strators DECT trunc keys Disconnect ISP connection Connection data Send incoming connections Send outcoming connections Recording incoming connections Recording outgoing connection Number of suppressed digits Incoming basic amount 0,000 0,0000 0,0000 Outgoing basic amount 0,0000...
  • Page 25 The door opener can be opened from all terminals. Door calls can be forwarded. ● Every standard user can change the configuration of Forum 523/524. ● Every standard user can create a personal telephone book and edit entries in the central telephone book.

  • Page 26: Lan Settings / Internet Functions

    “domain” ● RAS access can be configured for every user of Forum 523/524. RAS access enables remote users to dial in via VPN (PPTP or IPSec) or via ISDN (with or without call-back). RAS access requires the activation of the RAS authorisation.
  • Page 27 LAN Settings / Internet Functions You can change the IP settings in the Configurator. Talk to the system admin- istrator responsible for the existing LA N if you wish to do this. Factory Settings on Delivery...

  • Page 28: Update Notes

    Forum CTI Touch CTI solution for smartphones You can also use these features as needed on an existing Forum 523 commu- nications system. You can thus purchase an upgrade licence: ● When updating the software to release 9 you can use the new release 9 features without the extended range of functions.

  • Page 29: Technical Notes

    Technical Notes When you enter the upgrade licence authorisation key, the communica- tions system changes its designation to Forum 524. The upgrade licence is already included when you purchase a new Forum 524 communications system. Technical Notes The extended release 9 features may require you to upgrade the existing communications system.

  • Page 30: Updating

    Updating Updating Updating is done in the following steps: 1. Open the System: Firmware page in the Configurator. Click on the Save button to create a backup copy of the existing configuration. Then click on the Next button. 2. Click on the Browse button. Select the firmware file. Click on the Load button.

  • Page 31: Installation

    Installation To install the Forum 523/524 please perform the following steps in the order suggested. 1. Check the scope of delivery (see Scope of Delivery on page 30), read Safety Precautions starting on page 30 and information on Mounting Location starting on page 33.

  • Page 32: Scope Of Delivery

    Incorrect usage can lead to malfunction or damage to the Forum 523/524 and to the network. Installation The Forum 523/524 may only be installed inside buildings and may only be operated when mounted on a wall. Do not install the Forum 523/524 during a thunderstorm. Do not connect and disconnect lines during a thunderstorm.
  • Page 33 Forum 523/524. Connection to the Mains Power Supply The Forum 523/524 may only be plugged into mains power sockets which have a protective earth conductor. It is not necessary to provide any additional earthing for the Forum 523/524.
  • Page 34 (protective earthing). For example: where you have an earthed door, make sure that the door opener connected to the actor port of the Forum 523/524 does not come into contact with the metal parts of the door.

  • Page 35: Mounting Location

    Opening and Closing Forum 523/524 Forum 523/524 is designed to be installed by the user. Live parts should not be accessible to users or if they are accessible to users, should be accessible only to a user using the appropriate tool. For this reason, Forum 523/524 features a special casing mechanism, which can only be opened step by step.For your own safety, please read the Safety Precautions starting on...
  • Page 36 Forum 523/524. There are no directly accessible circuits operating under dangerous voltage on Forum 523/524’s connection panel. You must still switch off all power to the device when performing any kind of installation. Pull the plug out of the mains power supply socket.
  • Page 37 Opening and Closing Forum 523/524 You must remove Forum 523/524’s cover completely if you want to install it on a wall or install interface cards: 3. Pull the 3-pin AC cable out of the power supply. unit 4. Press down the power supply locking device.
  • Page 38 Opening and Closing Forum 523/524 Taking the cover off To close the Forum 523/524 again, follow this procedure in reverse order: 7. Put the cover back on. 8. Push the cover down as far as the protection plate 9. Lift the stop lever with an appropriate tool where necessary (a). Press the power supply locking device up again (b).

  • Page 39: Interface Cards

    Forum 523/524 can be expanded through the use of interface cards. Forum 523/524 has two slots for interface cards. Please note:Switch off the Forum 523/524. Pull the plug out of the mains power supply socket. Never install or de-install interface cards when the Forum 523/524 is switched on.

  • Page 40: Installing Interface Cards

    Installing an interface card To install an interface card, please follow these steps: 1. Switch off the Forum 523/524. Open the device (see Opening and Closing Forum 523/524 starting on page 33). 2. To discharge, touch a radiator or another metallic installation connected to earth ground.

  • Page 41: Position Of The Interfaces

    Make sure it is sitting firmly in the slot. 4. Close the cover as far as the protection plate (see Opening and Closing Forum 523/524 starting on page 33, steps 7 to 9). Connect the required connection cables to the relevant connection blocks (see also Position of the Interfaces starting on page 39).
  • Page 42 4 x U Forum 523 / 525 Card also usable for DECT-RFP 8 digital extensions: 8 x U Forum 523 / 525 Card 2 S0/ also usable for DECT-RFP T0, 6 digital extensions: are internally/externally 2 x S and 6 x U...
  • Page 43 Slot 1 Slot 2 1/1 U Forum 523 / 525 Card 4 digital extensions: 4 x U Slot 1 Slot 2 1/1 U 1/5 U 1/7 U...
  • Page 44 Interface Cards Slot 1 Slot 2 1/1 U 1/3 U 1/5 U Forum 523 / 525 Card 2 S0/T0, 6 digital extensions: 2 x S and 6 x U Slot 1 Slot 2 ab 1/1 ab 1/2 ab 1/3 ab 1/4...
  • Page 45 Interface Cards Slot 1 Slot 2 ab 1/1 ab 1/2 ab 1/3 ab 1/4 ab 1/5 ab 1/6 ab 1/7 ab 1/8 Forum 523 / 525 Card 8 analogue extensions: 8 x a/b Installation...

  • Page 46: Installing The Power Supply Unit

    Installing the Power Supply Unit 1. If you want to change the power supply unit, first switch off the Forum 523/524 and pull the plug out of the mains power supply. 2. Take the cover off the Forum 523/524 (see Opening and Closing Forum 523/524 starting on page 33).

  • Page 47: Mounting

    Mounting hole Attachment diagram Take the cover off the Forum 523/524 to screw in the screws for attachment point B and insert the screws through the holes provided. The Forum 523/ 524 will hang on the screws in attachment point A, so you must leave a space of 4 mm between the screw heads and the wall.

  • Page 48: Port Assignment, Termination, Cable Length

    100 ohms at each end. Check: Is the terminating resistor switched on in the NTBA? Forum 523/524’s software is used to switch on the terminating resistor. You can adjust this setting when configuring the S ports in the Configurator on the Web console.
  • Page 49 Port Assignment, Termination, Cable Length NTBA S 0 1 external S 0 2 external Connecting to the network (NTBA) You can connect up to 8 terminals (ISDN telephones, ISDN fax machines, ISDN base stations and ISDN terminals, ISDN cards for PCs etc.) to each internal S bus.
  • Page 50 Enabled IAE = ISDN wall socket (German ISDN „Anschluss Einheit”) If the S0 bus is coming from the Forum 523/524 leading to one or more IAE sockets, the terminating resistors (“TR”) in the Forum 523/524 and in the most distant IAE socket needs to be switched on.
  • Page 51 Forum 523/524 and leading to several IAE sockets, the terminating resistors (“TR”) in both most distant IAE sockets needs to be switched on. The termi- nating resistors in the Forum 523/524 must be switched off. The S should not be installed as star topology. Sub-distributions are not allowed either.

  • Page 52: U Pn Ports

    Port Assignment, Termination, Cable Length Tip: If, for example, you have connected an IAE socket to an internal port, and wish to switch the S port to external operating mode, you will need a crossover ISDN connection cable to connect the IAE socket to an NTBA. The assignment of a crossover connection cable is described in the chapter on PBX Networking under the heading Direct Connection starting on page 136.

  • Page 53: A/B Ports

    Port Assignment, Termination, Cable Length system phone red wire black wire or base station PQRS WXYZ – 8 7 6 5 4 3 2 1 port cable: max. 1000 m If you connect a base station to a U -port, four calls can be made simultaneously through this base station using mobile DECT devices.
  • Page 54 Forum 523/524! Analogue Telephones If you are using analogue telephones, we recommend you use phones with DTMF dialling, because Forum 523/524’s advanced features can not be used with pulse dialling Modems The maximum transfer rate for analogue modems is 33.6 kBit/s (V.34+).
  • Page 55 In the Telephony: Ports: a/b: Change menu in the Configurator, select Doorstation 2-wire as the Type. Deactivate the Actor option if you want to use the Forum 523/524 actor port instead of the “Doorphone” relay to open the door. ●...

  • Page 56: Actor

    LAN ports (Ethernet ports, here provided as RJ45 sockets). This enables you to use Forum 523/524 for VoIP telephony, to operate the Web console or to use the Forum 523/524 as an IP router for connection to the Internet, among other things.

  • Page 57: Wan Port

    PC. WAN Port Forum 523/524 can be connected to an external DSL modem and to an Internet router. The most secure Internet port, which is also separate from the LAN, is a WAN port. Transfer rates and operating modes are switched auto- matically („Auto-Sensing function”).

  • Page 58: Power Failure

    Please note:Do not reset the Forum 523/524 by pulling the plug. Actual configuration changes may be lost and reconnecting to a SIP provider may need a longer time. Use the code number...

  • Page 59: Mounting The Forum 524 Rack Infocom System

    Safety Precautions Mounting the Forum 524 Rack InfoCom System The Forum 523/524 is also available as rack version for mounting in a standard 19" EIA rackmount cabinet. ANALOG ANALOG [1] [2] [3] [4] [5] [6] Activity [7] [8] ACTOR COM...

  • Page 60: Technical Data

    EN, IEC regulations, along with other recognised technical rules regarding safety, must be observed. Technical Data (only if different from the Forum 523/524) Dimensions: ● Width: 19-inch panel with flange for mounting in installation cabinet ●...

  • Page 61: Mounting Interface Cards

    [..] Analog, Upn [..] Analog, Upn 4-fold interface cards: 8-fold interface cards: Forum 523 / 525 Card Forum 523 / 525 Card 4 digital extensions 8 digital extensions Forum 523 / 525 Card Forum 523 / 525 Card...

  • Page 62: Scope Of Delivery

    [..] Analog, Upn 4-fold S interface card: Combined interface card: Forum 523 / 525 Card Forum 523 / 525 Card 2 S0/T0, 6 analogue extensions 4 S0/T0 An overview of the interface cards can be found under the heading Installing Interface Cards starting on page 38.

  • Page 63: Installing Interface Cards

    Installing Interface Cards Installing Interface Cards Please note also the explanations in these sections: Installing Interface Cards starting on page 38. To install the card, perform the following steps: 1. Switch off the Forum 524 Rack and pull the plug out of the mains power supply.

  • Page 64: Configuration

    For the initial configuration you can connect the PC to the Forum 523/524 via the Ethernet port. The TCP/IP network protocol is used to set up a connection via one of these ports. You can then open the Web console of the Forum 523/ 524 and call up the Configurator from there.

  • Page 65: Brief Guide To Initial Configuration

    Setting up a first connection is quite simple with a standard Windows PC: 1. Connect the PC’s network card with one of the Forum 523/524.’s LAN ports You can use a crossed or an uncrossed Ethernet cable to do this.

  • Page 66: Configuring The Forum 523/524

    ● A list of the users to be set up (staff entitled to use the services of the Forum 523/524) with their names, departments, and the internal call numbers you want to allocate to them ● For Internet access: the Internet service provider access data.

  • Page 67: Starting The Web Console

    Load. The update takes a couple of minutes, after this a new page is displayed in the browser. 3. First set the country in which you are operating the Forum 523/524, and in which language the Web console is to be displayed.
  • Page 68 Configuring the Forum 523/524 Forum 523/524: log on dialogue box 4. To commence configuration, you must first log on. For the initial configu- ration, enter your: user name: “Administrator” password: for the initial configuration, leave this box blank. 5. Confirm this by clicking on OK.
  • Page 69 Make a note of the password and keep it in a safe place. Since release 8 the communications system Forum 523/524 distinguishes between safe and unsafe passwords. A safe password consists of: – at least eight characters –...

  • Page 70: Finishing The Configuration

    2. Then select the Log-off command in the upper menu bar. Saving and Loading the Configuration Configurations are saved in a file archive and can be loaded to the Forum 523/ 524 either locally from a connected configuration PC, or by remote configu- ration.

  • Page 71: Preconfiguration

    For this purpose, a Forum 523/524 installed here is programmed with the customer data (e.g. user data, call distribution schemes, cord-bound terminals). This data is stored and then loaded into the Forum 523/524 at the customer’s site by a service technician.
  • Page 72 Internet. The connection session starts with a voice call from one of the regis- tered phone numbers. During the call, connection parameters (IP address, keys) will be sent using a DTMF sequence. Afterwards, the Forum 523/524 communications system establishes a secured SSH connection to an Internet server.

  • Page 73: Codes For Ip Configuration

    In order for the system technician to be able to log into the Forum 523/524, he requires a user name and password. In this case, the solution would be to configure a “Service”...

  • Page 74: Receiving System Messages As E-Mail

    “0000”. Receiving System Messages as E-Mail Important events and errors are kept by the Forum 523/524 in an internal log book: the error store. To inform or alert the system administrators, entries in the log book (system messages) can be sent via e-mail.

  • Page 75: Setting Up An Internet Connection From Remote

    For further information, refer to the online help documentation under the item System: Firmware. Resetting the System Data You can restore the factory settings of the Forum 523/524 in the Configu- rator. If this is not possible, refer to the next section entitled Basic Hardware Settings Switch.

  • Page 76: Basic Hardware Settings Switch

    Please note:If the factory settings are restored, all customer settings and user data will be lost. To restore the Forum 523/524 basic settings, proceed as described in the following paragraphs. 1. Switch off the Forum 523/524 by disconnecting the power plug.

  • Page 77: Configuration Examples

    (if the multi-company variant is activated). In addition, the Forum 523/524 can be used as an Internet access server. RAS access can also be implemented using the Forum 523/524, which enables the integration of external staff in the LAN.

  • Page 78: Introduction To Tcp/Ip

    In a single LAN it is possible to use various protocols for the transmission of data. The connection between a workstation computer and the Forum 523/ 524 runs via the IP protocol (also named TCP/IP) used on the Internet. IP can be used together with other protocols (e.g.

  • Page 79: Forum 523/524 In A Serverless Lan

    LAN with a server using a protocol other than IP (e.g. AppleTalk or IPX/SPX). Forum (DNS) (DHCP, RAS, int. DNS, Internet) Ext. PC 1 PC 2 The Forum 523/524 in a serverless LAN Configuration Examples...

  • Page 80: Dns Name Resolution

    Forum 523/524 in a Serverless LAN In a serverless LAN, the Forum 523/524 takes over the IP configuration of the connected workstations. All IP settings necessary for the workstations are assigned by the Forum 523/524 via DHCP (dynamic host configuration protocol).

  • Page 81: Ras Access

    (“firm-forum.co.uk” for example). RAS Access You can establish a connection to the Forum 523/524 from an external PC via a VPN connection or via an ISDN card. VPN (Virtual Private Networking) is a technology to connect an external PC over an existing Internet access using a secured and encrypted data connection.

  • Page 82: Forum 523/524 In A Lan With An Ip-Enabled Server

    In a LAN with an IP-enabled server, you should coordinate integration of the Forum 523/524 with the responsible network administrator. You must decide on the IP address space to be used and which network services (DHCP, DNS, RAS, Internet access) the Forum 523/524 is to handle in the LAN. Forum Server...

  • Page 83: Dns Name Resolution

    Internet Access You can also use the Forum 523/524 as an Internet access server in a LAN with an IP-enabled server. To do this, you must enter the Forum 523/524 IP address on the server as the default gateway. In addition, you must edit the internal DNS server configuration so that the resolution of external DNS names is forwarded to the Forum 523/524.

  • Page 84: Ras Access

    DNS) PC 1 PC 2 The Forum 523/524 as a DNS server in a LAN with an IP server RAS Access In a LAN with an IP-enabled server you can also enable external computers to dial in via the Forum 523/524. To do this, you should coordinate with the...

  • Page 85: Branch Link

    WINS server manually in the network settings of the work- station. Branch Link You can use the Forum 523/524 to interlink two LANs via ISDN or via an encrypted VPN connection (Virtual Private Network). In case of a VPN connection, both Forum 523/524 systems use an Internet connection to transfer data.

  • Page 86: Useful Information On Internet Access

    (e.g. as disk file or via postal service). ● ISDN: If an IP data transfer is required to the other LAN, the Forum 523/ 524 initiates a dial-in via ISDN. Note that such a connection is only set up when specific requests are made.

  • Page 87: Using The Web

    One of the most important services in the Internet is e-mail. E-mails are buffered in individual e-mail accounts on a mail server. Mail servers are operated by ISPs for example. With the Forum 523/524 you can set up one or more e-mail accounts for every user account configured on the Forum 523/ 524.

  • Page 88: Nat

    The protocol will function without TCP/UDP port numbers, e.g. ICMP or IGMP. The Forum 523/524 NAT has suitable processes for ensuring the functions of many important protocols affected by these rules. These are the protocols FTP (in “active” mode), CuSeeMe (“videoconferencing”), IRC (“chat”), ICMP errors (“traceroute”) and ICMP echo (“ping”).

  • Page 89: Voice Over Ip (Voip)

    Integrating the two communi- cation networks into a single communications network can provide consid- erable savings. The Forum 523/524 gives users all the features of system telephony through its use of an IP-based protocol. Furthermore, the standardised SIP protocol can also be used on the intranet.

  • Page 90: Quick Start

    VoIP system telephony can be quickly and easily set up using the Forum 523/ 524. 1. Optional: install a Forum 523 / 525 Media Gateway Card in slot 2 to enhance VoIP. 2. Call up the Configurator and go to the page Telephony: Ports: Slots. Click on the corresponding slot.

  • Page 91: External Sip Line

    Twisted Pair cable) to connect an IP telephone to a Local Area Network (LAN). External SIP Line If your Forum 523/524 has access to the Internet, you can an easily and quickly set up a SIP line. 1. Request at least one SIP account from a SIP provider.

  • Page 92: Internal Sip Telephony

    2. Call up the Configurator and go to the page Telephony: Ports: Slots. Click on the corresponding slot. Under Configured, select MGC VoIP. Optional: enter an IP address from the Forum 523/524 IP network which is not being used, such as 192.168.99.253 under IP Address Configured. Click on Apply.
  • Page 93 Quick Start page. Enter the MAC address of the SIP telephone and an available IP address and click on Apply. 6. Configure the SIP telephone or the SIP telephony software. Please also refer to the configuration help on the Telephony: Devices: VoIP Phones page.

  • Page 94: Fundamentals

    Fundamentals Fundamentals VoIP makes the transmission of voice and telephony signalling via IP (“Internet Protocol”) possible. After a connection is established, the terminal collects voice data (PCM data), which is then sent to the receiver using an IP packet. PCM data can also be compressed to save bandwidth. Propagation Delay and Bandwidth IP-based data networks are generally not able to guarantee a specific minimum bandwidth and defined propagation delay.

  • Page 95: Voice Quality

    Fundamentals Longer voice data packages are generally used for SIP telephony over the Internet. The following table provides an overview of the required bandwidth for a tele- phone connection with various parameter settings. The values apply to half- duplex ethernet; for full-duplex the values can be halved. Required bandwidth (kbit/s) with respect to Packet Length and Codec Packet G.711 (not...
  • Page 96 Fundamentals Quality Levels for Voice Transmission with VoIP Level Voice Comprehensibility Comparable to Limited Defective GSM > 4 Unacceptable No Connection When a call is set up, the terminals involved negotiate the voice-data compression (“codec”) that will be used. This is the first factor that determines the achievable quality level: ●...

  • Page 97: Optimisation

    TOS byte of IP packets, thereby providing the optimal prerequisites for VoIP telephony. Note: The Forum 523/524 uses a TOS byte (“Type of Service”) value of 0xB8 for IP packets with VoIP data. This requests “Minimise Delay” and “Maximise Throughput” for IP packets marked with this value.

  • Page 98: Call Set-Up

    Various IP-based protocols are used for system telephony via the Internet protocol (“IP”) (see also Start Procedure starting on page 114). Multiple TCP connections are made between an IP telephone and Forum 523/524 for the telephone’s start procedure, registration and signalling.

  • Page 99: Voip Profiles For Sip

    2. The second SIP terminal deletes the codecs from the list which are not supported and sends the shortened list back to the first SIP terminal. The exchanged codec lists can be filtered by the Forum 523/524 communica- tions system, e.g. to limit bandwidth based on the VoIP profile activated for the connection or for the terminal.
  • Page 100 The extended codec list contains definitions for codecs which are used by the usual SIP terminals. The codecs on this list are for usage in VoIP profiles and are not directly supported by the Forum 523/524 communications system.

  • Page 101: Voice Activity Detection (Vad)

    Allocate this VoIP profile to the desired SIP terminal or to the desired SIP tie line. Please note that any codecs not in the VoIP profile are filtered out by the Forum 523/524 communications system during codec negotiation. Voice Activity Detection (VAD) You can change the codec configuration under Telephony: Extended: VoIP profile.

  • Page 102: Software Mgw

    The MGW interface card is connected to the internal ethernet switch via the slot. No external ports operating via pressure terminals are provided. ● A MGW interface card can be installed in slot 2 of Forum 523/524. ● The MGW interface card supports all the codecs, as well as the silence detection, echo suppression and DTMF tone detection used by VoIP tele- phones.

  • Page 103: Sip Telephony

    The SIP Internet (Session Initiation Protocol) protocol provides you with a low- cost, standardised option for telephoning via IP-based networks. The Forum 523/524 enables you to use external SIP telephone connections (“SIP trunk lines”). The Forum 523/524 communications system supports configu- ration of standard SIP lines with one call number for each as well as extension-capable SIP-DDI lines with base call number and extension.
  • Page 104 For this reason, incoming RTP calls often fail to get past the Firewall or NAT configuration of the Internet gateway product used. If you do not use the Forum 523/ 524 as the Internet gateway, the product should be compatible with SIP...
  • Page 105 STUN server’s IP address and port number. If you don’t need a STUN server, leave the SIP Provider field empty. ● For direct SIP telephony using Forum 523/524, only SIP IDs consisting of numbers for identifying subscribers registered with the SIP provider spec- ified can be addressed ●...

  • Page 106: Internal Sip Subscribers

    SIP Telephony Internal SIP Subscribers The Forum 523/524 becomes available as the SIP server for internal SIP subscriber telephony switching services. SIP telephones connected via LAN or SIP programmes installed on workstation computers can thus establish connections to all other devices or trunks connected to the Forum 523/524.
  • Page 107 "Displayname" <sip:123@192.168.99.254>. The text portion of the SIP-URI (“Display Name”) is not evaluated at log-on from the Forum 523/ 524. The series of characters before “@” is the “User Name” or “SIP Username”. The internal call number of the user must always be used here (the Ph.No.
  • Page 108 SIP Telephony Alongside code number procedures, SIP subscribers can also use a series of functional features realized via the SIP protocol. The Forum 523/524 is the ending for all SIP connections as opposed to what is usually the case on the Internet.

  • Page 109: Forum Iphone 512 / Forum Iphone 545 Sip Telephones

    SIP Telephones You can operate the Forum IPhone 512 and Forum IPhone 545 SIP system telephones on the Forum 523/524 communications system. The firmware of the communications system already includes the matching firmware files (Firmware addons, “*_fwaddons_*.cnt”) for the following SIP telephones:...
  • Page 110 IP address configuration from the DHCP server of the Forum 523/524 communications system. The IP address and the location for loading files from the TFTP server of the Forum 523/524 is received as a part of the DHCP answer.
  • Page 111 “Forum IPhone 512” / “Forum IPhone 545” user guide. Forum IPhone 512 / Forum IPhone 545 DHCP The address and device configuration is transferred from the Forum 523/524 communications system to the Forum IPhone 512 / Forum IPhone 545 SIP phone using the DHCP protocol.
  • Page 112 DHCP answer is activated. The TFTP server of the Forum 523/524 communications system will serve up to 60 concurrent data transfers. To avoid overloading the TFTP server (e.g. after a power failure), additional devices may get an IP address from the DHCP server with a delay.

  • Page 113: Voip System Telephones

    VoIP System Telephones device entry with this call number exists and has the same device type, the login procedure continues. If the device entry is currently active on another device, the associated remote Forum IPhone 512 / Forum IPhone 545 will be logged out automatically and will show a login page on its part.

  • Page 114: Voip System Telephone Configuration

    Standard operating procedure is to contact the Forum 523/524’s DHCP server so that the start procedure can be concluded without problems. To register a new VoIP system telephone, proceed as follows: 1.

  • Page 115: Lan Dhcp Server

    The MAC address of all VoIP system telephones always begins with 00:30:42. 2. Configure a fixed IP address for the Forum 523/524. To do this, call up the Configurator and open the Network: LAN page. Click on the Change button.

  • Page 116: Start Procedure

    7. Enter the VoIP system telephone’s IP address and MAC address. Enter the IP address reserved by the DHCP service programme. Confirm with Apply. Restart the Forum 523/524 and all connected VoIP system telephones. Tip: Configuring multiple VoIP terminals can be facilitated by using dynamic address assignment (please refer to Dynamic Address Assignment for Specific Devices starting on page 80).
  • Page 117 5. The VoIP system telephone creates a TCP connection to the supplied IP- address/port-number combination and sends a registration query. The Forum 523/524 checks the MAC address sent with the registration and confirms the registration request if the VoIP system telephone is listed in the menu Telephony: Devices: VoIP Phones.

  • Page 118: Local Configuration

    VoIP System Telephones communications system. You may also need to configure BOOTP, DHCP and TFTP servers for the VoIP system telephone. Local Configuration In addition to automatic configuration via BOOTP/DHCP, it is possible to manually configure a Forum IPhone 525 or a Forum IPhone 535. This can make sense, for example, when you wish to connect a VoIP system telephone at a distant location via router.
  • Page 119 VoIP System Telephones 1. The “IP Phone Configurator” can be started directly from the Product CD. Start Windows Explorer. Navigate to the Product CD. Double-click the “Forum\IpPhoneConfigurator.jar” file. The “IP Phone Configurator” dialogue opens. Select the desired language setting (“English” or “German”)from the drop-down menu. 2.

  • Page 120: Forum Iphone Pc

    TFTP server IP address and TFTP server filename: Enter the IP address and the complete file name for the operating software of the VoIP system tele- phone (see table on page 114). For the Forum 523/524, use always the IP address of the communications system.
  • Page 121 You will not need a licence to install Forum IPhone PC but you will require a licence to operate it with the Forum 523/524. Unit licences, enabling the simultaneous operation of a certain number of Forum IPhone PCs, are available.

  • Page 122: Installation

    Options dialogue is automatically opened. Here you must configure the following values: 1. Enter in the VoIP IP Address field the Forum 523/524’s IP address. 2. Enter six hexadecimal-digits into the Device ID field. This device ID is not a MAC address, so overlapping with existent MAC addresses is possible.

  • Page 123: U Pn Dect And Dect Over Ip

    Even during a conversation, users are switched from one network cell to the next without any interruption. Adminis- tration of DECT terminals is done centrally via the Forum 523/524 Configu- rator in the Telephony: Devices: DECT Phones menu.
  • Page 124 When started, the operating software for the DECTover IP base stations is transmitted via TFTP protocol from the Forum 523/524. The configuration for the start sequence is transmitted by the DHCP server of the Forum 523/ 524 to a DECTover IP base station for the start sequence.

  • Page 125: Features

    Forum Base DECT IP (v1 & v2) if desired. VoIP audio communication between the DECTover IP base station and the Forum 523/524 is made via the RTP/RTCP protocol. RTP voice data are directly converted into DECT voice data by the base station. The base stations support the following VoIP codecs: G.711...

  • Page 126: Configuration

    DHCP server” setting. Select the desired DECTover IP base station with the MAC address (IP address) setting. Confirm with Apply. If the Forum 523/524’s DHCP server is not configured for static address assignment, you first need to configure the IP address of the DECTover IP Manager with the help of an additional programme (see Local IP Address Configuration starting on page 131).

  • Page 127: Dual Operation

    Simultaneous operation of base stations via U access and base stations via Ethernet access is possible with the Forum 523/524. Transparent handovers, for example, are only possible when between DECT base stations using the same access technology. When switching over to a DECT base station using different access technology, a DECT terminal automatically re-establishes a connection (roaming).

  • Page 128: Setting Up The Wlan Function

    Configuration When planning a larger sized DECT network, it is advisable to take the following points into consideration: ● All DECTover IP base stations at a single location must be able to receive at least one, or even better, two neighbouring base stations. Synchroni- sation requires less signal strength than a voice connection does.
  • Page 129 Devices: DECT over IP and click on the WLAN Config. button. Log in under the User Name “Administrator” and enter the same password as for the Forum 523/524. DECTover IP/OpenMobility Managers Login Page The WLAN settings are then made as follows: 1.
  • Page 130 Configuration indoor v2) setting. A common profile for both device versions is not possible due to different radio standards. 4. Assign the desired WLAN profile on the Radio Fixed Parts page. Click on spanner symbol ( ) on the left next to the relevant DECTover IP base station.
  • Page 131 Configuration DECTover IP/OpenMobility Manager: WLAN Profiles Use the following settings for standard operations. General Settings ● Select the desired WLAN Profile and activate the Profile Active option. ● Enter a SSID (Service Set Identifier, wireless network identification) to identify a network. This network identification is transmitted at regular intervals, making it easier to find the networks you’re looking for, using the “View available wireless networks”...

  • Page 132: Configuring For A Remote Location

    For the DHCP function to be available, the DECTover IP base station must be able to reach the Forum 523/524 via a “Broadcast”. In the case of a remote location this kind of access - via a VPN connection for example - will not be possible.
  • Page 133 Forum Base DECT IP v2 und Forum Base DECT IP User: “admin”, Password: “Admin” For RFPs in factory configuration, which are never connected to an Forum 523/524 communications system, the login credentials are: IP-DECT (Forum Base DECT IP): User: “admin”, Password: “Admin”...
  • Page 134 IP address. Leave the TFTP file name setting on the default setting (“/ ram/ip_tel/ip_rfp.cnt”) or “ng_ip_rfp.cnt”. 6. For a remote location, the Forum 523/524’s LAN will usually be accessed via a (VPN) router. Click on Router addresses: [+]. Enter the router’s IP address (“default gateway”).

  • Page 135: Pbx Networking

    PBX networking in the following cases: ● To operate the Forum 523/524 as a subsidiary system on another PBX. This will also allow you to use the Forum 523/524 as a DECT server, for example. ● To network several Forum 523/524s into a PBX system.

  • Page 136: Point-To-Point Connection Technology

    Point-to-Point Connection Technology Trunk line Point-to-point connection Example of a PBX network Various line types and transmission protocols can be used for point-to-point connections. The required network topology (distance, connection capacity) determines which type of point-to-point connection is most suitable. An IP network connection with Q.SIG-IP or SIP tie line can be established either with a direct LAN connection or via a fast VPN connection (see also Branch Link starting on page 83).

  • Page 137: Master/Slave

    If more than one port with the setting L1 Type = “Slave” is configured on an Forum 523/524 and the setting L1 sync possible has been activated, then one of the ports is automatically defined as the L1 clock source. The Forum 523/524 will automatically switch the clock source to another port configured as an L1 clock source (if a line fails, for example).

  • Page 138: Point-To-Point Connection Lines

    Direct connection Use the RJ45 jacks on one of the external S ports for an S connection between two Forum 523/524s. You can use the corresponding pressure terminals for S ports on interface cards. PBX 1, S 1 2 3 4 5 6 7 8...

  • Page 139: Connection Via An Active Transmission System

    Point-to-Point Connection Lines The external S -ports of a gateway can also be used for a direct connection. Connection via an Active Transmission System For distances exceeding the range of a direct connection, an active trans- mission system can increase the range to up to 50 km. Normally the L1 master is the transmission system for the two connected PBXs.

  • Page 140: Ip Network Connections

    Connection via Q.SIG.IP The Forum 523/524 communications system supports transmission of the Q.SIG protocol – intended for ISDN point-to-point connections – via network connection (Q.SIG-IP). Protocol and call data are exchanged using IP connec- tions with Q.SIG-IP.

  • Page 141: Connection Via Sip Tie Line

    Select a VoIP profile for the codec selection. Please refer to the relevant help topics in the Online Help for the Forum 523/524 as well. Note: Q.SIG-IP cannot be operated using a connection with NAT.
  • Page 142 Select a VoIP profile for codec selection. Please note the corresponding help topics in the online help Forum 523/524. En-bloc dialling only is supported with a SIP tie line as with other SIP connec- tions.

  • Page 143: Configuration

    Configuration Configuration The possible configurations described below can be set up in the Web console using the Telephony: Trunks menu. Bundles A bundle is a group of lines of the same type and direction. A line can only be assigned to one bundle. Network PBX 1 PBX 3...

  • Page 144: Numbering

    A default entry in the numbering table makes it possible to seize a “default route” for all remaining unassigned numbers. In particular, this simplifies configuration of the Forum 523/524 as a subsidiary system: the only entry you assign to the default entry is the route to the host system...

  • Page 145: Technical Details

    Technical Details A different PBX number must be set for each Forum 523/524 in a PBX network. This setting can be found in the Web console, in the menu Tele- phony: Settings under the heading QSIG linking. You can also set the maximum value for the transit counter there.
  • Page 146 Due to their hardware properties, not all S ports of the Forum 523/524 can be fully used for TK system networking. Depending on the type of system, some ports can only be operated in the L1-Master mode or the L1-Slave mode.

  • Page 147: Telephony

    Telephony E.164 conversion The Forum 523/524 communications system supports two different types of call numbers when dialling external call numbers. Usually you enter the code for a route, e. g. a “0” for the “external line” route. Then you enter an external call number.
  • Page 148 E.164 conversion Call the Telephony: Settings page. Click on the Change button. Enter the country code without a zero in front into the International area code field, e. g. “49” for Germany. The setting in the Own area code field is not relevant for the “E.164 conversion”...

  • Page 149: Example

    E.164 conversion Example The following example explains the “E.164 conversion” function on a terminal which is operated on an external line with the following configuration: Attribute Number International area code (Country Code, CC) (Belgium) Local area code (National Destination Code, NDC) (Brussels) Access call number 4444...

  • Page 150: Further Information

    E.164 conversion Number dialled Number actually used 0024444888 (Internal) The local area code and the access call number are deleted. The destination is called internally without using the ISDN connector / SIP trunk. +3224444888 You can only enter the plus sign (after E.123) with a SIP telephone (see Internal SIP Subscribers starting on page 104).

  • Page 151: Call Forwarding

    Call Forwarding Call Forwarding The current version of the Forum 523/524 communications system also offers configuration of multi-level call forwarding. When you forward a call number that has already been forwarded, this results in a call forwarding chain. Call Forwarding Chain Multiple call forwarding is executed independent of the call forwarding type.

  • Page 152: Attributes

    Call Forwarding Call Forwarding Name Description Call forwarding to external Call forwarding to an external call number or via remote-controlled dialling (Call Through) Call forwarding by a system Call forwarding via Forum Auto Attendant user (with the Connect to phone number and Connect to voicebox function) or via Forum Voicemail (with the secretarial function)

  • Page 153: Loop Detection

    Call Forwarding Loop Detection Loops can generally occur during a call forwarding chain, e. g. when the call forwarding destination refers back to the call forwarding source. This is why a forwarded call has a call forwarding history. When the next call forwarding destination is already included in the call forwarding history, a loop is detected and any further call forwarding is prevented.

  • Page 154: Hunt Groups

    Call Forwarding Hunt Groups A hunt group is an internal call number which can reach multiple users. An incoming call is signalled to all users of a hunt group. A hunt group is configured in the Configurator in the Telephony: Groups: Hunt groups menu. Call signalling is independent of the Type setting in the hunt group: ●...

  • Page 155: External Call Forwarding

    Call Forwarding In addition, you can also configure call forwarding on busy (CFB) for hunt groups. This call forwarding can be used for an internal or external destination call number. In addition, you can enter a back-up destination for time- dependent hunt groups when they cannot be reached.

  • Page 156: Busy Keys

    Busy Keys ● The call forwarding interval, previously only centrally definable, is adopted for all users as the default value. ● The “Show hunting group no. as via” option for hunt groups has been omitted. Instead, use the Display: Call forwarding via option in the User Manager: User groups menu.

  • Page 157: Pin Code Telephony

    PIN Code Telephony Busy keys on the system network Busy keys on the Forum 523/524 communications network are realised as a subscriber model. A busy key requests busy information to do so. The desti- nation of a busy key keeps a dynamic list of terminals which have to be reported when there is a status change.

  • Page 158: Configuration

    You can configure the “PIN Code Telephony” feature separately for each company. Configuration is done with the following steps: 1. Call the Forum 523/524 communications system Configurator. On the introductory page, change the Level option to Expert. 2. Open the User Manager: User groups menu page. Click on the New button.

  • Page 159: Switch Authorisation

    You can configure the “Switch authorisation” feature separately for each company. Configuration is done with the following steps: 1. Call the Forum 523/524 communications system Configurator. On the introductory page change the Level option to Expert. 2. Open the User Manager: User groups menu page. Click on the New button.

  • Page 160: Implementation

    Switch authorisation being activated for an additional call in an unauthorised manner. Confirm with Apply. 4. Click on the user group for the user who is to execute the “Switch authori- sation” feature. Activate the Switch authorisation option. Confirm with Apply.

  • Page 161: Generating Your Own Moh Files

    The MoH file must be coded with 8000 Hz, 8 bit mono in accordance with CCITT, A-Law. This coding is required for the Forum 523/524 and can be set in the “Sound Recorder” when you save the file under Format (CCITT, A-Law) and Attributes (8000 Hz, 8 bit mono).

  • Page 162: Team Functions

    Introduction Team Functions Introduction With the team functions you can manage your telephone communication tasks by assigning lines with separate call numbers to the keys of different terminals. The terminal users, or team members, can thus pick up one another’s calls or telephone each other using the configured keys. Team functions can only be configured on the Forum Phone 516/526/536, Forum Phone 515/525/535 and Forum IPhone 525/535 system telephones because only these have the required features.
  • Page 163 Introduction Number of available call keys Telephone Number of keys Forum Phone 525 or 36 additional keys without a display Forum Phone 535 with an Up to three of these key extensions can be additional key extension used with a Forum Phone 525/ Forum 500 Keypad Paper Forum Phone 535.

  • Page 164: Team Configuration

    Team Configuration You can create teams and programme call keys in the Configurator of the Forum 523/524 (Telephony: Groups and Telephony: Ports: Upn menu). Call key 1 is preset as a trunk key on all system telephones. This setting can be changed by the system administrator.

  • Page 165: Examples Of Use

    Examples of Use Examples of Use The following examples illustrate the various uses of teams and team func- tions. For information on the display texts and how to use the individual functions, refer to the chapter “Managing Calls in a Team” in the „Forum Phone 516, 526, 536”...
  • Page 166 Examples of Use Call numbers 11 and 10 are both configured as a trunk key on the executive’s and the secretary’s terminal respectively. Thus the executive and the secretary can use either call number (for answering as well as making calls). Each can act as a substitute for the other.

  • Page 167: Three-Member Team

    Examples of Use Three-member Team The three-member team described here is an example of a team configuration within a project group, e.g. export sales. Each team member has one Forum Phone 525 system telephone with all call keys programmed as trunk and team keys. Miller TrK 10: Miller TK 11: Johnson...

  • Page 168: Unified Team

    Examples of Use Call Signalling In this example, calls via the trunk keys are signalled acoustically. Calls via the team keys are indicated by a visual signal (the team key LED flashes). Unified Team The unified team described here is an example of a team configuration within a department in which calls are to be managed quickly (e.g.

  • Page 169: Toggle Team

    Examples of Use telephone, he can accept the call. For further information on function keys, refer to the „Forum Phone 516, 526, 536” or “Forum Phone 515, 525, 535” user guide. Line Busy Indication If a line is busy, e.g. TrK 11 Johnson, the trunk keys on the other team tele- phones will indicate this.
  • Page 170 Examples of Use Call Signalling In this example, calls via trunk keys are signalled acoustically. Calls via team keys are indicated by a visual signal (the team key LED flashes). Miller 14:22 Mi.14.Feb.07 TrK 10: Support 1 TrK 11: Support 2 TrK 12: Support 3 TrK 13: Support 4 TrK 14: Support 5...

  • Page 171: Call Queue

    If more than one telephone number with a queue is configured on the tele- phone, the total number of entries are displayed. Calls in a queue are handled by the Forum 523/524 in the following order of priority: instant connection, door calls, automatic recalls, VIP calls, then other internal and external calls.

  • Page 172: Activation Of Queues

    As calling fax machines often operate with the “voice” service indicator (e.g. on analogue ports), you should assign ports for fax machines on the Forum 523/524 to a user group without a queue. Queues can be combined with the “call forwarding,” “pickup” and “hunt group”...

  • Page 173: Pickup

    Examples of Use queue when the call forwarding function is activated, these calls can only be accepted on the source terminal. If a call is to be forwarded “After delay”, it enters the queue. If the call has not been answered before the delay period expires, it will be forwarded to the target terminal and can then be answered there.
  • Page 174 Examples of Use ● Under Telephony: Call Distribution: Incoming or Telephony: Call Distri- bution: Incoming DDI route all incoming calls to the number of the Forum Phone 535trunk key. ● In the Configurator, create a new group called “Operators” under User Manager: User groups.

  • Page 175: Group Of Three Enquiry Stations

    Examples of Use Group of Three Enquiry Stations The enquiry stations switch all incoming calls. Incoming calls are administered in queues. Depending on the number of arriving calls, one to three enquiry stations in this group are manned. The enquiry stations are each equipped with a Forum Phone 535.
  • Page 176 Examples of Use stations. The display at each enquiry station (Forum Phone 535) indicates how full the queue is. If attendants leave the station, they sign off from the hunt group by means of a feature key. In contrast to Example 1, further calls do not have to be proc- essed after the sign-off, as the calls are also registered in the queues of the other signed-on enquiry stations.

  • Page 177: Multi-Company Variant

    In the multi-company variant, the companies are essentially completely inde- pendent of one another. This allows them to have their own trunk lines, which is useful for billing purposes. The Forum 523/524 hardware and software are used equally by all the companies, however. It is possible to configure the Forum 523/524 for each company and define the extent to which the features of the system may be used.

  • Page 178: Configuring The Multi-Company Variant

    (see Allocating Routing Codes starting on page 178). 5. An exchange must be set up for each company so that the Forum 523/524 can correctly process statuses in which a call should be routed to the exchange (see Configuring the Company Exchange starting on page 178).

  • Page 179: Assigning Users

    (the users) via the lines of a certain bundle of the Forum 523/524, each of the available bundles must be assigned to one of the companies. This is necessary to be able to transfer incoming external calls to the correct company exchange in cases where the called internal subscriber cannot be reached, for example.

  • Page 180: Allocating Routing Codes

    “source” principle. Charges are billed to the company to which the user belongs who set up the connection. The Forum 523/524 recognises this on the basis of the assignment between user groups and companies and on the basis of the routing code with which a line of the bundle/SIP trunk was seized.

  • Page 181: Working With The Multi-Company Variant

    Working with the Multi-Company Variant All the features of the Forum 523/524 which the users may already be familiar with from the single-company variant are available in the multi- company variant. These features can be used to the same extent and can be used in exactly the same way.

  • Page 182: Making Calls Between Companies

    Making Calls Between Companies All users of the Forum 523/524 can make internal calls to one another, irre- spective of which company they belong to. Calls between users from the different companies are therefore not subject to any restrictions.

  • Page 183: Configuring The Pc Software

    Forum Hotel You can simplify the daily use of the Forum CTI and Forum Hotel Web appli- cations using the Web browser especially adapted for the Forum 523/524. Each time the workstation computer is restarted, this browser programme can automatically start and log you in. This means that the applications are always operational and can be accessed using the icon in the information area of the task bar.

  • Page 184: Synchronising The Pc Clock

    GMT (Greenwich Mean Time) required for SNTP: 1. Go to the Configurator, System: Common menu. Click on Change. 2. Enter the Time zone for which the time of the Forum 523/524 applies and whether summer time is allowed for. Confirm this with Apply. Configuring SNTP For various operating systems, you can use one of the numerous SNTP programmes offered for downloading on the Internet.
  • Page 185 Synchronising the PC Clock SNTP with Windows Here you configure the SNTP server by double-clicking on the time in the Start bar. Enter the Forum 523/524 as the Server in the Internet time tab. Configuring the PC Software...

  • Page 186: Application Interfaces

    Remote switching The function Remote switching allows to display the state of several func- tions of the communication system Forum 523/524 by means of external devices (e. h. light switches, emergency lights). In addition, these external devices can be controlled remotely by the communications system, e. g. a door station.
  • Page 187 Remote switching ● The Forum 523/524 communications system can participate in the field bus communication. This way, for instance, it is possible to make the occupied status of a terminal visible. Bus participants are configured by means of a separate software, the ETS tool.

  • Page 188: Configuration

    ● current configuration of the remote switching IP router; ● current status of the connection between the Forum 523/524 communi- cations system and the remote switching IP router: – A tick indicates that the connection is established. – A cross indicates that the connection could not be established yet.
  • Page 189 IP router in the Configurator, menu Network > DHCP. 3. Port 1, Port 2: By default, the usual port numbers are set for the connection between the Forum 523/524 communications system and the remote switching IP router. Usually, you can apply the default values.
  • Page 190 1. Action: Enter a name for the action (max. 20 characters). This name serves as an assignment criterion for connecting the action with a terminal or an application of the Forum 523/524 communications system. 2. Type: Select the Switch with timeout setting.
  • Page 191 LED (also see the Configuring the key LED function on the system phone starting on page 190 chapter). 6. Timeout: This timer controls the time span after which the Forum 523/ 524 communications system sends the opposite command to bus partic- ipant.
  • Page 192 Remote switching 6. Time for pulse and Time for pause: With these time values, the Forum 523/524 communications system controls the flashing rhythm when flashing is switched on (Command = on of Command = switch over): – Time for pulse: Flashing is on.

  • Page 193: Applications

    Remote switching Applications Using the Remote switching function, the following applications can be set up on the Forum 523/524 communications system: ● Perform action on Device free / Device busy ● Perform action if the ACD queue reaches a critical size (queue indication changes to red or from red to yellow or green).
  • Page 194 Remote switching Perform action when ACD queue full In combination with the integrated application Forum ACD the remote Remote switching function allows for an action if the ACD queue reaches a critical size. One application example would be to install a warning lamp in the agents' pause room, that starts flashing once the call queue indication turns to red.

  • Page 195: Csta Interface

    (CSTA, phase 3 based on ECMA-269 and ECMA-285 (BER) /ECMA- 323 (XML), phase 2 based on ECMA-217 and ECMA-218) external programs and applications can access services of the Forum 523/524 communications system via network connection. The CSTA interface provides an effective and...
  • Page 196 Configurator. You can also develop your own CTI applications or adapt existing CTI applica- tions for the CSTA interface. To do so, you need the developer documentation. Contact your Proximus agent if you need this CD-ROM. Application Interfaces...

  • Page 197: Setting Up Tapi Interface

    With a TAPI (Telephony Application Programming Interface) you can operate a CTI application (Computer Telephony Integration). Here, the CTI application uses the services of the Forum 523/524 with the help of the TAPI driver installed on a Windows PC. Many telephony functions, such as enquiry, toggling, three-party conference, pick-up, call protection and call forwarding can be controlled using appro- priate TAPI-compatible software.
  • Page 198 Forum 523/524. Using the […] button you can search for this in the LAN. In the boxes Username and Password you enter the user data of one of the users configured on the Forum 523/524. This user must be allocated a system terminal. Confirm your entry with OK.

  • Page 199: Ldap Interface

    Directory information can be transferred using the LDAP protocol. A central service (LDAP server) manages a comprehensive, hierarchically organised directory which can be queried by an LDAP client via LDAP. The Forum 523/ 524 communications system supports two different LDAP applications: ●...

  • Page 200: Querying External Ldap Server

    LDAP Interface 5. In the Look in list, select the entry with the Forum 523/524 address. Enter a user in the Name input field, Administrator for example. Then click on Find now. The list of entries found should now display the address from the central telephone book.
  • Page 201 LDAP Interface To configure the LDAP query you need to find out from the LDAP server administrator what part of the subtree contains the desired address infor- mation. The subtree is designated with a technical address (DN, “Distin- guished Name”). This technical address (in the above example “ou=people,dc=mycompany,dc=com”) can be defined in the web configurator on the Telephony: Extended: Companies page with the BaseDN setting.
  • Page 202 ● Each individual LDAP-queried record is reserved for a definable time in a Forum 523/524 communications system cache (setting: Delete cache in minutes, 50 cache entries per company each with a separate time counter per entry). You should shorten this time (e. g. to 10 minutes) if, for example, the assignment of guests and room telephones in a hotel is managed via the LDAP server.

  • Page 203: Snmp Interface

    After authorisation via a license key, the Forum Name program offers a LDAP service which can be queried by the Forum 523/524 communications system. The Forum Name program provides you with the following features: ●...

  • Page 204: Installing Snmp Agent

    The SNMP Agent requires the IP address of the SNMP Manager for operation. System messages in the form of SNMP Traps are sent to this IP address. You manage the IP address of the SNMP Manager in the Forum 523/524 commu- nications system configurator.
  • Page 205 3. Enter the IP address of the SNMP Manager into the SNMP Manager input field. 4. Confirm with Apply. The IP address of the SNMP Manager is made available to the SNMP Agent in a configuration file via the TFTP server of the Forum 523/524 communica- tions system. Application Interfaces...

  • Page 206: Frequently Asked Questions

    Open the housing (see Opening and Closing Forum 523/524 starting on page 33). Is the power LED illuminated? If not, contact your service centre. The AC adapter plug of the Forum 523/524 may be defective. Frequently Asked Questions...

  • Page 207: Telephony

    After the restart, check whether the activity LED blinks at a rate of 10s / 1s. This indicates that the Forum 523/524 has started up correctly and is ready for operation. If the activity LED is not illuminated or the LED is dark after a short period of rhythmical blinking or the LED blinks 3 times fast in the meantime, the restart was not successful.
  • Page 208 Question: One of the features (e.g. call diversion) on one of the tele- phones cannot be used even though the feature has been configured in the Configurator of the Forum 523/524. Make sure the user configured for this telephone belongs to a user group that has access to this feature (Configurator, User Manager: User and User groups menus).

  • Page 209: Pbx Networking

    PBX Networking MSN on the ISDN telephone itself. For further information, refer to the User Guide of your ISDN telephone. Question: An ISDN telephone always rings, if another telephone on the bus is being called. This case also requires configuring the MSN on the ISDN telephone (see above answer).

  • Page 210: Dect

    DECT group page. Change the desired Q.SIG / SIP bundle and enter the line seizure code for the callback in the Prefix for source phone number at incoming internal input field. Question: Why is it not possible to reach a communications system indi- rectly via another communications system? You have interconnected e.g.

  • Page 211: Lan

    Check whether the LEDs for the switch and the PC’s network card are indi- cating a connection. Check the LEDs for the LAN functions of the Forum 523/524. A green LED above each LAN port indicates whether the network cable has been properly connected.

  • Page 212: Internet

    Internet Question: You have just configured the Forum 523/524 via the network. Why is it not possible now to establish a remote data transfer network connection? The network card and the communication (remote data transfer) adapter cannot be run with the same routing setting. Deactivate the network card before connecting via the dial-up network.
  • Page 213 Question: A SIP connection only passes unidirectional voice. What is the reason? You did not use the Forum 523/524 as internet router or the STUN server of the SIP provider is unavailable. You did not use the Forum 523/524 as internet router or the STUN server of the SIP provider is unavailable.

  • Page 214: Accessories

    Power Supply Unit Forum Phone 515/525/535: Extensions and Accessories Power Supply Unit The power supply unit 90035810 is required in the following cases: ● when connecting a key extension to a Forum Phone 525/535 system tele- phone (see also the chapter Key Extensions starting on page 212) ●...
  • Page 215 The number of key extensions connected to a system telephone (up to three) can be set in the Configurator of the Forum 523/524’s Web Console (in the menu Telephony: Ports: Upn or Telephony: Devices: VoIP Phones). Here the keys can also be programmed as call keys or assigned functions or destination call numbers.
  • Page 216 Static charges can damage the Forum 523/524’s electronic components. Make sure you discharge yourself and your tools before and during any installation work on the Forum 523/ 524 and any connected terminals. Use discharging underlays or antistatic mats where possible.
  • Page 217 Key Extensions This symbol on the system telephone indicates the connector for the key extension. It is on the underside of the telephone. This symbol on the key extension indicates the connector for a further key extension. This symbol on the key extension indicates the connector for the power supply unit and is on the underside of the device.

  • Page 218: Headset

    Headset Headset A headset can be connected to the Forum Phone 515/525/535 system tele- phones and to the Forum IPhone 525/535 IP system telephones. The headset must comply with the DHSG standard (connection via RJ45 jack). The manufacturers Plantronics and GN Netcom make devices suitable for this purpose.

  • Page 219: Technical Specifications

    Technical Specifications System data Mains power supply 230 V ~ 50 Hz Rated power 205 VA Safety class Permissible temperatures, stationary, +5 °C to +40 °C weatherproofed Dimensions (W x H x D) 366 x 368 x 124 mm Weight (system only) 2.0 kg ports Euro ISDN external (S...
