3. RGB LED
The RGB LED lighting control provides several lighting schemes, which allow you
to customize your favorite LED effect. You can set your favorite LED effect to cast
a stunning multi-color glow across your build, change shades to indicate CPU
temperature, pulsate in time to the beat of your music, or set your favorite color for
each pair of LEDs.
strix b250F GAMING

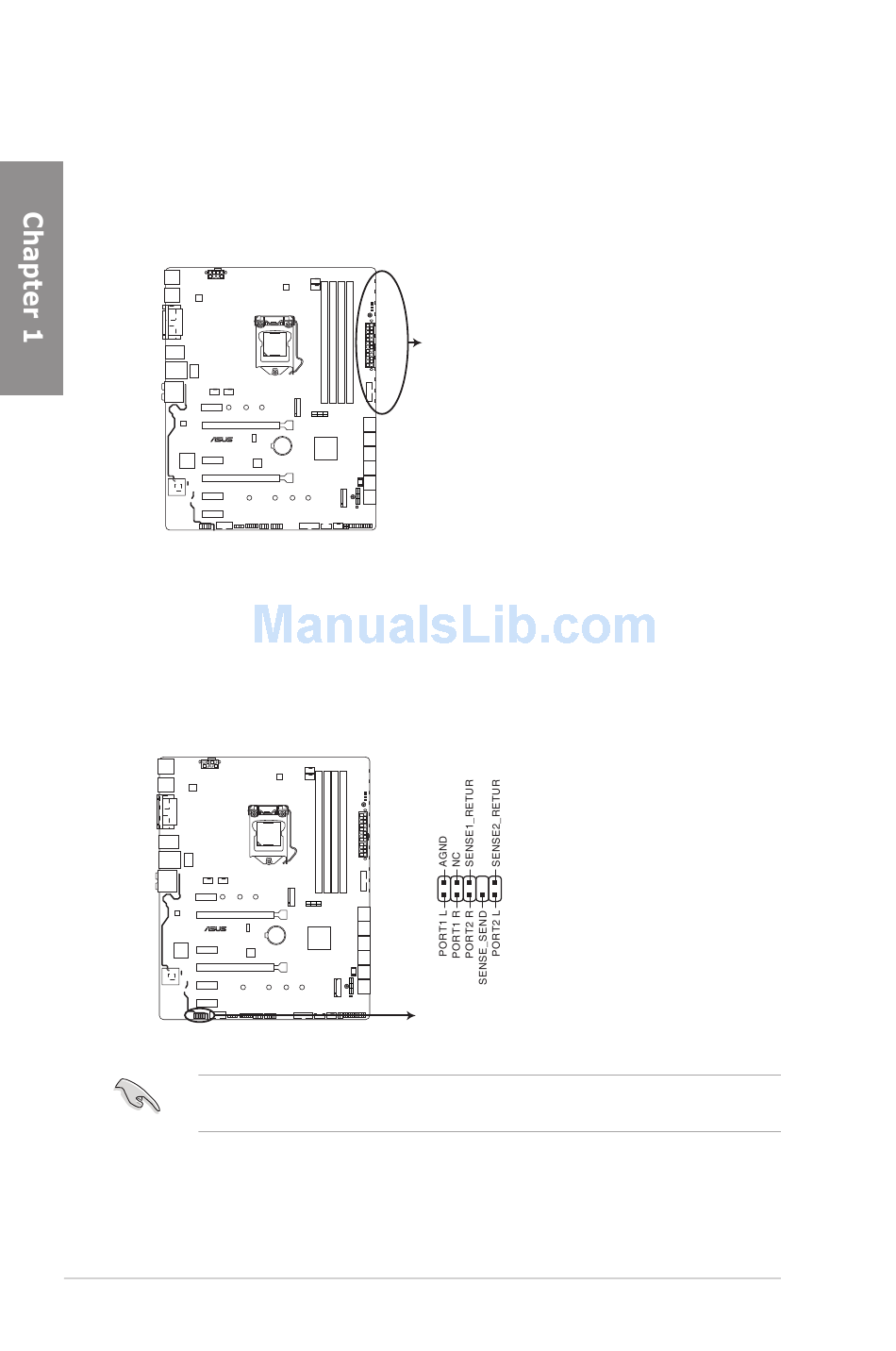

STRIX B250F GAMING RGB LED Lighting
1.1.8

Internal connectors

1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports HD
Audio. Connect one end of the front panel audio I/O module cable to this connector.
strix b250F GAMING
STRIX B250F GAMING Front panel audio connector
We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high-definition audio capability.
1-12
RGB1
RGB2
RGB3
RGB4
RGB5
RGB6
RGB LED(Bottom)
RGB7
RGB8
RGB9
RGB10
RGB11
RGB12
AAFP
HD-audio-compliant
pin definition
Chapter 1: Product Introduction
