Summary of Contents for Asus B250M-C PRO
- Page 1 B250M-C PRO B250M-C PRO/...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Safety information ..................iv About this guide ..................iv Package contents ..................vi B250M-C PRO specifications summary ............ vi Chapter 1 : Product introduction Motherboard overview ................1-1 Central Processing Unit (CPU) ..............1-7 System memory ..................1-8 Chapter 2 : BIOS information BIOS setup program ................. -
Page 4: Safety Information
Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. - Page 5 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.
-
Page 6: Package Contents
Optane Technology is only supported when using 7th Generation Intel Processors. ® ® Before using Intel Optane memory modules, ensure that you have updated your ® motherboard drivers and BIOS to the latest version from ASUS support website. (continued on the next page) - Page 7 - ASUS LANGuard - Surge-protected networking - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS Stainless Steel Back I/O - 3X more durable - ASUS SafeSlot Core- Fortified PCIe with Solid Soldering - ESD Guards - Electrostatic discharge protection...
- Page 8 B250M-C PRO specifications summary 1 x 24-pin EATX Power connector 1 x 4-pin ATX 12V Power connector 1 x Speaker connector 2 x COM headers Internal 1 x LPT header connectors 1 x Chassis Intrusion header 1 x Clear CMOS header...
-
Page 9: Chapter 1 : Product Introduction

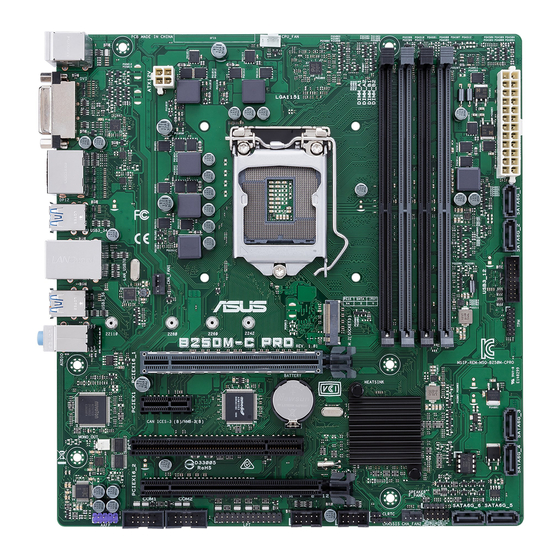

B250M-C PRO PCIEX16_1 PCIEX1 Super 1083 Intel ® MONO_OUT B250 64Mb BIOS PCIEX16_2 CHA_FAN2 CLRTC SPEAKER USB910 USB1112 SATA6G_6 SATA6G_5 COM1 COM2 AAFP F_PANEL CHASSIS 12 11 Scan the QR code to get the detailed pin definitions. ASUS B250M-C PRO... - Page 10 • If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support. asus.com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details. M.2 socket 3 These sockets allow you to install an M.2 (NGFF) SSD module.
- Page 11 Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data. If the steps above do not help, remove the onboard battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery. ASUS B250M-C PRO...
- Page 12 Chassis intrusion header (4-1 pin CHASSIS) This header is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced.
- Page 13 7.1-channel configurations, the function of this port becomes Front Speaker Out. Microphone port (pink). This port connects to a microphone. Refer to the audio configuration table for the function of the audio ports in 2.1, 4.1, 5.1, or 7.1-channel configuration. ASUS B250M-C PRO...
- Page 14 Audio 2.1, 4.1, 5.1, or 7.1-channel configuration Headset 4.1-channel 5.1-channel 7.1-channel Port 2.1-channel Light Blue (Rear Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out panel) Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out Pink (Rear panel) Mic In Mic In...
-
Page 15: Central Processing Unit (Cpu)
PnP cap/socket contacts/motherboard components. • Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket. -
Page 16: System Memory
OS if you want to install 4GB or more on the ® motherboard. For more details, refer to the Microsoft support site at http://support.microsoft. ® com/kb/929605/en-us. Visit the ASUS website at www.asus.com for the latest QVL. Installing a DIMM To remove a DIMM Chapter 1: Product introduction... - Page 17 Recommended memory configuration Installing a DIMM To remove a DIMM ASUS B250M-C PRO...
-
Page 18: Chapter 2 : Bios Information
The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. Visit the ASUS website at www.asus.com to download the latest BIOS file for this • motherboard. -
Page 19: Bios Menu Screen
BIOS menu screen General Help Menu bar Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Ai Tweaker Advanced Monitor Boot Tool Exit BIOS Information Choose the default BIOS Version 0205 x64 language Build Date 03/24/2017 ME Firmware Version 11.6.0.1126 PCH Stepping Processor Information... -
Page 20: Exit Menu
<Esc>, a confirmation window appears. Select OK to discard changes and exit. Launch EFI Shell from USB drives This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available USB devices. ASUS B250M-C PRO... -
Page 21: Appendix
The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. ASUS B250M-C PRO... - Page 22 Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This Class B digital apparatus complies with Canadian ICES-003, RSS-210, and CAN ICES- 3(B)/NMB-3(B). This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 23 ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials.
- Page 24 доступний на: www.asus.com/support Cijeli tekst EU izjave o sukladnosti dostupan je na: www.asus.com/support Türkçe AsusTek Computer Inc., bu aygıtın temel gereksinimlerle ve ilişkili Čeština Společnost ASUSTeK Computer Inc. tímto prohlašuje, že toto Yönergelerin diğer ilgili koşullarıyla uyumlu olduğunu beyan eder.
-
Page 25: Asus Contact Information
+1-510-739-3777 +1-510-608-4555 Web site http://www.asus.com/us/ Technical Support Support fax +1-812-284-0883 Telephone +1-812-282-2787 Online support http://qr.asus.com/techserv ASUS COMPUTER GmbH (Germany and Austria) Address Harkort Str. 21-23, 40880 Ratingen, Germany +49-2102-959931 Web site http://www.asus.com/de Online contact http://eu-rma.asus.com/sales Technical Support Telephone +49-2102-5789555 Support Fax... - Page 26 800 Corporate Way, Fremont Phone/Fax No: (510)739-3777/(510)608-4555 hereby declares that the product Product Name : Motherboard Model Number : B250M-C PRO Conforms to the following specifications: FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: This device complies with part 15 of the FCC Rules. Operation is subject to the...
