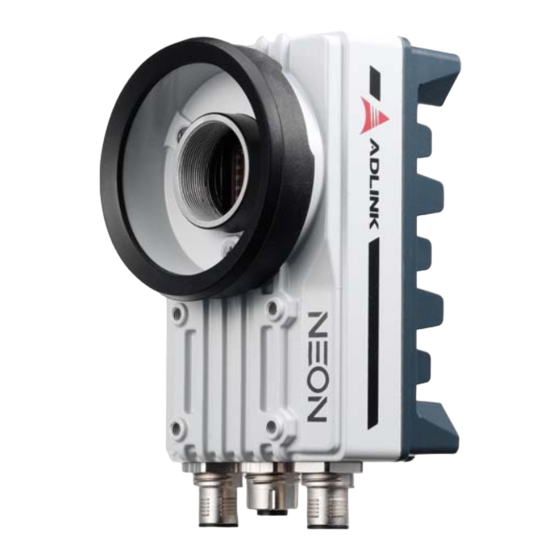

ADLINK Technology NEON-1021-M User Manual

Quad core x86 smart camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

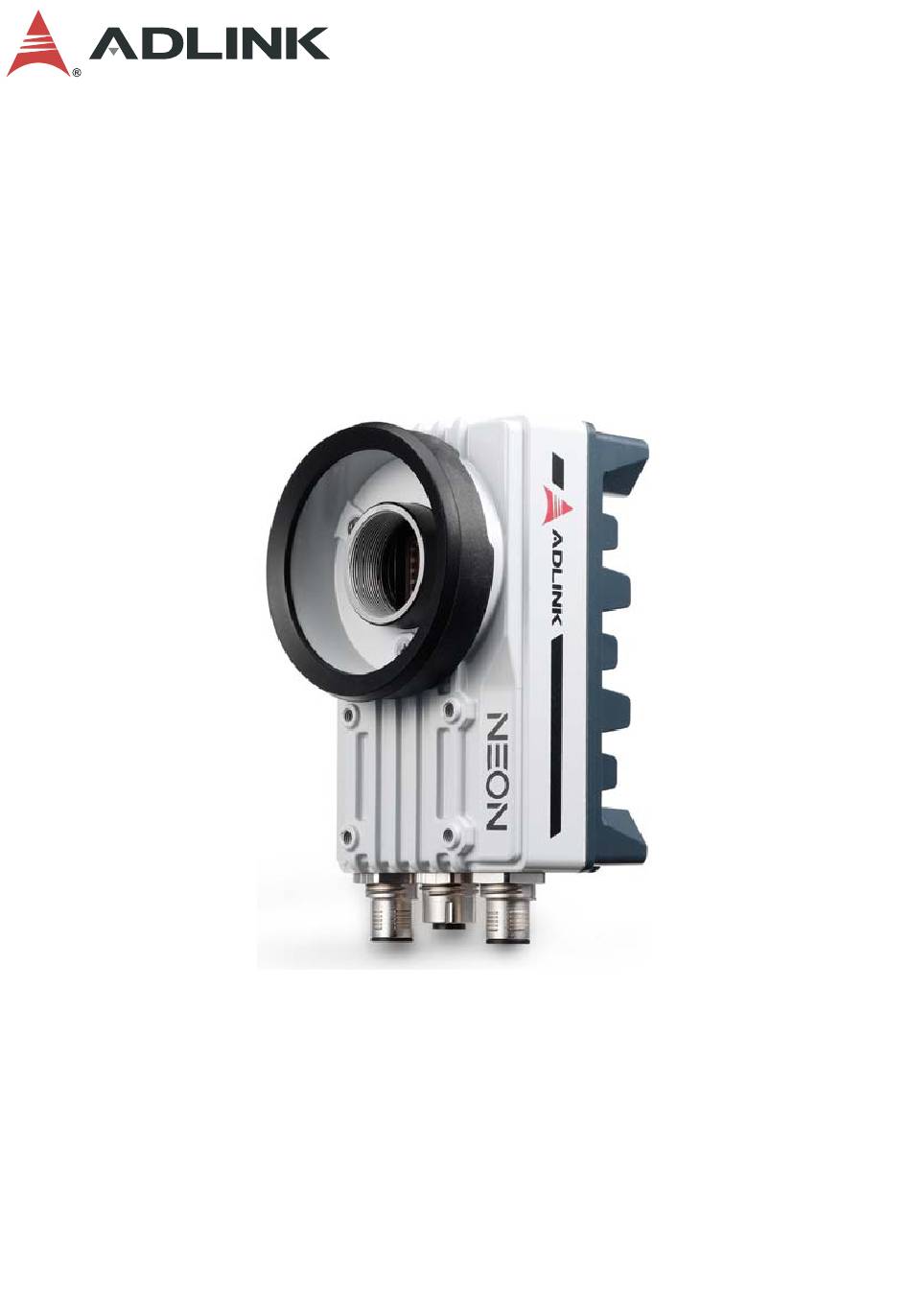

NEON-1021-M
Quad Core x86 Smart Camera
User's Manual
Manual Rev.:
Revision Date:
Part No:
Leading EDGE COMPUTING
1.0
June 9, 2017
50-1Z235-1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEON-1021-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology NEON-1021-M

Summary of Contents for ADLINK Technology NEON-1021-M

  • Page 1 NEON-1021-M Quad Core x86 Smart Camera User’s Manual Manual Rev.: June 9, 2017 Revision Date: 50-1Z235-1000 Part No: Leading EDGE COMPUTING...
  • Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) June 9, 2017 Initial release...
  • Page 3 NEON 1021-M Preface Copyright 2017 ADLINK Technology, Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Leading EDGE COMPUTING Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.

  • Page 5: Table Of Contents

    NEON-1021-M Table of Contents Preface ..................iii List of Figures ............... vii List of Tables................ix 1 Introduction ................ 1 Overview................1 Features................2 Specifications............... 2 Schematics ................4 Indicators ................7 I/O Connectors..............8 1.6.1 Digital I/O and Power..........9 1.6.2...
  • Page 6 Leading EDGE COMPUTING Getting Service ..............27 Table of Contents...

  • Page 7: List Of Figures

    NEON-1021-M List of Figures Figure 1-1: NEON-1021-M Front View..........4 Figure 1-2: NEON-1021-M Rear View ..........5 Figure 1-3: NEON-1021-M Side View ..........6 Figure 1-4: NEON-1021-M LED Array ..........7 Figure 1-5: NEON-1021-M I/O Array..........8 Figure 1-6: Digital I/O and Power Connector ........9 Figure 1-7: Ethernet Connector............
  • Page 8 Leading EDGE COMPUTING This page intentionally left blank. viii List of Figures...

  • Page 9: List Of Tables

    NEON-1021-M List of Tables Table 1-1: NEON-1021-M LED Function .......... 7 Table 1-2: NEON-1021-M I/O Array Legend........8 Table 1-3: Digital I/O and Power Pin Assignment......10 Table 1-4: Ethernet Pin Assignment ..........11 Table 1-5: VGA/USB Pin Assignment..........13...
  • Page 10 Leading EDGE COMPUTING This page intentionally left blank. List of Tables...

  • Page 11: Introduction

    GigE Vision camera connection, 4x isolated input, 4x isolated output, and VGA output for maximized integration with external devices. Rugged construction with IP67-rated housing and M12 connectors enables the NEON-1021-M to withstand the harshest industrial environments. MVTec MERLIC is an all-in-one tool for quickly building machine vision applications with no programming requirement.

  • Page 12: Features

    Leading EDGE COMPUTING 1.2 Features Image-centered user interface  Machine vision application with no need for programming  Integrated tool library  2MP 60 fps resolutions, monochrome global shutter CMOS  sensors Multi-ROI function replaces multi-camera barcode reader  solution Additional GigE Vision 1 slave camera support ...
  • Page 13 NEON 1021-M Drive Method Constant current, max. 500 mA Applicable 24 VDC illuminators Light Units Lighting Control Dimming 1000:1, 18kHz Resolution Ethernet 1 x GbE Serial Communication 1 x RS-232 (TX and RX only) 1 x USB 2.0 Physical Dimensions 68.5W x 110D x 52.7 mm Lens mount C mount...

  • Page 14: Schematics

    Leading EDGE COMPUTING 1.4 Schematics All units are in millimeters (mm) NOTE: NOTE: 68.5 35.5 71.5 127.3 4x M4_Depth 6.5mm Figure 1-1: NEON-1021-M Front View...

  • Page 15: Figure 1-2: Neon-1021-M Rear View

    NEON 1021-M 5.95 98.1 4x M4_Depth 6.5mm Figure 1-2: NEON-1021-M Rear View...

  • Page 16: Figure 1-3: Neon-1021-M Side View

    Leading EDGE COMPUTING 65.2 1.50 52.7 Figure 1-3: NEON-1021-M Side View...

  • Page 17: Indicators

    NEON 1021-M 1.5 Indicators Figure 1-4: NEON-1021-M LED Array The NEON 1021 provides five labeled LED indicators on the top side, with function as follows. Indicator Color Status Description System power on POWER Blue System power off Image capture in progress...

  • Page 18: I/O Connectors

    Leading EDGE COMPUTING 1.6 I/O Connectors Figure 1-5: NEON-1021-M I/O Array Power/IO/UART Ethernet VGA/USB Table 1-2: NEON-1021-M I/O Array Legend...

  • Page 19: Digital I/O And Power

    NEON 1021-M 1.6.1 Digital I/O and Power Figure 1-6: Digital I/O and Power Connector 17-Pin M12 Pin Signal Type Description Pigtail RS232 RXD Input RS-232 receive. Brown DO3/ Open-collector output 3 Output Blue Strobe out 3 or strobe out 3 DO1/ Open-collector output 1 Output...

  • Page 20: Table 1-3: Digital I/O And Power Pin Assignment

    Leading EDGE COMPUTING 17-Pin M12 Pin Signal Type Description Pigtail PWM LED control out negative, for connection to LED PWM light Output lighting device; Power Black control out (-) source of LED current control is shared System PWR Power input w/ input System PWR Input Gray...

  • Page 21: Ethernet

    NEON 1021-M 1.6.2 Ethernet M12 8-pin (female) connector that provides communication capa- bilities at 10 Mbit/sec, 100 Mbit/sec, or 1 Gbit/sec(1000 Mbit/sec). Figure 1-7: Ethernet Connector Pin Signal Description MDI_3- Data C- MDI_4+ Data D+ MDI_4- Data D- MDI_1- Data A- MDI_2+ Data B+ MDI_1+...

  • Page 22: Vga/Usb

    Leading EDGE COMPUTING 1.6.3 VGA/USB M12 12-pin (male) connector that transmits output video and USB 2.0 signals. The output video signal is a standard RGB analog video output transferring the OS desktop to connected indepen- dent display devices. The video output can display an extended Windows and/or an exclusive display.

  • Page 23: General Purpose Digital Signals

    DO channel goes low, and when a 0 (logic low) is written by FPGA to a DO channel, no cur- rent passes through the transistors and the DO channel goes high. NEON-1021-M Max 100 mA Max. 30VDC...

  • Page 24: General Purpose Digital Input (Edi)

    Hardware Trigger input (-) Figure 1-11: Hardware Trigger Input Circuit 1.7.4 PWM Light Control Output One channel constant-current sink LED driver, max. constant 500mA output current with 1000 level light control regulates bright- ness of LED lighting devices, sharing the NEON-1021-M System...

  • Page 25: Figure 1-12: Pwm Light Control

    NEON 1021-M PWR input, requiring that System PWR voltage matches the LED lighting device's operating voltage. System PWR PWM LED control out (+) Max. 500 mA LED Light Neon-1021-M PWM LED control out (-) PWM controller Figure 1-12: PWM Light Control...
  • Page 26 Leading EDGE COMPUTING This page intentionally left blank.

  • Page 27: Getting Started

    NEON 1021-M Getting Started This chapter describes connection and configuration of the NEON-1021-M. 2.1 Unpacking Checklist Before unpacking, check the shipping carton for any damage. If the shipping carton and/or contents are damaged, inform your dealer immediately. Retain the shipping carton and packing materials for inspection.

  • Page 28: Connecting An Ethernet Cable

    Leading EDGE COMPUTING Figure 2-1: VGA/USB Alignment Pin (device side) 2. Fully insert the cable connector. 3. Tighten the threaded collar (cable side) to fix the connec- tion. 2.3 Connecting an Ethernet cable 1. Align the alignment pin (cable side) with the alignment channel (device side) Figure 2-2: Ethernet Alignment Channel (device side) 2.

  • Page 29: Connecting A Power Cable

    NEON 1021-M 2.4 Connecting a power cable 1. Align the alignment pin (device side) with the alignment channel (cable side) Figure 2-3: Power Alignment Pin (device side) 2. Fully insert the cable connector. 3. Tighten the threaded collar (cable side) to fix the connec- tion.
  • Page 30 Leading EDGE COMPUTING 3. Select the arrow in the top left corner to expand the tool- bar, and select Live-Mode to capture continuous images. Select again to stop capture.
  • Page 31 NEON 1021-M For detailed operation, refer to the MERLIC manual (Select Help on the toolbar).
  • Page 32 Leading EDGE COMPUTING This page intentionally left blank.

  • Page 33: Important Safety Instructions

    NEON 1021-M Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil , pour éviter des blessures ou des dommages.
  • Page 34 Leading EDGE COMPUTING Never attempt to repair the device, which should only be  serviced by qualified technical personnel using suitable tools A Lithium-type battery may be provided for uninterrupted  backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type;...
  • Page 35 NEON 1021-M BURN HAZARD Touching this surface could result in bodily injury. To reduce risk, allow the surface to cool before touching. RISQUE DE BRÛLURES Ne touchez pas cette surface, cela pourrait entraîner des blessures. Pour éviter tout danger, laissez la surface refroidir avant de la toucher.
  • Page 36 Leading EDGE COMPUTING This page intentionally left blank. Important Safety Instructions...
  • Page 37 San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
  • Page 38 Leading EDGE COMPUTING This page intentionally left blank. Getting Service...
