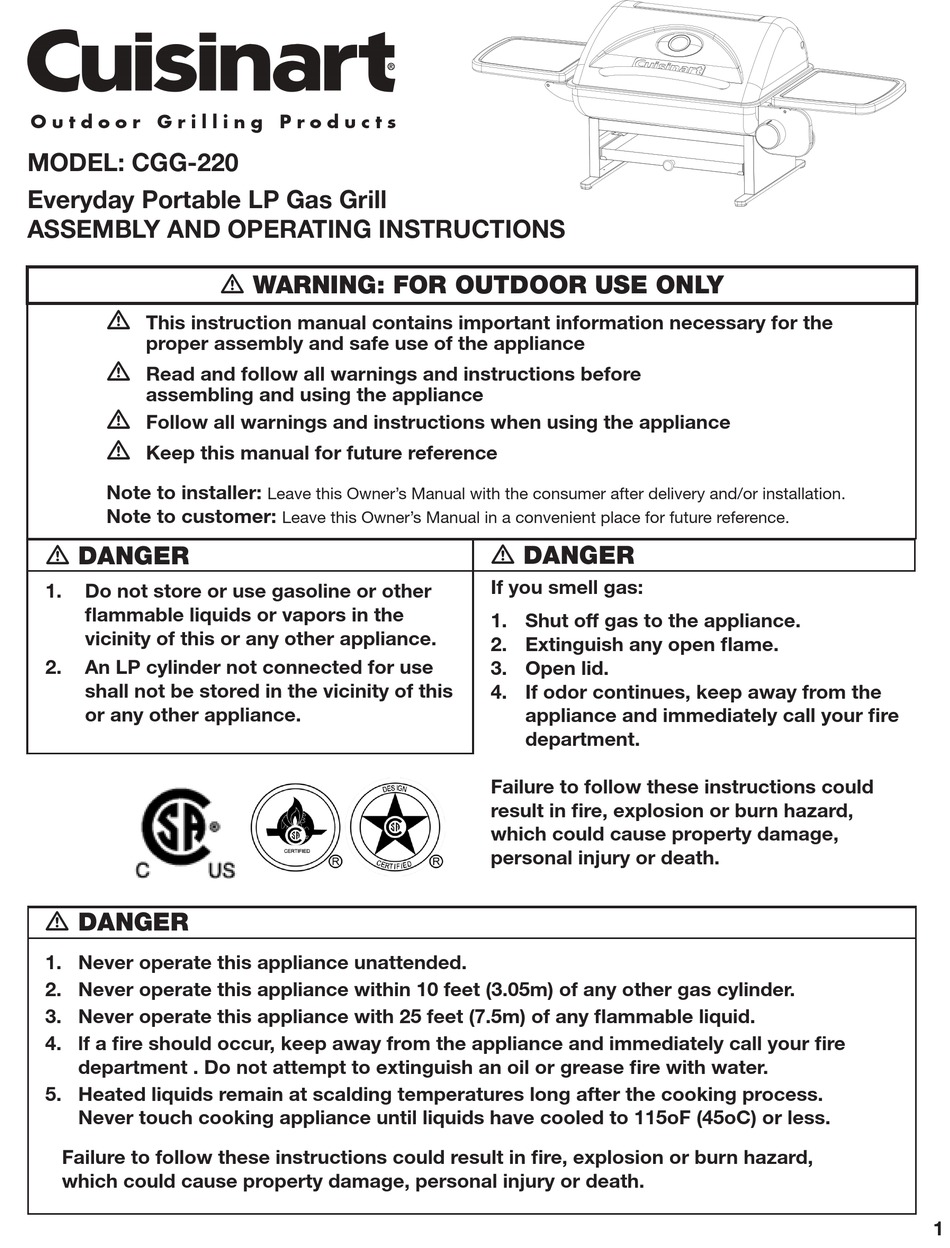

O u t d o o r G r i l l i n g P r o d u c t s
MODEL: CGG-220
Everyday Portable LP Gas Grill
ASSEMBLY AND OPERATING INSTRUCTIONS
m
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance
m
Read and follow all warnings and instructions before
assembling and using the appliance
m
Follow all warnings and instructions when using the appliance
m
Keep this manual for future reference
Note to installer:
Note to customer:
m DANGER
1.
Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2.
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
m DANGER
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 feet (3.05m) of any other gas cylinder.
3. Never operate this appliance with 25 feet (7.5m) of any flammable liquid.
4. lf a fire should occur, keep away from the appliance and immediately call your fire
department . Do not attempt to extinguish an oil or grease fire with water.
5. Heated liquids remain at scalding temperatures long after the cooking process.
Never touch cooking appliance until liquids have cooled to 115oF (45oC) or less.
Failure to follow these instructions could result in fire, explosion or burn hazard,
which could cause property damage, personal injury or death.
m WARNING: FOR OUTDOOR USE ONLY
Leave this Owner's Manual with the consumer after delivery and/or installation.
Leave this Owner's Manual in a convenient place for future reference.
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your fire
department.
Failure to follow these instructions could
result in fire, explosion or burn hazard,
which could cause property damage,
personal injury or death.
1

Advertisement

loading

Summary of Contents for Cuisinart CGG-220

  • Page 1 O u t d o o r G r i l l i n g P r o d u c t s MODEL: CGG-220 Everyday Portable LP Gas Grill ASSEMBLY AND OPERATING INSTRUCTIONS m WARNING: FOR OUTDOOR USE ONLY...
  • Page 2: Table Of Contents

    This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot surfaces or splatter from cooking liquids. 9. Warranty Program and Replacement Parts This appliance is not intended for commercial use. The pressure regulator supplied with the Cuisinart Gas Grill must be used.
  • Page 3: Illustrated Parts List

    2. Illustrated Parts List 3. Exploded View Lid & Firebox 1 pc Grill Leg Assembly 1 pc Cooking Grate 1 pc Flame Tamer 1 pc Drip Tray 1 pc Side Table Assembly 2 pcs Hardware List    Wing Nut Screw 2pcs Decoration Panel Assembly Carry Handle Assembly...
  • Page 4: Assembly Instructions

    4. Assembly Instructions Step 4: Replace Flame Tamer, Cooking Grate and Remove all the contents from packaging, and make sure all parts are present before Drip Tray attempting to assemble! Part C Place Flame Tamer over locking tabs and secure with two cotter pins Step 1: Place Cooking Grate back onto grill.
  • Page 5: Installing The Lp Gas Cylinder

    1. The “Leak Check” must be performed before lighting the before using the grill. This Cuisinart grill is equipped with a regulator having a grill and each time the cylinder is connected for use. CGA No.600 cylinder connection REMOVAL OF THE GAS CYLINDER 7.
  • Page 6: Match Lighting

    • CAN I USE A 20LB LP TANK? You may use a standard 20 lb. LP tank with your Cuisinart Gas Grill, but you will need a conversion hose, such as the During operation, stand to side of grill when opening the grill lid.
  • Page 7 For troubleshooting, FAQs or Customer Service, please visit us at www.cuisinartgrilling. com or contact us at 1-866-994-6390. To order replacement grill parts or other Cuisinart Grilling products, please visit us at www.cuisinartgrilling.com or call 1-800-211-9604 Model #CGG-220...
