Thank you for purchasing the Crossroads Bookshelf.

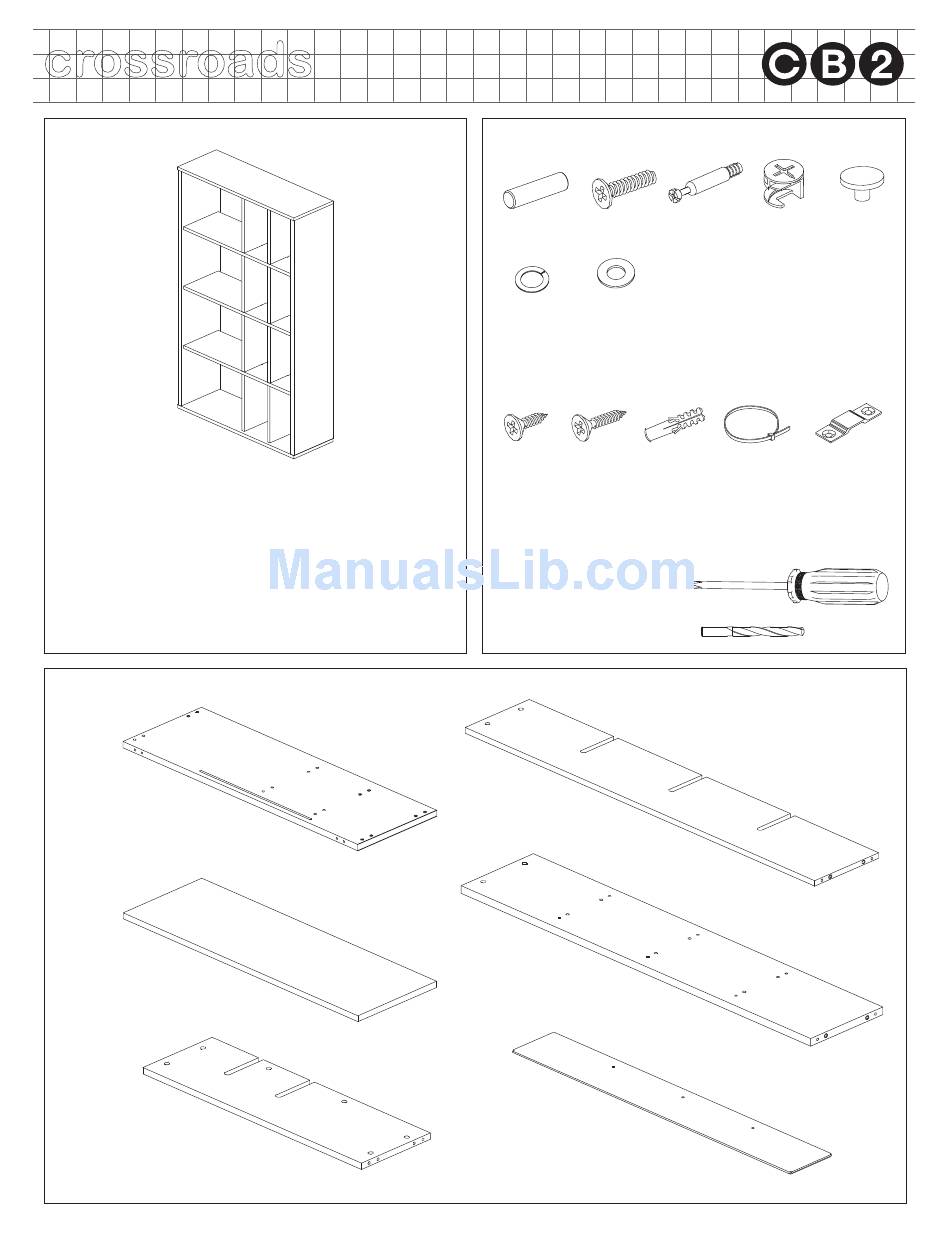

This page lists all the contents included in the box.
Please take the time to identify the hardware as well as
the individual components to this product. As you
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.
components
1 - bottom panel
1 - top panel
3 - small shelves
Made in Vietnam - r09
BOOKSHELF
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
hardware
28 - wood
8 - bolts
26 - cam
dowels
screws
8- flat
8 - spring
washers
washers
mounting hardware
4 - small
4 - large
4 - plastic
screws
screws
anchors

tools required

phillips head screwdriver
2.5mm (1/16") drill bit
2 - large shelves
2 - side panels
2 - back panels
(1 left, 1 right)
26 - cams 26 - cam
covers
Missing hardware?
Please call 800.606.6387 for
replacements.
2 - wall
4 - wall
straps
brackets
Page 1 of 4
