CB2 MINI CHILL Assembly Instructions Manual

mini chill
Thank you for purchasing the Mini Chill Media Console.

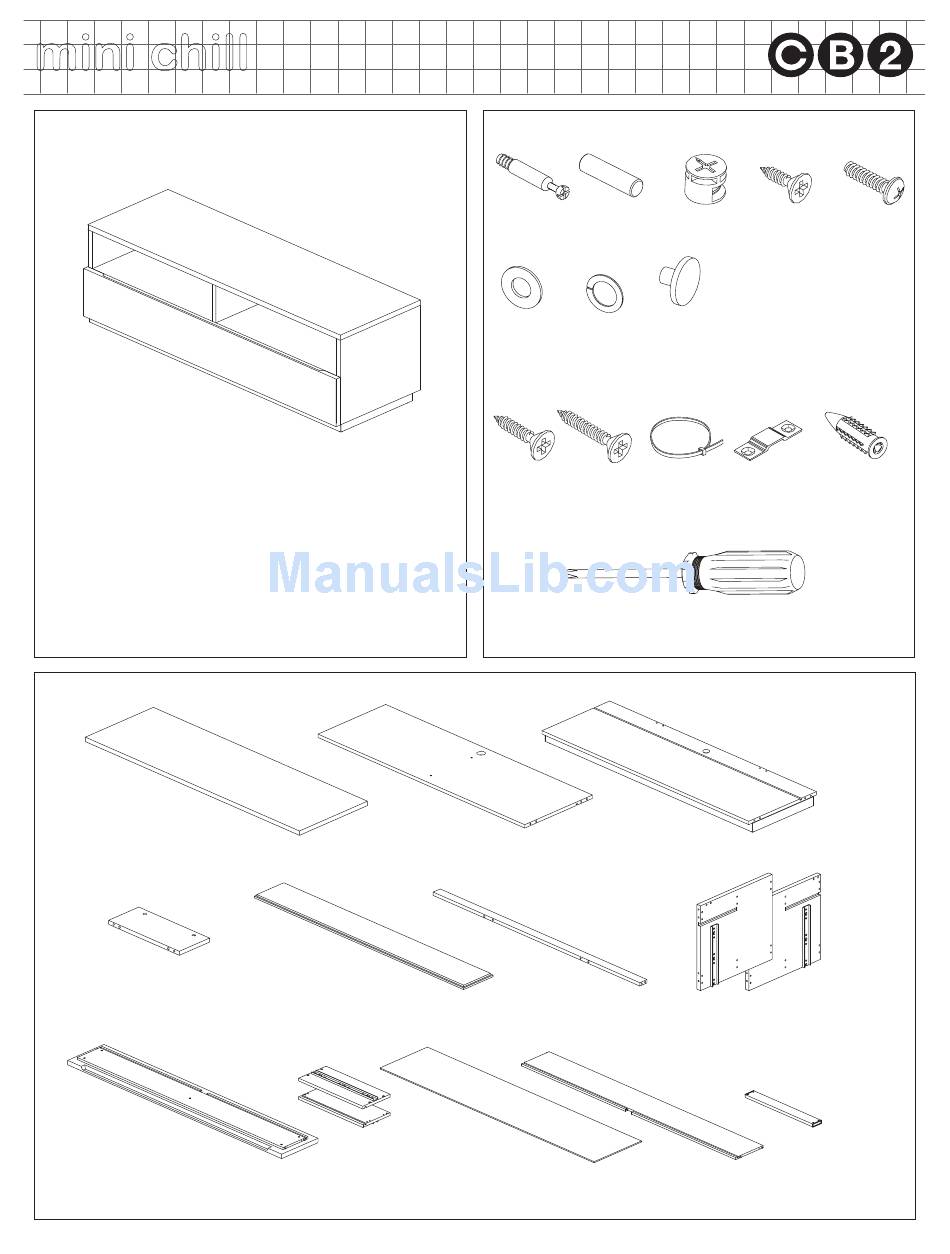

This page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
NOTE: 2 people are required to safely assemble this product.
components
1 - top
panel
1 - partition
1 - drawer
front
Made in Vietnam - r03
MEDIA CONSOLE
1 - middle
panel
1 - back panel
2 - drawer
sides
(1 left, 1 right)
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
hardware
14 - cam 22 - wood 14 - cams
screws dowels
6 - cam
4 - flat 4 - spring
covers
washers washers
mounting hardware
4 - small 4 - large 2 - wall
screws screws straps

tools required

phillips head screwdriver
(We recommend the use of hand tools instead of power tools
1 - bottom
panel
1 - apron
1 - drawer 1 - drawer
bottom back–
12 - screws
4 - bolts
Missing hardware?
Please call 800.606.6387
for replacements.
4 - mounting 4 - plastic
brackets anchors
)
2 - side panels
(1 left, 1 right)
1 - drawer
bottom rail
Page 1 of 6
