cadet
CABINET

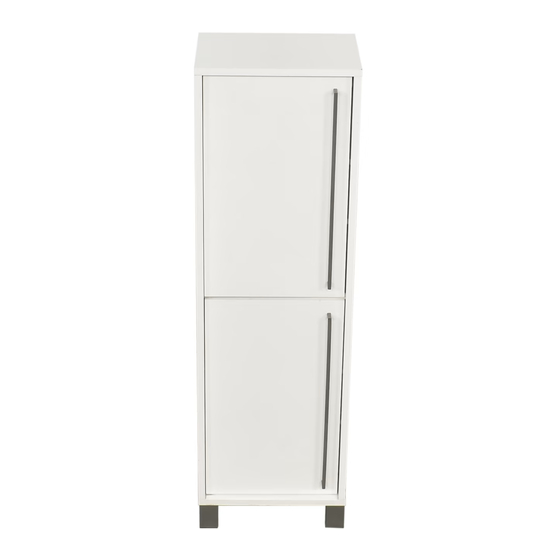

Thank you for purchasing the Cadet Cabinet. This
page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
components
2 - side panels
(1 left, 1 right)
tools required
Made in Thailand- r04
1 - back
panel
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
assembly hardware
8 - large
10 - small
24 - wood
cams
cams
dowels
16 - hinge
4 - medium
6 - large
screws
screws
screws
4 - hinges
8 - shelf
pins
wall mounting hardware
2 - plastic
2 - wall
anchors
straps
1 - top
panel
1 - bottom
panel
1 - fixed
shelf
2 - adjustable
shelves
4 - pull
18 - cam
bolts
screws
4 - bumpers
18 - cam
covers
Missing hardware?
Please call 800.606.6387
for replacements.
2 - small
2 - medium
screws
screws
2 - doors
2 - pulls
2 - legs
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CB2 CADET
Summary of Contents for CB2 CADET
- Page 1 4 - hinges 8 - shelf pins Thank you for purchasing the Cadet Cabinet. This wall mounting hardware page lists all the contents included in the box. Please take the time to identify the hardware as well as the individual components to this product.
- Page 2 CABINET NOTE: Make sure arrows on each cam points toward nearest edge with holes NOTE: Do not over tighten the cam screws left side panel back panel Insert 4 wood dowels, 2 large cams, 6 cam screws into left side panel as shown. Secure, but do not over tighten, cam screws with a phillips head screwdriver.
- Page 3 Secure, but do not over tighten, bottom medium screws per leg as shown, using a panel with 6 large screws using a screwdriver. screwdriver. Customer Service 800.606.6252 | Latest instructions available at www.cb2.com Made in Thailand - r04 Page 3 of 5...
-
Page 4: Hinge Adjustment
Refer to Hinge Adjustment diagram for door height and re- adjusting the alignment of the door hinges. tighten screw C. Assembly is now complete. Customer Service 800.606.6252 | Latest instructions available at www.cb2.com Made in Thailand - r04 Page 4 of 5... -
Page 5: Cleaning And Care
D. Place the unit back into position against the wall. Insert 1 medium screw through each wall strap and into the plastic anchor. Wall mounting is now complete Customer Service 800.606.6252 | Latest instructions available at www.cb2.com Made in Thailand- r04 Page 5 of 5...
