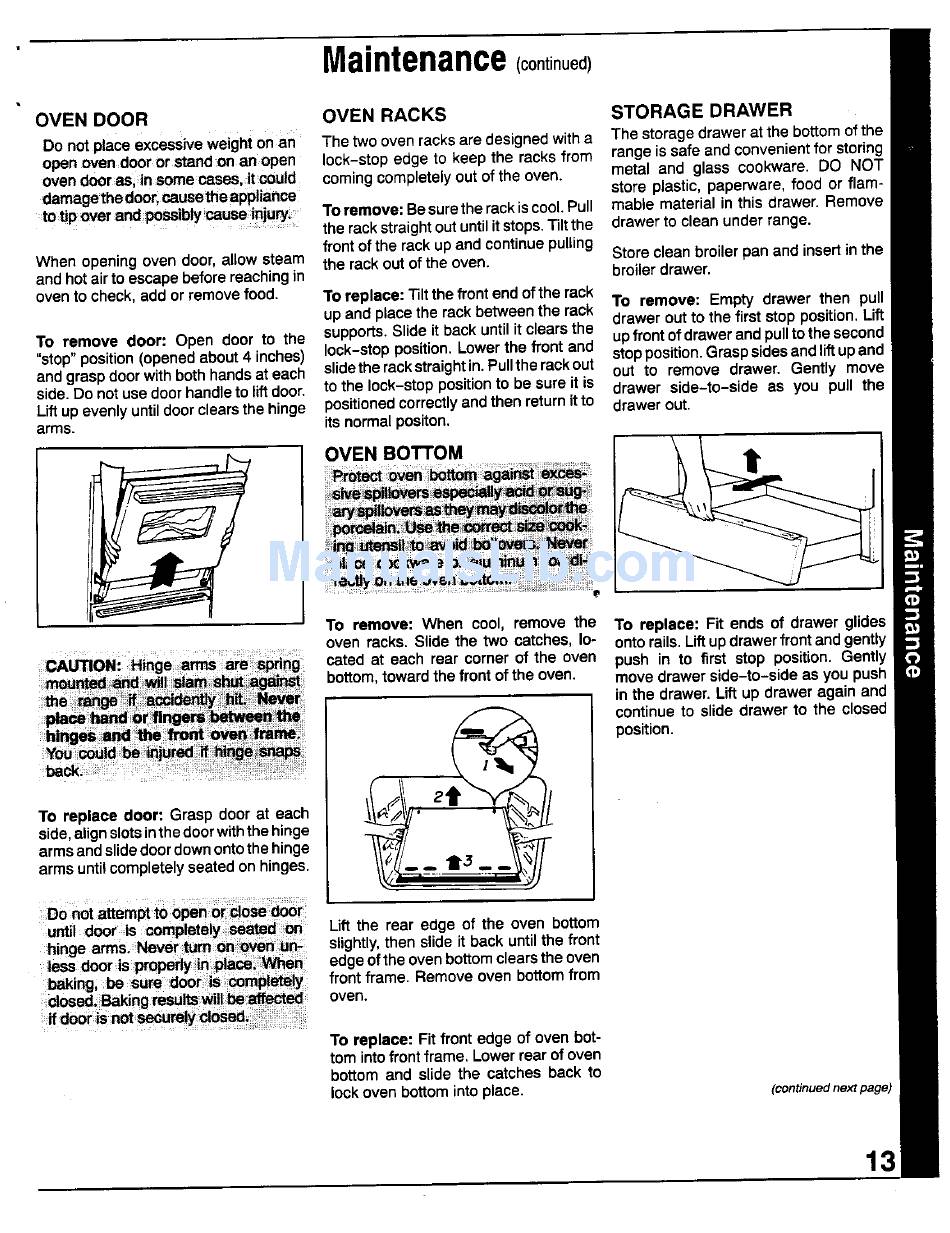

OVEN DOOR OVEN RACKS STORAGE DRAWER
Do not placeexcessiveweighton an The twoovenracksare designedwitha The storagedrawer at the bottomof the
open oven door or stand on an open lock-stop edge to keep the racks from range is safe and convenientfor storing
oven door as, in some cases, it could coming completely out of the oven. metal and glass cookware. DO NOT
damagethedoor,causetheappliance store plastic, paperware, food or flam-
Toremove: Be surethe rackiscool.Pull mable materialin this drawer. Remove
the rackstraightoutuntilitstops.Tiltthe drawerto clean underrange.
frontof the rackupand continuepulling
When opening oven door, allow steam the rack out of the oven. Store cleanbroiler pan and insertin the
and hotairto escapebefore reachingin broiler drawer.
ovento check,add or removefood. To replace: Tiltthefrontend ofthe rack
up and placethe rackbetween the rack To remove: Empty drawer then pull
drawer out to the first stop position.Lift
To remove door: Open door to the supports.Slide itback untilitclearsthe upfront of drawerand pullto thesecond
"stop"position(openedabout4 inches) lock-stopposition.Lowerthe front and stopposition.Graspsidesandliftupand
and graspdoorwithbothhandsat each slidethe rackstraightin.Pullthe rackout out to remove drawer. Gently move
side. Do notusedoorhandleto lift door. to the lock-stopposition to be sure itis drawer side-to-side as you pull the
Lift up evenly until door clears thehinge positionedcorrectlyand then returnit to drawer out.
arms. its normalpositon.
To remove: When cool, remove the To replace: Fit ends of drawer glides
oven racks. Slide the two catches, Io- ontorails.Liftupdrawerfrontand gently
cated at each rear cornerof the oven push in to first stop position. Gently
bottom,towardthe frontof the oven. move drawerside-to-side as you push
in the drawer.Lift up drawer again and
continue to slide drawer to the closed
position.
To replace door: Grasp door at each
side,alignslotsinthe doorwiththe hinge
armsand slidedoordownontothe hinge
arms untilcompletelyseatedon hinges.
;Do not attemptto open
Lift the rear edge of the oven bottom
hinge slightly, then slide it back untilthe front
_ss door is edge of the oven bottom clearsthe oven
baking, front frame. Remove oven bottomfrom
oven.
To replace: Fit front edge of oven bot-
tom intofrontframe. Lowerrear of oven
bottom and slide the catches back to
lockoven bottominto place.
