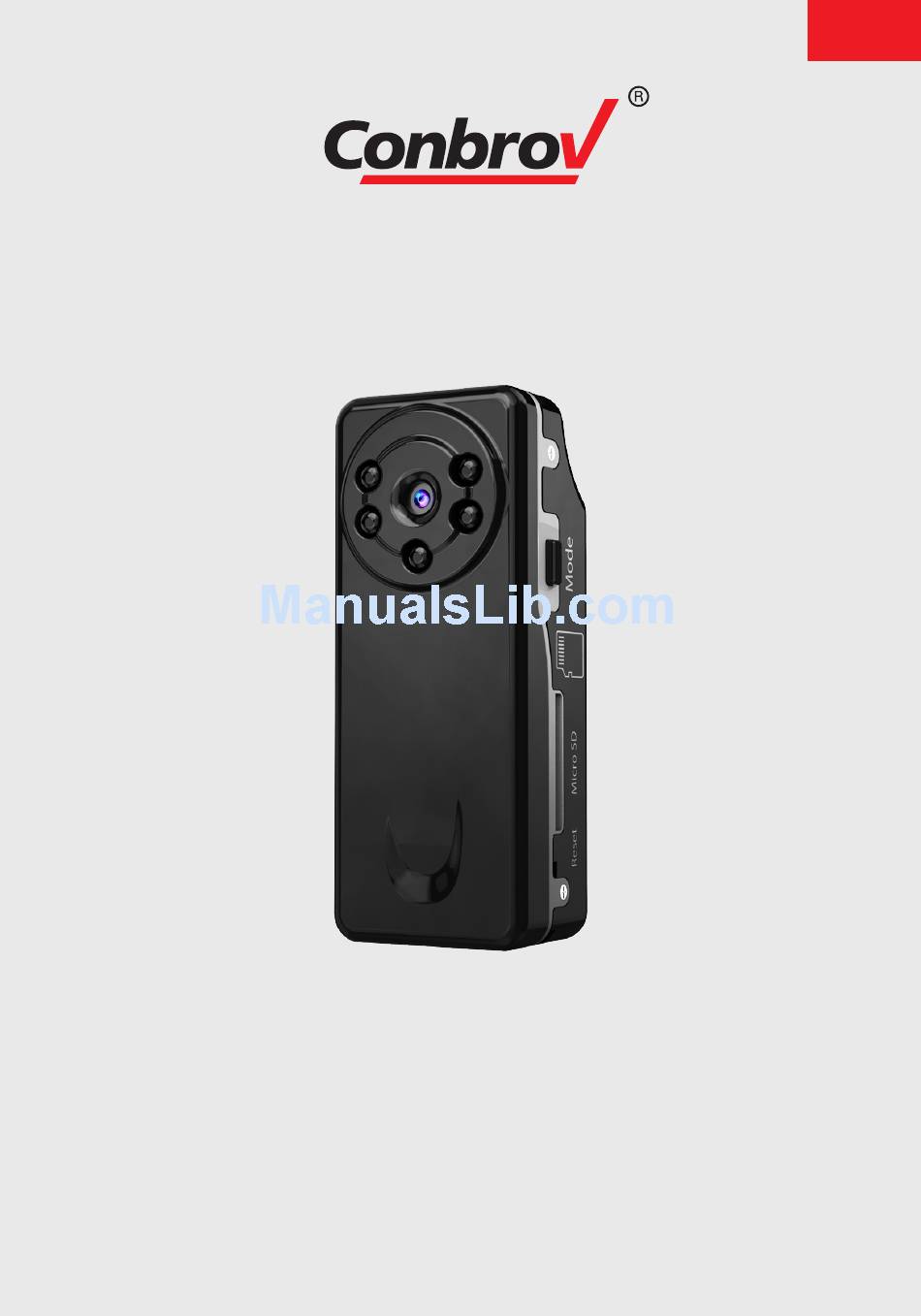

- Page 1 D 12 Mini Security Camera User Manual Model No.: DV12...
-
Page 2: Table Of Contents
Safety Precautions..........4 Warning on Invasion of Privacy........ 5 What's Included............. 6 DV12 Diagram............7 Before Using Your Conbrov DV12 Camera... 8-11 1. Charging the Camera........8 2. Installing the microSDCard........ 9 3. Setting the Date and Time......10-11 How to Use Your Conbrov DV12 camera.....12-15 1. -
Page 3: Part 1 Before First Use
Part 1 Before First Use Charging the Camera Before the first use, charge the camera for about one to two hours via your PC or USB charger (Power adapter should be no more than 5V/1A). Yellow indicator Yellow indicator Formatting the microSDCard Before the first use, format the microSD card to FAT32 format (applicable to Windows system ONLY). -
Page 4: Part 1 Before First Use
Part 1 Before First Use Resetting the camera If the camera malfunctions for any reason, reset it with the included pin. A small paperclip can also be used. -
Page 5: Part 2 Quick Guide
Part 2 Quick Guide A.Install the microSD Card B.Turn On/Off ON lights up blue and the camera is in standby mode OFF lights up red and blue and then turns off D.Play The Video C.Record A Video 2S power on Record a Video flash 3 times blue USB2.0... -
Page 6: Part 3 Detailed User Manual
Safety precautions Read this instruction manual carefully before using the camera. It contains important information for your safety as well as operating and maintenance instructions. Follow all safety precautions in order to prevent damage due to improper use of the camera. Keep this user manual carefully for future use. -
Page 7: Warning On Invasion Of Privacy
Warning on invasion of privacy The camera should be used for legal purpose only. Follow the laws of your country. Recording and circulating an image of an individual may constitute an infringement of their privacy for which you could be liable. Ask for authorization before filming individuals, particularly if you want to keep your recordings and/or circulate images on the Internet or any other medium. -
Page 8: What's Included
What's included Camera Clip holder bracket Mounting bracket D 12 Mini Security Camera User Manual Model No.: DV12 360degree USB cable Manual Rotating bracket Neck lanyard Card reader... -
Page 9: Dv12 Diagram
D 12 Diagram Mode(sound control detection) MicroSD Reset Mini USB port Lens Micro phone Status indicator Record(video/save) Power on button... -
Page 10: Before Using Your Conbrov Dv12 Camera
Before Using Your Conbrov DV12 Camera 1.Charging your camera Yellow indicator Fully charged Steady yellow Charging Fully charged Low power Flashing blue and red (1) The camera power must be off before charging. (2) Plug the USB cable both in the camera and in a computer USB port or a 5V/1A adaptor (not included). -
Page 11: Installing The Microsdcard
Before Using Your Conbrov DV12 Camera 2. Installing the microSD card Caution! Format the microSD before use. Doing this, however, will remove all data from the card. Make sure to back up any data before formatting (applicable to Windows system ONLY) -
Page 12: Setting The Date And Time
Before Using Your Conbrov DV12 Camera (1) Only supports a Class 10 microSD with at least 8GB capacity for recording. (2) Do not remove the microSD card during operation. it will damage both the memory card and camera. (3) Push the microSD card into the memory card slot gently until it clicks into place. -
Page 13: Before Using Your Conbrov Dv12 Camera
Before Using Your Conbrov DV12 Camera Modify date and time on the computer. After setting date and time, click on “File” and then on “Save”. SETTIME.TXT File Edit Format View Help Open Save Save as Page settings Print Exit Note: If you cannot find the file SETTIME.TXT after... -
Page 14: How To Use Your Conbrov Dv12 Camera
How to Use Your Conbrov DV12 camera 1. Turning the Camera On/Off (1) Press and hold the Power to switch the camera on. The LED will light up blue, which indicates that it is in standby mode. (2) Press and hold the... -
Page 15: How To Record A Video
How to Use Your Conbrov DV12 camera 2. How to Record A Video In standby mode, press and hold for 2 seconds. The LED will flash blue 3 times. A 2-minute video clip will be recorded. Press again to stop recording, and the LED will stay blue. -
Page 16: How To Record With Sound-Activated Mode
How to Use Your Conbrov DV12 camera 3. How to Record with Sound-activated Mode In standby mode, press Mode button.The LED will flash red 3 times and enter into 1-minute test recording. After that,sound detector will sense the environment per 1 minute. -
Page 17: How To Switch Into Night Vision
5. How to Play a Video Connect the DV12 camera to computer, press and hold the Power Button for 2 seconds or take out the microSD, insert it into the card reader (included), then connect the card reader to computer. -
Page 18: Other Tips
Other Tips 1.How to Reset the Camera Use the supplied pin or similar tool (like a paperclip) to reset your camera in case of a malfunction. Press and hold the Reset Button for several seconds to reset the camera to standard factory settings. 2. -
Page 19: Led Status
LED status Operation LED status indication Starting up with SD card Blue light always on Blue light flashes 10 Starting up without SD card seconds and shut down Light off Record mode Sound control stand-by Red light always on Sound control recording Light off PC charging Yellow light always on... -
Page 20: Technical Specifications
Technical specifications Item Parameter Video Format Video compression M-JPEG Windows media player or others Playback software on PC windows xp/Vistar/7; OS supported Mac os10.4 or above Color-pinhole Camera Lens Focal distance 2.8mm Memory extension supported Up to 32G USB port USB2.0 940nm, 5 pcs only LED TYPE... - Page 21 3.Q: What's starlight night vision for and how far can be recorded using DV12? A: Starlight night vision means that dv12 camera can record a good white and black video in total darkness. And it can record with a night visual range up of 15 to 25 feet.
-
Page 22: Faqs
FAQs 7.Q: How to play the video I recorded? A: We suggest using VLC player to play the videos. 8.Q: How to set the date and time? A: The camera has the date and time stamp, you can fix the date and time on computer and don't forget to save the fixed date and time at the end. -
Page 23: Warranty
Warranty All products sold by the Conbrov Group are covered by a 12-month full replacement warranty. Happy with it? Share your experience with an Amazon review. Or any questions? Our friendly customer services team are ready to help: support@conbrov.com Contacting us via the above email address is the quickest way to reach our support team. - Page 24 All trademarks or registered trademarks are the property of their respective owners. About Us Conbrov Electron Co., Ltd. founded in 2003 is an innovative technology research company specialized in personal surveillance cameras and on-dash cameras. Conbrov products and technology are patent protected by PCT or U.S. Patent Office. Based on years of professional experience and knowledge, we are able to provide the best and most efficient products and customer service.
