Page 1: User Manual

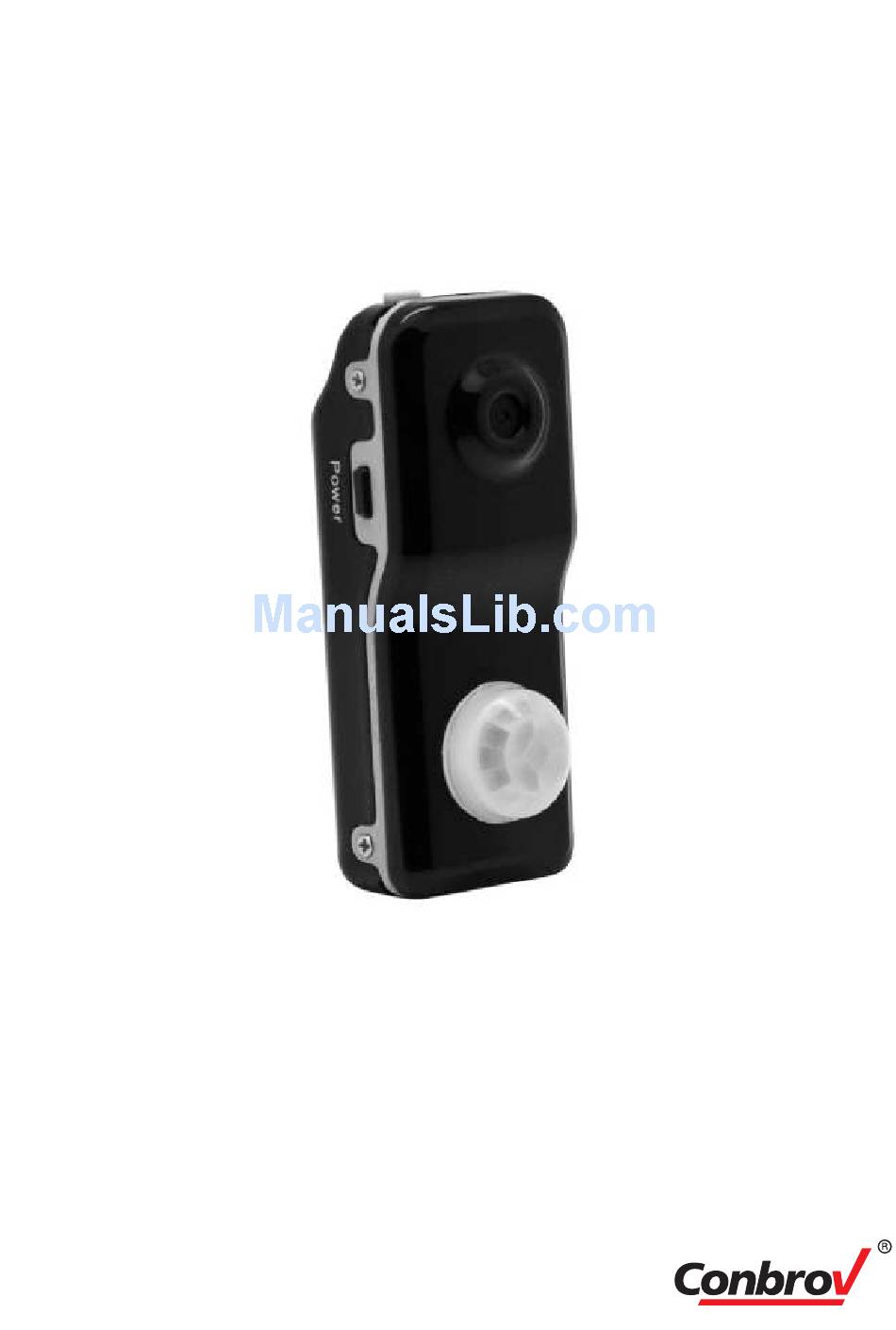

MINI PIR SECURITY CAMERA MODEL NO: DV089 USER MANUAL Please ensure that you read the complete user manual carefully before using any part of the product. - Keep this copy safe for future reference in case of operational difficulties. -
Page 2: General Overview
General overview This manual is specifically meant for this product and covers tutorials for the Mini High-Performance Security Camera that comes alongside with this manual. The camera has High Definition (HD) sensor with PIR feature for accurate motion detection and video recording ability. Additionally, it has a maximum of 1 week battery stand-by when fully charged. -
Page 3: Safety Instructions
Safety Instructions Please read the following instructions before using the camera: - Ensure that the camera is tested for the first time use and confirm that it suits the intended purpose. - We are not responsible for any missing video information due to wrong operation,Micro-SD malfunctioning or camera angle limit etc. -
Page 4: Product Accessories
Product accessories Camera bracket 1 bracket 2 MINI PIR CAMERA MODEL NO: DV089 User Manual -Please read the user manual carefully before using the product. -Please keep the user manual well for future checking. bracket 3 USB cable Manual It is important to note that:... -
Page 5: Product Structure
Product structure Lens PIR motion sensor Power on button USB Port Mode button (switch motion detection on/off) Micro-SD slot Micro phone Reset Status indicator Record/Stop... -
Page 6: Important Notice
Detection ability Detection angle Motion detectin angle: 90 degrees Favorable detection distance: within 8 meters / 24 feet Important Notice: - While using the camera, it should be placed in a perpendicular direction to those objective people passing by - Avoid using the camera in hot or extreme temperatures that will interfere with the motion-accuracy detection - Once the camera is set to motion-detection mode,... -
Page 7: Charging Information
Charging information The camera is chargeable by the use of provided USB cable. - During charging, both Red and Blue light indicators are ON. The Red light goes OFF once fully charged. - It's usually take 5 hours for a fully charge. (5v 1A) Important notice: - Ensure that the camera is switched OFF during charging. - Page 8 How to insert and take out Micro-SD card Insert Micro-SD card Take Micro-SD out Important notice: - The camera has the ability to record video only when Micro-SD is inserted. - Please avoid by all means to insert or remove Micro-SD when the camera is either powered ON or connected to the computer.
-
Page 9: Time And Date Setting
Time and date setting It is not compulsory to set time or date unless when necessary for personal purposes. The user can choose to set or ignore depending on their target of product use. How to set time and date Step 1: Use the provided USB cable to connect the camera to the computer and open the camera control panel available from the computer options. - Page 10 Operating the motion detection record feature 1. Motion detection procedure: - The camera should be fully charged and Micro-SD inserted. - Press on Mode button and the camera will automatically switch to Motion Detection Mode. This enables the camera to record any motion detected within its environment as specified above - While in Motion Detection Mode, there is a yellow indicator at the bottom that will remain ON to show...
- Page 11 Installation position and camera angle settings Point B Point A From the diagram, it is clear that point A is not favorable as the camera's angle is limited and the position is directly straight to the door. Point B happens to be the best position. Point A Point B However, it would be an advantage when using two...
-
Page 12: Detailed Parameters
Detailed parameters Item Parameter Camera size 22mm x 16mm x 57mm Video file format Video file code M-JPEG Camera resolution 720x480 Windows Media Player or Video player supported other available alternatives Computer Operating Windows Systems supported Mini 5 Pin USB type Camera memory storage Micro-SD Battery type...
