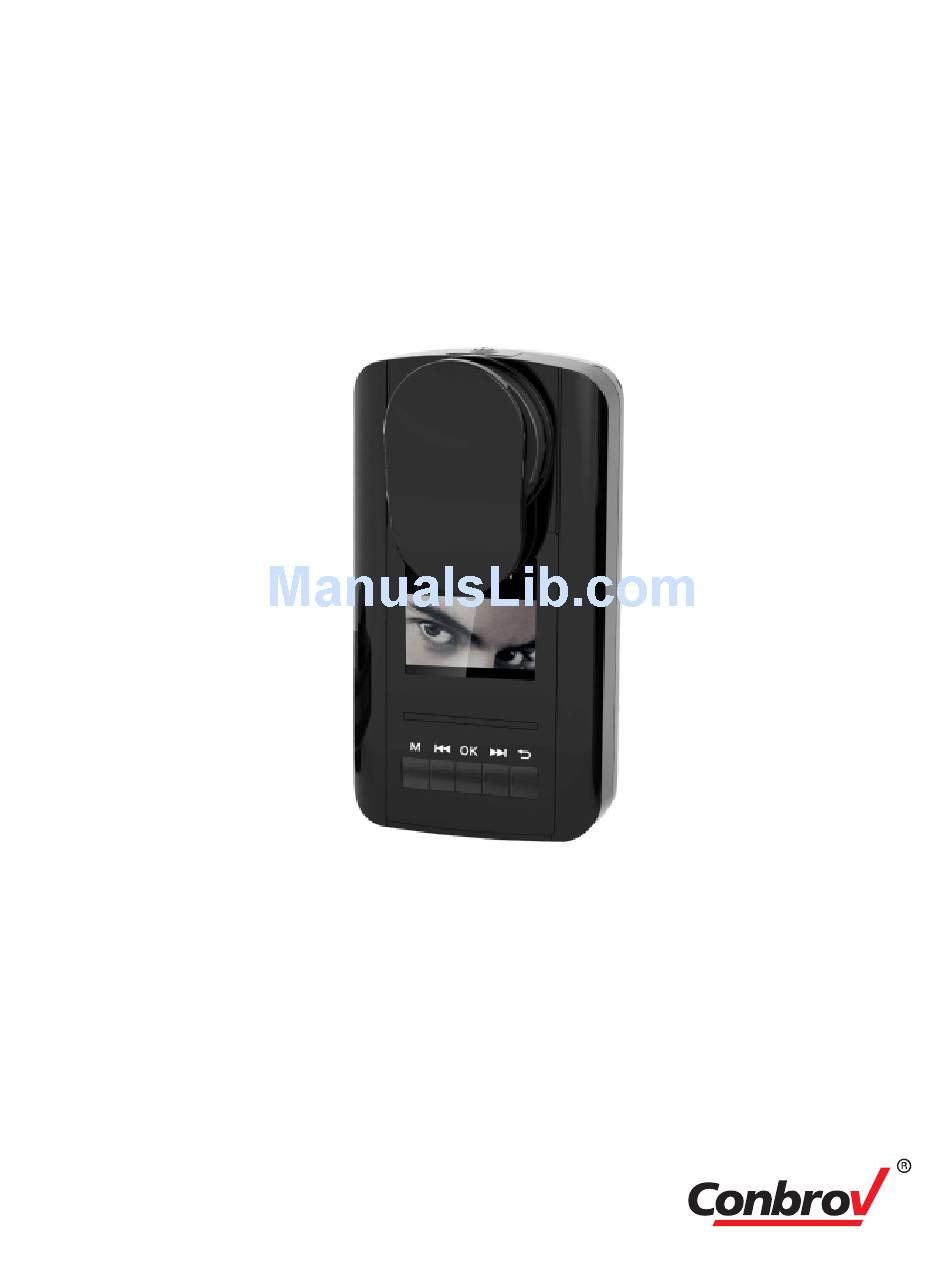

Super-Cam User Manual
Wearable camera for long time recording
Important Notice
- Please ensure that you read the complete user manual
carefully before using any part of the product.
- Keep this copy safe for future reference in case of
operational difficulties.
Model: HD90
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Super-Cam HD90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Conbrov Super-Cam HD90

  • Page 1 Super-Cam User Manual Model: HD90 Wearable camera for long time recording USER MANUAL Important Notice - Please ensure that you read the complete user manual carefully before using any part of the product. - Keep this copy safe for future reference in case of operational difficulties.
  • Page 2 Safety Instructions - The camera should be used for legal purpose only. Check and follow the laws provided in your country regarding the use of camera and other video recording devices. - The Camera is NOT waterproof or dustproof, so don’t use it outdoors, in adverse environments or during rain.
  • Page 3: Table Of Contents

    Content Product Accessories--------------------------------------2 Structure---------------------------------------------------3 Product Size-----------------------------------------------3 Key Functions--------------------------------------------- 4 Quick Start Guide----------------------------------------- 5 Caution-----------------------------------------------------6 Main interface introduction------------------------------ 7 Taking picture--------------------------------------------- 7 System Setup----------------------------------------------8 Time Setup-------------------------------------------------12 Video Setup------------------------------------------------12 Picture Setup---------------------------------------------- 14 Play Back---------------------------------------------------15 Connecting With Computer------------------------------ 16 Charging--------------------------------------------------- 16 Product Specification-------------------------------------17...
  • Page 4: Product Accessories

    Product Accessories Camera Pocket c ip pocket cover Battery Charging adaptor 360° c ip Super-Cam Wearable c amera f or l ong t ime r ecording User manual USB cable...
  • Page 5: Structure

    Structure Power Indicator Start/stop recording Lens Optional 360° c ip Speaker USB Port Internal storage Outside storage (Micro-SD slot) (Micro-SD Port) LCD Screen Reset hole Exit Mode Previous Next 90.0MM 19.0MM 50.0MM...
  • Page 6: Key Functions

    Key Functions Product Feature 1. One-press to record, Max 6 hours continuous recording. 2. 120 degree wide angle to catch everything you see. 3. With multiple clips to be fixed on jacketing. 4. HD/D1 resolution, with changeable battery for always recording. 5.
  • Page 7: Quick Start Guide

    Quick Start Guide 1).Insert Micro SD card. 2).Install battery and clips pocket clip or n o- ocket cover If it is used in pocket, please use pocket clip; or else, no-pocket cover and 360 clip is suggested 3).Video recording. Hold on for 3 seconds, itwill power on and record automatically with indicator flashing 4).Clip the camera to the clothes.
  • Page 8: Caution

    4.2)360° clip 360° take out 360° clip 5).Play back When recording is stopped, hold on M button for 3 seconds , it will automatically show last file. You may use to display more files or press OK to playback. Caution Only qualified professionals could repair this equipment.
  • Page 9: Main Interface Introduction

    Main interface introduction Video mode Battery capacity Photo mode Video resolution 848x480 1280x720 Recording Micro-SD No SD 0 0 : 1 4 Current record seconds 2013/09/04 13:21:48 Current time and date Important Note: When the camera is powered by battery,if it is in stand by mode and no operation for 1 minute, the camera will automatically power off.
  • Page 10: System Setup

    System Setup When recording stopped, Holding on for 3 seconds, and you will get into manual settings. System Setup Now use ,to choose, to confirm, return to higher options . 1).Language to choose the right language and to confirm it. Password 繁体中文...
  • Page 11 Pls make sure you remember well for the password. The password can’t be reset without seller’s software update. If you’re in case forget the password, Pls email us at : support@conbrov.com for an update! 3). Data storage You may simply choose “outside” to use it as a normal video camera to use by yourself.
  • Page 12 4). G-Sensor Choose G-sensor on, so that if the camera is 180 degree’s rotating, the picture will still be right direction. Besides, if there is any fierce action to the camera, the video will be locked , the locked files can’t be overwritten or deleted, but format the micro SD card is workable to delete the locked files.
  • Page 13 7). Beep Beep on, it is with sound to press the keys. Format Restore Default Version System Setup 8). Restore Default Restore default to set everything as the factory settings. Format Beep Version System Setup 9). Version It shows the software version for future upgrade. Format Beep 2 0 1 3 / 1 0 / 0 1...
  • Page 14: Time Setup

    Time Setup 1 ). Time Format Choose the right date format, YYYY/MM/DD, DD/MM/YYYY, or MM/DD/YYYY Time and date MM YYYY MM/DD/YYYY Time Setup 2). Time and date Time Format 2 0 1 3 / 0 9 / 1 3 1 3 : 3 4 Time Setup Use to change year/month/date/hour/ minute, use...
  • Page 15 Time lapse It will act as a time lapse camera. And you will choose how many seconds/minutes it will take one photo. Once the video is played back, you will see wonderful all day’s time lapse video. 2).Video resolution You may choose 1280*720 or 848*480 as video resolution. However, the Max recording time is by 848*480 for more than 8 hours Frame Rate...
  • Page 16: Picture Setup

    5). Record Audio It means if you want the video record with audio or not. Frame Rate Video Resolution Video Length Recycle Record Video Setup 6).Date Stamp If you want time and date watermark on videos, just set it on. Video Setup Picture Setup 1).Picture Resolution...
  • Page 17: Play Back

    3). Capture Mode By manual, you need to make a photo by hand; by auto, it will automatically take pictures and save all. Picture Resolution Quality Auto Date Stamp Picture Setup 4).Date Stamp If you want time and date watermark on photos, just set it on. Picture Resolution Quality Capture Mode...
  • Page 18: Connecting With Computer

    2). Photo to choose the photo you want and press to show it. Delete All Full screen Play Back Hold on PIC-20130904-6 PIC-20130904-6 Connecting With Computer Use the USB cable in the package to connect with computer. Now it is a normal USB mass storage. Connecting with computer, it will charge automatically.
  • Page 19: Product Specification

    Product Specification Video Format A VI Camera Lens 5 M CMOS Video Record Format M otion-JPEG Compression Audio Record Format P C M Memory extension suppo r t e d U p to 32 GB Auto file-overwriting A v ailable 1 .5 inch 1 280*720(848*480) MAX 30FPS Resolution...
