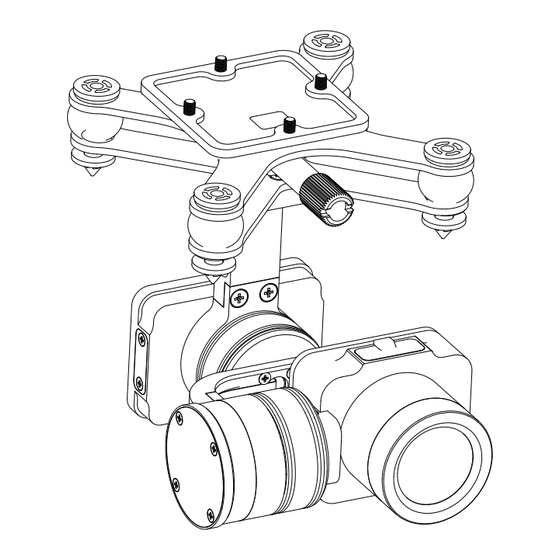

4k camera waterproof gimbal
Hide thumbs Also See for SPLASH DRONE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Manual
User manual of the 4K camera
waterproof gimbal
www.swellpro.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPLASH DRONE and is the answer not in the manual?

Questions and answers

Related Manuals for SWELLPRO SPLASH DRONE

Summary of Contents for SWELLPRO SPLASH DRONE

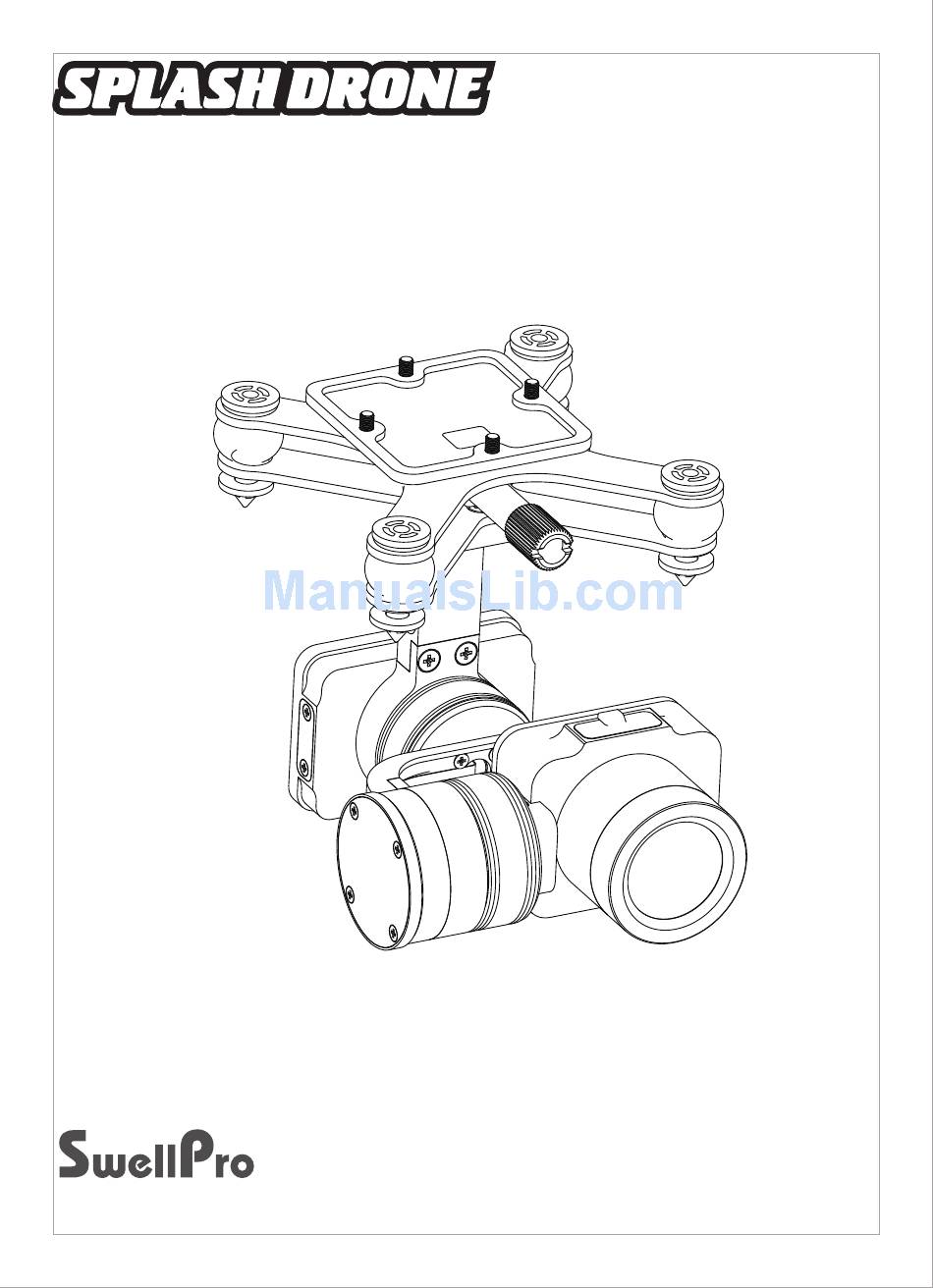

  • Page 1 User manual of the 4K camera waterproof gimbal www.swellpro.com...

  • Page 2: Table Of Contents

    Content Installation Operation Gimbal Control Camera Control Camera Insert Micro SD card Camera Setting and Usage Camera Setting Video Setting System Setting Gimbal Calibration Gimbal Accelerometer Calibration Gimbal GYRO Calibration...

  • Page 3: Installation

    1.Installation Description Graphical Representation 1. Fix the quick release to the bottom of the body in the correct direction with the provided screws. 2. Loosen the bolt at the bottom of the fuselage (if it is too tight, use a dollar coin or other tool). 3.

  • Page 4: Operation

    2. Operation The operation method is consistent with the Splash drone 2 pan tilt control mode. Gimbal Control VRD slider controls the VRC slider controls the tilt angle of the camera camera's horizontal angle Camera Control Photo Preview Video 3. Camera Maximum support for 24 frames per second of 4K video.
  • Page 5 WiFi Switch： Short press ON, long press OFF. Splash Drone 3 supports the highest capacity 64GB Mirco SD card. Since the camera requires fast reads and writes of high bit stream video data, use Class 10 or UHS-1 and above Mirco SD card to ensure normal camera recording.

  • Page 6: Camera Setting And Usage

    1. APP installation: iOS systems, for apple devices, please find the SwellCam APP in the apple store, and install the APP. Android systems can download the APK installation on the www.swellpro.com site 2. Camera WIFI connection: Please Note, the WiFi is used for preflight setup purposes only, and must be disabled prior to take off.

  • Page 7: Camera Setting

    Camera Setting Picture Format JPEG RAW J+R Picture Size 14M 10M 5M 14M_16：9 10M_16：9 5M_16：9 Time Stamp OFF ON Burst Speed OFF 3pics/second Timer OFF 5seconds 10 seconds Self-timer OFF 3seconds/pic 5seconds/pic 10seconds/pic 30seconds/pic Record Setting Resolution APP control： 1920*1080(P30 /P60) 1280*720(P30/P60) 2880*2160 24p 2560*1440 30p Remote Control:...

  • Page 8: Gimbal Calibration

    White Balance AUTO, cloudy, sunny, Incandescent lamp, Fluorescent lamp ON, OFF Recording ON, OFF Video Format PAL, NTSC Metering Global metering, Center-weighted, spot Frequency 50Hz, 60Hz Format Sure, Cancel Default Setting Sure, Cancel Camera Indicator Green ON Power on into preview mode Green Slow Blink Saving picture or video Red ON...

  • Page 9: Gimbal Gyro Calibration

    2. Put the thumbwheel VRC at the back of the controller to the middle position. Using the thumbwheel (VRD) at the back of the controller, roll the thumbwheel quickly back and forth 5 times, until the gimbal goes into a relaxed state. 3.
  • Page 10 User manual of the 4K camera waterproof gimbal V1.0 2017.06...
