SWELLPRO Splash Drone Pro Instruction

Waterproof gimbal
Hide thumbs Also See for Splash Drone Pro:

Advertisement

Quick Links

Download this manual

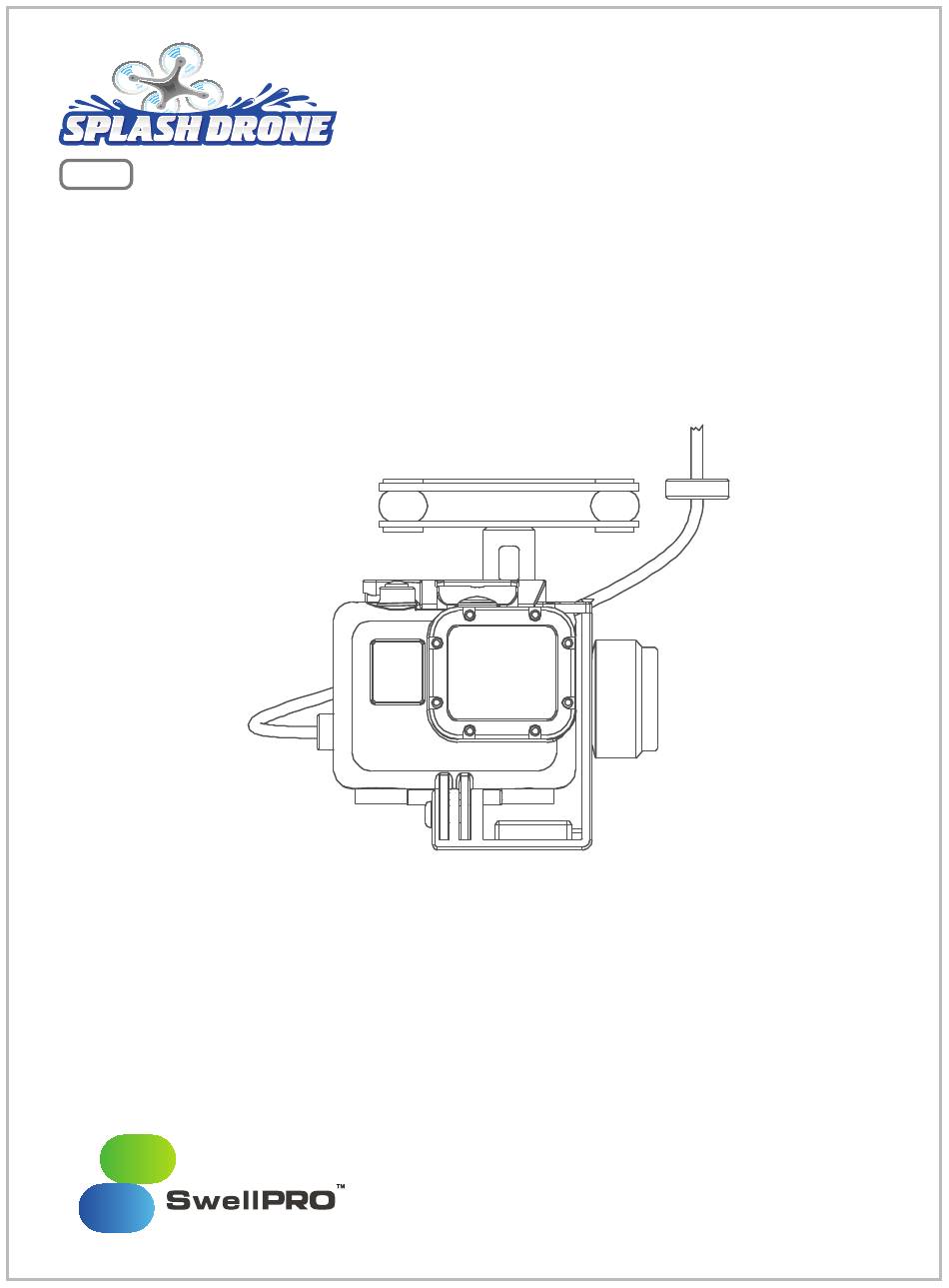

PRO
Instruction of Waterproof Gimbal
V1.0
www.swellpro.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Splash Drone Pro and is the answer not in the manual?

Questions and answers

Related Manuals for SWELLPRO Splash Drone Pro

Summary of Contents for SWELLPRO Splash Drone Pro

  • Page 1 Instruction of Waterproof Gimbal V1.0 www.swellpro.com...
  • Page 2 Instruction of Waterproof Gimbal Product Configuration 1. Controller Board of Gimbal 2. Shake-proof Mounting Plate 3. Splash Dive Case (Gopro suit) 4. Special-designed Sensor 5. Special-treated waterproof Brushless Motor 6. Seal Screw 7. Video Transmitter (Abbreviates to ‘VTX’ in following context)
  • Page 3 Waterproof Gimbal Quick Guide 1、Product Assembly Step 1. Screw out the waterproof NUT from the bottom of Splash Drone. Step 2. Put all the functional cables into drone body through the NUT, including: VTX connector (DuPont cable in 3-pins), IMU cable (4-pins), M2 ROLL motor cable (3-pins), M1 PITCH motor cable (3-pins).
  • Page 4 Waterproof Gimbal Quick Guide Controller Board RESET Receiver Step 7. Open the Splash Dive Case, Insert the AV Out cable into the socket of the Sport Camera. Then enclose the waterproof housing tightly. ATTENTION: The waterproof Gimbal is a RTF Gimbal when Ex-factory, it’s very convenient by attaching your Sport Camera to feed the live videos.
  • Page 5 Waterproof Gimbal Quick Guide 2、Gimbal Manual Calibrating Instruction a. Power on the Drone with 4S Lipo Battery, the power Indicator inside of the Gimbal Controller Board keeps long RED for system Self-checking. There is a regular blinking process of Green LEDs that indicates the self-checking is finished: Blinking slowly ---->...
  • Page 6 Waterproof Gimbal Quick Guide 3、 Software Calibration Preparations a. Help yourself to download related software via below link sharing: http://swellpro.com/downloads/ Target Location: Waterproof Gimbal Software Assistant_Splash Drone.rar b. Download the ‘.rar’ file, and unzip to find three documents: ‘Diver for Splash Gimbal’, ‘Splash Gimbal(BGC) Software Assistant’,...
  • Page 7 Waterproof Gimbal Quick Guide Parameter Programming a. Double click the icon ‘SimpleBGC_GUI.exe’ to run the software assistant b. Choose the Suitable ‘Language’ setting from the Left-Upper Toolbar in the popped-up interface. And connect the Gimbal controller Board with computer by a piece of MINI USB data cable. c.
  • Page 8 Waterproof Gimbal Quick Guide (Step: c) (Step: c) e. The interface will return to homepage automatically, click the button’ Write’ to program the tuned parameters into Controller Board. Waiting for the Progress bar fulfills 100%, then complete the procedure of Tuned parameters programming.
  • Page 9 Waterproof Gimbal Quick Guide (Step: d、e) (Step: e)
  • Page 10 Waterproof Gimbal Quick Guide f、Firstly Click ' Camera IMU ', then Click ‘CALIBRATE IMU’ to enter into calibration interface, Fix up the Gimbal with Camera, make sure the Splash Dive case is horizontal and still, and hold the Dive case tightly with one hand.
  • Page 11 Waterproof Gimbal Quick Guide (Step: g、h)
  • Page 12 Waterproof Gimbal Quick Guide h、Calibrate the Gyroscope Calibrate Gyroscope by clicking the right button ‘CALIBRATE’, the Indicator will repeat blinking GREEN slowly, then flashing and finally become long GREEN, then the Gyroscope Calibration is DONE. i、After finishing the two calibrations, Click ‘Close’ to quit the Calibrate Interface, then the homepage shows up.
