SWELLPRO GC2-S User Manual
Hide thumbs Also See for GC2-S:

Advertisement

Quick Links

GC2-S
User Guide
Visit www.swellpro.com for the latest version of this manual and firmware updates for
your drone and accessories.
V1.0 – June 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC2-S and is the answer not in the manual?

Questions and answers

Summary of Contents for SWELLPRO GC2-S

  • Page 1 GC2-S User Guide Visit www.swellpro.com for the latest version of this manual and firmware updates for your drone and accessories. V1.0 – June 2021...
  • Page 2: Thank You

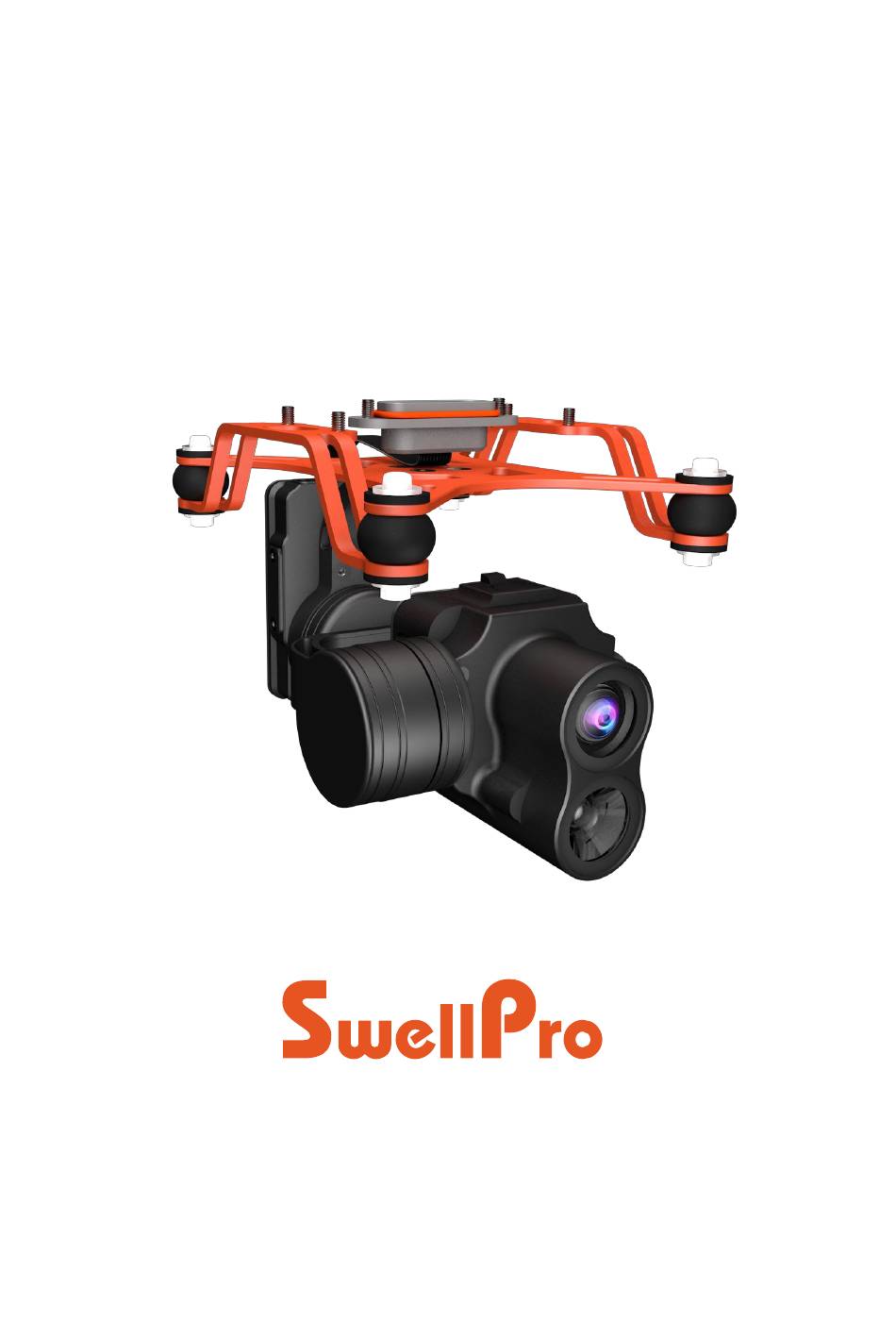

    The GC2-S is a waterproof low-light 2-axis gimbal camera designed for SplashDrone 4 to gain visual footage in low-light environment. The GC2-S comes with a dimable LED light that allows use even in complete darkness. The high-sensitivity sensor of the GC2- S provides full color images in low-light environment when normal cameras cannot return an image.
  • Page 3: Table Of Contents

    Install SD Card ....................5 After Use Casing .................... 5 CONTROL ................6 Camera Status Indicator ................6 Gimbal Control....................7 Camera control ....................7 Calibration ..................... 7 APP INTERFACE ..............8 SPECIFICATION ..............11 Version Information ..................12 ©2021 SwellPro...
  • Page 4: Precaution

    Precaution ⚫ The GC2-S is a piece of precision electronics with corrosion-resistant materials which allow for use in harsh marine environments. As with any marine equipment, trouble-free and lasting operations depend on proper attention and maintenance of the equipment. ⚫ When taking off or landing, slowly proceed to avoid damage to the gimbal camera which can cause by the huge impact when contacting the surface at high speeds.
  • Page 5: Install Sd Card

    After using the gimbal camera, you can choose not to take off the gimbal camera and put it directly into the case with the drone. Follow the following steps to make sure the gimbal camera is properly secure after casing. ©2021 SwellPro...
  • Page 6: Control

    The case is secure and ready to be carried or transported. Control Camera Status Indicator There is a camera status indicator on the back of the camera to indicate the camera's working status. It flashes green or red. 6 ©2021 SwellPro...
  • Page 7: Gimbal Control

    Video ② : press once to start recording, press again to stop recording, and save files. Calibration If there are any abnormal movements being observed or the camera is not level, you can recalibrate the gimbal camera to solve the problem. ©2021 SwellPro...
  • Page 8: App Interface

    1) Do not calibrate the gimbal camera on a boat or other moving platforms. APP Interface To get into APP’s camera interface: Power on the remote controller, then the aircraft. Connect the phone to the remote controller’s Wi-Fi hotspot. Then click "Login device". 8 ©2021 SwellPro...
  • Page 9 Login device Camera Interface ©2021 SwellPro...
  • Page 10 Photo Setting Interface Video Setting Interface 10 ©2021 SwellPro...
  • Page 11: Specification

    JPEG Video format: MP4,MOV Memory card: Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating. Working temperature: -10°C - 40°C ©2021 SwellPro...
  • Page 12: Version Information

    Version Information SwellPro products are constantly improving, so as the product user guides. It is recommended to visit www.swellpro.com to check and download the latest user guide. Version GC2-S User Guide First Edition 12 ©2021 SwellPro...
