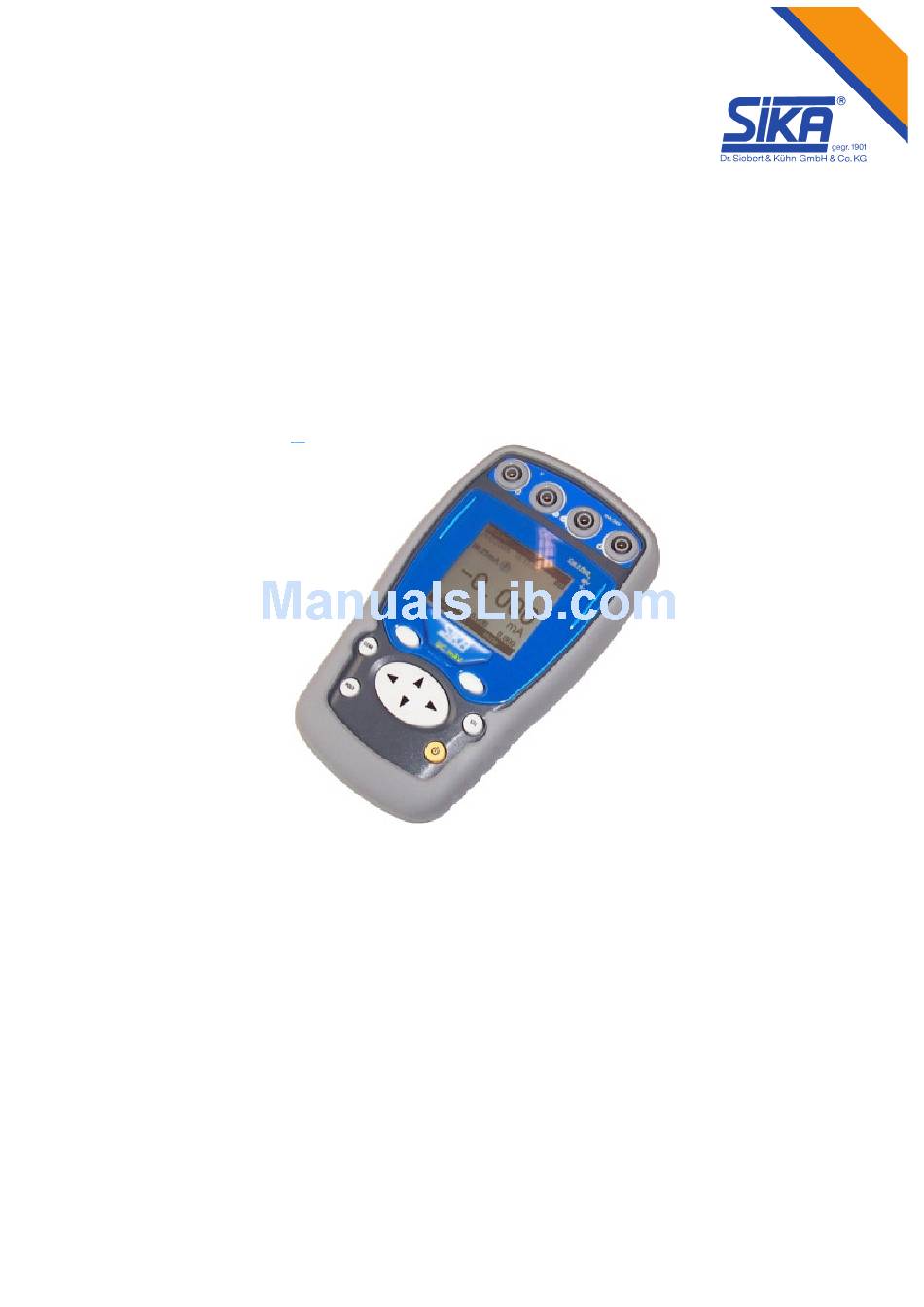

- Page 1 SIKA Simulator UC mAV Calibrator for mA & V Instruction Manual version V01 SIKA Dr. Siebert & Kühn GmbH & Co. KG Struthweg 7-9 34260 Kaufungen Germany +49-05605-803-0 +49-5605-803-54 eMail info@SIKA.net www.SIKA.net...
- Page 2 SIKA-approved distributors shall apply this warranty to new and unused products sold to their customer, but they are not authorized to apply a more extensive or a different warranty in the name of SIKA. The warranty support is offered if the product has been purchased through an SIKA-approved point of sale or if the purchase has paid the applicable international price.
- Page 3 Verification of content The SIKA UC mAV has been mechanically and electrically verified before shipping. The necessary precautions have been taken for it to reach the user undamaged. It is nevertheless wise to make a quick check for any damage that might have been incurred in transport. If such is the case, immediately make the usual reservations with carrier.
-
Page 4: Table Of Contents
Transmission function ............................32 E.2.1. Voltage (DC) transmission...........................32 E.2.2. Current (DC) transmission...........................32 E.3. Power supply - Autonomy ..........................33 SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 4/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 5: General
ENERAL Introduction The SIKA UC mAV is a hand-held process calibrator (conforming to EC standards). It is more particularly intended for calibration and maintenance. It can measure and generate electrical quantities either on site or in the laboratory. It fulfils voltage and current measuring and generation functions (DC or LF ramp signals) and a continuity test (on passive loop). -
Page 6: Safty
16.06.02: Cells and batteries (dangerous) Alkaline batteries (or NI-MH batteries). • 15.01.02: Packaging Instrument casing in ABS plastic. Elastomer protective sheath. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 6/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 7: Instrument Destruction Procedure
• The instrument has been stored in unfavourable conditions. • The instrument has suffered severe stresses during transport. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 7/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 8: Definitions
CAT II 60V: The notion of categories determines the maximum transient voltage that can be applied to the measurement inputs (it is also called overvoltage category). For the SIKA UC mAV, the maximum permissible overvoltage is 60V (DC or AC) POL 2: The notion of pollution determines the isolation distance between the circuits. -
Page 9: Using The Instrument
A HOLD key allows the temporary stopping of a process (short press). A long press on this key switches from measurement mode to transmission mode and vice versa. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 9/33... -
Page 10: Terminals
ON/OFF key B.1.2. Terminals The SIKA UC mAV is equipped with 4 safety sockets (4 mm diameter). Two of these sockets are for voltage measurement and transmission, while the other two are for current measurement and transmission and the continuity test. -
Page 11: Usb Connector
Post USB (mini B connector) B.1.4. Screen The SIKA UC mAV has a backlit graphic liquid crystal display (LCD), with a resolution of 160 x 160 pixels. In normal operation, the display is divided into seven horizontal fields: • The 1 field indicates the mode of operation (Measurement, transmission or continuity). - Page 12 - :---- if the measured value is below the low limit. + :---- if the measured value is above the high limit. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 12/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net...
-
Page 13: Starting After Powering On
3.2 mA up to 24 mA -6 mA up to 25 mA Loop supply Scale Linear or quadratic Linear or quadratic Linear SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 13/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 14: Voltage (Dc) Transmission
800 Ω Ω Ω Ω max 0/20 mA 24 mA transmission 4/20 mA 25 mA 25 mA Continuity 60 V SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 14/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 15: Programming The Modes
Go into the menu by pressing F2. • Select the range using the navigation keys. • Press VAL to confirm (the range). SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 15/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 16: Current (Dc) Measurement
The type of function (voltage or current) is selected using key F1 (configuration menu). • Using the navigation key, go onto the function field • Press VAL to confirm. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 16/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... - Page 17 These parameters are defined in the next chapter. • Press VAL (again) to confirm the desired function and call up the measurement screen. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 17/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net...
-
Page 18: Auxiliary Functions At Current Measurement
Using the navigation keys (↑ ↑ ↑ ↑ and ↓ ↓ ↓ ↓ ), select linear or quadratic mode. When quadratic scaling is activated, the SIKA UC mAV takes the square root of its input and displays the result as a percentage. For example, if the SIKA UC mAV is connected to the output of a differential pressure transmitter it displays a result proportional to the flow. -
Page 19: Hart
• Using the navigation keys (↑ ↑ ↑ ↑ and ↓ ↓ ↓ ↓ ), select the mode ON or OFF. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 19/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 20: Voltage Or Current (Dc) Transmission
NOTE: If the Scaling mode is ON, the value to be edited is %, otherwise this value is in V. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 20/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 21: Editing With Arrows
(↑ ↑ ↑ ↑ and ↓ ↓ ↓ ↓ ). Transmission can be delayed by a programmable length of time (in the CONFIGURATION/RAMP/DELAY menu) SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 21/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 22: Cyclic Ramp Editing
Press the navigation keys ( and ) to increment or decrement the setpoint value. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 22/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 23: Predefined Editing As % Fs (Current Transmission)
In volts or mA if the scaling mode is OFF and depending on the type of quantity transmitted (voltage or current transmission). SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 23/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 24: Single Ramp Signal Configuration
To : The moment the start of generation key is pressed Td : Delay Tdt : Total Duration NB : Low Level NH : High Level SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 24/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... - Page 25 • Press VAL to save the parameters. • Press CLEAR to quit the menu without saving. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 25/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net...
-
Page 26: Cyclic Ramp Signal Configuration
The repetitions field gives the number of ramp signals to be generated. There can be a maximum of 1000 repetitions. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 26/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 27: Continuity Function
Using the navigation key (↑ ↑ ↑ ↑ and ↓ ↓ ↓ ↓ ), select the continuity function and press VAL to confirm. Confirming the Continuity function calls up the following screen: SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 27/33... -
Page 28: Parameter Settings
Use the navigation keys ( and ) to move from one field to the next. • Press VAL to confirm. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 28/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 29: Preferences Menu
The mode (manual or timed) is selected using the navigation keys (↑ ↑ ↑ ↑ and ↓ ↓ ↓ ↓ ). • Press VAL to confirm. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 29/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 30: Adjusting The Key Beep
In the CONFIGURATION/SETUP/ABOUT menu you can find: • The reference of the instrument • The serial number • The software version SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 30/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 31: Technical Specifications
Rin = 1 M +/-1 % • Common mode rejection: ≥120 dB at 50 and 60 Hz. SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 31/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 32: Current (Dc) Measurement
Rise time: < 500 µS (0 to 20 mA across a 20- load). • VLF noise: < 1µA (at F< 100Hz). SIKA Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 32/33 Tel +49-5605-803-0, Fax +49-5605-803-54, eMail info@SIKA.net, web www.SIKA.net... -
Page 33: Power Supply - Autonomy
E.3. Power supply - Autonomy The SIKA UC mAV is designed to function either with four 1.5 V AA batteries or with a 4.8 V battery pack. The following autonomies are given for information. Mode Voltage & current Current Simulation...
