Page 1: Instructions For Use
Instructions for use Induction hob HI17111G / SIVK7B3TS HI16111G / SIVK7B3TS HI1611G / SIVK7B3TS... - Page 2 Manual EN 3 - EN 22 Pictograms used: Important information...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Your induction hob Introduction Control panel Description Safety Temperature safety Cooking-time limiter Operation of the touch-sensitive buttons Induction cooking Switching of the power Induction sounds Pans Operation Switching on and power setting Residual heat indicator Boost Switching off Child lock Pause mode Cooking-timer/alarm... -
Page 4: Your Induction Hob
The appliance identification card contains all the information that the service technician will need in order to respond appropriately to your questions. Enjoy cooking on you new ASKO induction hob! EN 4... -
Page 5: Control Panel
YOUR INDUCTION HOB Control panel 03 04 1. On/Off button 2. Slide control (9 Cooking levels + boost P) 3. Cooking level indicator + boost 4. Child lock button 5. Pause button 6. Cooking zone menu/Cooking level display zone front left 7. -

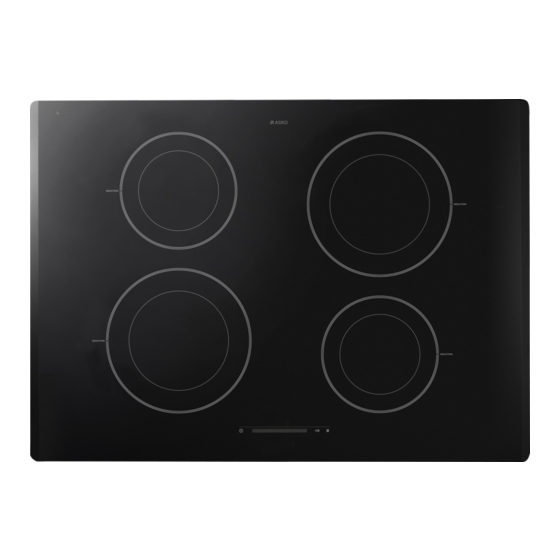

Page 6: Description
3. Cooking zone Ø 200 mm / 3.0 kW 4. Cooking zone Ø 160 mm / 1.4 kW Type number HI17111G / HI16111G: 1. Cooking zone Ø 200 mm / 2.3 kW 2. Cooking zone Ø 160 mm / 1.4 kW 3. -
Page 7: Safety
SAFETY Read the separate safety instructions before use. Temperature safety • Each cooking zone is equipped with a sensor. This sensor measures the temperature of the base of the pan and the sections of the hob to avoid any risk of overheating, for example, a pan boiling dry. In case of temperatures rising too high, the power is reduced or shut off automatically. -
Page 8: Use
Operation of the touch-sensitive buttons If you are used to different controls, it can take time to get used to operating the hob using the touch-sensitive buttons. For optimum working, place your finger tips flat on the buttons. You don’t have to push hard. -
Page 9: Induction Sounds
Please note This switching is normal for this induction hob and cannot do any damage. It is not a defect of your induction hob. Induction sounds Ticking sound A light ticking sound is caused by the capacity limiter on the front and back zones. - Page 10 Suitable Unsuitable Special stainless steel pans Earthenware Class Induction Stainless steel Solid enamelled pans Porcelain Enamelled cast-iron pans Copper Plastic Aluminium Please note Be careful with thin enamelled sheet steel pans: • the enamel may become damaged at high settings if the pan is too dry;...
-
Page 11: Operation
If no pan with iron content is placed on the zone within 10 minutes, the cooking zone will switch off automatically. Only for model HI17111G / HI16111G! Please note! The appliance is connected to 1 phase. All 4 zones cannot be used at the same time. -
Page 12: Switching Off
OPERATION Switching on ‘boost’ 1. Put a pan on a cooking zone and switch the cooking zone on. 2. Slide your finger over the slide control (02) until ‘P’ appears in the display. The ‘boost’ setting is now selected. Switching off ‘boost’ The boost function has been switched on, the display shows level ‘P’. -
Page 13: Pause Mode
OPERATION Set the hob to child lock mode before starting to clean the hob. This will prevent the hob being switched on by accident. Pause mode Use pause mode if you wish to interrupt the cooking process (for example to clean the hob during cooking). Heating of the cooking zones, timer settings, etc. -
Page 14: Automatic Boost Function
OPERATION Setting the kitchen timer 1. Touch the timer display (10) . Make sure that all the cooking zones are switched off. 2. Use the slide control to adjust the desired time. First set a value in the right display and wait until the figure no longer flashes and a dash appears in the left display. - Page 15 OPERATION The table below shows the cooking levels and the corresponding boost times. Cooking level Boost time (minutes:seconds) 0:48 2:24 3:36 5:24 6:48 2:00 2:48 3:36 Switching off 1. Press the display of the relevant cooking zone. 2. Select another cooking level using the slide control. The boost switches off automatically.
-
Page 16: Cooking
COOKING Cooking levels Because the settings depend on the quantity and composition of the pan and its contents, the table below is intended as a guideline only. Use ‘boost’ setting and setting 9 to: • bring food or liquid to the boiling point quickly; •... -
Page 17: Maintenance
MAINTENANCE Cleaning Activate the child lock before cleaning the hob. Daily cleaning • Although food spills cannot burn into the glass, we nevertheless recommend you clean the hob immediately after use. • For daily cleaning usage of a damp cloth with a mild cleaning agent is best. -
Page 18: Faults
When in doubt about the proper operation of your appliance, this does not automatically mean there is a defect. Try to address the problem yourself first by checking the points mentioned below or for more information visit the ‘www.asko.com’ website. Symptom Possible cause... - Page 19 FAULTS Symptom Possible cause Solution A cooking zone suddenly The preset time has ended. Switch off the signal by stops working and you hear pushing a random button. a signal. The hob is not working and There is no power supply due Check the fuses or the nothing appears in the display.
-
Page 20: Technical Data
TECHNICAL DATA Technical data This appliance complies with all relevant CE directives. Hob type HI1611G HI17111G HI16111G Induction Connection 230 V - 50 Hz 230 V - 50 Hz 230 V - 50 Hz Number of phases Max. power cooking zones... - Page 21 TECHNICAL DATA Information according regulation (EU) 66/2014 Measurements according EN60350-2 Model identification HI1611G HI17111G/ HI16111G Type of hob Induction hob Induction hob Number of cooking zones and/or areas Heating technology Induction cooking Induction cooking zones and cooking zones and cooking...
-
Page 22: Environmental Aspects
ENVIRONMENTAL ASPECTS Disposal of the appliance and packaging Sustainable materials have been used during manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. The government can provide you with information about this. The appliance packaging is recyclable. - Page 23 FR 23...
- Page 24 The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. When contacting the service department, have the complete type number to hand. You will find the addresses and phone numbers of the service organisation on the guarantee card.
