Page 1: User Manual

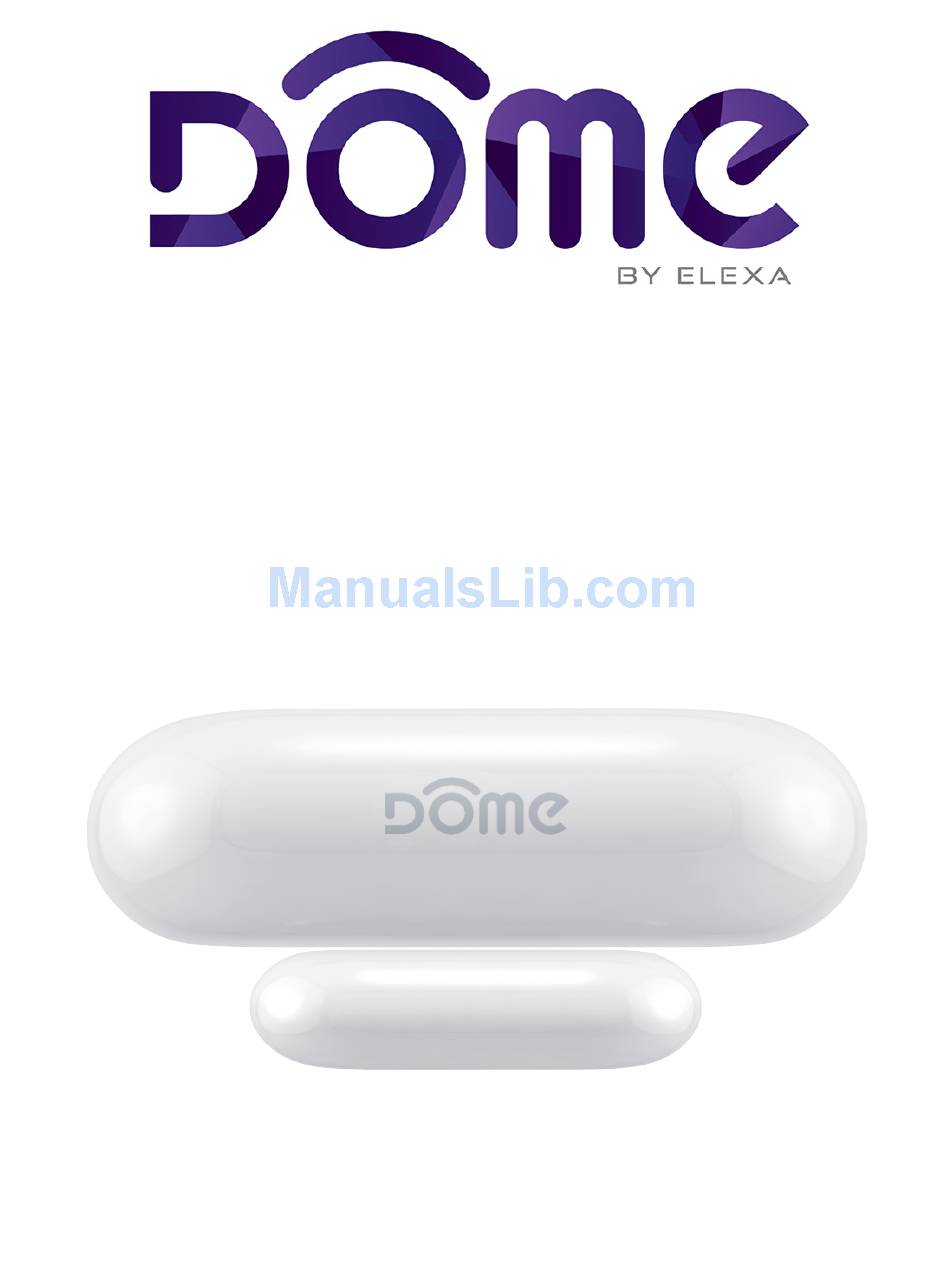

Always Connected. Always Covered. Door/Window Sensor DMWD1 User Manual... -
Page 2: Preface
Preface As this is the full User Manual, a working knowledge of Z-Wave auto- mation terminology and concepts will be assumed. If you are a basic user, please visit www.domeha.com for instructions. This manual will provide in-depth technical information about the Door/Window Sensor, especially in regards to its compliance to the Z-Wave standard (such as compatible Com- mand Classes, Association Group capabilities, special features, and other information) that will help you maximize the utility of this product in your... -
Page 3: Table Of Contents
Table of Contents Preface ...................... 2 Description & Features ................4 Specifications .................... 5 Physical Characteristics ................6 Inclusion & Exclusion ................7 Factory Reset & Misc. Functions..............8 Physical Installation .................. 9 LED Behavior ..................11 Button Behavior ..................12 Compatible Command Classes .............. -
Page 4: Description & Features
Description & Features The Dome Door/Window Sensor is a battery powered Z-Wave Plus mag- netic reed switch that can monitor the status of doors, windows, and any- thing else that opens and closes. The Door/Window Sensor consists of two parts - the “sensor,” and the “magnet.” The sensor has a “reed switch”... -
Page 5: Specifications
The Window/Door sensor can be installed by Elexa Consumer Products, Inc. (”ECP”) warrants hours a day, 7 days a week. Contact Dome Customer Service as follows: • In North America ECP will repair or replace the defective parts and to the original retail purchaser (”Purchaser”) either using the pre-applied double-stick tape and the other piece on the fixed half. -
Page 6: Physical Characteristics
Physical Characteristics The names used in Figures 1 & 2 will be used throughout this manual. Please refer to this page as needed. Sensor Cover Battery Battery Tab Magnet Cover Sensor Body Magnet Base Sensor Base SolidWorks Student Edition. Figure 1 - Exploded View For Academic Use Only. -
Page 7: Inclusion & Exclusion
Inclusion & Exclusion Inclusion If using the Dome Hub, open the App, navigate to the side menu ( ,) and tap “Add New Device” The App will guide you through the inclusion process. If using a 3rd party controller, follow the controller manufacturer’s instruc- tions to enter inclusion mode. -
Page 8: Factory Reset & Misc. Functions
Factory Reset & Misc. Functions Resetting the Door/Window Sensor If needed, the Door/Window Sensor can be reset locally by following these steps. Only do this when your Z-Wave controller is disconnected or other- wise unreachable. Beware that resetting your device will disconnect it from the system: 1. -
Page 9: Physical Installation
Physical Installation The Door/Window Sensor can be secured with the pre-applied double stick tape or the provided hardware. The device should already be included in your Z-Wave system before continuing further. Pre-Installation Checklist 9 The MAGNET and SENSOR should be less than 1/2” apart when closed (Figure 4.) 9 Hold the magnet and sensor in place by hand where you wish to install them, move them in and out of the closed position, and make sure the... - Page 10 Installation Using Double-Stick Tape 1. Wipe the door and doorframe clean of dust and anything else that will interfere with the tape’s stickiness. 2. Peel the double-stick tape and adhere the SENSOR to the door surface. 3. Repeat the process for the MAGNET, making sure the MAGNET and SENSOR are no more than 1/2”...
-
Page 11: Led Behavior
LED Behavior Color Behavior This happens when… Blink 5 times in 5 seconds …the Door/Window Sensor was just powered on, (slow) but is not yet included in a system. Blink 5 times in 2.5 …the BUTTON is pressed 3 times quickly seconds (medium) (regardless of inclusion status.) Blink 5 times in 1.5... -
Page 12: Button Behavior
Button Behavior Action Condition Result Press and hold Door/Window Sensor Device sends a wake up notification to its BUTTON for 2 Already Included in controller, awaits further instructions, and blinks System the LED Indicator once seconds Door/Window Sensor Already Included in Device sends node info to Group 1 System Door/Window Sensor... -
Page 13: Compatible Command Classes
Compatible Command Classes Command Class Notes Z-Wave Plus Info V2 (0x5E) Version V2 (0x86) Manufacturer Specific V2 (0x72) Device Reset Locally V1 (0x5A) Powerlevel V1 (0x73) Battery V1(0x80) Association Group Information V1 (0x59) Group 1 Group 1 is the “Lifeline” group, which can hold five members, typi- cally including the main Z-Wave controller. -
Page 14: Compatible Command Classes Cont'd
Compatible Command Classes Cont’d Command Class Notes The wake-up interval is set in seconds, and is 43,200 seconds (12 hours) by default. The wake-up interval can be set to any value from Wake Up V2 (0x84) 300s (5 minutes) to 16,777,200s (about 190 days) in 60-second incre- ments. -
Page 15: Configuration" Command Class Parameters
“Configuration” Command Class Parameters The following configuration parameters are available: Param Default Size Name Available Settings Setting This parameter sets the delay time from when the Door/Window Sensor sends the BASIC_SET command to Association Group 2 and when the BASIC_SET(0) is sent. It accepts a value up to 65535, in seconds. 2 Bytes 1 ~ 65535 (in seconds) 30 s... -
Page 16: Troubleshooting
To boost your Z-Wave network coverage, add a few non- battery powered Z-Wave devices between the controller and the furthest device, like the Dome On/Off Plug or Water Main Shut-Off. You can even purchase dedicated Z-Wave extenders from 3rd party manufacturers. -
Page 17: Warranty & Support
If you believe the product is defective, has a missing or bro- address: ken part or are having difficulty with it please contact Dome as listed above for a quick and efficient solution to the prob- Elexa Consumer Products, c/o Promac, lem.
