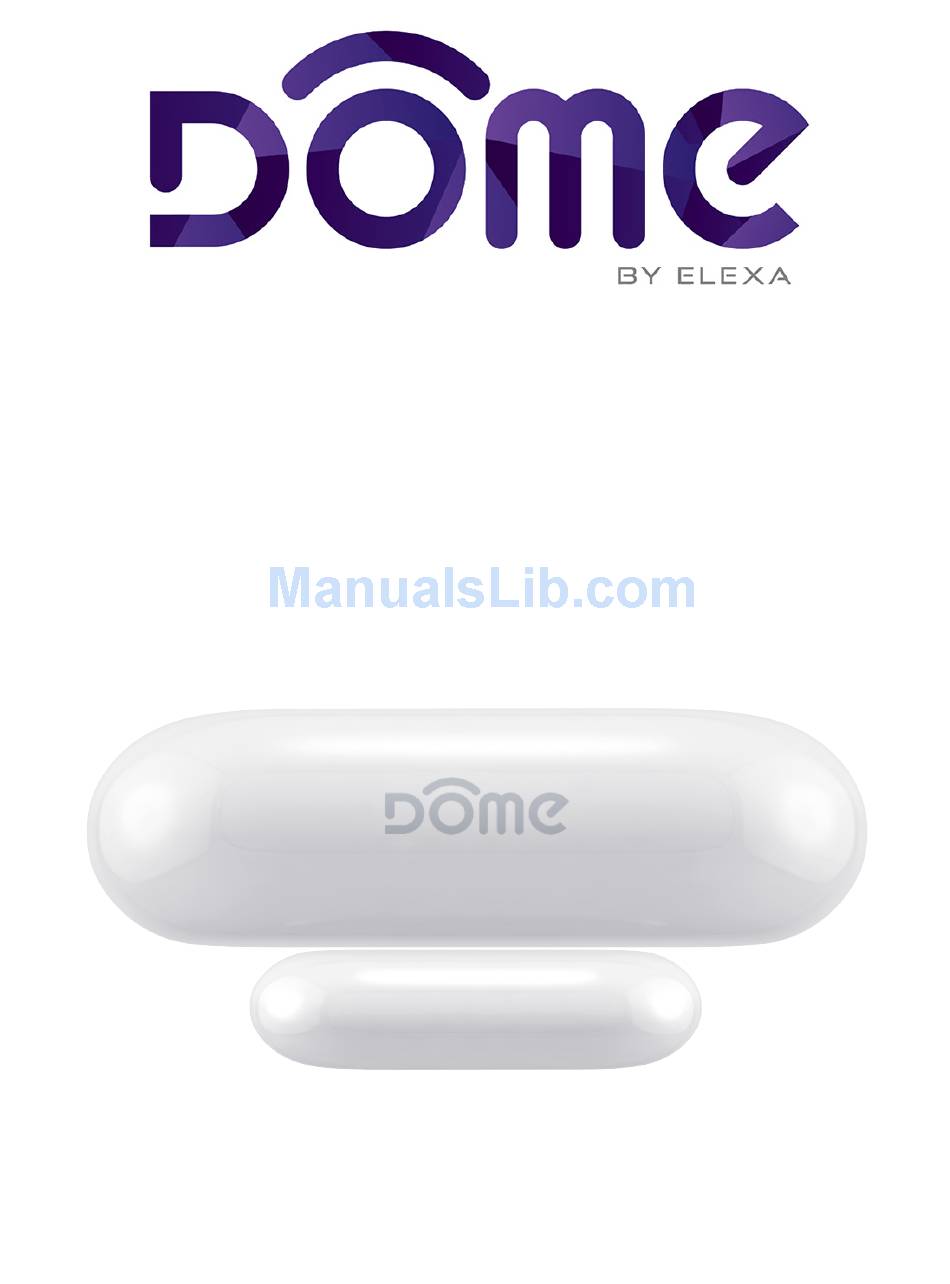

Page 1: User Manual
Always Connected. Always Covered. Door/Window Sensor DMWD1 User Manual... -
Page 2: Preface
Preface As this is the full User Manual, a working knowledge of Z-Wave automation terminology and concepts will be assumed. If you are a basic user, please visit www.domeha.com for instructions. This manual will provide in-depth technical information about the Door/Window Sensor, especially in regards to its compli- ance to the Z-Wave standard (such as compatible Command Classes, Associa- tion Group capabilities, special features, and other information) that will help you maximize the utility of this product in your system. -
Page 3: Table Of Contents
Table of Contents Preface ..........................2 Description & Features ..................... 4 Specifications ........................5 Physical Characteristics ....................6 Inclusion & Exclusion ......................7 Factory Reset & Misc. Functions ..................8 Physical Installation ......................9 LED Behavior ........................11 Button Behavior ....................... 12 Compatible Command Classes .................. -
Page 4: Description & Features
Description & Features The Dome Door/Window Sensor is a battery powered Z-Wave Plus magnetic reed switch that can monitor the status of doors, windows, and anything else that opens and closes. The Door/Window Sensor consists of two parts - the “sensor,”... -
Page 5: Specifications
Elexa Consumer Products, Inc. (”ECP”) warrants hours a day, 7 days a week. Contact Dome Customer Service as follows: • In North America ECP will repair or replace the defective parts and electronic accessories should not be disposed of with other household waste. -
Page 6: Physical Characteristics
Physical Characteristics The names used in Figures 1 & 2 will be used throughout this manual. Please refer to this page as needed. Sensor Cover Battery Battery Tab Magnet Cover Sensor Body Magnet Base Sensor Base SolidWorks Student Edition. Figure 1 - Exploded View For Academic Use Only. -
Page 7: Inclusion & Exclusion
Inclusion & Exclusion Inclusion Follow the instructions for your Z-Wave Certified Conto enter inclusion mode. When prompted by the controller: 1. The Door/Window Sensor should be within 10’ of your Z-Wave controller for the inclusion process. After successful pairing, the device can be brought to the desired location. -
Page 8: Factory Reset & Misc. Functions
Factory Reset & Misc. Functions Resetting the Door/Window Sensor If needed, the Door/Window Sensor can be reset locally by following these steps. Only do this when your Z-Wave controller is disconnected or otherwise unreachable. Beware that resetting your device will disconnect it from the sys- tem: 1. -
Page 9: Physical Installation
Physical Installation The Door/Window Sensor can be secured with the pre-applied double stick tape or the provided hardware. The device should already be included in your Z-Wave system before continuing further. Pre-Installation Checklist 9 The MAGNET and SENSOR should be less than 1/2” apart when closed (Figure 4.) 9 Hold the magnet and sensor in place by hand where you wish to install them, move them in and out of the closed position, and make sure the... - Page 10 Installation Using Double-Stick Tape 1. Wipe the door and doorframe clean of dust and anything else that will inter- fere with the tape’s stickiness. 2. Peel the double-stick tape and adhere the SENSOR to the door surface. 3. Repeat the process for the MAGNET, making sure the MAGNET and SENSOR are no more than 1/2”...
-
Page 11: Led Behavior
LED Behavior Color Behavior This happens when… Blink 5 times in 5 seconds …the Door/Window Sensor was just powered on, (slow) but is not yet included in a system. Blink 5 times in 2.5 …the BUTTON is pressed 3 times quickly seconds (medium) (regardless of inclusion status.) Blink 5 times in 1.5... -
Page 12: Button Behavior
Button Behavior Action Condition Result Press and hold Device sends a wake up notification to its Door/Window Sensor BUTTON for 2 sec- controller, awaits further instructions, and blinks Already Included in System the LED Indicator once onds Door/Window Sensor Device sends node info to Group 1 Already Included in System Door/Window Sensor Already Included, and... -
Page 13: Compatible Command Classes
Compatible Command Classes Command Class Notes Device Reset Locally V1 (5A) Powerlevel V1 (73) Battery V1(80) Association Group Information V1 (59) Returned Value: 01 06 00 0C 06 0C 06 Z-Wave Plus Version: 01 Role Type: 06 (Slave Sleeping Reporting) Z-Wave Plus Info V2 (5E) Node Type: 00 (Z-Wave Plus Node) - Page 14 Command Class Notes Group 1 Group 1 is the “Lifeline” group, which can hold five members, typically including the main Z-Wave controller. The Door/Window Sensor sends this group a Notification Report and a Binary Sensor Report when it is opened or closed. It also sends this group a Battery Report in reponse to Battery Get commands.
-
Page 15: Configuration" Command Class Parameters
“Configuration” Command Class Parameters Configuration parameters are sent using a standard syntax to ensure interopera- bility between all manufacturers’ products. All values are represented using the hexadecimal number system. Typical syntax is as shown below. Note that the value sent must be the exact size, in bytes, as accepted by the setting. -
Page 16: Troubleshooting
To boost your Z-Wave network coverage, add a few non-battery powered Z-Wave devices between the controller and the furthest device, like the Dome On/Off Plug or Water Main Shut-Off. You can even purchase dedicated Z-Wave extenders from 3rd party manufacturers. -
Page 17: Warranty & Support
If you believe the product is defective, has a missing or broken 1153 Timber Dr., Elgin, IL 60123 part or are having difficulty with it please contact Dome as list- ed above for a quick and efficient solution to the problem.
