Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide

1 Structure

Note:

The following figures are for reference only, which are used to know each structure component
and cable port functions.

There are differences about wire structure for some product models, please refer to the actual
object for more details.

1.1 Components

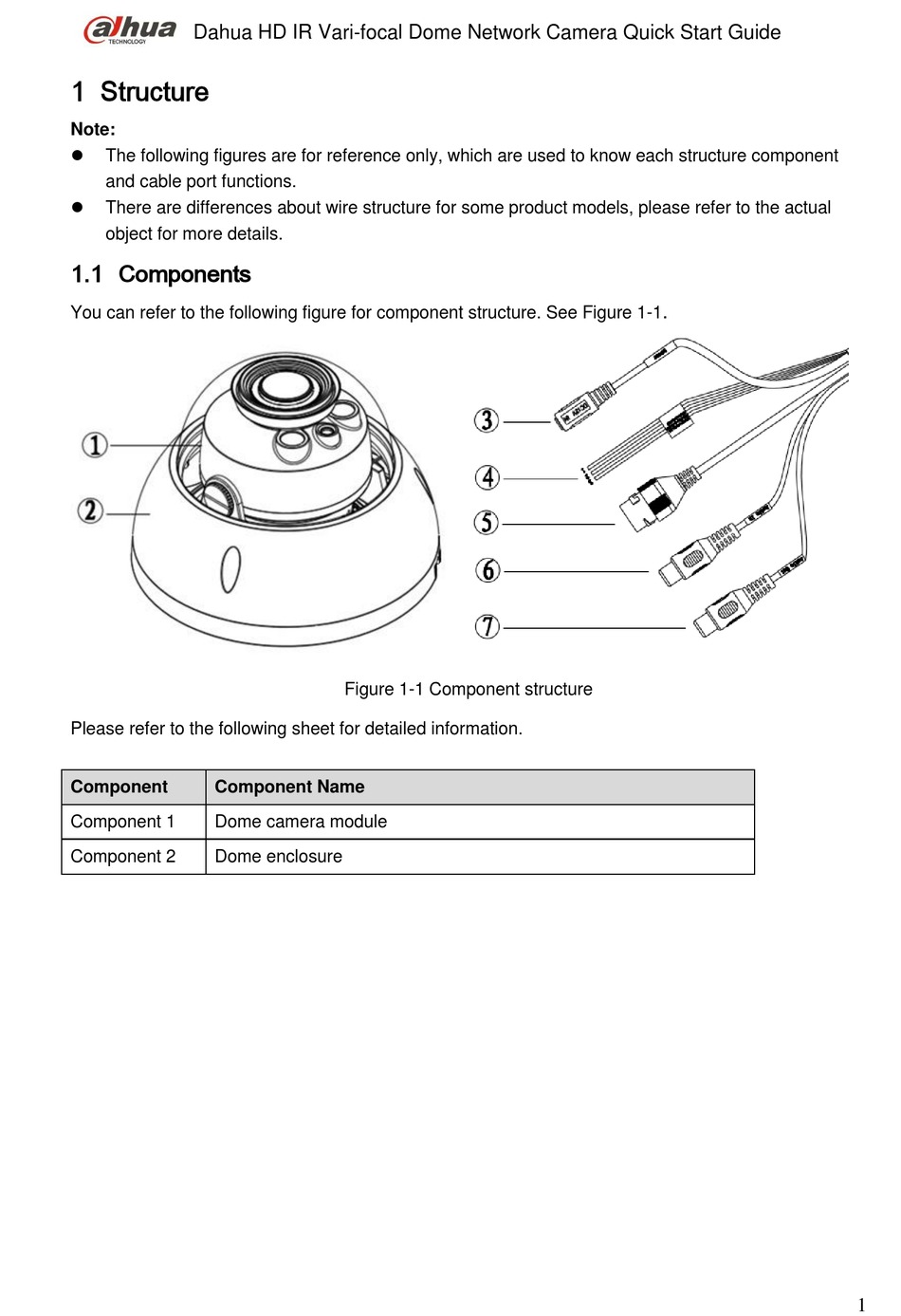

You can refer to the following figure for component structure. See Figure 1-1
Please refer to the following sheet for detailed information.
Component Component Name
Component 1 Dome camera module
Component 2 Dome enclosure
Figure 1-1 Component structure
.
1
