Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide
Step 1
Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex
screws on the enclosure.
Step 2
Install SD card, which is shown in Figure 2-3.
Note:
It needs to implement the step when the device is equipped with Micro SD card slot and it needs to
use Micro SD card.
Note:
Long press the "Reset" button shown in Figure 2-2 for 10 seconds when the device is power on if

the device needs to be restored to factory default setting.

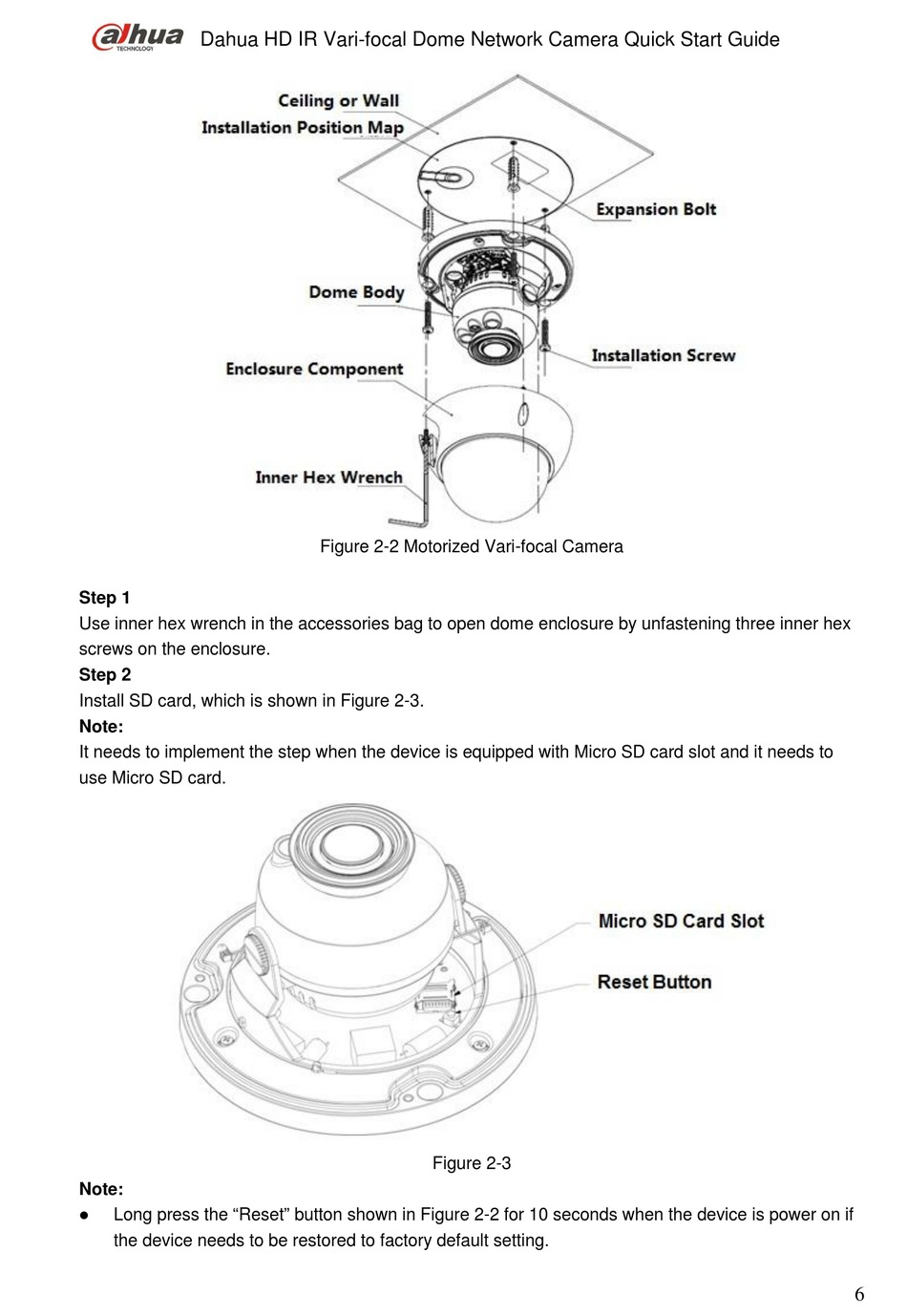

Figure 2-2 Motorized Vari-focal Camera
Figure 2-3
6
