Operating Manual
Digital Multimedia Projector
OPERATING GUIDE
Outline
!"" #!$
Features
(1)
High brightness
(2)
High resolution
(3)
Compact size, light weight for portability
(4)
RGB output terminal
(5)
RS232 Communication
(6)
Mouse emulation
(7)
Complies with VESA DDC1/2B specifications
Downloaded From projector-manual.com BenQ Manuals
Advertisement
Table of Contents
Related Manuals for Acer PALMPRO 7763P
Summary of Contents for Acer PALMPRO 7763P

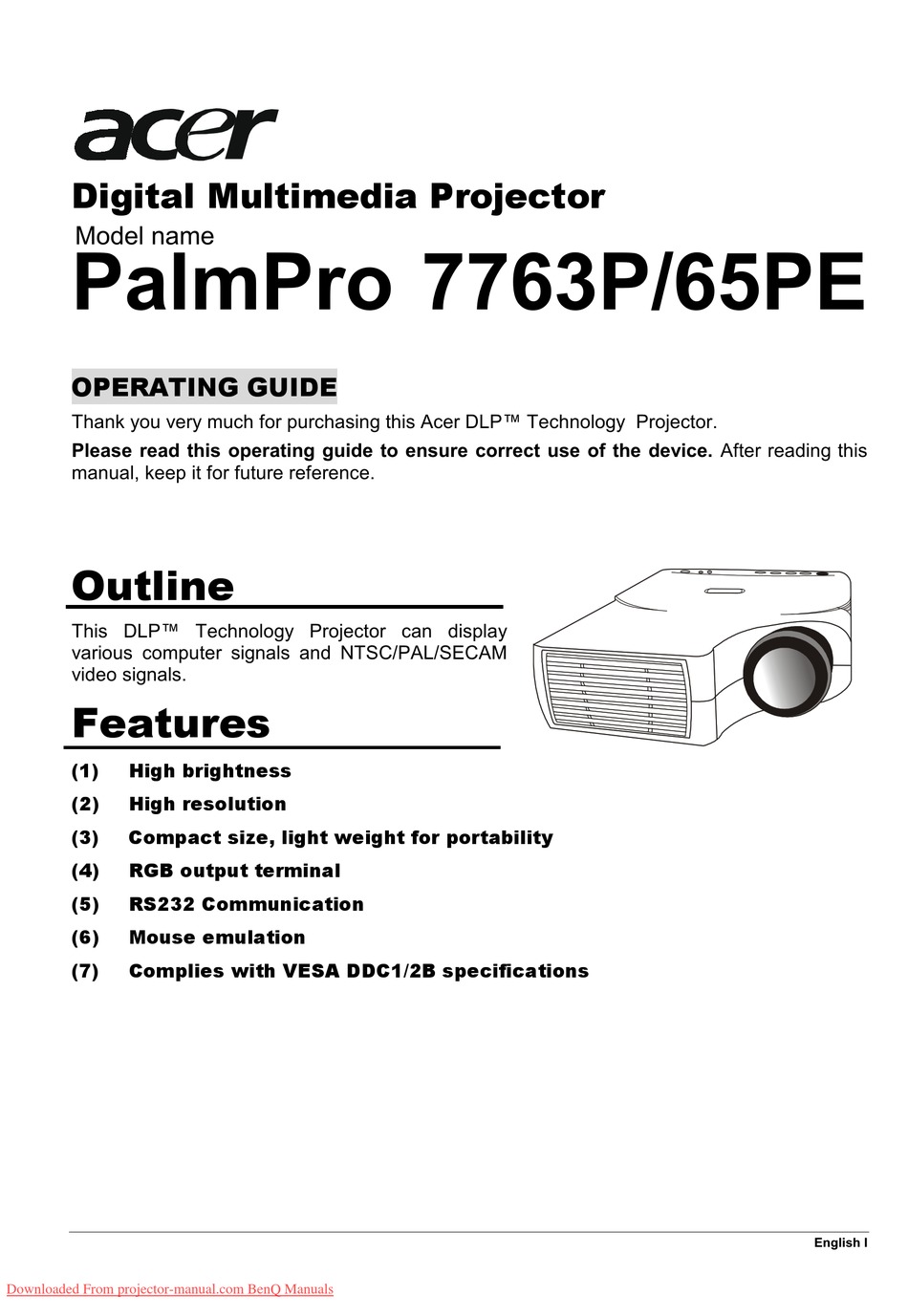

- Page 1 Digital Multimedia Projector OPERATING GUIDE Outline !"" #!$ Features High brightness High resolution Compact size, light weight for portability RGB output terminal...
-
Page 2: Monitor Information
Copyright Copyright © 2000 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company. -
Page 3: Table Of Contents
Table of Contents Introduction................................1 Projector Features ..........................1 Description ..............................2 A FRONT (figure) ........................2 B REAR (figure)..........................2 C BOTTOM (figure)........................3 Installation..............................3 Positioning..........................3 Adjustable Feet........................3 Moving the Projector..........................4 Accessories ..............................5 Connection ................................6 Connecting the Projector to Computer/Notebook ........6 Connecting the Projector to Macintosh/Power Book ........7 Operation...................................8 Turn On/Off Procedure........................8 A Power on ............................8... - Page 4 Downloaded From projector-manual.com BenQ Manuals...
-
Page 5: Introduction
Introduction Projector Features A Image Resolution Fully compatible with true SVGA(63P)/XGA(65PE), and supports SXGA using advanced intelligent compression technology. The advanced intelligent compression technology enables it to present clear compression SVGA/XGA images without line omission. B Brightness Provides superior brightness of 700 ANSI lumens using TI’s Digital Micromirror Device (DMD) and our own optical design, with a geometric effect that increases light usage efficiency. -
Page 6: Description
NTSC U.S. and Canada standard Western Europe standard SECAM France and Eastern Europe standard NTSC4.43 Middle East standard If users want to watch CATV, AV box will serve the need. Description A FRONT (figure) Figure 1 Front view of 7763P/ 65PE B REAR (figure) Figure 2 Rear view of 7763P/65PE English 2... -
Page 7: C Bottom (Figure)
& %27720 I LJXUH )LJXUH %RWWRP YLHZ RI 33( Installation $ 3RVLWLRQLQJ • 7KLV SURMHFWRU LV EDVLFDOO\ GHVLJQHG WR SURMHFW RQ D IODW SURMHFWLRQ VXUIDFH • 7KLV SURMHFWRU FDQ EH IRFXVHG IURP PqP • 5HIHU WR WKH ILJXUH EHORZ WR DGMXVW WKH VFUHHQ VL]H )LJXUH 3RVLWLRQLQJ RI 33( % $GMXVWDEOH )HHW ¶... -
Page 8: Moving The Projector
Moving the Projector Use the carrying handle when moving the projector. Replace the lens cover and rotate the feet fully clockwise (to shorten the feet) when moving the projector to prevent damage to the projector. Caution The carry bag (supplied) is intended to protect the projector from dust and scratches on the surface of the cabinet. It is not designed to protect the projector from external shock. -
Page 9: Accessories
Accessories Please check and make sure your box contains everything listed below. If any pieces are missing, contact your dealer. Please save the original box and packing materials in case you ever need to ship the unit. Figure 7 Accessories of 7763P/65PE English 5 Downloaded From projector-manual.com BenQ Manuals... -
Page 10: Connection
Connection A Connecting the Projector to Computer/Notebook Figure 8 Connection to PC Figure 9 Connection to notebook English 6 Downloaded From projector-manual.com BenQ Manuals... -
Page 11: B Connecting The Projector To Macintosh/Power Book
B Connecting the Projector to Macintosh/Power Book Figure 10 Connection to Macintosh Figure 11 Connection to Power Book English 7 Downloaded From projector-manual.com BenQ Manuals... -
Page 12: Operation
Operation Turn On/Off Procedure A Power on Press the Standby/On key to turn on the lamp. The LED will blink green during warm up and then light solid green. "INPUT SIGNAL DETECTED, ACTIVATING AUTO IMAGE" will be displayed on the screen after the projector has identified the input signal;... -
Page 13: B Remote Control
MAIN UNIT FUNCTION Menu To call the OSD menu. To enter sub pages. To select items. To navigate through sub pages or to increase the scale bar number. To navigate through sub pages or to decrease the scale bar number. Exit To exit from the current page or OSD menu, and save setting changes. - Page 14 The remote control allows you to operate the function keys on the projector and to emulate mouse function when the projector is connected to a computer. Main Unit Function Standby/On To turn the projection lamp on and off. Freeze Pressing this button displays a still (frozen) picture. Magnify Pressing this button partially magnifies a displayed picture.
-
Page 15: Usage And Replacement Of Lamp
Figure 14 Battery replacement process Remote Control Range The remote sensors are located on the back of the unit. It can function in a range 50 degrees horizontal and 30 degrees vertical relative to a line that is a right angle to the remote sensor. The distance between the remote control and remote sensor must be shorter than four meters (13 feet). - Page 16 “CHANGE THE LAMP!” will blink on the screen together with a red LED if the lamp has been iii. operated for more than (*1500) hours (see figure 18). The power will turn off automatically after 10 minutes. All three of the above messages will not display for more than 3 minutes, but each message will be displayed whenever you turn on the lamp.
-
Page 17: B Replacing The Lamp
B Replacing the Lamp Replacing the lamp When replacing the lamp, turn off the projector and unplug the AC cord. Wait 45 minutes so that the lamp can cool. High-pressure lamp when hit, may explode if improperly handled. Caution: • Dispose of used lamps in accordance with local authorities. - Page 18 Lamp Replacement Procedure Step 1 Step 2 Step 3 Lamp replacement Figure 19 : Step 1, Step 2, Step 3 English 14 Downloaded From projector-manual.com BenQ Manuals...
-
Page 19: Osd
Resetting Lamp Timer If replacing the lamp after 1500 hours of operation, please carry out the following operation within 10 minutes of powering on. FUNCTION Press the Exit button on the projector for 3 seconds or the Exit button on the remote control for 3 seconds and display the total lamp usage time. -
Page 20: A Display Page
A Display Page When a PC is the input source, there will be only four items on this page: Keystone, Brightness, Contrast, and Color Balance (Fig. 21). On the other hand, when the input source are video, S-video, TV or CATV, there will be other 4 items on this page: Keystone, Brightness, Contrast, and Sharpness(Fig.22). -
Page 21: B Image Page
Image Page Select the Image sub-page and the first item, “Auto Resize” will be highlighted. There are five items on this page: Auto Resize, H. Phase, H. Size, H. Position, and V. Position (Fig. 23). If AV box is attached and the input is from Video other instead of PC, another different IMAGE sub-page including Image Ratio, System ,Color and Tint will come out as figure 24. -
Page 22: C Control Page
C Control Page When users go into the Control sub-page, the first item, “Language,” will be highlighted. There are five items on this page: Language, Mirror, Blank, Auto Off, and Reset (Fig. 25). Figure 25 Control sub-page Setting effects Language To select the OSD menu language. -
Page 23: Other Correspondent Remote Functions And Messages
Description Items 3 input sources are available in the items when AV box is connected to the Source projector: PC, Video, S-video Volume To set the volume level of speaker built in the AV box. Treble To set the treble level of speaker built in the AV box. Bass To set the bass level of speaker built in the AV box. - Page 24 Laser Press this button to generate the laser beam. If users connect the PS2 (ADB) mouse cable on the projector with the PC/Notebook (Macintosh/ Powerbook) mouse port, the disk pad will be able to function as a PC/Notebook (Macintosh/ Powerbook) mouse. When an Disk Pad image has been magnified, press the “Disk Pad”...
-
Page 25: Maintenance And Troubleshooting
Maintenance and Troubleshooting A Lamp Replacement Refer to Page 11 B Cleaning the Lens Follow these steps to clean the projection lens: 1. Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth (abrasive cleaners, solvents or other harsh chemicals might scratch the lens). 2. -
Page 26: Specifications
Specifications A Optical 1-chip 0.7” DMD (Digital Micromirror Device) Lens Manual zoom ,manual focus (F=2.8 to 3.1 f=31 to 40) Lamp mercury lamp 150W Image size 32.4 to 140 Projection Distance 1.5 to 5 M Light Output 700 ANSI lumens Contrast Ratio 200:1 B Electrical Inputs RGB(H:31.47 to 68.70 kHz V:56.25 to 85.00 Hz) -
Page 27: D Preset Display Resolution Table
D Preset Display Resolution Table Resolution H Sync (kHz) V Sync (kHz) Remark 640x350 31.5 70.1 640x400 37.9 85.1 VESA 720x400 31.5 70.0 720x400 37.9 85.1 VESA 640x480 31.5 60.0 VESA 640x480 37.9 72.8 VESA 640x480 66.7 Macintosh 640x480 43.3 85.0 VESA 800x600... -
Page 28: Appendix
*AV box is sold separately and is not included in the standard configuration of accessories in the unit. Please contact the dealer nearest you need the box or visit the Acer Peripherals, Inc. Web site for more information AV Control Pad... -
Page 29: Connecting The Box
Connecting the Box Please follow the instruction here to place the AV box: Figure 29 Side View of AV box Figure 28 Bottom View of AV box To attach the AV box to the unit 1. Precisely place the two chocks at the lower surface of the AV box into the lower slots in the correspondent position in the projector.
