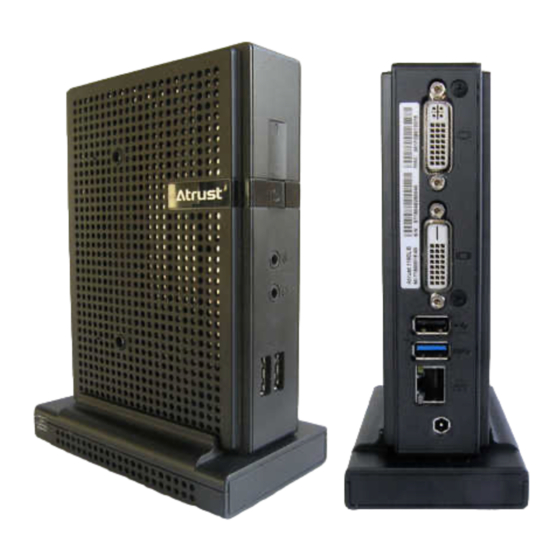

Atrust t180L / t180LB Thin Clients
User's Manual
Internal Draft 0.04
Copyright © 2014-16 Atrust Computer Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T180L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atrust T180L

Summary of Contents for Atrust T180L

  • Page 1 Atrust t180L / t180LB Thin Clients User’s Manual Internal Draft 0.04 Copyright © 2014-16 Atrust Computer Corp.
  • Page 2 UM-t180L.LB-EN-16050510...

  • Page 3: Copyright And Trademark Statements

    Corp. Disclaimer Atrust Computer Corp. (“Atrust”) makes no representations or warranties with respect to the contents or use of this document, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Atrust is not liable for technical or editorial errors or omissions contained herein. The information in this document is subject to change without notice.

  • Page 4: About This User's Manual

    About This User’s Manual This manual provides detailed instructions on how to set up, use, manage, and maintain Atrust t180L/t180LB thin clients. Manual Structure and Subjects Chapter Subject Provides an overview of Atrust t180L/t180LB thin clients. Provides detailed instructions on how to set up Atrust t180L/t180LB thin clients.

  • Page 5: Style Conventions

    Style Conventions The following styles are used throughout this manual while referring to operational items on input devices, hardware panels, or application interfaces. Item Style Example keys on the keyboard bold Ctrl + F2, Alt + F9, Alt + Tab application windows or first letter Confirm Dialog window, RDP Connection list, ICA Connection list,...

  • Page 6: Safety And Regulatory Information

    Safety and Regulatory Information Regulatory Statement Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 7: Regulatory Information

    Regulatory Information WEEE (Waste Electrical and Electronic Equipment) Directive In the European Union, this symbol indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling. For proper disposal, please contact your local recycling or hazardous waste center.

  • Page 9: Table Of Contents

    System Tab Overview 4.2.2 Available Settings at a Glance 4.2.3 Configuring Time Zone and Time Server 4.2.4 Configuring the Access Privileges and Passwords of Atrust Client Setup 4.2.5 Configuring Shadow Settings for Remote Assistance 4.2.6 Updating Firmware from the Management Computer 4.2.7 Enabling or Disabling the Appliance Mode 4.2.8...
  • Page 10 Accessing VMware View or Horizon View Services 4.6.14 Configuring Advanced View Connection Settings 4.6.15 Configuring SSH Connection Settings 4.6.16 Launching SSH and Telnet Sessions Appendices Resetting Your t180L/t180LB to the Factory Default 213 Updating Firmware for Your t180L/t180LB Using SECUREMATRIX Authentication for VMware Connections Specifications...

  • Page 11: Overview

    Overview This chapter provides an overview of your t180L / t180LB thin clients. 1.1 Introduction Desktop virtualization and simple endpoint devices 1.2 Features Key features of Atrust t180L / t180LB 1.3 Package Contents Check your package contents 1.4 Exterior Views Overview of thin client outside elements 1.5 Panel Components...

  • Page 13: Introduction

    • More scalability with low-cost endpoint devices 1.2 Features The key features of Atrust t180L / t180LB thin clients are: • Support for dual displays (DVI-I and DVI-D) • Support for a wide range of desktop virtualization solutions from industry-leading companies: Ź...

  • Page 14: Package Contents

    1.3 Package Contents Please check your package contents. Ensure that all of the items are present in your package. If any items are missing or damaged, please contact your dealer immediately. Atrust t180L AC Adapter DVI-I to VGA Adapter Quick Start Guide...

  • Page 15: Exterior Views

    Overview Exterior Views 1.4 Exterior Views Front Right Side Left Side Rear Standard Stand Front Right Side Left Side Rear Selectable Stand with Wireless Module...

  • Page 16: Panel Components

    Overview Panel Components 1.5 Panel Components Front Panel Components Sign Name Description Power LED Indicates the status of power. • Press to turn on the thin client. • Press to exit the System Sleep mode. Power button See page 20 for Suspend feature. •...
  • Page 17 Overview Panel Components Rear Panel Components Sign Component Name Description DVI-I port Connects to a monitor. DVI-D port Connects to a monitor. USB port Connects to a USB device. (USB 2.0) USB port Connects to a USB device. (USB 3.0) LAN port Connects to a network.

  • Page 18: Led Indicators

    Overview LED Indicators 1.6 LED Indicators Your t180L / t180LB is equipped with a Power LED to indicate the state of power. The meanings of LED signals are described as follows: Signal Meaning The client is off. Power LED Orange The client is in System Sleep mode.

  • Page 19: Setting Up Your T180L / T180Lb

    2.1 Positioning Your t180L / t180LB To mount your t180L Step 1: Remove the Stand from Your t180L Step 2: Understand Your Stand / VESA Mount Kit for t180L Step 3: Store Screws inside the Bracket Step 4: Remove Screws from the Bracket...

  • Page 21: Positioning Your T180L / T180Lb

    • Put it (with its stand) on a desk or a desired place uprightly. • Mount it on the back of a monitor using a VESA mount kit. To mount your t180L on the back of a monitor, please follow the steps below: Step 1:...
  • Page 22 Step 2: Understand Your Stand / VESA Mount Kit for t180L The stand for your t180L is dual-purpose: it can be used as a stand or as a VESA mount kit. All screws of different types supplied with the stand / VESA mount kit can be stored away inside the main bracket when not needed.

  • Page 23: Step 3: Store Screws Inside The Bracket

    NOTE • Please refer to the figure and descriptions in “Step 2: Understand Your Stand / VESA Mount Kit for t180L” for the correct storage space of each screw. Step 4: Remove Screws from the Bracket To remove screws stored inside the bracket, please do the following: 1.

  • Page 24: Step 5: Mount Your T180L

    VESA mount holes on the bracket to align with two mount holes on your t180L such that the bracket projects out and is closer to the rear panel than the front one as shown below, and then secure the bracket to your t180L with two (2) screws of type 4.

  • Page 25: Mounting With Another Vesa Bracket (T180Lb)

    Setting Up Your t180L / t180LB Positioning Your t180L / t180LB Mounting with Another VESA Bracket (t180LB) In case that your t180 uses a non-standard stand with the wireless module (t180LB), a different VESA bracket will be provided for you to mount your t180LB on the back of a monitor.

  • Page 26: Assembling The Ac Adapter

    2. Connect a keyboard and mouse to your t180L / t180LB with USB ports. 3. Connect and turn on the monitor(s). 4. Connect your t180L / t180LB to a power outlet using the AC adapter included in the package. NOTE • For detailed instructions on how to assemble the supplied AC adapter, please refer...

  • Page 27: Getting Started

    Getting Started This chapter provides the basics of how to use your t180L/t180LB. 3.1 Learning the Basics Topic 1: Powering On Your t180L/t180LB Topic 2: Configuring the Time Zone Topic 3: Returning to the Quick Connection Screen Topic 4: Accessing Desktops or Applications...

  • Page 29: Learning The Basics

    Getting Started Learning the Basics 3.1 Learning the Basics The following topics will guide you through the basics of using your t180L/t180LB: Topic 1: Powering On Your t180L/t180LB Topic 2: Configuring the Time Zone Topic 3: Returning to the Quick Connection Screen (if needed)
  • Page 30 Otherwise, the client may fail to set an appropriate resolution for the connected monitor. 2. Press the Power button to turn on the client. Wait a moment for Atrust Quick Connection screen to appear. 3. (a) Go to Topic 2 to set the time zone for the first time use.
  • Page 31 Getting Started Learning the Basics Topic 2: Configuring the Time Zone To set the time zone for your t180L/t180LB, please do the following: 1. Click the Setup icon to launch Atrust Client Setup. Atrust Client Setup Category Tabs Click a tab to select a setting category.

  • Page 32: Topic 3: Returning To The Quick Connection Screen

    Getting Started Learning the Basics Topic 3: Returning to the Quick Connection Screen To return to Atrust Quick Connection screen when on local Linux desktop, please double click Atrust Quick Connection on that desktop. Local Linux Desktop Atrust Quick Connection...

  • Page 33: Topic 4: Accessing Desktops Or Applications

    Getting Started Learning the Basics Topic 4: Accessing Desktops or Applications Through Atrust Quick Connection screen, you can access three types of desktop virtualization services: Remote Desktop, Citrix, and VMware View. Atrust Quick Connection Screen Icon Description Page Remote Desktop Click to access Microsoft Remote Desktop services.
  • Page 34 3. Click the drop-down menu to select the desired system, and then click OK. 4. The IP address of the selected system will appear in the Computer field. • To return to Atrust Quick Connection screen (see the screen in 4), press Esc.
  • Page 35 1. Click on Atrust Quick Connection screen (see the screen in Topic 2. On the appeared Atrust Citrix Connection screen, enter the appropriate IP address / URL / FQDN of the server, and then click Log On. Atrust Citrix Connection Screen NOTE • For newer versions of XenDesktop and XenApp, you may need to further specify...
  • Page 36 The following are some examples of Citrix Logon screens. XenDesktop 5.6 Platinum: Citrix Logon Screen Type the required user name, password, and then click Log On to access virtual desktops. NOTE • To return to Atrust Quick Connection screen, press Esc.
  • Page 37 Log On to access virtual applications. NOTE • To return to Atrust Quick Connection screen, press Esc. • If your XenApp server doesn’t belong to any domain, type the computer name of the server in the Domain field. XenApp 6.5 Platinum:...
  • Page 38 Type the required user name, password, and then click Log On to access virtual desktops. NOTE • To return to Atrust Quick Connection screen, press Esc. XenApp and XenDesktop 7.5 Platinum: Citrix Logon Screen Type the required user name, password, and then click Log On to access virtual desktops.
  • Page 39 Getting Started Learning the Basics Accessing Virtual Desktops and Applications You will enter the Desktop Selection or Application Selection screen after logon. On the screen you can click to select the desired desktop or application(s). NOTE • You might enter the virtual desktop directly if only one type of virtual desktop is assigned to the provided credentials.
  • Page 40 Getting Started Learning the Basics Virtual Desktop Example: Windows 7 Ultimate XenApp 6.5 Platinum: 1. The Application Selection screen appears after logon. Application Selection Screen 2. Click to select the desired application(s). 3. The selected application(s) will be displayed on the screen.
  • Page 41 — Click to launch another virtual desktop if any or to launch other applications. — Click Log Off on the top of the screen to return to the Citrix Logon screen. — Press Esc to return to Atrust Quick Connection screen directly. XenApp and XenDesktop 7.5 Platinum: 1.
  • Page 42 Getting Started Learning the Basics You might see this screen when you log in to XenApp 7.5 for first time. Just click to add your favorite apps from a list. Two buttons may be available for your to switch between Application and Desktop Selection screen, depending on your server-side deployment.
  • Page 43 — Click to launch another virtual desktop if any or to launch other applications. — Click Log Off on the top of the screen to return to the Citrix Logon screen. — Press Esc to return to Atrust Quick Connection screen directly.
  • Page 44 IP address of the VMware View Connection Server. 3. Enter the required information, and then click Connect. NOTE • To return to Atrust Quick Connection screen (see the screen in Topic 4), close the opened window.
  • Page 45 Getting Started Learning the Basics NOTE • A window might appear with a certificate message about the remote server. Consult the IT administrator for details and ensure the connection is secure first. To import a security certificate, please refer to section “4.2.14 Importing Certificates for Remote Computers”...
  • Page 46 Getting Started Learning the Basics Virtual Application Examples (VMware Horizon 6 with View) LINE, Adobe Reader, Mozilla Firefox, and Calculator NOTE • Your desktop or application will be displayed in full screen. You can: — Click File > Return to Desktop and Application List on the top tool bar to recall the Desktop and Application list.

  • Page 47: Configuring Client Settings

    Configuring Client Settings This chapter provides instructions on how to configure advanced settings and customize your t180L/t180LB with Atrust Client Setup. 4.1 Atrust Client Setup Interface overview Available settings at glance 4.2 Configuring System Settings System tab overview Available settings at a glance 4.3 Configuring User Interface Settings...

  • Page 49: Atrust Client Setup

    Configuring Client Settings Atrust Client Setup 4.1 Atrust Client Setup Your t180L/t180LB comes with Atrust Client Setup, the built-in local client management console to help you configure client settings and customize your t180L/t180LB. 4.1.1 Interface Overview To access Atrust Client Setup on your t180L/t180LB, please do the following: 1.

  • Page 50: Client Settings At A Glance

    Configuring Client Settings Atrust Client Setup 4.1.2 Client Settings at a Glance The following table provides a brief description of each setting item under five main setting categories. Setting Item Section Page • Configuring time zone and time server • Configuring passwords •...

  • Page 51: Configuring System Settings

    4.2 Configuring System Settings 4.2.1 System Tab Overview System tab enables you to configure settings for the operation and maintenance of clients. To access available settings of System tab, click the tab on Atrust Client Setup. System Tab Overview Interface Elements Name...

  • Page 52: Available Settings At A Glance

    4.2.15 Auto Registration. NOTE • Atrust Device Manager is a remote and mass client management console, helping you remotely manage a large number of endpoint devices in a desktop virtualization infrastructure. For more information about Atrust Device Manager, please refer to the User’s Manual for Atrust Device Manager.

  • Page 53: Configuring Time Zone And Time Server

    • The IP address of the default time server is pool.ntp.org. For more information on the default, please refer to the website for the NTP Pool Project at www.pool.ntp.org. • Ensure the connectivity of your t180L/t180LB to the network or Internet in order to get accurate time from the time server.

  • Page 54: Configuring The Access Privileges And Passwords Of Atrust Client Setup

    4.2.4 Configuring the Access Privileges and Passwords of Atrust Client Setup You can configure the access privileges of Atrust Client Setup for t180L/t180LB users by the Password setting. NOTE • All t180L/t180LB users are allowed to access Atrust Client Setup by factory default.
  • Page 55 Setting Access Privileges and Password Also for Standard Users To set access privileges and password also for standard users, please do the following: 1. On Atrust Client Setup, click System > Password. 2. Under the User section, click to check Active User Authorization.

  • Page 56: Configuring Shadow Settings For Remote Assistance

    NOTE • To use the Shadow feature on a remote computer, you need to install the Atrust Device Manager console on that computer, and add your t180L/t180LB into a managed group under Atrust Device Manager. For details, please refer to the User’s Manual for Atrust Device Manager.
  • Page 57 4. Type in the desired password, and then click OK to confirm. 5. Click Save to save all the changes. NOTE • When the Shadow feature is performed from a remote Atrust Device Manager, on the target client, an icon appears on the Taskbar of the local Linux desktop and a notification pops up in the bottom-right corner.

  • Page 58: Updating Firmware From The Management Computer

    Update Firmware allows client users to update firmware from its management computer. NOTE • Ensure that your t180L/t180LB has been added into a managed group under Atrust Device Manager installed on a remote computer, and that you have imported client firmware files into Atrust Device Manager.
  • Page 59 Click to choose if to keep the setting values under Atrust Client Setup. NOTE: If Yes is selected, all setting values under Atrust Client Setup will remain unchanged after firmware update. If No is selected, all setting values will be restored to the factory default.

  • Page 60: Enabling Or Disabling The Appliance Mode

    Enabling or Disabling the Appliance Mode The Appliance mode allows your t180L/t180LB to start up directly with the desired Microsoft Remote Desktop, Citrix ICA, VMware View or Horizon View session. Under this mode, users will feel as if they were using a standalone desktop computer;...
  • Page 61 — “4.6.5 Configuring Advanced RDP Connection Settings” on page 131 — “4.6.11 Configuring Advanced ICA Connection Settings” on page 169 — “4.6.14 Configuring Advanced View Connection Settings” on page 202 1. On Atrust Client Setup, click System > Appliance Mode. 2. Click to check Enable Appliance Mode.
  • Page 62 Configuring Client Settings Configuring System Settings 3. Other settings of the Appliance mode appear. 4. Click drop-down menus to select the application (or service) type: Citrix ICA, Remote Desktop, or VMware View, the specific service available in that type, and the desired action after exiting a session. NOTE • No matter which Resolution option you choose for the selected RDP / ICA / View service, RDP / ICA / View sessions under the Appliance mode will always use the...
  • Page 63 6. The system will enter the Appliance mode after restart. NOTE • To disable the Appliance mode or to access Atrust Client Setup under the Appliance mode, please refer to “Disabling the Appliance Mode” on page 53. Disabling the Appliance Mode To disable the Appliance mode, please do the following: 1.

  • Page 64: Enabling Or Disabling Auto Setup

    213. 4.2.9 Configuring the Quick Connection Mode The Quick Connection mode enables you to enter the Atrust Quick Connection screen after system startup. This setting is enabled by default. NOTE • For detailed instructions on how to use your t180L/t180LB under the Quick Connection mode, please refer to section “3.1 Learning the Basics”...
  • Page 65 • To use the Quick Connection mode, ensure that both the Appliance and Autostart modes are disabled. By default, your t180L/t180LB is in the Quick Connection mode, and both the Appliance and Autostart modes are disabled. However, if either of two modes are enabled, the Quick Connection mode will fail to work.

  • Page 66: Configuring Advanced Quick Connection Settings

    4.2.10 Configuring Advanced Quick Connection Settings You are allowed to configure advanced Quick Connection settings for Remote Desktop, Citrix ICA, and VMware View sessions through System > Quick Connections on Atrust Client Setup. Advanced Quick Connection Settings for Remote Desktop Sessions...
  • Page 67 Configuring Client Settings Configuring System Settings Advanced Quick Connection Settings for Citrix ICA Sessions To configure advanced Quick Connection settings for Citrix ICA sessions, please refer to the tables below: Citrix ICA Option Item Description Check/Uncheck to enable/disable client rendering. Client Rendering When Client Rendering is disabled, Server Rendering is used.
  • Page 68 ) with vender and product information needed for creating rules. Advanced Quick Connection Settings for VMware View Sessions To configure advanced Quick Connection settings for VMware View sessions, please do the following: 1. On Atrust Client Setup, click System > Quick Connection.
  • Page 69 Configuring Client Settings Configuring System Settings 2. Click drop-down menus to configure Generic Settings ( ) for mass storage devices, smart cards, human interface devices, and printers. Two options are available: Enabled or Disabled. 3. Use Redirection Rules ( ) to manage specific USB devices: • Refer to ( ) to fill in the Vender and Product IDs for a specific device, click the drop-down menu to select Allow or Deny.

  • Page 70: Enabling Or Disabling The Command-Line Functions

    4.2.11 Enabling or Disabling the Command-line Functions To enable/disable the execution of the text-based (command-line) functions, please do the following: 1. On Atrust Client Setup, click System > Terminal. 2. Click to check/uncheck Enable to allow/disallow the execution of the command-line functions.

  • Page 71: Collecting Event Logs And Capturing Related Screens

    1. Plug a USB flash drive into your t180L/t180LB. NOTE • This USB flash drive will be used for storing the event logs of your t180L/t180LB. • Ensure that you have enabled the access and automount of USB storage devices.
  • Page 72 The attached USB flash drive is the default location if attached. Click Save to apply. Capturing Error-Related Screens To capture error-related screens of your t180L/t180LB, please do the following: 1. On Atrust Client Setup, click System > Error Report.

  • Page 73: Uploading Files For Error Reporting

    To upload files to an FTP server, please do the following: 1. On Atrust Client Setup, click System > Error Report. 2. Under the Upload Files section, type the IP address of the FTP server and credentials, click Upload to select and upload files to that FTP server.

  • Page 74: Importing Certificates For Remote Computers

    To import certificates for remote computers through a USB storage device, please do the following: 1. Copy your certificates to a USB storage device, and then connect this storage device to your t180L/t180LB. 2. On Atrust Client Setup, click System > Certificate Manager.
  • Page 75 Configuring Client Settings Configuring System Settings 4. In the From File section, click Browse to locate the desired certificate file, and then click Open to confirm. 5. Click Import to start importing the certificate. 6. On completion, the certificate is shown in the Certificate list.
  • Page 76 Importing certificates from remote computers through the network To import the certificate from a remote computer through the network, please do the following: 1. On Atrust Client Setup, click System > Certificate Manager. 2. Click Add on the top of the Certificate list.
  • Page 77 1. On Atrust Client Setup, click System > Certificate Manager. 2. Click Add on the top of the Certificate list. 3. In the From Atrust Device Manager section, click Import to start importing all certificates available in Atrust Device Manager.

  • Page 78: Enabling Or Disabling Auto Registration

    Configuring Client Settings Configuring System Settings 4.2.15 Enabling or Disabling Auto Registration Auto Registration allows that thin clients automatically register with Atrust Device Manager when they are online and then become managed by Atrust Device Manager. NOTE • For this feature to work, Auto Registration must be enabled on both sides: thin clients and target Atrust Device Manager.

  • Page 79: Configuring User Interface Settings

    4.3.1 User Interface Tab Overview User Interface tab enables you to configure settings for the user interface of clients. To access available settings of User Interface tab, click the tab on Atrust Client Setup. User Interface Tab Overview Interface Elements...

  • Page 80: Available Settings At A Glance

    4.3.3 Configuring Display Settings To configure display settings for your t180L/t180LB, please do the following: 1. On Atrust Client Setup, click User Interface > Display. 2. Click drop-down menus to select the number of attached display(s), arrangement of displays, resolution, etc.
  • Page 81 Configuring Client Settings Configuring User Interface Settings NOTE • The available setting items vary, depending on your model and the selected number of display(s). Display Item Description Click to select the number of attached display(s). Option Description Number of Display One display is attached.
  • Page 82 Configuring Client Settings Configuring User Interface Settings Monitor Settings Item Description Check/Uncheck to enable/disable the automatic detection of the attached monitor(s) when the client is powered on. Option Description Automatic detection of the attached monitor(s) is enabled. Enabled The system would set an appropriate resolution for the Enable Auto-Detection at attached monitor(s) when the client is powered on.

  • Page 83: Customizing Desktop And System Language Settings

    4.3.4 Customizing Desktop and System Language Settings To customize desktop and system language settings for your t180L/t180LB, please do the following: 1. On Atrust Client Setup, click User Interface > Desktop. 2. Click drop-down menus or tick/untick checkboxes to choose desired settings. Refer to the following table for a description of each setting item.
  • Page 84 Centers and sizes the image proportionally to fill the screen. NOTE: Depending on the size of the connected display, two options might have the same effect. Click the drop-down menu to select the color of Atrust wallpaper. Four colors are Wallpaper available: Green, Blue, Orange, and Cyan.

  • Page 85: Hiding Or Showing Quick Access Shortcuts

    4.3.5 Hiding or Showing Quick Access Shortcuts When the Quick Connection mode is disabled, the switch shortcuts Atrust Quick Connection on the START menu and local Linux desktop will be hidden. In case you want to access services quickly when the Quick Connection mode is disabled, you can choose to show Quick Access shortcuts Remote Desktop / Citrix / VMware View on the START menu and local Linux desktop.

  • Page 86: Using A Custom Wallpaper

    Linux desktop. 3. Click Save to apply the change. 4. The selected shortcuts will be shown/hidden. 4.3.6 Using a Custom Wallpaper To use a custom wallpaper, please do the following: 1. On Atrust Client Setup, click User Interface > Desktop.

  • Page 87: Adjusting Keyboard Settings

    Please see “Enabling or Disabling Auto Setup” on page 54 for more information. • If Device Manager is selected, your thin client must be managed by Atrust Device Manager. For details, please refer to the User’s Manual for Atrust Device Manager.
  • Page 88 Configuring Client Settings Configuring User Interface Settings 2. Click drop-down menus, tick/untick checkboxes, or move sliders to choose desired settings. Refer to the following table for a description of each setting item. Keyboard Item Description Check/Uncheck to enable/disable the use of custom keyboard settings. Use Custom Keyboard Settings NOTE: You are allowed to set the keyboard layout and type only when this setting is enabled.

  • Page 89: Configuring Mouse Settings

    4.3.8 Configuring Mouse Settings To configure mouse settings for your t180L/t180LB, please do the following: 1. On Atrust Client Setup, click User Interface > Mouse. 2. Click the drop-down menu or move sliders to choose desired setting values. Refer to the following table for a description of each setting item.

  • Page 90: Configuring Screensaver Settings

    Configuring User Interface Settings 4.3.9 Configuring Screensaver Settings To configure screensaver settings for your t180L/t180LB, please do the following: 1. On Atrust Client Setup, click User Interface > Screensaver. 2. Click drop-down menus or tick/untick checkboxes to choose desired settings.

  • Page 91: Configuring External Device Settings

    4.4 Configuring External Device Settings 4.4.1 Devices Tab Overview Devices tab enables you to configure settings for external devices of clients. To access available settings of Devices tab, click the tab on Atrust Client Setup. Devices Tab Overview Interface Elements Name...

  • Page 92: Available Settings At A Glance

    • To access locally attached USB storage devices in a local or virtual session, you need to configure appropriate settings under this setting item. 1. On Atrust Client Setup, click Devices > USB Storage. 2. Tick/untick the checkboxes to choose the desired settings.

  • Page 93: Manually Mount And Eject Attached Usb Storage Devices

    Configuring Client Settings Configuring External Device Settings Settings for USB Storage Devices Item Description Tick/Untick this checkbox to allow/disallow the access of USB storage devices. NOTE: To use the locally attached USB storage devices in an RDP / ICA / View session, the mapping of local USB storage devices must be enabled in this session’s RDP / ICA / View connection settings.

  • Page 94: Disabling Or Enabling Attached Audio Devices

    — “4.6.14 Configuring Advanced View Connection Settings” on page 202 1. On Atrust Client Setup, click Devices > Audio. 2. Click to check/uncheck Enable System Audio Device. 3. Click Save to confirm your selection. NOTE • The change will not take effect until t180L/t180LB has been restarted.

  • Page 95: Using Usb Audio Devices

    Configuring Client Settings Configuring External Device Settings 4.4.6 Using USB Audio Devices By default, your thin client would use audio devices attached to 3.5 mm audio ports. In case that you want to use a USB audio device, you need to change the default. To configure default audio devices, please do the following: 1.

  • Page 96: Adding A Local Printer

    Adding a Local Printer To add a local printer for your t180L/t180LB, please do the following: 1. Connect the desired printer to your t180L/t180LB and turn on the printer. 2. On Atrust Client Setup, click Devices > Printer. 3. Click Add on the top of the Printer list.
  • Page 97 Configuring Client Settings Configuring External Device Settings 8. A field for the selected printer appears and the printer URI (Uniform Resource Identifier) data is automatically filled out in the field. NOTE • A URI (Uniform Resource Identifier) is a sequence of characters that is used to identify a resource on the Internet.
  • Page 98 Name. NOTE: For example, if a printer is locally attached to your thin client and is added as a local printer through Atrust Client Setup with the printer name EPS, and the IP address of your thin client is 192.168.50.146.

  • Page 99: Adding A Network Printer

    Adding a Network Printer To add a network printer for your t180L/t180LB, please do the following: 1. Ensure that your t180L/t180LB is connected to the network and the desired network printer is turned on. 2. On Atrust Client Setup, click Devices > Printer.

  • Page 100: Configuring Network Settings

    Configuring Network Settings 4.5 Configuring Network Settings 4.5.1 Network Tab Overview Network tab enables you to configure network settings for clients. To access available settings of Network tab, click the tab on Atrust Client Setup. Network Tab Overview Interface Elements Name Description...

  • Page 101: Available Settings At A Glance

    Configuring Client Settings Configuring Network Settings 4.5.2 Available Settings at a Glance Setting Icon Description Section Page 4.5.3 Ethernet Click to configure wired network settings. 4.5.4 Click to configure VPN (Virtual Private Network) 4.5.5 connection settings and create a VPN connection. 4.5.6 Click to create the mapping of IP addresses to 4.5.7...

  • Page 102: Configuring Wired Network Settings

    Configuring Network Settings 4.5.3 Configuring Wired Network Settings The Ethernet setting enables you to configure the wired network settings for your t180L/t180LB thin client. Enabling or Disabling the Ethernet Network Interface To enable/disable the Ethernet network interface, please to the following: 1.
  • Page 103 Configuring Client Settings Configuring Network Settings 4. Type in the IP address, subnet mask, and gateway for your t180L/t180LB thin client. NOTE • Consult your network administrator for a free IP address and other required data about the network to which your t180L/t180LB connects. The red asterisks indicate the required fields.
  • Page 104 3. The Search domain, Nameserver 1, and Nameserver 2 fields appear in the DNS section. NOTE • If you choose to use a static IP address for your t180L/t180LB thin client, then you need to specify DNS server addresses manually. In this case, the DNS type field will not appear for you to select Manual setting or Dynamic DNS (via DHCP).

  • Page 105: Enabling Or Disabling Wake On Lan

    4.5.4 Enabling or Disabling Wake On LAN Your thin client supports Wake On LAN, enabling you to wake it up remotely with Atrust Device Manager, the client management console developed by Atrust. To enable/disable Wake On LAN, please do the following: 1.

  • Page 106: Establishing And Stopping A Vpn Connection

    Configuring Network Settings 4.5.5 Establishing and Stopping a VPN connection The VPN setting enables you to establish/stop a virtual private network connection for your t180L/t180LB. NOTE • The VPN setting also allows you to configure and manage virtual private network settings.
  • Page 107 6. Click Save to add the virtual private network. Establishing a Virtual Private Network Connection To establish a virtual private network connection for your t180L/t180LB, please do the following: 1. On Atrust Client Setup, click Network > VPN to open the Virtual Private Network list.
  • Page 108 Configuring Client Settings Configuring Network Settings NOTE • If you haven’t created any entry, the Virtual Private Network list will be empty. For instructions on adding a virtual private network, please see the preceding topic. 2. Click to check the desired virtual private network. The Connect button then appears on the top of the Virtual Private Network list.
  • Page 109 Stopping a Virtual Private Network Connection To stop a virtual private network connection, please do the following: 1. On Atrust Client Setup, click Network > VPN to open the Virtual Private Network list. 2. Click to check the desired virtual private network. The Disconnect button appears on the top of the Virtual Private Network list.

  • Page 110: Configuring Virtual Private Network Settings

    To adjust connection settings for a virtual private network, please do the following: 1. On Atrust Client Setup, click Network > VPN to open the Virtual Private Network list. 2. Click to check the desired virtual private network. The Edit button appears on the top of the Virtual Private Network list.

  • Page 111: Creating The Mapping Of Ip Addresses To Names Of Hosts

    Creating the Mapping of IP Addresses to Names of Hosts Atrust Client Setup allows you to use the name or alias of a host instead of its IP address wherever you need to specify an IP address while configuring client settings. To use this feature, first you need to create the mapping of IP addresses to names or aliases of hosts.
  • Page 112 Managing the Mapping List To manage the Mapping list, please do the following: 1. On Atrust Client Setup, click Network > Hosts to open the Host list. 2. Select to manage entries on the Host list. • To adjust the settings of an entry, double click the entry, or check off an entry, and then click the Edit button on the top of the Mapping list.

  • Page 113: Configuring The Failover Cluster List

    Configuring Network Settings 4.5.8 Configuring the Failover Cluster List Atrust Client Setup allows you to create the Failover Cluster list, maintaining the high availability of services from that group of servers (failover cluster). Creating the Failover Cluster List To create a Failover Cluster list, please do the following: 1.
  • Page 114 4. Repeat steps 2 though 3 to add another new entry. 5. All added entries appear on the Host list. 6. Your t180L/t180LB will follow the given priority order while connecting to this failover cluster (group). Managing the Failover Cluster List To manage the Host list, please do the following: 1.

  • Page 115: Changing The Host Name Of Your Thin Client

    Changing the Host Name of Your Thin Client To change the host name of your thin client, please do the following: 1. On Atrust Client Setup, click Network > Host Name. 2. Change the default host name of your thin client.

  • Page 116: Enabling Or Disabling The Wireless Interface

    • By default, the wireless interface is enabled. But before you can access available wireless networks, you need to install an external and USB-based wireless network adapter for your t180L. Ensure that you have set up the required adapter. • Your t180L package may not include a wireless network adapter (optional). Please contact your dealer for compatible adapters if needed.

  • Page 117: Configuring The Trigger Threshold For Roaming

    To configure the roaming trigger threshold for your wireless connection, please do the following: 1. On Atrust Client Setup, click Network > Wireless, and then click Wireless sub-tab. 2. Under the Roaming section, click the drop-down menu to choose the desired trigger threshold.

  • Page 118: Establishing And Stopping A Wireless Connection

    Establishing a Wireless Network Connection To establish a wireless network connection for your t180L/t180LB thin client, please do the following: 1. On Atrust Client Setup, click Network > Wireless to open the Wireless Network list.
  • Page 119 Configuring Client Settings Configuring Network Settings 3. Click Connect to create a wireless network connection through the selected wireless network. 4. A window appears prompting for confirmation or authentication. NOTE • If you ever accessed this wireless network before, the password will be automatically recorded for future access.
  • Page 120 Stopping a Wireless Network Connection To stop a wireless network connection, please do the following: 1. On Atrust Client Setup, click Network > Wireless to open the Wireless Network list. 2. Click to check the desired wireless network. The Disconnect button appears on the top of the Wireless Network list.

  • Page 121: Configuring Wireless Connection Settings

    To adjust connection settings for a wireless network, please do the following: 1. On Atrust Client Setup, click Network > Wireless to open the Wireless Network list. 2. Click to check the desired wireless network which is currently connected. The Edit button appears on the top of the Wireless Network list.

  • Page 122: Configuring Proxy Settings For Web-Based Access To Services

    • Settings available here are only applicable to services that use Web-based access, such as (Microsoft) Remote Web Access and (Citrix) Web Logon connection types. 1. On Atrust Client Setup, click Network > Proxy. 2. Click the Mode drop-down menu to select the desired configuration mode. Four modes are available: No Proxy, Auto-detect proxy settings, Manual proxy configuration, and Auto proxy configuration.
  • Page 123 Configuring Client Settings Configuring Network Settings 3. Provide the data as required. Please refer to the following table for a description of each setting item. Connection Settings Item Description Click to select the desired proxy configuration mode. Mode Description No Proxy Don’t use any proxy server.

  • Page 124: Configuring Service Access Settings

    4.6 Configuring Service Access Settings 4.6.1 Applications Tab Overview Applications tab enables you to configure settings for service access on clients. To access available settings of Applications tab, click the tab on Atrust Client Setup. Applications Tab Overview Interface Elements Name...

  • Page 125: Available Settings At A Glance

    Configuring Client Settings Configuring Service Access Settings 4.6.2 Available Settings at a Glance Setting Icon Description Section Page Click to configure RDP (Remote Desktop Protocol) 4.6.3 connection settings and create shortcuts on Remote Desktop 4.6.4 the local desktop and START menu for Remote 4.6.5 Desktop sessions.

  • Page 126: Configuring Basic Rdp Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.3 Configuring Basic RDP Connection Settings The Remote Desktop setting allows you to configure RDP (Remote Desktop Protocol) connection settings and create shortcuts on the local desktop and START menu for service access. You can access remote desktops or applications for work simply through these shortcuts.
  • Page 127 Connection Type: Remote Desktop To quickly configure RDP connection settings for the Remote Desktop connection type, please do the following: 1. On Atrust Client Setup, Click Applications > Remote Desktop. 2. The RDP Connection list appears in the Configuration area.
  • Page 128 Please visit Microsoft’s websites at www.microsoft.com support.microsoft.com more information. • t180L/t180LB supports up to two Remote Desktop sessions at the same time. • Windows® RemoteFX™ is the technology that offers a rich user experience over a network for remote desktop users. NOTE • To create an entry of RDP connection settings for MultiPoint™...
  • Page 129 To quickly configure RDP connection settings for the Remote Web Access connection type, please do the following: NOTE • Atrust t180L/t180LB supports only RD Web Access based on Windows Sever 2012 R2; Windows Server 2008 R2 based is not supported.
  • Page 130 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select Remote Web Access. 5. Type in the session name and connection URL through which Web-based remote applications is accessible. NOTE • The red asterisks indicate the required fields. • Consult your IT administrator about the appropriate connection URL.
  • Page 131 To quickly configure RDP connection settings for the Web Feed connection type, please do the following: NOTE • Atrust t180L/t180LB supports only RD Web Feed based on Windows Sever 2012 R2; Windows Server 2008 R2 based is not supported. 1. On Atrust Client Setup, Click Applications > Remote Desktop.
  • Page 132 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select Web Feed. 5. Type in the session name, Web Feed URL through which remote applications is accessible, and your credentials for Web Feed. NOTE • The red asterisks indicate the required fields.
  • Page 133 Configuring Client Settings Configuring Service Access Settings 6. Click Update Now in the RemoteApp and Desktop Connections section. After completion, the result will be shown as below in that section. NOTE • You can and need to use Update Now to refresh the Web Feed summary if there are newly published applications.
  • Page 134 Configuring Client Settings Configuring Service Access Settings 9. Access shortcuts for available applications can be found in that folder. NOTE • You need to use Update Now described in Step 6 to refresh the Web Feed if there are newly published applications. Otherwise, new applications will not be shown.

  • Page 135: Accessing Remote Desktop Services

    Configuring Client Settings Configuring Service Access Settings 4.6.4 Accessing Remote Desktop Services Connection Type: Remote Desktop To access remote desktops, please do the following: 1. Double click the created shortcut on the desktop. 2. Follow the on-screen instructions and provide required credentials if needed. 3.
  • Page 136 Configuring Client Settings Configuring Service Access Settings Example: Windows 8 Enterprise NOTE • The connection type of Remote Desktop also allow you to launch application- only sessions; only a specific application is launched rather than a full desktop. For details, please refer to section “4.6.5 Configuring Advanced RDP Connection Settings”...
  • Page 137 Configuring Client Settings Configuring Service Access Settings Connection Type: Remote Web Access To access remote applications, please do the following: 1. Double click the created shortcut on the desktop. 2. A window appears prompting for credentials. NOTE • A warning message “This Connection is Untrusted“ might appear. Consult the IT administrator for details and ensure the connection is secure first.
  • Page 138 Configuring Client Settings Configuring Service Access Settings 4. Access shortcuts will be shown on the screen. 5. Click or Double-click to select the desired application. 6. A window appears prompting for credentials. 7. Provide your credentials, and then click OK to launch the selected application. • Use Alt + Tab to select and restore a hidden or minimized application or desktop.
  • Page 139 Configuring Client Settings Configuring Service Access Settings Connection Type: Web Feed 1. Double click Work Resources folder on the local desktop. 2. Access shortcuts for available applications can be found in that folder. 3. Double-click to select the desired application.
  • Page 140 Configuring Client Settings Configuring Service Access Settings 4. A window appears prompting for credentials. 5. Provide your credentials, and then click OK to launch the selected application. Remote Application Examples Mozilla Firefox and Calculator...

  • Page 141: Configuring Advanced Rdp Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.5 Configuring Advanced RDP Connection Settings The tables below provide a description of each setting item for RDP connections. Please refer to these tables to configure advanced settings and customize shortcuts on local desktop and START menu for service access. NOTE • Please note that available settings vary with the selected connection type.
  • Page 142 Configuring Client Settings Configuring Service Access Settings Select what to do next if the client cannot verify the identity of the remote computer. Three options are available: Connect and don’t warn me, Warn me, and Do not connect. Option Description Connect and don’t Connects anyway without any warning.
  • Page 143 Select whether to open a Remote Desktop session automatically or not when t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 144 Configuring Client Settings Configuring Service Access Settings Options Sub-tab Programs Item Description Click the drop-down menu to enable or disable the Application mode. Use this option to select the session type. Two remote session types are available: • Remote Desktop (when the Application mode is disabled) •...
  • Page 145 NOTE: To configure the display resolution of the local desktop, please refer to section “4.3.3 Configuring Display Settings” on page 70. Click the drop-down menu to select whether to use the Atrust Toolbar on a Remote Desktop session. The tool bar allows you to adjust a session window size or suspend a session.
  • Page 146 When Enable is selected, users can access the local USB storage devices, such as a USB flash drive and memory card reader, in a Remote Desktop session. NOTE: Atrust Client Setup also allows you to enable or disable the use of locally USB Storage Mapping attached USB storage devices.
  • Page 147 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to enable/disable serial port mapping. Serial Port Mapping When Enable is selected, users can access a serial device, such as a barcode scanner, in a Remote Desktop session. Click the drop-down menu to enable/disable parallel port mapping. Parallel Port Mapping When Enable is selected, users can access a parallel device, such as a printer or scanner, in a Remote Desktop session.
  • Page 148 1. Ensure that the desired USB device has been connected to your client. Use RemoteFX USB Redirection 2. Ensure that RemoteFX is enabled on your t180L/t180LB (see “Use RemoteFX” on page 135). 3. Click to check Use RemoteFX USB Redirection.
  • Page 149 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of Remote Web Access NOTE • For descriptions of settings for the connection type of Remote Desktop, please refer to “Settings for the Connection Type of Remote Desktop” on page 131. • For descriptions of settings for the connection type of Web Feed, please refer to “Settings for the Connection Type of Web Feed”...
  • Page 150 Select whether to open a Remote Web Access session automatically or not when t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 151 Configuring Client Settings Configuring Service Access Settings Options Sub-tab NOTE • No options are available under the Options sub-tab in the connection type of Remote Web Access. RD Gateway Sub-tab NOTE • No options are available under the RD Gateway sub-tab in the connection type of Remote Web Access.
  • Page 152 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of Web Feed NOTE • For descriptions of settings for the connection type of Remote Desktop, please refer to “Settings for the Connection Type of Remote Desktop” on page 131. • For descriptions of settings for the connection type of Remote Web Access, please refer to “Settings for the Connection Type of Remote Web Access”...
  • Page 153 Use RemoteFX NOTE: To enable the RemoteFX feature for Remote Desktop sessions on your t180L/t180LB thin client, you still need to configure the host server. For detailed instructions on how to enable RemoteFX on a host server, please visit Microsoft Support website at support.microsoft.com.
  • Page 154 When Enable is selected, users can access the local USB storage devices, such as a USB flash drive and memory card reader, in a Remote Desktop session. NOTE: Atrust Client Setup also allows you to enable or disable the use of locally USB Storage Mapping attached USB storage devices.
  • Page 155 Microsoft Support website at support.microsoft.com. On the client side, please do the following to enable locally attached USB devices in a virtual machine based desktop: 1. Ensure that the desired USB device has been connected to your t180L/ Use RemoteFX USB Redirection t180LB.

  • Page 156: Configuring Basic Ica Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.6 Configuring Basic ICA Connection Settings The Citrix ICA setting allows you to configure ICA connections for Citrix services and create shortcuts on the local desktop and START menu for service access. You can access virtual desktops and applications for work simply through these shortcuts.
  • Page 157 Connection Type: Web Logon To quickly configure ICA connection settings for the Web Logon connection type, please do the following: 1. On Atrust Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area.
  • Page 158 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, leave the connection type as Web Logon as default, and then type in the desired session name and the IP address / URL / FQDN of the server through which Citrix services are accessible. NOTE • For newer versions of XenDesktop and XenApp, you may need to further specify the sub-path of the server.
  • Page 159 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On Atrust Client Setup, Click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 160 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select StoreFront. 5. Type the session name, the IP address / URL / FQDN of the server through which virtual applications/ desktops are accessible, and the name of desktop group or application. NOTE • You can use the Search icon to help you discover available desktop groups or...
  • Page 161 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On Atrust Client Setup, Click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 162 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select VDI-in-a-Box. 5. Type the session name, the IP address / URL / FQDN of the server through which virtual desktops are accessible, and the name of the desktop group.
  • Page 163 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On Atrust Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 164 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select XenDesktop. 5. Type the session name, the IP address / URL / FQDN of the server through which virtual desktops are accessible, and the desired desktop group.
  • Page 165 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On Atrust Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 166 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select XenApp. 5. Type the session name, the IP address / URL / FQDN of the server through which virtual applications are accessible, and the desired application name.
  • Page 167 • This connection type is used to connect to XenApp server for administration and supports only XenApp 6.5 and earlier. 1. On Atrust Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area.
  • Page 168 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select Server Connection. 5. Type the session name, server address, and server name. NOTE • You may need to provide the XML port number as well for your server address (for example, 192.168.77.10:8080), depending on your server-side configuration.

  • Page 169: Switching The Citrix Receiver Version

    • This is a global setting; the change will affect all Citrix connections. 1. On Atrust Client Setup, click Applications > Citrix ICA > Global. 2. Click the drop-down menu to select the desired Citrix Receiver version. Two options are available: 12.x and 13.x.

  • Page 170: Enabling Or Disabling Esc To Quit On The Web Logon Screen

    • This is a global setting; the change will affect all Citrix connections. 1. On Atrust Client Setup, click Applications > Citrix ICA > Global. 2. Click the drop-down menu to select Yes or No to enable or disable Esc to Quit.

  • Page 171: Configuring Keyboard Layout And Type For Citrix Ica Sessions

    To set the used keyboard layout and type for all Citrix ICA sessions, please do the following: 1. On Atrust Client Setup, click Applications > Citrix ICA > Global. 2. Click drop-down menus to select what determines the keyboard layout and the desired keyboard type.

  • Page 172: Accessing Citrix Services

    Configuring Client Settings Configuring Service Access Settings 4.6.10 Accessing Citrix Services For Connection Types of StoreFront, VDI-in-a-Box, XenDesktop, XenApp, and Server Connection To access Citrix services, please do the following: 1. Double click the created (customized) shortcut on the desktop, and then provide your credentials if needed. 2.
  • Page 173 Configuring Client Settings Configuring Service Access Settings Citrix Logon Screen Example: XenDesktop 5.6 Platinum Citrix Logon Screen Example: VDI-in-a-Box...
  • Page 174 Configuring Client Settings Configuring Service Access Settings Citrix Logon Screen Example: XenApp and XenDesktop 7.5 Platinum 3. Type in the required credentials, and then click Log On. NOTE • If your XenApp server doesn’t belong to any domain, type in the server name in the Domain field instead.
  • Page 175 Configuring Client Settings Configuring Service Access Settings 4. On the Desktop or Application Selection screen, click to select the desired desktop or application(s). NOTE • You might enter the virtual desktop directly if only one type of virtual desktop is assigned to the provided credentials.
  • Page 176 Configuring Client Settings Configuring Service Access Settings Selection Screen Example: XenApp 7.5 Platinum Selection Screen Example: XenDesktop 7.5 Platinum...
  • Page 177 Configuring Client Settings Configuring Service Access Settings 5. The selected virtual desktop or application(s) will be displayed on the screen. Virtual Application Examples PowerPoint Viewer, Adobe Reader, and Notepad Virtual Application Examples Adobe Reader, Mozilla Firefox, and PowerPoint Viewer...
  • Page 178 Configuring Client Settings Configuring Service Access Settings Virtual Desktop Example Windows 7 Ultimate Virtual Desktop Example Windows Server 2008 R2...

  • Page 179: Configuring Advanced Ica Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.11 Configuring Advanced ICA Connection Settings The tables below provide a description of each setting item for ICA connections. Please refer to these tables to configure advanced settings and customize shortcuts on the local desktop and START menu for service access. NOTE • Please note that available settings vary with the selected connection type.
  • Page 180 Configuring Client Settings Configuring Service Access Settings General Sub-tab Server Settings Item Description Session Name Type in the name of browser sessions for Citrix service access. This table only provides descriptions for available settings when Web Logon is selected. Six connection types are available: Option Description Provides access to virtual desktops and applications...
  • Page 181 Select whether to open a browser session for Citrix service access automatically or not when your t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 182 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your t180L/t180LB. However, if you use a serial-based barcode scanner, and attach it to your t180L/t180LB with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual desktop.
  • Page 183 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of StoreFront NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 169. • For descriptions of settings for the connection type of VDI-in-a-Box, please refer to “Settings for the Connection Type of VDI-in-a-Box”...
  • Page 184 Select whether to open a Citrix ICA session automatically or not when your t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 185 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your t180L/t180LB. However, if you use a serial-based barcode scanner, and attach it to your t180L/t180LB with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual desktop.
  • Page 186 Configuring Client Settings Configuring Service Access Settings Connection Settings Item Description Click the drop-down menu to select resources rendering on the endpoint or the server. Two options are available: Server Rendering and Client Rendering. Rendering Type NOTE: The Client Rendering option may not be available on your system. This item is available only when Client Rendering is selected.
  • Page 187 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to select where to apply Windows Key Combinations. Three options are available: On the local computer, On the remote server, and In full screen mode only. Option Description Windows Key Combination On the local computer Applies to the local desktop only.
  • Page 188 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of VDI-in-a-Box NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 169. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 189 Select whether to open a Citrix ICA session automatically or not when your t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 190 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your t180L/t180LB. However, if you use a serial-based barcode scanner, and attach it to your t180L/t180LB with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual desktop.
  • Page 191 Configuring Client Settings Configuring Service Access Settings Connection Settings Item Description Click the drop-down menu to select resources rendering on the endpoint or the server. Two options are available: Server Rendering and Client Rendering. Rendering Type NOTE: The Client Rendering option may not be available on your system. This item is available only when Client Rendering is selected.
  • Page 192 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to select where to apply Windows Key Combinations. Three options are available: On the local computer, On the remote server, and In full screen mode only. Option Description Windows Key Combination On the local computer Applies to the local desktop only.
  • Page 193 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of XenDesktop NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 169. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 194 Select whether to open a Citrix ICA session automatically or not when your t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 195 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your t180L/t180LB. However, if you use a serial-based barcode scanner, and attach it to your t180L/t180LB with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual desktop.
  • Page 196 Configuring Client Settings Configuring Service Access Settings Connection Settings Item Description Click the drop-down menu to select resources rendering on the endpoint or the server. Two options are available: Server Rendering and Client Rendering. Rendering Type NOTE: The Client Rendering option may not be available on your system. This item is available only when Client Rendering is selected.
  • Page 197 Configuring Client Settings Configuring Service Access Settings Enable Audio Input Check/Uncheck to enable/disable audio input in an ICA session. Click the drop-down menu to select where to apply Windows Key Combinations. Three options are available: On the local computer, On the remote server, and In full screen mode only.
  • Page 198 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of XenApp NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 169. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 199 Select whether to open a Citrix ICA session automatically or not when your t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 200 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your t180L/t180LB. However, if you use a serial-based barcode scanner, and attach it to your t180L/t180LB with a serial-to-USB adapter, you need to enable this setting in order to...
  • Page 201 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to enable/disable the mapping of the local printer(s) in a Citrix ICA session. If Yes is selected, the locally attached printer(s) will become available in launched Citrix ICA sessions. Mapping Local Printers NOTE: To enable locally attached printer(s), please refer to section “4.4.7 Adding a Local Printer”...
  • Page 202 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to choose the desired sound quality in an ICA session. Three options are available: High Quality, Medium Quality, and Low Quality. Option Description Allows endpoint devices to play a sound file at its native data transfer rate.
  • Page 203 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of Server Connection NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 169. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 204 Select whether to open a Citrix ICA session automatically or not when your t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 205 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your t180L/t180LB. However, if you use a serial-based barcode scanner, and attach it to your t180L/t180LB with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual server desktop.
  • Page 206 Configuring Client Settings Configuring Service Access Settings Connection Settings Item Description Click the drop-down menu to select resources rendering on the endpoint or the server. Two options are available: Server Rendering and Client Rendering. Rendering Type NOTE: The Client Rendering option may not be available on your system. This item is available only when Client Rendering is selected.
  • Page 207 Configuring Client Settings Configuring Service Access Settings Enable Audio Input Check/Uncheck to enable/disable audio input in an ICA session. Click the drop-down menu to select where to apply Windows Key Combinations. Three options are available: On the local computer, On the remote server, and In full screen mode only.

  • Page 208: Configuring Basic Vmware View Connection Settings

    • For more information on VMware desktop virtualization solutions, please visit VMware website at www.vmware.com. To quickly configure VMware View connection settings, please do the following: 1. On Atrust Client Setup, click Applications > VMware View. 2. The View Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the View Connection list will be empty.
  • Page 209 Configuring Client Settings Configuring Service Access Settings 4. Type in the desired session name and the computer name or IP address of the View Connection Server, and then click Save to confirm. NOTE • These are the only required fields for the creation of a service access shortcut on the desktop.

  • Page 210: Accessing Vmware View Or Horizon View Services

    Configuring Client Settings Configuring Service Access Settings 4.6.13 Accessing VMware View or Horizon View Services To access VMware View or Horizon View services, please do the following: 1. Double click the created (customized) access shortcut on the desktop. NOTE • A window might appear with a certificate message about the remote server. Consult the IT administrator for details and ensure the connection is secure first.
  • Page 211 Configuring Client Settings Configuring Service Access Settings 6. The selected desktop or application will be displayed on the screen. NOTE • Your desktop or application will be displayed in full screen. You can: — Click File > Return to Desktop and Application List on the top tool bar to recall the Desktop and Application list.

  • Page 212: Configuring Advanced View Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.14 Configuring Advanced View Connection Settings The table below provides a description of each setting item for View connections. Please refer to this table to configure advanced settings and customize shortcuts on the local desktop and START menu for service access. General Sub-tab Server Settings Item...
  • Page 213 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to select whether to verify the entitlement to the virtual desktop or application provided in the previous setting item: Option Description Verify the entitlement to the virtual desktop or application provided in the previous setting item.
  • Page 214 Select whether to open a VMware View or Horizon View session automatically or not when your t180L/t180LB is started up (Autostart mode). NOTE: There are three similar but different modes for your t180L/t180LB and only one mode will take effect if all are enabled. Three modes and the...
  • Page 215 Description Click to enable/disable printer mapping for VMware View connections. NOTE: You need to add a local or network printer for your t180L/t180LB first, and then enable this feature here to use that mapped printer in a virtual desktop session.
  • Page 216 Configuring Client Settings Configuring Service Access Settings SECUREMATRIX Sub-tab Connection Settings Item Description Use SECUREMATRIX Check to use SECUREMATRIX authentication. Type the server address of GSB server, the server for SECUREMATRIX GSB Server Address authentication service. Username Type your user name (Login ID). NOTE • For details, please refer to “A.3 Using SECUREMATRIX Authentication for VMware Connections”...

  • Page 217: Configuring Ssh Connection Settings

    Configuring Service Access Settings 4.6.15 Configuring SSH Connection Settings To configure SSH (Secure SHell) connection settings, please do the following: 1. On Atrust Client Setup, click Applications > SSH. 2. The SSH Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the SSH Connection list will be empty.
  • Page 218 Configuring Client Settings Configuring Service Access Settings 4. Click the drop-down menu to select the desired connection type. Two types are available: SSH and Telnet. 5. Type in the desired session name, the computer name or IP address of the remote server, the user name, and then click Save to confirm.

  • Page 219: Launching Ssh And Telnet Sessions

    Configuring Client Settings Configuring Service Access Settings 4.6.16 Launching SSH and Telnet Sessions To launch an SSH or Telnet session, please do the following: 1. Double click the created shortcut on the local desktop. 2. The SSH or Telnet session starts in the opened window. Example: SSH Session Example: Telnet Session...
  • Page 220 Configuring Client Settings...

  • Page 221: Appendices

    This chapter provides instructions on advanced settings, maintenance, and upgrade for your t180L/t180LB. A.1 Resetting Your t180L/t180LB to the Factory Default How to restore factory default settings for your t180L/t180LB A.2 Updating Firmware for Your t180L/t180LB Four ways to update firmware for your t180L/t180LB A.3 Using SECUREMATRIX Authentication for VMware Connections...

  • Page 223: Resetting Your T180L/T180Lb To The Factory Default

    • Resetting your t180L/t180LB to the factory default will erase all current settings in Atrust Client Setup and restore all settings to defaults. 1. Restart your t180L/t180LB. 2. During the POST (Power-on Self-Test) period, press Esc on the keyboard to enter Atrust Thin Client Menu. Atrust Thin Client Menu Normal Mode...

  • Page 224: Updating Firmware For Your T180L/T180Lb

    1. Connect your thin client to the network, and then restart it. 2. During the POST (Power-On Self-Test) period, press Esc on the keyboard to enter Atrust Thin Client Menu. 3. Select Firmware update and then follow the on-screen instructions to complete the task.
  • Page 225 To update firmware using Atrust Client Setup, please refer to section “4.2.6 Updating Firmware from the Management Computer” on page 48. Using Atrust Device Manager To update firmware using Atrust Device Manager, please refer to the User’s Manual for Atrust Device Manager.

  • Page 226: Using Securematrix Authentication For Vmware Connections

    • SECUREMATRIX authentication is not available in Quick Connection mode. 1. On the local desktop, click START > Settings > Atrust Client Setup to launch Atrust Client Setup. 2. Click Applications > VMware > Add to create a new entry of connection settings.
  • Page 227 NOTE • By default, SECUREMATRIX authentication is disabled. 5. Two fields appear for you to provide SECUREMATRIX related information. Type the server address of GSB server (the server for SECUREMATRIX authentication service). 6. Configure other connection settings if needed, and then click Save to confirm. 7.
  • Page 228 Using SECUREMATRIX Authentication in VMware Connections When SECUREMATRIX is enabled in your VMware connection, follow the steps and instructions below to use SECUREMATRIX authentication: 1. Click the shortcut on the local desktop or START menu. 2. A window appears to prompt for the Login ID of SECUREMATRIX authentication. 3.
  • Page 229 • For example, if your password pattern is shown as below, type or click numbers, 0, 0, 4, 5, 1, 3, 6, 2, in sequence. 6. A message appears when SECUREMATRIX authentication is completed. Click OK to continue. 7. A message appears prompting to provide credentials for access to VMware virtual desktops and applications. Click OK to continue.
  • Page 231 Changing Your Password Pattern for SECUREMATRIX Authentication To change your password pattern for SECUREMATRIX authentication, please do the following: 1. On the window prompting for the Login ID as shown, type your Login ID, and then click Change Password. 2. Type or click numbers under your old password pattern, and then click OK to continue. 3.
  • Page 232 4. Type or click numbers under your new password pattern again, and then click OK to continue. 5. A window appears showing your new password pattern in numerical order and prompting for confirmation. Click OK to confirm.

  • Page 233: Specifications

    Atrust Client Setup / Atrust Device Manager Security Kensington security slot Mount / Stand t180L: VESA mount kit / Stand, (W)68 x (H)10 x (D)111 mm t180LB: VESA mount kit, (W)62 x (H)14.5 x (D)114.5 mm Dimensions t180L: (W)39.5 x (H)143 x (D)103 mm t180LB: (W)39.5 x (H)162.2 x (D)103 mm...
  • Page 235 UM-t180L.LB-EN-16050510...

This manual is also suitable for:

T180lb

Table of Contents

Save PDF
