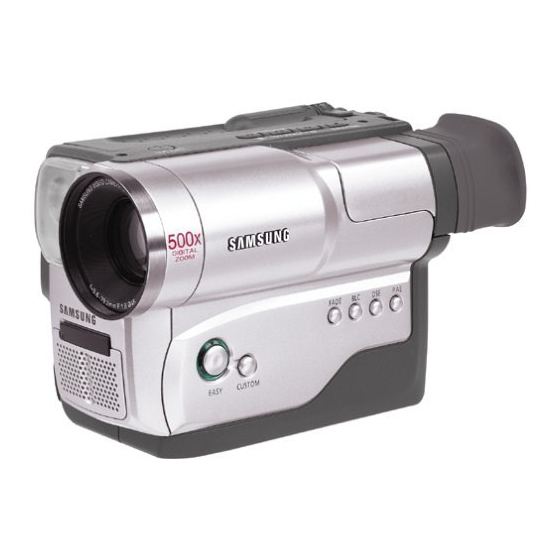

8mm CAMCORDER
SCW61/SCW62
VP-W61/VP-W63
VP-W60
SERVICE
For mechanical disassembly and adjustment, refer to the "Mechanical Manual"
(DE-6
AD68-30200A).
CAMCORDER
Manual
CONTENTS
1. Precautions
2. Product Specifications and
Comparison Chart
3. Disassembly and Reassembly
4. Alignment and Adjustment
5. Exploded View and Parts List
6. Electrical Parts List
7. PCB Diagrams
8. Wiring Diagram
9. Schematic Diagrams

Advertisement

Chapters

Table of Contents
loading

Related Manuals for Samsung SCW61

Summary of Contents for Samsung SCW61

  • Page 1 2. Product Specifications and Comparison Chart 3. Disassembly and Reassembly 4. Alignment and Adjustment 5. Exploded View and Parts List 6. Electrical Parts List 7. PCB Diagrams 8. Wiring Diagram 9. Schematic Diagrams © Samsung Electronics Co.,Ltd. FEB. 2001 Printed in Korea AD68-00385A...
  • Page 2 Alternatively, wear a dis- tion, replace the picture tube only with one that is the same type as the original. charging Wrist-strap device. (Be sure to remove it prior to applying power--this is an electric shock precaution.) Samsung Electronics...
  • Page 3 17. Observe the original lead dress, especially near the following areas : Antenna wiring, sharp edges, and especially the AC and high voltage power supplies. Always inspect for pinched, out-of-place, or frayed wiring. Do not change the spacing between components and the Samsung Electronics...
  • Page 4 Maximum shutter speed 1/10,000 sec Recommended illumination More than 100 lx Filter diameter 46 mm SCW61 : 0.24 inch B&W LCD, 76,800 pixel Electronic viewfinder SCW62 : 0.44 inch color LCD, 113,000 pixel Microphone Non-directional electret condenser microphone 1 Vp-p/75 ohms unbalanced Output level Audio terminal: –10 dBV, less than 820 ohms, unbalanced...
  • Page 5 3.97 x 4.09 x 6.85 in (101 x 104 x 174 mm) Weight 650g, Central luminosity : Approx. 12 lx at 6 ft 6 in (2cm) Video light Color temperature : Approx. 2,900K The technical specifications and design may be changed without notice. Samsung Electronics...
  • Page 6 Products Specifications and Comparison Chart 2-3 Comparison Chart 2-3-1. NTSC Models Model NTSC SCW61 SCW62 Features Format Video Light Remote Control Mono Mono Audio SNAP/SHOT 270K 270K 500X 500X Digital Zoom Ratio 2-3-2. PAL Models Model VP-W60 VP-W61 VP-W63 Features...
  • Page 7 Products Specifications and Comparison Chart MEMO MEMO Samsung Electronics...
  • Page 8 3. Disassembly and Reassembly 3-1. Cabinet and PCB 3-1-1 Ass’y Cover Housing Removal REMOVE 2 SCREWS. Remove the ass’y cover housing in the direction of arrow. Fig. 3-1 Ass’y Cover Housing Removal Samsung Electronics...
  • Page 9 REASSEMBLY : PUT THE 5 TABS INTO THE SLOTS, WHILE SLIDING IT AS SHOWN IN DETAIL "B". 1 LOCKING TAB "B" PRECISION SCREW DRIVER < DETAIL "A" > < DETAIL "B" > Fig. 4-2 Ass’y Case Top Removal Samsung Electronics...
  • Page 10 Disassembly and Reassembly 3-1-3 Ass’y Front Removal REMOVE THE ASS’Y FRONT IN THE DIRECTION OF ARROW. REMOVE 1 SCREWS. DISCONNECT THE HARNESS FROM THE CN701 OF ASS’Y MAIN PCB. Fig.3-3 Ass’y Front Removal Samsung Electronics...
  • Page 11 Disassembly and Reassembly 3-1-4 Ass’y Case Left Removal REMOVE THE ASS’Y-CASE LEFT IN THE DIRECTION OF ARROW. REMOVE 2 SCREWS. REMOVE 3 SCREWS. REMOVE 1 SCREW. Fig. 3-4 Ass’y Case Left Removal Samsung Electronics...
  • Page 12 Disassembly and Reassembly 3-1-5 Ass’y Case Right Removal REMOVE THE CASE RIGHT ASSEMBLY IN THE DIRECTION OF ARROW. REMOVE 1 SCREW. REMOVE 1 SCREW. REMOVE 2 SCREWS. REMOVE 1 SCREW. Fig. 3-5 Ass’y Case Right Removal Samsung Electronics...
  • Page 13 Disassembly and Reassembly 3-1-6 Ass’y EVF/CVF Removal REMOVE 3 SCREWS. REMOVE THE EVF/CVF ASS’Y IN THE DIRECTION OF ARROW. Fig. 3-6 Ass’y EVF/CVF Removal Samsung Electronics...
  • Page 14 Disassembly and Reassembly 3-1-7 Ass’y Rear Board Removal REMOVE THE REAR ASS’Y IN THE DIRECTION OF ARROW. REMOVE 2 SCREWS. Fig. 3-7 Ass’y Rear Board Removal Samsung Electronics...
  • Page 15 PULL OUT THE MAIN PCB FROM THE ASS’Y DECK IN THE DIRECTION OF ARROW DISCONNECT THE FPC FROM THE MAIN PCB. DISCONNECT CONNECTOR FROM THE HEAD-DRUM. REMOVE THE 2 SCREWS. Fig. 3-8 Ass’y Deck and Main PCB Removal Samsung Electronics...
  • Page 16 REMOVE 2 SCREWS. DISCONNECT CONNECTOR AND PULL OUT THE REMOVE SOLDER WITH ASS’Y LENS IN THE DIRECTION OF ARROW AN IRON TO ISOLATE SHIELD-CASE AND LENS. DISCONNECT FPC FROM THE CONNECTOR OF THE MAIN PCB. Fig. 3-9 Ass’y Camera Removal Samsung Electronics...
  • Page 17 Disassembly and Reassembly 3-2. Circuit Boards Location ASS’Y FRONT BOARD ASS’Y MAIN BOARD ASS’Y FUNCTION BOARD ASS’Y REAR BOARD Fig. 3-10 Circuit Boards Location 3-10 Samsung Electronics...
  • Page 18 CN802 FRONT PCB ASS’Y MIC MIC CONNECTOR MAIN PCB ASS’Y LENS PCB CNP02 LENS FPC MAIN PCB REAR PCB CN601 CN451 CN472 FUNCTION PCB ASS’Y EVF CNE01 CN603 MAIN PCB ASS’Y CVF CNV01 Fig. 3-11 Connector Diagrams Samsung Electronics 3-11...
  • Page 19 Disassembly and Reassembly MEMO MEMO 3-12 Samsung Electronics...
  • Page 20 PB RF - Pin 11 of CN452 Head Switching Trigger - Pin 9 of CN452 CN452 J453 CN452 SW478 SW477 PB RF Head Switching - Trigger J451 SW471 DC-JACK D451 Fig. 1 Test point Fig. 2 Test location of test point (Rear Board) Samsung Electronics...
  • Page 21 COMMON GROUND IC601 159PIN IC601 158PIN IC601 157PIN LOADING EJECT UNLOADING PLAY LOADING STOP STOP IC601 IC601 IC601 POSITION ACTION MODE 159PIN 158PIN 157PIN EJECT EJECT UNLOADING STOP UNLOADING STOP LOADING STOP LOADING STOP PLAY, FF, REW, STILL..Samsung Electronics...
  • Page 22 BLC (MODE UP) FADE (MODE DOWN) Mode change.(One step or 100 step) MENU ON/OFF (MODE UP ‘100’) MANUAL FOCUS RING (NEAR/FAR) Manual focus adjustment. ZOOM TELE 1) Move the zoom position of lens. ZOOM WIDE 2) Semi-Auto lens adjustment. Samsung Electronics...
  • Page 23 3. Eject the tape if it is in the unit. 4. Set the power switch of the camcorder to “CAMERA” position. STEP 3 0DF. ERR : A0 EVR : A0 Note : When ÒXX XXÓ is shown in service adjustment procedures, this indicates variable values. Samsung Electronics...
  • Page 24 ; AGC =#022 VALUE :#237- V ENHANCER MIN ; AGC MAX % (E5=90%) FOR H,V ENHANCER MIN (#021,022) ; IRIS CONTROL GAIN ‘80’=CENTER ; SHUTTER START POINT OF IRIS CONTROL PERCENT(FF=100% IRIS OPEN) ; AGC AETRGET PERCENT( =AETARGET*(#026/100hex) Samsung Electronics...
  • Page 25 ; AWB_hall_shutter HALL VALUE= INPUT HALL -(shutter/(80*#056)) ; PKOUD_IRIS ; PKOUD_FAR: ZOOM TELE & FOCUS FAR(5.9M) (#057+#058) LESS THEN ,SRTAT DECREASE RANGE ; PKSHUT_RAT ; PKOUD_AMIN ; Mg DIRECTION CONTROL LIMIT ; mAWB_Pkoud_step: ]UPPER 4BIT(INCREASE SPEED),LOWER 4BIT (DECREASE SPEED) Samsung Electronics...
  • Page 26 ; D6=’0’ MIDDLE ZOOM TRACK COMPENSATION ON=’00’ OFF=’40’) ; DSP AF HGSTART HIGH (AT ALL AREA) ; DSP AF HGSTART LOW (AT ALL AREA) ; DSP AF HGSTOP HIGH (AT ALL AREA) ; DSP AF HGSTOP LOW (AT ALL AREA) Samsung Electronics...
  • Page 27 ; FLEXZONE AF/AE WINDOW V OFFSET DIS ; V_YUKO(HIGH) VERTICAL EFFECTIVE H LINE NUMBER HIGH ; V_YUKO(HIGH) VERTICAL EFFECTIVE H LINE NUMBER LOW ; H_YUKO(HIGH) HORIZENTALL EFFECTIVE PIXEL NUMBER HIGH ; H_YUKO(HIGH) HORIZENTALL EFFECTIVE PIXEL NUMBER LOW ; H_HOSEI HORIZENTAL START/STOP OFFSET Samsung Electronics...
  • Page 28 ;Y M_F PEDESTAL LEVEL CHANGE ;OFFSET BINARY CODE (NTSC TPY:0E HEX) ;Y M_F PEDESTAL LEVEL CHANGE; 1=ADD, 0=SUB. ;FADE_LEV (FADE LEVEL) ;BLACK FADE TYP=C0 hex ;Y_WB NEGA = ‘1’ , POSI=’0’ ;HLENH_LM (HILIGHT ENHANCER LIMIT LEVEL) ; TEST MODE ;NEGA/POSI Samsung Electronics...
  • Page 29 AWB INITIALIZED BLOCK FIXED ;OFSMG_N (OFFSET Mg-G) ;OFSRB_N (OFFSET R-B) ;CW_LEV_G0 (aMGL : G WHITE DETECTIONAREA) ;CW_LEV_M0 (aMGH : Mg WHITE DETECTIONAREA) ;CW_LEV_B0 (aRBL : B WHITE DETECTIONAREA) ;CW_LEV_R0 (aRBH : R WHITE DETECTIONAREA) ;CB_LEV_G0 (bMGL : G WHITE DETECTIONAREA) 4-10 Samsung Electronics...
  • Page 30 ;OSDHD tr ;OSDHDSTARTPHASE(SCBLKSTARTPHASE; OSD) ;OSDHD rf ;OSDHDENDPHASE( OSD)-HIGH ;LOW ;CBLK tr (CBLK blanking STARTPHASE) ;CBLK tf (CBLK blanking ENDPHASE)-HIGH ;LOW ;CAMERA MODE(REC); LCDHD tf ,LCDHD STARTPHASE, LCD ;CAMERA MODE(REC); LCDHD tr, LCDHD END PHASE, LCD -HIGH ;LOW Samsung Electronics 4-11...
  • Page 31 CVF ADJUST LTG1( VCK1=LCD) TIMIMG DATA: FIXED LTG2( VCK2=LCD) TIMIMG DATA: FIXED LTG3( LCD) TIMIMG DATA: FIXED LTG4( LCD) TIMIMG DATA: FIXED LTG5( CLK=LCD) TIMIMG DATA: FIXED LTG6( ENABLE=LCD) TIMIMG DATA: FIXED LTG7( H.START=LCD) TIMIMG DATA: FIXED 4-12 Samsung Electronics...
  • Page 32 #438 CASIO-LCD ;VERTICAL/HORIZENTAL DIRECTION CONVERT #439 CASIO-LCD #43A CASIO-LCD VTR-PB SEARCH MODE LCD TIMING SETTING DATA FIXED CASIO-LCD ;SEARCH/STILL, HV COUNTER TEST DATA-LOW #3FD CASIO-LCD ofe2 #3FE CASIO-LCD ;SEARCH/STILL, SRT SIGNAL SHIFT -LOW #409 CASIO-LCD #40A CASIO-LCD Samsung Electronics 4-13...
  • Page 33 #3CA K g-y/b-y -HIGH ,gain 4TIMES(0~1023/64) #3CC #4F0 PB MODE #4F6 PB MODE #4FC PB MODE #502 PB MODE DIS REGISTER DIS_ON ZOOM_ON LSSC_ON MIRR_ON PIP_ON POWER PIP_MIRR BYPASS FRAME STILL1 STILL2 CEDGE_ON APT_ON OSD_ON TRA_ON GAMA_ON 4-14 Samsung Electronics...
  • Page 34 SCK CNT“SCK MASK(NTSC1820fH/3,PAL1824fH/3) ; PB MODE TG HCYCLE TG: H CYCLE SETTING (T=1/fs) : D11 ~ D9 TG HCYCLE TG: H CYCLE SETTING (T=1/fs) : D8 ~ D1 ;BACKUP_EMG_L VCR EEPROM DATA(LITHIUM BACKUP AREA) ;BACKUP_EMG_H ;BACKUP_TTLSELDATA ;BACKUP_TITLEDSPCUSSTATE(DISP_OFF)//SAMSUNG ;BACKUP_TITLEDSPSTATE(DISP_OFF)//CANON Samsung Electronics 4-15...
  • Page 35 ;NORMALLYPB PB/EDIT-PB : D33~D40 ;NORMALLYPB PB/EDIT-PB : D41~D48 ;NORMALLYPB PB/EDIT-PB : D49~D56 ;NORMALLYPB PB/EDIT-PB : D57~D64 ;NORMALLYPB PB/EDIT-PB : D65~D72 ;NORMALLYPB PB/EDIT-PB : D73~D80 ;NORMALLYPB PB/EDIT-PB : D81~D88 ;NORMALLYPB PB/EDIT-PB : D89~D96 ;NORMALLYPB PB/EDIT-PB : D97~D104 ;NORMALLYPB PB/EDIT-PB : D105~D112 4-16 Samsung Electronics...
  • Page 36 CAMERA R-Y BURST LEVEL ;CAM R-Y BURST LEVEL ;PB TBC OFF:PEDESTAL LEVEL ;PB TBC OFF:PB SYNC LEVEL ;SYNC SEP&AF ZONE ADD LEVEL ;Y AND CAM Y CLIP LEVEL ;CAM SYNC CUT LEVEL ;C RF OUTPUT A/D SETTING Samsung Electronics 4-17...
  • Page 37 CHANGED DATA BY MODEL ADDR MODEL/DATA CONTENT APPLY MODELS NTSC OPTION(DIS MODEL) VP-W63 OPTION(NON-DIS MODEL) SCW61/SCW62/VP-W60/VP-W61 AGC ON H ENHANCER VP-W63 AGC ON H ENHANCER SCW61/SCW62/VP-W60/VP-W61 AGC ON H CORE LEVEL VP-W63 AGC ON H CORE LEVEL SCW61/SCW62/VP-W60/VP-W61 AGC ON V CORE LEVEL...
  • Page 38 NOTE: NTSC NORMAL ADDR.3CD~552 :CVF MODEL (CVF ONLY:HI8/NORMAL) DATA NTSC HI8 MODEL INITIAL DATA (000~7FF) NTSC HI8 ; 0 PAGE DATA(000~0FF) // 0 NTSC HI8 ; 1 PAGE DATA(100~1FF) // 0 NTSC HI8 ; 2 PAGE DATA(200~2FF) // 0 Samsung Electronics 4-19...
  • Page 39 Alignment and Adjustment NTSC HI8 ; 3 PAGE DATA(300~3FF) // 0 NOTE: NTSC HI8 ADDR.3CD~552 :NON-CVF MODEL (LCD/EVF:HI8/NORMAL) NTSC HI8 ; 4 PAGE DATA(400~4FF) // 0 NTSC HI8 ; 5 PAGE DATA(500~5FF) // 0 4-20 Samsung Electronics...
  • Page 40 Alignment and Adjustment NTSC HI8 ; 6 PAGE DATA(600~6FF) // 0 NTSC HI8 ; 7 PAGE DATA(700~7FF) // 0 NTSC NORMAL MODEL INITIAL DATA (000~7FF) NTSC NORMAL ; 0 PAGE DATA(000~0FF) // 0 Samsung Electronics 4-21...
  • Page 41 Alignment and Adjustment NTSC NORMAL ; 1 PAGE DATA(100~1FF) // 0 NTSC NORMAL ; 2 PAGE DATA(200~2FF) // 0 NTSC NORMAL ; 3 PAGE DATA(300~3FF) // 0 4-22 Samsung Electronics...
  • Page 42 Alignment and Adjustment NOTE: NTSC NORMAL ADDR.3CD~552 :CVF MODEL (CVF ONLY:HI8/NORMAL) NTSC NORMAL ; 4 PAGE DATA(400~4FF) // 0 NTSC NORMAL ; 5 PAGE DATA(500~5FF) // 0 NTSC NORMAL ; 6 PAGE DATA(600~6FF) // 0 Samsung Electronics 4-23...
  • Page 43 Alignment and Adjustment NTSC NORMAL ; 7 PAGE DATA(700~7FF) // 0 4-24 Samsung Electronics...
  • Page 44 NOTE: PAL NORMAL ADDR.3CD~552 :CVF MODEL (CVF ONLY:HI8/NORMAL) DATA PAL HI8 MODEL INITIAL DATA (000~7FF) PAL HI8 ; 0 PAGE DATA(000~0FF) // 0 PAL HI8 ; 1 PAGE DATA(100~1FF) // 0 PAL HI8 ; 2 PAGE DATA(200~2FF) // 0 Samsung Electronics 4-25...
  • Page 45 Alignment and Adjustment PAL HI8 ; 3 PAGE DATA(300~3FF) // 0 NOTE: PAL HI8 ADDR.3CD~552 :NON-CVF MODEL (LCD/EVF:HI8/NORMAL) PAL HI8 ; 4 PAGE DATA(400~4FF) // 0 PAL HI8 ; 5 PAGE DATA(500~5FF) // 0 4-26 Samsung Electronics...
  • Page 46 PAL HI8 ; 7 PAGE DATA(700~7FF) // 0 NOTE: PAL NORMAL ADDR.3CD~552 :NON-CVF MODEL (LCD/EVF:NORMAL/NORMAL) DATA NOTE: PAL NORMAL ADDR.3CD~552 :CVF MODEL (CVF ONLY:NORMAL/NORMAL) DATA PAL NORMAL MODEL INITIAL DATA (000~7FF) PAL NORMAL ; 0 PAGE DATA(000~0FF) // 0 Samsung Electronics 4-27...
  • Page 47 Alignment and Adjustment PAL NORMAL ; 1 PAGE DATA(100~1FF) // 0 PAL NORMAL ; 2 PAGE DATA(200~2FF) // 0 PAL NORMAL ; 3 PAGE DATA(300~3FF) // 0 4-28 Samsung Electronics...
  • Page 48 Alignment and Adjustment NOTE: PAL NORMAL ADDR.3CD~552 :NON-CVF MODEL (LCD/EVF:NORMAL/NORMAL) PAL NORMAL ; 4 PAGE DATA(400~4FF) // 0 PAL NORMAL ; 5 PAGE DATA(500~5FF) // 0 PAL NORMAL ; 6 PAGE DATA(600~6FF) // 0 Samsung Electronics 4-29...
  • Page 49 Alignment and Adjustment PAL NORMAL ; 7 PAGE DATA(700~7FF) // 0 4-30 Samsung Electronics...
  • Page 50 The camera will move both zoom and focus lens. The adjustment is finished when the O.K! message appears on the TV screen. Store the data to mode 099, 09A, 0AA, 0AB, 0AD, 0C9, 0CA, 0CB and 0CC. (3M±1cm) (Be sure to maintain the distance.) LENS Samsung Electronics 4-31...
  • Page 51 - Store the data to mode 0B7. - IRIS closed, HALL minimum value found, - IRIS open, HALL maximum value found, - Store the data to mode 00A and mode 00B. - Store the HALL min./max. data to mode 0C1 and mode 0C2. 4-32 Samsung Electronics...
  • Page 52 R-Y axial on screen of the vectorscope. b-1. Aim the camera at a 5100¡K gray-scale Note : Bright dot shifts after the confirm button is (3100¡K+CCB12) chart illuminated at 1500 to pressed. 2000 lx. (40us) Samsung Electronics 4-33...
  • Page 53 Note : Bright dot shifts after the confirm button is ton to memorize setting. pressed. (outdoor : 034, 035) Note : Bright dot shifts after the confirm button is pressed. (outdoor : 038, 039) 70 IRE (NTSC) 500mV (PAL) 4-34 Samsung Electronics...
  • Page 54 DOWN)Ó button so that the Cyan vector is 284. 7) Be sure to press the ÒENTER (CONFIRM)Ó button to memorize setting. Note : Bright dot shifts after the confirm button is pressed. BLUE VECTOR 346 DEG. (outdoor : 03A, 03B) CYAN VECTOR 284 DEG. Samsung Electronics 4-35...
  • Page 55 165 DEG Note : Outdoor(5100¡K) color Gain & Hue adjust. - 5100¡K color bar (or 3100¡K color bar with CCB12 Filter) - Restart step 7. prewhite balance(I) ~ step 14. Ye-G Hue. - The outdoor(5100¡K) mode in 034~03F. 4-36 Samsung Electronics...
  • Page 56 Then unit goes into service mode. EPR : XX EVR : XX DATA DOWN MODE UP MODE ‘100’ UP CONFIRM MODE DOWN DATA UP Note : When XX XX is shown in service adjustment procedures, this indicates variable values. Samsung Electronics 4-37...
  • Page 57 2) Adjust ADDRESS that a data of 3DC is equal to 25(default). If you want you can adjust other data in range Ò15~35Ó (Adjustment of 3DD, 3DE is in the same way.) 3) Adjust ADDRESS that a data of 3DD is equal to 25(default). 4) Adjust ADDRESS that a data of 3DE is equal to 25(default). 4-38 Samsung Electronics...
  • Page 58 2) Adjust VRE02 and check that A level is 2.5Vp-p. if not, adjust A level to be 2.5Vp-p. 5PIN CONNECTOR A LEVEL 20us <Position of TP-V on EVF PCB> <TP-V Wave form> Notes : When XX XX is shown in service adjustment procedures, this indicates variable values. Samsung Electronics 4-39...
  • Page 59 Address of the adjustment mode. Name of the adjustment mode. : there are 061h to 1 ch.(refer xxxx) : every address have a name like this (refer xxx) Present data New data : be adjusted before. : be adjusted newly. 4-40 Samsung Electronics...
  • Page 60 5. If you want to finish the adjustment mode, you have to do ÒBattery ResetÓ. The ÒBattery ResetÓ means that you pull out the power source and pull in it again. Then, the adjustment is ended and the camcorder works normally. Samsung Electronics 4-41...
  • Page 61 FRONT PCB MAIN PCB AUDIO GND VIDEO OUT CN452 PB RF AUDIO OUT HD SW VCR UNREG JIG CS VCR UNREG JIG SCK SS GND JIG SO REAR PCB JIG DETECT JIG SI Fig. 1 Video Signal Connection 4-42 Samsung Electronics...
  • Page 62 Get into the VCR adjustment mode. d. Press the ÒBLC(MODE UP)Ó or ÒFADE(MODE MODEL NAME ADDRESSED CODE DOWN)Ó button of Camcorder so as to select SCW61 the address 061. NTSC e. Insert the Standard Color Bar Tape and press SCW62 the ÒPLAYÓ...
  • Page 63 6.5H(NTSC)/7.0H(PAL) automatically. EPR : XX EVR : XX<6.5H> g. Be sure to press the ÒENTER(CONFIRM)Ó but- ton on Camcorder to memorize setting. h. Reset the power source so as to fix the new data to the CamcorderÕs EEPROM. 4-44 Samsung Electronics...

  • Page 64: Table Of Contents

    5-9 Mechanical Parts (2) - - - - - - - - - - - - - - - - - - - - -5-18 5-10 Mechanical Parts (3) - - - - - - - - - - - - - - - - - - - - -5-20 Samsung Electronics...

  • Page 65: Cabinet Assembly (1)

    Exploded View and Parts List 5-1 Cabinet Assembly (1) 250 <SNA> Samsung Electronics...
  • Page 66 AD64-00425A BUTTON-EASY(W1);W1-PJ,ABS 94HB,-,-,NTR SCW61 AD64-00538A BUTTON-FUNCTION(W1);W1-PJ(PAL,DOM),ABS 9 VP-W60/61/63 AD64-00538B BUTTON-FUNCTION(W1);W1-PJ(NTSC),ABS 94HB SCW61/62 AD61-00600A HOLDER-LOCK EVF;W-PJ,-,-,-,-,POM GRY AD61-00594A RAIL-EVF;W1-PJ,-,-,-,-,-,- AD61-00595A RAIL-LOCK;W1-PJ,-,-,-,-,-,- AD97-02644A ASSY-CASE LEFT(W1);-,SCW61,W1-PJ SCW61/62 AD97-02646A ASSY-CASE LEFT(W1);-,VP-W61,W1-PJ VP-W60/61/63 AD64-00420A CASE-LEFT(W1);W1-PJ,V.LIGHT,ABS 94HB,-,G SCW61/62 AD64-00420B CASE-LEFT(W1);W1-PJ,SCW64,ABS 94HB,-,G35 VP-W60/61/63 AD64-00429A BUTTON-TAPE EJECT;W-PJ,ABS 94HB,-,-,G353 AD64-00430A BUTTON-VCR;W-PJ,ABS 94HB,-,-,G3532...

  • Page 67: Cabinet Assembly (2)

    Exploded View and Parts List 5-2 Cabinet Assembly (2) Samsung Electronics...
  • Page 68 Exploded View and Parts List Loc. No New Part No Description and Specification Remark AD97-02598A ASSY-CASE FRONT;-,VP-W61,500X,MIC(X),LIG VP-W60/61/63 AD97-02599A ASSY-CASE FRONT;-,SCW61,500X,MIC(X),LIGH SCW61/62 AD64-00533A CASE-FRONT;W-PJ,500X,MIC(X),ABS 94HB,-,- AD67-00115A LENS-HOOD(AL);W-PJ,-,-,A6063A-T5(AL10),- AD67-00038C LENS-HOOD(22X);W-PJ,-,SILK,ABS94HB,-,BLK AD63-00211A COVER-DUMMY LAMP;W-PJ,-,-,-,-,ABS94HB,- VP-W60/61/63 AD64-00534A MASK-LAMP;W-PJ,PC-CLR,-,-,- SCW61/62 AD67-00114A MIRROR-LAMP;W-PJ,TOPLAMID+AL,-,-,-,-,- AD64-00535A WINDOW-REMOCON;W-PJ,PMMA,-,-,-,-,BLUE,- AD97-01460A ASSY-MIC;CS2000,-,MONO...

  • Page 69: Cabinet Assembly (3)

    Exploded View and Parts List 5-3 Cabinet Assembly (3) 110 <SNA> 500 <SNA> Samsung Electronics...
  • Page 70 Loc. No New Part No Description and Specification Remark AD97-02725A ASSY-MAIN BOARD;-,W-P/J,PAL,VP-W61 VP-W61 <SNA> AD97-02726A ASSY-MAIN BOARD;-,W-P/J,PAL,VP-W63 VP-W63 <SNA> AD97-02727A ASSY-MAIN BOARD;-,W-P/J,NTSC,SC-W61 SCW61 <SNA> AD97-03177A ASSY-MAIN BOARD;-,W-P/J,PAL,VP-W60 VP-W60 <SNA> AD97-03178A ASSY-MAIN BOARD;-,W-P/J,NTSC, SC-W62 SCW62 <SNA> AD97-03025A ASSY-CAMERA;-,CS2001,NTSC,NORMAL SCW61/62 AD97-03026A ASSY-CAMERA;-,CS2001,PAL,NORMAL VP-W60/62/63 AD97-01683A ASSY-LENS-ZOOM;M-PRO,-,SEC-22X...

  • Page 71: Cabinet Assembly (4)

    Exploded View and Parts List 5-4 Cabinet Assembly (4) Samsung Electronics...
  • Page 72 Exploded View and Parts List Loc. No New Part No Description and Specification Remark AD97-02642A ASSY-COVER HOUSING;-,W-PJ,NORMAL VP-W60 AD97-02643A ASSY-COVER HOUSING;-,W-PJ,Hi8 SCW61/62/VP-W61/63 AD97-02605A ASSY-CASE RIGHT;-,W-PJ,EXP AD64-00419A CASE-RIGHT;W-PJ,-,ABS 94HB,-,G3532 AD64-00424A BUTTON-REC/STOP;W-PJ,ABS 94HB,-,-,G3532 AD61-00575A HOLDER-POWER;W-PJ,-,BLK,-,-,POM AD64-00433A KNOB-POWER;W-PJ,ABS 94HB,-,G3532,-,-,-,- AD64-00457A LOCKER-POWER;W-PJ,ABS94HB,GREEN,-,-,-,- AD61-00214A BRACKET-GRIP BACK;-,-,-,T0.8,-,SUS304,M1 AD59-00044A UNIT-BELT GRIP;W-PJ,-,-,-,-,-,-,-,-,-,SA...

  • Page 73: Cabinet Assembly (5)

    Exploded View and Parts List 5-5 Cabinet Assembly (5) 5-10 Samsung Electronics...
  • Page 74 Exploded View and Parts List Loc. No New Part No Description and Specification Remark AD63-00064D COVER-JIG;W-PJ,-,-,-,D/GRY,ABS94HB,- AD97-02734A ASSY-CASE REAR(W1);-,SCW61,NOR,D.ZOOM VP-W60 AD97-03186A ASSY-CASE REAR(W1);-,W1-PJ,HI8,D.ZOOM SCW61/62/VP-W61 AD97-03187A ASSY-CASE REAR(W1);-,W1-PJ,HI8,S.SHOT VP-W63 AD64-00418A CASE-REAR;W-PJ,-,ABS 94HB,-,- VP-W60 AD64-00418C CASE-REAR;W-PJ,-, VP-W63 AD64-00418E CASE-REAR;W-PJ,HI8,D.ZOOM,ABS 94HB,-,- SCW61/62/VP-W61 AD61-00577A BRACKET-REAR(W1);W1-PJ,SUS304,T0.8,-,- AD64-00423A BUTTON-SNAP SHOT;W-PJ,ABS 94HB,-,-,G3532...

  • Page 75: Cvf

    Exploded View and Parts List 5-6 CVF 5-12 Samsung Electronics...
  • Page 76 AD61-00599A HOLDER-CVF LENS;CS2001,ABS 94HB BLK,-,-, SCW62 AD67-00027A LENS--EVF-M-G1;-,-,PMMA,4.5,D13.8,-,0.44 SCW62 AD61-00306A GUIDE-CAP;-,ABS94HB BLK,-,-,BW/COL,1∞≥,M AD64-00451A KNOB-EVF;W1-PJ,POM,-,-,-,-,-,- AD73-00040A RUBBER-EYE CUP;W1-PJ,SILICON,-,-,-,-,-,- AD64-00452A CASE-EVF R;W1-PJ,-,ABS 94VO,-,BW/COL AD66-00105A LINK-EVF;W1-PJ,POM BLK,-,-,-,-,- AD66-00106A LINK-LOCK;W1-PJ,ABS 94HB,-,-,-,-,- AD64-00458A LOCKER-EVF;W1-PJ,POM,-,-,-,-,- AD61-00104A GUIDE-PLATE;-,SPTE T0.8,-,-,-,-,ES400V AD61-00297A SHAFT-EVF;-,SUS303,-,-,-,-,CS2000 AC60-10055A SCREW-TAPPING;BH,+,-,M2,X4,FZB AC60-10054A SCREW-TAPPING;BH,+,-,M2,X6,FZB AC60-10043A SCREW-TAPPING;TAP 1.7X6 Samsung Electronics 5-13...

  • Page 77: Evf

    Exploded View and Parts List 5-7 EVF 5-14 Samsung Electronics...
  • Page 78 Exploded View and Parts List Loc. No New Part No Description and Specification Remark AD64-00450B CASE-EVF L;W1-PJ/PAL,-,ABS94VO,-,- AC61-32047A PLATE-NUT;SECC,T0.8,-,-,SV-V40 AD61-00430A HOLDER-CVF TOP;SC-D55,ABS 94HB BLK,-,-,- SCW61/VP-W60/61/63 AD61-00408A HOLDER-CVF BOTTOM;M1-PJ/0.24INCH,-,-,-,- SCW61/VP-W60/61/63 AD97-02701A ASSY-EVF BOARD;-,-,W2-P/J,NTSC SCW61 AD97-02702A ASSY-EVF BOARD;-,-,W2-P/J,PAL VP-W60/61/63 AD61-00593A GUIDE-LENS;W1-PJ,ABS94HB,-,BW/COL,-,- AD61-00589A HOLDER-EVF LENS;CS2001V,ABS 94HB BLK,-,- SCW61/VP-W60/61/63 AD67-00025A LENS--EVF-M-G1;-,-,PMMA,3.5,D13,-,EVF...

  • Page 79: Mechanical Parts (1)

    Exploded View and Parts List 5-8 Mechanical Parts (1) 5-16 Samsung Electronics...
  • Page 80 AC60-12083A SCREW-MACHINE;B,BH,-,M1.7,L5,FE,WHT,-,- AD60-10500E SCREW-MACHINE;-,BWSH,+,UP,M2,L5,ZPCNYLOK AD60-10500D SCREW-MACHINE;-,BWSH,+,UP,M2,L7,ZPCNYLOK AC60-10017A SCREW-MACHINE;BH,+,M1.7,X3.5,FEFZY,SWCH1 AC60-12112A SCREW-BH;-,BH,+,M1.4,L2,- AC60-30015A WASHER-SLIT;ID 1.1,OD 2.6,T 0.4,POLYSLID AD96-10473P ASS’Y-HOUSING;DE-6B,- AD96-10471Z ASS’Y-DRUM;DE6A-PH-SS,- VP-W60/61/63 AD96-10471Y ASS’Y-DRUM;DE6A-NH-SS,- SCW61/62 AD66-40153A ROLLER-IMP ASS’Y;-,YF-10,OD7,-,DE-6 AC61-72009A CONTACT-EARTH BRUSH;SECC/PBSP/CR/C,-,-,- AC63-32091A COVER-DRUM;DURACON(M90-44),-,-,-,-,-,DE- AC63-30009A COVER-REEL ASS’Y;ABS 95,HB,-,-,-,-,DE-6,- AC66-12035A IDLER-ASS’Y;-,-,DE-6 Samsung Electronics 5-17...

  • Page 81: Mechanical Parts (2)

    Exploded View and Parts List 5-9 Mechanical Parts (2) 5-18 Samsung Electronics...
  • Page 82 WASHER-SLIT;ID 1,OD 2.6,T 0.4,POLYSLIDER AD31-12010A MOTOR-CAPSTAN;DE-6B SHS,-,- AD31-12001Q MOTOR-CAPSTAN;DMCCHL06A(DE-6),-,- AC66-22123A GEAR-CAPSTAN(ASS’Y);-,-,-,-,-,DE-6 AC66-22124A GEAR-PULLEY(ASS’Y);-,-,-,-,-,DE-6 AC66-62001A BELT-TIMMING;POLYURETHAN,L137 T0.4,-,-,- AC66-32197A LEVER-CAM;SUS430-CP,T0.6,-,-,DE-6,- AC66-42005A ROLLER-CAM MAIN;SUS303,-,-,PI3.5X1.1 AC66-22092A GEAR-CAM MAIN;SUS304-CSP,M0.5,Z64,-,-,- AC66-82055A SLIDER-MAIN(ASS’Y);-,-,-,-,DE-6 AC66-32198A LEVER-EJECT;DURANEX #3300,-,-,-,DE-6,- AC34-22001C SWITCH-MODE ASS’Y;HMW0484-01WA,DE-6,-,-,- AC66-22126A GEAR-LOADING;DURACON(99-44),M0.4,Z37 WO, AC31-12001P MOTOR-LOADING ASS’Y;DE-6,-,- Samsung Electronics 5-19...

  • Page 83: Mechanical Parts (3)

    Exploded View and Parts List 5-10 Mechanical Parts (3) 5-20 Samsung Electronics...
  • Page 84 AD61-60622A SPRING-REVIEW ARM;PS SUS304-WPB PI0.3 AC61-52014A POLE-BASE S(ASS’Y);ZDC2/SUS303,-,-,-,-,DE AC61-52015A POLE-BASE T(ASS’Y);ZDC2/SUS303,-,-,-,-,DE AC66-32221A BRAKE-SUB S(ASS’Y);-,-,-,-,DE-6,- AC66-12042A REEL-T(ASS’Y);-,-,-,DE-6 AC66-12041A REEL-S(ASS’Y);-,-,-,DE-6 AC66-32217A ARM-PINCH ROLLER(ASS;-,-,-,-,DE-6 AC66-32213A ARM-REVIEW ASS’Y;-,-,-,-,DE-6 AC66-32223A BRAKE-MAIN(T);DURACON(M904-44),-,-,-,-,- AC66-30120A BRAKE-SOFT T (ASS’Y);-,-,-,-,DE-6,- AC66-30093A ARM-TENSION (ASS’Y);SUS304-CSP POM FELT,- AC61-62022A SPRING-SOFT BRAKE(S);-,SUS304,-,-,-,-,- AC61-62023A SPRING-TENSION;-,SUS304-WPB,-,-,-,-,- Samsung Electronics 5-21...
  • Page 85 Exploded View and Parts List MEMO MEMO 5-22 Samsung Electronics...
  • Page 86 2203-002793 C-CERAMIC,CHIP;1000nF,+80-20%,25V,Y5V,TP C163 2203-001408 C-CERAMIC,CHIP;0.27nF,5%,50V,NP0,TP,1608 C510 2203-000715 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608 C167 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C511 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, C171 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C512 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608 C172 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C513 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608 C173 2203-002605 C-CERAMIC,CHIP;0.008nF,0.25pF,50V,NP0,TP C514 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608 C174 2203-000236 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1608 C515 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- Samsung Electronics...
  • Page 87 2203-005619 C-CERAMIC,CHIP;4700NF,10%,16V,X5R,TP,321 C618 2203-002793 C-CERAMIC,CHIP;1000nF,+80-20%,25V,Y5V,TP C913 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528,- C619 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C914 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528,- C620 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C916 2203-000483 C-CERAMIC,CHIP;1000nF,+80-20%,25V,Y5V,TP C621 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C917 2203-000483 C-CERAMIC,CHIP;1000nF,+80-20%,25V,Y5V,TP C622 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C920 2203-000483 C-CERAMIC,CHIP;1000nF,+80-20%,25V,Y5V,TP C623 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 C921 2203-000483 C-CERAMIC,CHIP;1000nF,+80-20%,25V,Y5V,TP Samsung Electronics...
  • Page 88 CNP02 3708-001575 CONNECTOR-FPC/FC/PIC;22P,0.5mm,SMD-A,SN CD02 2203-002793 C-CERAMIC,CHIP;1000nF,+80-20%,25V,Y5V,TP CP01 2404-000157 C-TA,CHIP;1uF,20%,35V,-,TP,3216,- CD03 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, CP02 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608 CD04 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528 CP03 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528,- CD05 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, CP04 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, CD06 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, CP05 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528,- CD07 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, CP06 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, Samsung Electronics...
  • Page 89 2703-000365 INDUCTOR-SMD;15uH,5%,2.5x2x1.8mm CP49 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- L172 2703-000375 INDUCTOR-SMD;82uH,5%,2.5x2x1.8mm CP50 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP, L173 2703-000381 INDUCTOR-SMD;220uH,5%,3.2x2.5x2.2mm D453 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323 L181 2703-002094 INDUCTOR-SMD;22uH,10%,2.5x2.0x1.8mm D601 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323 L186 2703-000375 INDUCTOR-SMD;82uH,5%,2.5x2x1.8mm D602 0402-001442 DIODE-RECTIFIER;-,30V,0.03A,SOD-323,TP L187 2703-000376 INDUCTOR-SMD;8.2uH,5%,2.5x2x1.8mm D603 0402-001442 DIODE-RECTIFIER;-,30V,0.03A,SOD-323,TP L201 2703-000409 INDUCTOR-SMD;47uH,10%,3.2x2.5x2.2mm Samsung Electronics...
  • Page 90 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32 R118 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 Q187 0504-001038 TR-DIGITAL;KRC402,NPN,100MW,10K/10K,SOT- R119 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 Q188 0501-002312 TR-SMALL SIGNAL;HN2C01FU,NPN,200mW,UMD6, R120 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608 Q189 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP R121 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608 Q451 0505-001417 FET-SILICON;TPC8303,P,-30V,-4.5A,55mohm, R124 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608 Q452 0501-000546 TR-SMALL SIGNAL;KSA1298,PNP,200mW,SOT-23 R130 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608 Samsung Electronics...
  • Page 91 2007-000483 R-CHIP;1OHM,5%,1/10W,DA,TP,2012 R178 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608 R522 2007-000483 R-CHIP;1OHM,5%,1/10W,DA,TP,2012 R179 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 R523 2007-000483 R-CHIP;1OHM,5%,1/10W,DA,TP,2012 R180 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608 R524 2007-000483 R-CHIP;1OHM,5%,1/10W,DA,TP,2012 R181 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608 R525 2007-000483 R-CHIP;1OHM,5%,1/10W,DA,TP,2012 R182 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 R526 2007-000483 R-CHIP;1OHM,5%,1/10W,DA,TP,2012 R183 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608 R527 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 Samsung Electronics...
  • Page 92 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012 R603 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 R656 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608 R605 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 R657 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608 R606 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 R658 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608 R608 2007-000065 R-CHIP;2.2Mohm,5%,1/16W,DA,TP,1608 R659 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608 R609 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608 R660 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608 R610 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608 R662 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 Samsung Electronics...
  • Page 93 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608 R708 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608 R933 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608 R709 2007-000462 R-CHIP;18OHM,5%,1/10W,DA,TP,2012 R934 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 R710 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608 R935 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 R711 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 R936 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 R713 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 R937 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 R714 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 R939 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608 Samsung Electronics...
  • Page 94 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012 RP41 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 RL26 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012 RP42 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 RL27 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 RP43 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 RL28 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012 RP44 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 RL29 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012 RP45 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 RL30 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 RP46 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 RL31 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 Samsung Electronics...
  • Page 95 LE01 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm R471 2004-000971 R-METAL;470ohm,1%,1/8W,AA,TP,1.8x3.2mm LE03 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm R472 2004-000413 R-METAL;18Kohm,1%,1/8W,AA,TP,1.8x3.2mm QE02 0501-002310 TR-SMALL SIGNAL;HN1B04FU,PNP/NPN,200mW,U R473 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8 RE01 2007-001125 R-CHIP;68Kohm,1%,1/16W,DA,TP,1608 R474 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8 RE02 2007-001068 R-CHIP;6.8Kohm,1%,1/16W,DA,TP,1608 R475 2004-000971 R-METAL;470ohm,1%,1/8W,AA,TP,1.8x3.2mm RE05 2007-000828 R-CHIP;39Kohm,1%,1/16W,DA,TP,1608 R476 2004-000413 R-METAL;18Kohm,1%,1/8W,AA,TP,1.8x3.2mm 6-10 Samsung Electronics...
  • Page 96 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, CNC01 3711-004241 CONNECTOR-HEADER;BOX,18P,2R,1MM,SMD-A,SN DC02 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323 QC01 0505-000180 FET-SILICON;2SK1070,N,-,50mA,-,150mW,SOT RC01 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608 RC02 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 RC03 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608 RC05 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608 RC07 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 ASSY-FRONT BOARD CN801 AD39-00054A CBF HARNESS;-,-,-,12P,-,-,-,35023,TAPE,5 Hi8/NTSC CN802 3711-000780 CONNECTOR-HEADER;BOX,2P,1R,1.25mm,STRAIG Hi8/NTSC Samsung Electronics 6-11...
  • Page 97 Electrical Parts List MEMO MEMO 6-12 Samsung Electronics...
  • Page 98 7-7 Function PCB - - - - - - - - - - - - - - - - - - - - - - - - - - 7-10 7-8 Front PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-11 Samsung Electronics...

  • Page 99: Main Pcb (Normal) (Component Side)

    PCB Diagrams 7-1 Main PCB (Component Side) Samsung Electronics...
  • Page 100 PCB Diagrams Samsung Electronics...

  • Page 101: Main Pcb (Normal) (Conductor Side)

    PCB Diagrams 7-2 Main PCB (Conductor Side) Samsung Electronics...
  • Page 102 PCB Diagrams Samsung Electronics...

  • Page 103: Rear Pcb

    PCB Diagrams 7-3 Rear PCB (Component Side) (Conductor Side) Samsung Electronics...

  • Page 104: Ccd Pcb

    PCB Diagrams 7-4 CCD PCB (Component Side) (Conductor Side) Samsung Electronics...

  • Page 105: Evf Pcb

    PCB Diagrams 7-5 EVF PCB (Component Side) (Conductor Side) Samsung Electronics...

  • Page 106: Cvf Pcb

    PCB Diagrams 7-6 CVF PCB Samsung Electronics...

  • Page 107: Function Pcb

    PCB Diagrams 7-7 Function PCB 7-10 Samsung Electronics...

  • Page 108: Front Pcb

    PCB Diagrams 7-8 Front PCB CN802 B CN802 A EXT-MIC O EXT-MIC X Samsung Electronics 7-11...
  • Page 109 PCB Diagrams MEMO MEMO 7-12 Samsung Electronics...
  • Page 110 8. Wiring Diagram Samsung Electronics...
  • Page 111 Wiring Diagram MEMO MEMO Samsung Electronics...
  • Page 112 9-10 CVF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9-13 9-11 Pre-Amp - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9-14 Samsung Electronics...

  • Page 113: Option List

    Schematic Diagrams OPTION LIST VALUE(BASIC) SCW61 SCW62 VP-W60 VP-W61 VP-W63 OPTION VALUE(BASIC) SCW61 SCW62 VP-W60 VP-W61 VP-W63 OPTION C201 10/10V,10V,* CV24 103,50V,* C202 SE0G221,4V,* CV25 103,50V,* C205 104,16V,* CV26 103,50V,* C530 472,50V,* NTSC D903 KDS160,85V,* LCD-O 562,50V,* DD01 MA110,40V,* DIS+PAL+Hi8...
  • Page 114 Schematic Diagrams VALUE(BASIC) SCW61 SCW62 VP-W60 VP-W61 VP-W63 OPTION VALUE(BASIC) SCW61 SCW62 VP-W60 VP-W61 VP-W63 OPTION R575 000,(1/16W),* RV06 47K,(1/16W),* R576 000,(1/16W),* RV07 47K,(1/16W),* R577 000,(1/16W),* RV08 3.3K,(1/16W),* R578 000,(1/16W),* RV09 3.3K,(1/16W),* R579 000,(1/16W),* RV12 100K,(1/16W),* R580 000,(1/16W),* RV14 2.2K,(1/16W),*...

  • Page 115: Dc/Dc Converter (Main)

    Schematic Diagrams 9-1 DC/DC Converter (Main) Samsung Electronics...

  • Page 116: System Control

    Schematic Diagrams 9-2 System Control (Main) Samsung Electronics...

  • Page 117: Audio (Main)

    Schematic Diagrams 9-3 Audio (Main) Samsung Electronics...

  • Page 118: Camera (Main)

    Schematic Diagrams 9-4 Camera (Main) Samsung Electronics...

  • Page 119: Rear

    Schematic Diagrams 9-5 Rear Samsung Electronics...

  • Page 120: Ccd

    Schematic Diagrams 9-6 CCD ICC01 ICX206AK-L (NTSC) ICX207AK-L (PAL) Samsung Electronics...

  • Page 121: Front

    Schematic Diagrams 9-7 Front 9-10 Samsung Electronics...

  • Page 122: Function

    Schematic Diagrams 9-8 Function Samsung Electronics 9-11...

  • Page 123: Evf

    Schematic Diagrams 9-9 EVF 9-12 Samsung Electronics...

  • Page 124: Cvf

    Schematic Diagrams 9-10 CVF Samsung Electronics 9-13...

  • Page 125: Pre-Amp

    Schematic Diagrams 9-11 Pre-Amp 9-14 Samsung Electronics...
