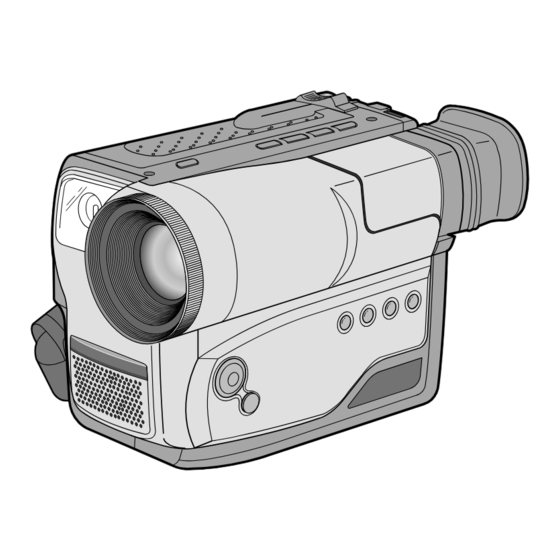

Page 1: Video Camcorder
ENGLISH Video Camcorder SCW61/W62 SCW61/W62 Owner’s Instruction Book Before operating the unit, please read this instruction book thoroughly, and retain it for future reference. ELECTRONICS... -
Page 2: Table Of Contents
Making your First Recording ...26 Hints for Stable Image Recording ...28 Recording with Viewfinder ...28 Adjusting Focus of the VIEWFINDER...28 Playing back a tape on the CAMCORDER...29 Viewing a Still Picture...30 Picture Search ...30 Advanced Recording Zooming In and Out ...31 Digital Zoom ...32... - Page 3 Various Functions in PLAYER mode...52 Multi Playback (Using the PAL60 System) ...53 DSE in PLAYER mode...54 Maintenance Cleaning and Taking care of the Camcorder ...54 Cleaning the Viewfinder ...54 Cleaning the Video Heads ...55 Storing the Camcorder ...55 Using Your Camcorder Abroad Troubleshooting Self Diagnosis Display ...57...
-
Page 4: Notices And Safety Instructions
ENGLISH Notices and Safety Instructions Taking care of the battery pack Do not allow any metal objects to touch the terminals, as this can cause a short circuit and damage the battery pack. Keep the terminals clean. The camera, adapter or battery pack will not work properly if the terminals are dirty. Check them before use, and wipe them with a dry cloth or tissue if necessary. - Page 5 When you take the camcorder from cold temperature outside to warm temperature inside during the winter. When you take the camcorder from cool temperature inside to hot temperature outside during the summer. 2) If the “DEW” protection feature is activated, leave the camcorder in a dry, warm room with the cassette compartment opened and the battery removed.
- Page 6 To preserve battery power, keep your camcorder turned off when you are not operating it. When your camcorder is in CAMERA mode, if it is left in STANDBY for more than 5 minutes without operation, it will automatically turn off to protect against unexpected battery discharge.
- Page 7 Do not use a wet type cassette cleaner. It may damage the video heads. (see page 55) 5 minutes off timer in STANDBY mode To protect against tape and head-drum wear, your camcorder will automatically turn off if it is left in STANDBY mode without operation for more than 5 minutes.
-
Page 8: Safety Instructions
8. ACCESSORIES: Do not place this CAMCORDER on an unstable cart, stand, tripod, bracket or table. The CAMCORDER may fall, causing serious injury to a child or adult, and serious damage to the unit. - Page 9 CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register.
- Page 10 When the power-supply cord or plug is damaged. b. If any liquid has been spilled onto, or objects have fallen into the CAMCORDER. c. If the CAMCORDER has been exposed to rain or water. d. If the CAMCORDER does not operate normally...
- Page 11 ENGLISH Notices and Safety Instructions NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.
-
Page 12: Getting To Know Your Camcorder
This mode enables even the beginner to easily make a recording. (see page 34) Multi PLAYBACK (PAL60) PAL60 is a special output signal format with which a tape recorded on this camcorder (NTSC format) can be viewed on a PAL TV. -
Page 13: Front View/Side View/Rear View
Getting to Know Your Camcorder Front View 3. PLAY/STILL (LIGHT) 2. EDIT (REW) 6. TAPE EJECT 11. VIDEO LIGHT 1. LENS 8. MIC 10. EASY 1. Lens (see page 61) 2. EDIT (REW) EDIT works in STANDBY mode. (see page 27) REW works in PLAYER mode. - Page 14 ENGLISH Getting to Know Your Camcorder Side View 16. P.AE 18. BLC 19. FADE 17. DSE 23. Lithium Battery 12. BATTERY EJECT 13. MENU ON/OFF (see page 42) MENU ON/OFF works in CAMERA and PLAYER mode. 14. ENTER (MF) (see page 42) ENTER works in MENU mode.
- Page 15 29. Hand Strap (see page 19) 30. POWER Switch (see page 22) - CAMERA : Select to record. - OFF : Select to turn off the camcorder. - PLAYER : Select to play back. 30. POWER Switch 31. START/STOP (see page 26) START/STOP works in CAMERA mode.
-
Page 16: Osd (On Screen Display)
ENGLISH Getting to Know Your Camcorder OSD (On Screen Display) You can turn the OSD on/off by setting the Display menu on/off. The TITLE, DATE/TIME, EASY and CUSTOM functions can be operated even after the OSD is turned off. The OSD is displayed in the viewfinder and the monitor. - Page 17 Indicates the recorded title you have set. It is superimposed on the scene. Self diagnosis (see page 57) (TAPE, TAPE END) Checks the operation of the Camcorder. m. DSE (Digital Special Effect) (see page 40) Indicates the DSE mode is activated.
-
Page 18: Accessories Supplied With The Camcorder
ENGLISH Getting to Know Your Camcorder Accessories Supplied with the Camcorder Make sure that the following basic accessories are supplied with your camcorder. Basic Accessories 1. AC Power Adapter. (see page 21) 2. AC cord. (see page 21) 3. Battery Pack. (see page 22) 4. -
Page 19: Preparing
It is very important to adjust the hand strap for better recording. The hand strap enables you to: - Hold the camcorder in a stable, comfortable position. - Press the Zoom and the red Record button without having to change the position of your hand. -
Page 20: Lithium Battery Installation
The lithium battery maintains the clock function, title and preset contents of the memory; even if the battery pack or AC power adapter is removed. The lithium battery for the camcorder lasts about 8~10 months under normal operation from the time of installation. -
Page 21: Connecting The Power Source
Make sure that the image appears in the Viewfinder. Note: If the adapter is used next to a TV or the camcorder, it may cause the TV or camcorder to emit noise. Move the adapter away from the TV, camcorder or the antenna cable. -
Page 22: To Use The Battery Pack
On for a second and off for a second : Indicates there is an error. Reset the battery pack and DC cable. 5. If recharging is completed, separate the camcorder, AC power adapter, and battery pack. Even if the power is turned off, battery will be discharged. -
Page 23: Using The Battery Pack
Preparing Using the Battery Pack Continuous recording time table based on model and battery type Model SCW61 Battery Type Approximately SB-L110A 150 minutes Approximately SB-L160 220 minutes Approximately SB-L320 430 minutes Approximately SB-L480 640 minutes The continuous recording times given in the table are approximate. Actual recording time depends on usage. -
Page 24: Battery Level Display
77°F(25°C). As environmental temperatures and conditions may be different when you actually use the camcorder, the remaining battery time may not be the same as the approximate continuous recording times given in these instructions. -
Page 25: Inserting And Ejecting A Cassette
Preparing Inserting and Ejecting a Cassette There are several cassette types, depending on: Color system used Recording/Playback time Inserting and Ejecting a Cassette Check to see if the battery pack is in place or AC adapter is connected. 1. Press the EJECT button. The compartment opens automatically. -
Page 26: Basic Recording
Make sure the battery level indicates that there is enough remaining power for recording. (see page 24) We recommend that beginners, who are using the camcorder for the first time, switch the EASY mode on. (see page 34) a. To start recording, press the red START/STOP button. - Page 27 Viewfinder. When a cassette is loaded and the camcorder is left in STANDBY mode for over 5 minutes without being used, it will turn off automatically. To use it again, push the red START/STOP button or set the power switch to OFF and then back to CAMERA.
-
Page 28: Hints For Stable Image Recording
(refer to figure) Recording with the Viewfinder 1. Hold the camcorder firmly with the hand strap. (see page 19) 2. Place your right elbow against your side. 3. Place your left hand under the camcorder to support it. -
Page 29: Playing Back A Tape On The Camcorder
You can see the video you recorded in the Viewfinder. To stop the PLAY operation, press the Note: You can also monitor the picture on a TV screen, after connecting the camcorder to a TV or VCR. (see page 50) PLAYER (STOP) button. -
Page 30: Viewing A Still Picture
ENGLISH Basic Recording Viewing a Still Picture Press (PLAY/STILL) button during playback. To resume playback, press the (PLAY/STILL) button again. Picture Search Keep pressing (FF) or during playback. To resume normal playback, release the button. PLAY/STILL (REW) button... -
Page 31: Advanced Recording
Advanced Recording Zooming In and Out Zoom works in CAMERA mode only. Zooming is a recording technique that lets you change the size of the subject in the picture. For more professional looking recordings, use the zoom function sparingly. You can also choose from two zoom speeds to suit different needs: Gradual zoom (9~12 seconds from TELE/WIDE to WIDE/TELE) High-Speed zoom (3~6 seconds from TELE/WIDE to WIDE/TELE) Use these features for different shots;... -
Page 32: Digital Zoom
ENGLISH Advanced Recording Digital Zoom Digital Zoom works in CAMERA mode only. Zooms more than 22x are performed digitally. The picture quality deteriorates as you go towards the “T” side. 1. Set the power switch to CAMERA mode. 2. Make sure that the DIGITAL ZOOM feature is on. (see page 33) 3. - Page 33 Advanced Recording Setting the DIGITAL ZOOM ON/OFF (SCW61/W62) 1. Set the power switch to CAMERA mode. 2. Press D. ZOOM ON/OFF button. The DIGITAL ZOOM indicators will be displayed on the screen, and DIGITAL ZOOM function will operate. 3. To deactivate DIGITAL ZOOM function, press the D.ZOOM button again.
-
Page 34: Easy Mode (For Beginners)
Battery level, recording mode, counter, date/time will be displayed as the camcorder starts to run. The word “EASY” will appear on the Viewfinder at the same time. -
Page 35: Custom-Creating Your Own Customized Recording Settings
Advanced Recording CUSTOM-Creating your own customized recording settings You can customize the settings and save them for future use. The CUSTOM function only operates in CAMERA mode. 1. Set the power switch to CAMERA mode. 2. Press the MENU ON/OFF button, to bring up the MENU list. 3. -
Page 36: Mf/Af (Manual Focus/Auto Focus)
In the following situations, you should obtain better results by adjusting the focus manually. a. A picture containing several objects, some close to the camcorder, others further away. b. A person enveloped in fog or surrounded by snow. c. Very shiny or glossy surfaces like a car. -
Page 37: Blc
Advanced Recording 4. Turn the UP/DOWN dial up or down until the object is focused. 5. You will obtain a sharp picture after you zoom out. 6. To return to AF(Auto Focus), press the MF button again. Note: The MF function will not operate in EASY, CUSTOM or MENU mode. -
Page 38: Program Ae (Automatic Exposure)
ENGLISH Advanced Recording PROGRAM AE (Automatic Exposure) The PROGRAM AE function works in the CAMERA mode only. The PROGRAM AE modes allow you to adjust shutter speeds and apertures to suit different recording conditions. They give you creative control over the depth of the field. There are 6 automatic exposure modes. - Page 39 Advanced Recording Setting the PROGRAM AE(Automatic Exposure) mode 1. Set the power switch to CAMERA mode. 2. Press the P.AE button, the ( ) symbol will be displayed. 3. Press the P.AE button until the appropriate symbol is displayed. No Display : Full Auto mode. Notes: The screen status that is changed by the P.AE button will be recorded on the tape.
-
Page 40: Dse (Digital Special Effects) In Camera Mode
ENGLISH Advanced Recording DSE (Digital Special Effects) in CAMERA mode The digital effects enable you to give a creative look to your recording by adding various special effects. Select the appropriate digital effect for the type of picture that you wish to record. There are 8 DSE modes. - Page 41 Advanced Recording Selecting and recording DSE effects 1. Set the power switch to CAMERA mode. 2. Press the DSE button, SEPIA will be displayed. 3. Keep pressing the DSE button, until the desired mode is displayed. 4. Press the START/STOP button to start recording. 5.
-
Page 42: Setting And Recording The Date/Time
ENGLISH Advanced Recording Setting and Recording the DATE/TIME Setting and recording the date/time feature works in the CAMERA mode only. You can record the date/time on the tapes, so you will know when it was made. The date and time are recorded whenever they are displayed on the viewfinder. - Page 43 4. Press the START/STOP button to record the DATE/TIME on your recording. Notes: If your date and time settings are not maintained in the camcorder, it means the installed LITHIUM BATTERY is discharged. (see page 20) You cannot conceal the recorded date or time during playback.
-
Page 44: Selecting And Recording A Title
Selecting and Recording a Title Selecting and recording a TITLE is possible in the CAMERA mode only. The TITLE feature allows you to select a preset title stored in the camcorder’s memory. You can also select the language of the titles. - Page 45 9. Press ENTER. The selected title will appear on the screen for 2 ~ 3 seconds and will disappear. At the same, the camcorder will return to the menu mode. Recording a Title Note: Make sure that you have selected a TITLE from the TITLE list.
-
Page 46: Fade In And Out
ENGLISH Advanced Recording Fade In and Out The FADE function works in CAMERA mode only. You can give your films a professional look by using special effects such as fading in and out at the beginning or end of a sequence. To Start Recording 1. -
Page 47: White Balance
Advanced Recording White Balance WHITE BALANCE is a recording function that preserves the unique color of the object in any recording condition. You may select the appropriate WHITE BALANCE mode to obtain good quality color of the image. AUTO: This mode is generally used to control the WHITE BALANCE automatically. INDOOR: controls WHITE BALANCE according to the indoor ambience. -
Page 48: Demonstration
ENGLISH Advanced Recording Demonstration Demonstration automatically shows you the major functions that are included with your camcorder so that you may use them more easily. The DEMO function is only available in CAMERA mode when you are not recording. The Demonstration operates repeatedly until the POWER switch set to OFF. -
Page 49: Lighting Techniques
Advanced Recording Lighting Techniques When you use your camcorder, there are only two possible recording environments. You will be recording outdoors (Normal recording or through an ND(Neutral Density) filter). You will be recording indoors (Video light recommended or required). The single greatest influence on picture quality is the level of brightness, measured in lux. -
Page 50: Playing Back A Tape
The white plug: Audio(L) Connecting to a TV which has no Audio and Video input jack You can connect your camcorder to a TV through a VCR. Set the input selector on the VCR to LINE. The yellow plug: Video... - Page 51 If the tape reaches its end during playback, the tape will rewind automatically. Notes: The system are selected automatically, depending on the tape format. SCW61/W62 can playback both Hi8 and 8mm tapes. This camcorder does not support LP recording and playback. ENGLISH PLAYER...
-
Page 52: Various Functions In Player Mode
Press (PLAY/STILL) button during playback. To resume playback, press Note: Your camcorder will automatically stop if it is left for more than 5 minutes in STILL mode without operation in order to prevent tape and head-drum wear. To locate a scene (picture search) -
Page 53: Multi Playback (Using The Pal60 System)
Playing back a Tape Multi Playback (using the PAL60 System) This Camcorder can convert an NTSC tape recorded in the SP mode to the “PAL60” format, allowing you to view it on a PAL TV which has Vertical sync adjustment circuitry for 60Hz. -
Page 54: Dse In Player Mode
Pressing the DSE button will scroll through the available settings. Stop at the one you require. Maintenance Cleaning and Taking care of the Camcorder Cleaning the Viewfinder Releasing the Eyecup 1. Pull the VIEWFINDER up and then turn the screw counter-clockwise. -
Page 55: Cleaning The Video Heads
2. Keep the camcorder in a ventilated, dry and warm place. 3. Do not keep the camcorder in a place where the temperature often changes, such as in a car. 4. Keep the camcorder in a stable place. -
Page 56: Using Your Camcorder Abroad
Before using your camcorder abroad, check the following: Power sources You can use your camcorder in any country or area that uses 100V to 240V, 50/60 Hz. Use a commercially available AC plug adapter, if necessary, depending on the power used. -
Page 57: Troubleshooting
TAPE END slow the tape has almost reached its end. TAPE END the tape reached its end TAPE slow there is no tape in the camcorder. TAPE slow the tape is protected from recording. D.EMG slow the camcorder has some C.EMG... -
Page 58: Checking
Troubleshooting Checking If you run into any problem using the camcorder, use the following table to troubleshoot the problem. If these instructions do not allow you to solve the problem, take a note of: The model and serial number marked on the bottom of the camcorder. - Page 59 Explanation/Solution The contrast between the subject and the background is too great for the camcorder to operate normally. Make the back- ground bright to reduce the contrast or use the BLC function while you are recording. (see page 37) The viewfinder lens has not been adjusted.
-
Page 60: Moisture Condensation
If the camcorder is brought directly from a cold place to a warm place, moisture may condense inside the camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or the unit may not operate correctly. -
Page 61: Specifications
Mini jack, 7.7 dBs, imp.: less than 820 ohms General Power requirements DC 8.4 V (1.5 A) Power consumption SCW61/W62: 3.3 W Built-in mic Condenser mic, omni-directional Operating temperature 0°C to 40°C (32°F to 104°F) Dimension (W * H * D) 101 * 104 * 174 (mm) ;... -
Page 62: Index
ENGLISH Index - A - ABROAD...56 AC POWER ADAPTER ...21 AF ...36 AUDIO...50 AUTO FOCUSING ...36 AUTO MODE ...38 AUTO POWER OFF ...27 - B - BATTERY...22 BATTERY LEVEL ...24 BATTERY PACK ...22 BLC ...37 - C - CAMERA...21 CASSETTE ...25 CASSETTE HOLDER...15 CLEANING...55 CONTENTS ...2... - Page 63 Index - O - OPERATION MODE ...17 OSD ...16 - P - PLAY ...51 PLAYER ...51 PORTRAIT MODE ...38 POWER CONSUMPTION ...61 POWER REQUIREMENT...61 POWER SWITCH ...21 PROGRAM AE...38 - R - RECHARGING...22 RECORDING ...26 REW (REWIND) ...52 - S - SAFETY INSTRUCTIONS ...4 SAND/SNOW MODE...38 SELF DIAGNOSIS ...57...
-
Page 64: Warranty
SEA will repair or replace the product at it’s option. All warranty repairs must be performed by a SEA authorized service center. The name and address of the location nearest you can be obtained by calling toll free: 1-800 SAMSUNG (1-800-726-7864). Labor 90 days carry-in... - Page 65 THIS CAMCORDER IS MANUFACTURED BY: ELECTRONICS SAMSUNG Electronics America Inc. 105 Challenger Road, Ridgefield Park N.J 07660-0511 Tel: 1-800-SAMSUNG (1-800-726-7864) *Samsung Electronics’ Internet Home Page AD68-00375B http://www.samsungusa.com...
